£ 85.00

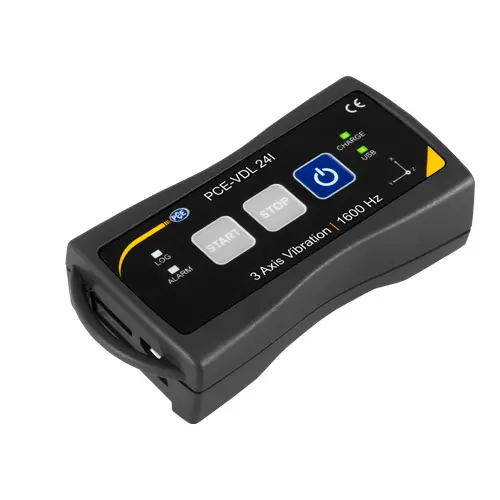

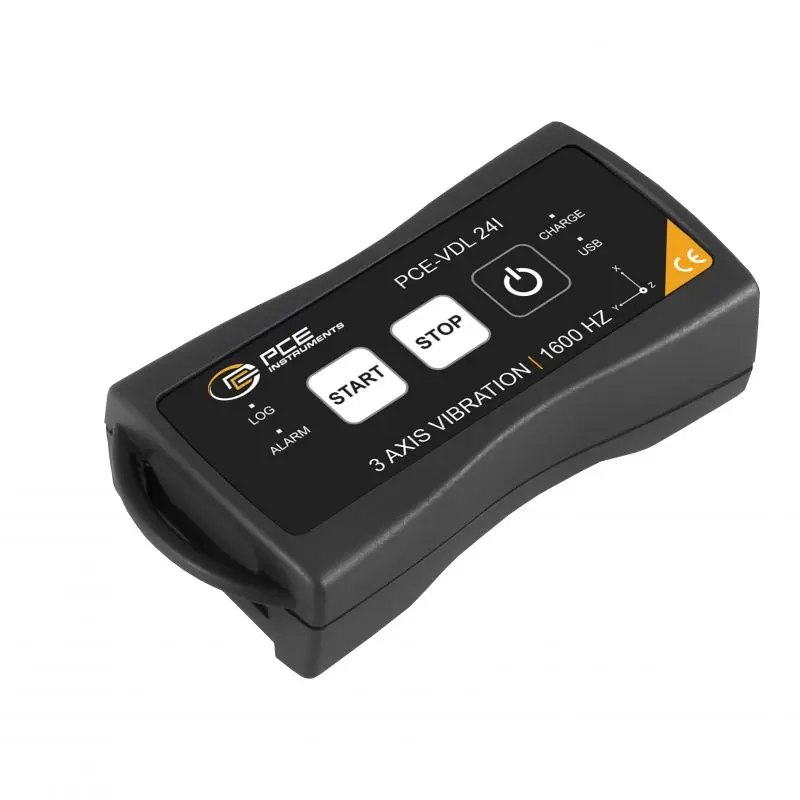

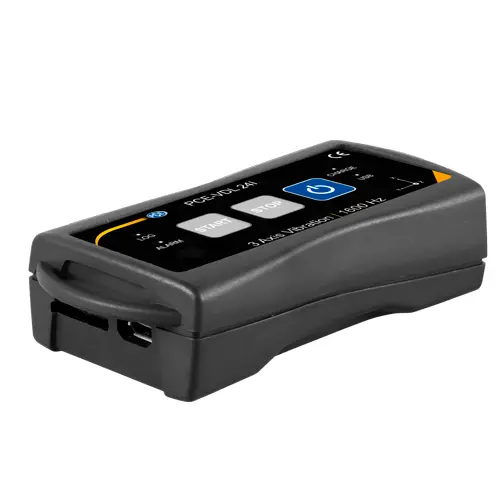

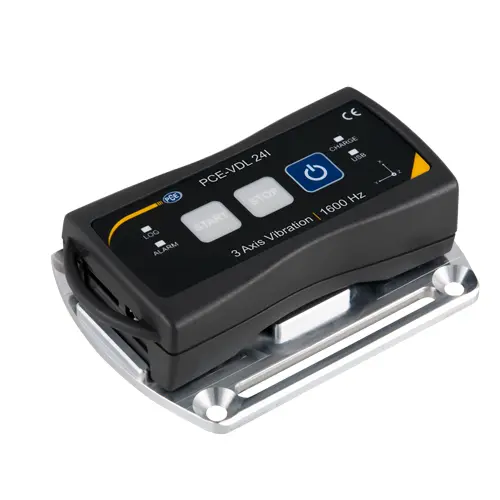

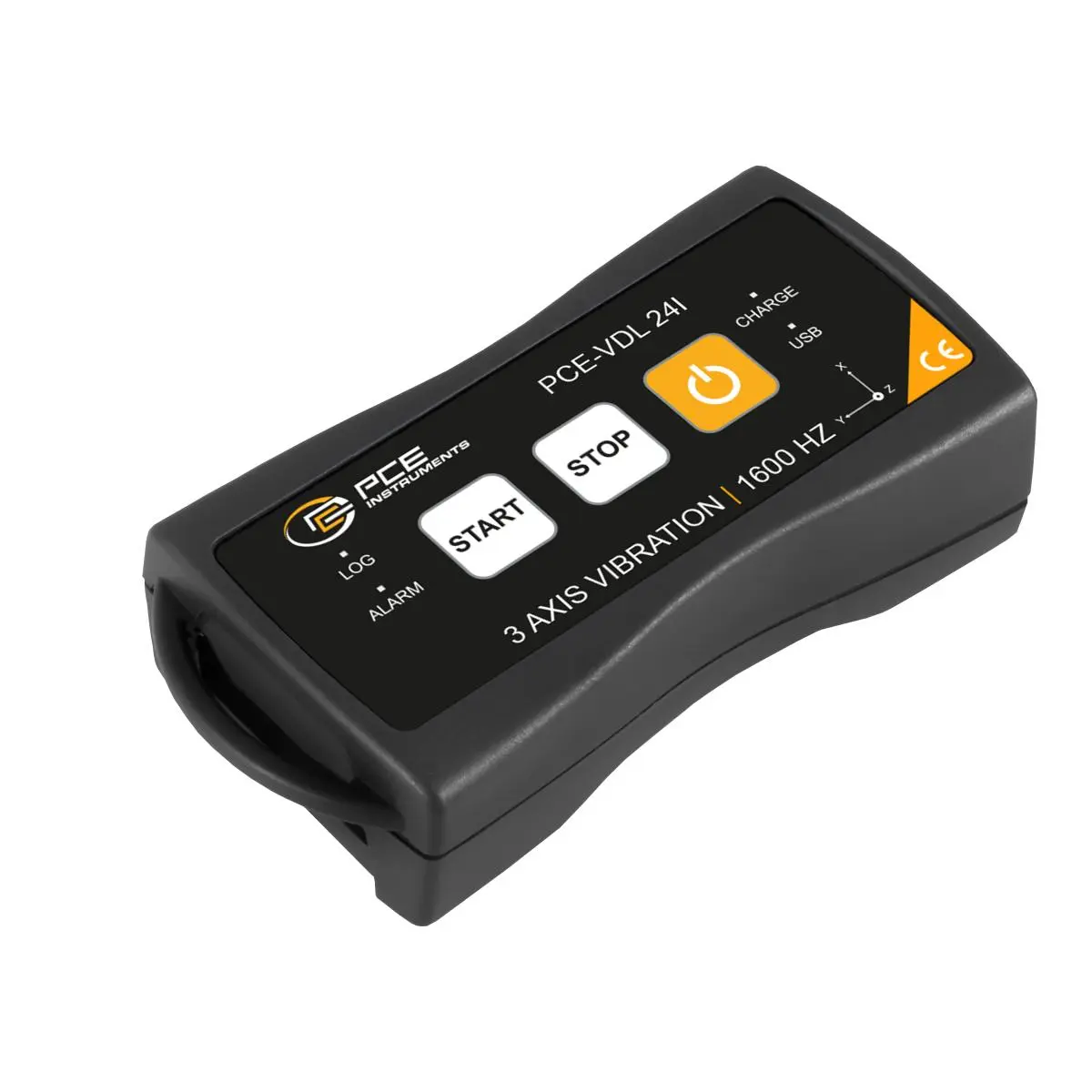

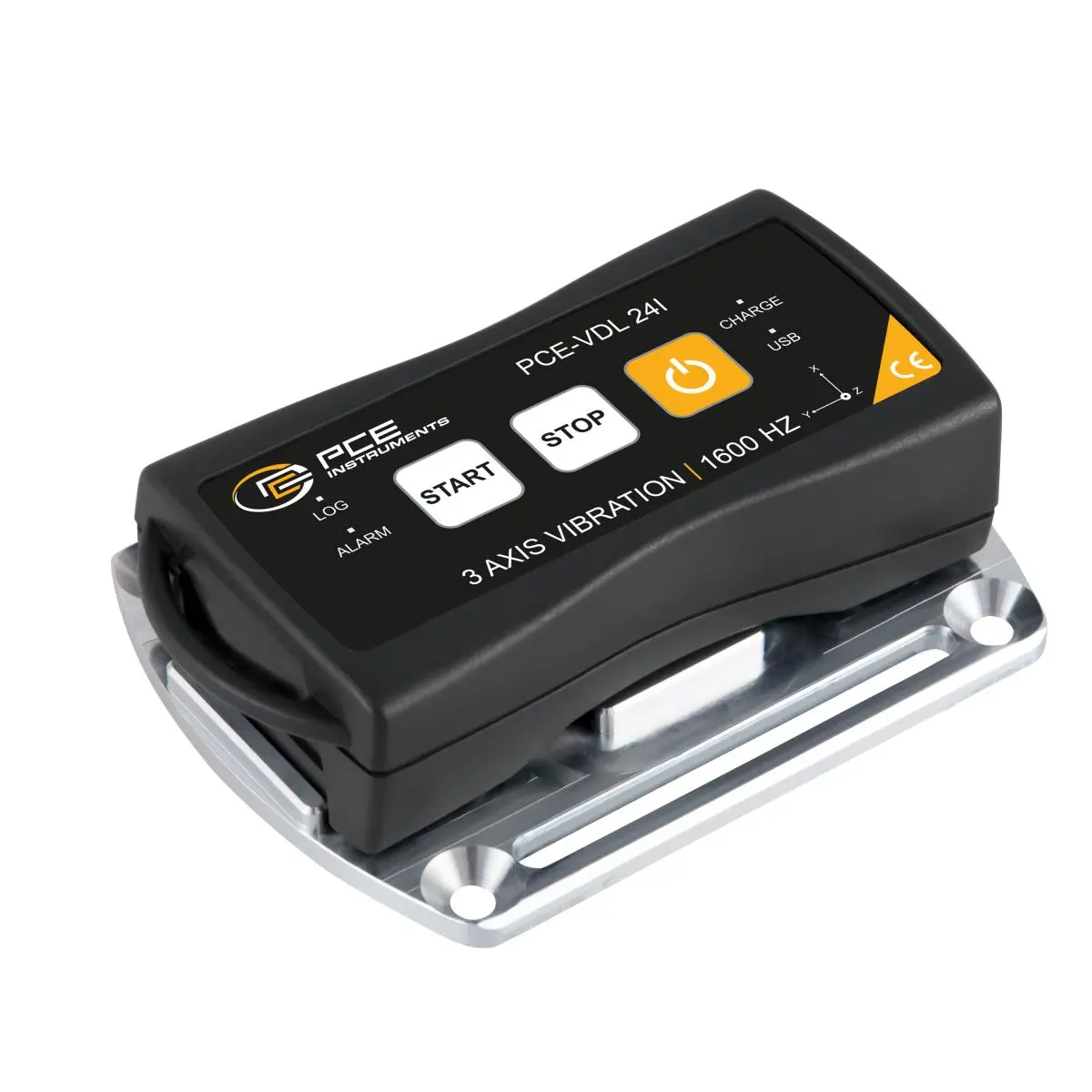

The accelerometers of the PCE-VDL series are available in two versions. The accelerometer PCE-VDL 16I contains sensors for the following physical units: temperature, humidity, air pressure, light and 3-axis acceleration. The PCE-VDL 24I has 3-axis acceleration and the max. sampling rate of the acceleration sensor is 1600 Hz.
With the accelerometer PCE-VDL 24I the acceleration sensor is even delivered with a sampling rate of 1600 Hz. The shock and vibration logger is therefore ideally suited for use in fault diagnosis, stress testing, machine inspection, shock measurements and preventive maintenance.
| Oscillation | |
| Measuring range | -16 ... +16 g |
| Resolution | 0,003906 g |
| Accuracy | ±0.24 g |
| General technical data | |
| Display type | without display |
| Adjustable measuring rate | 1 ... 1600 Hz |

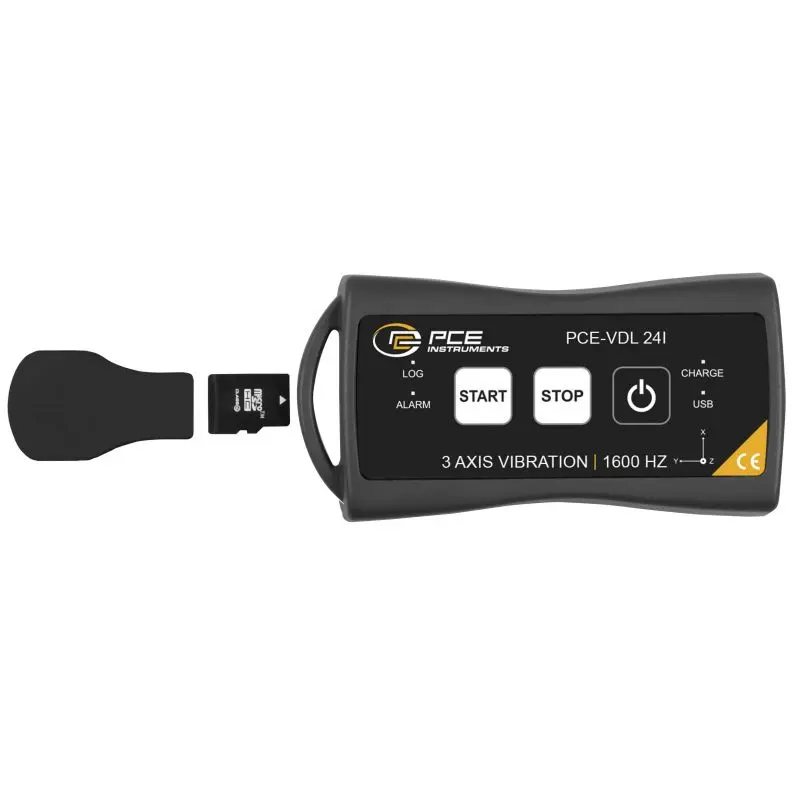

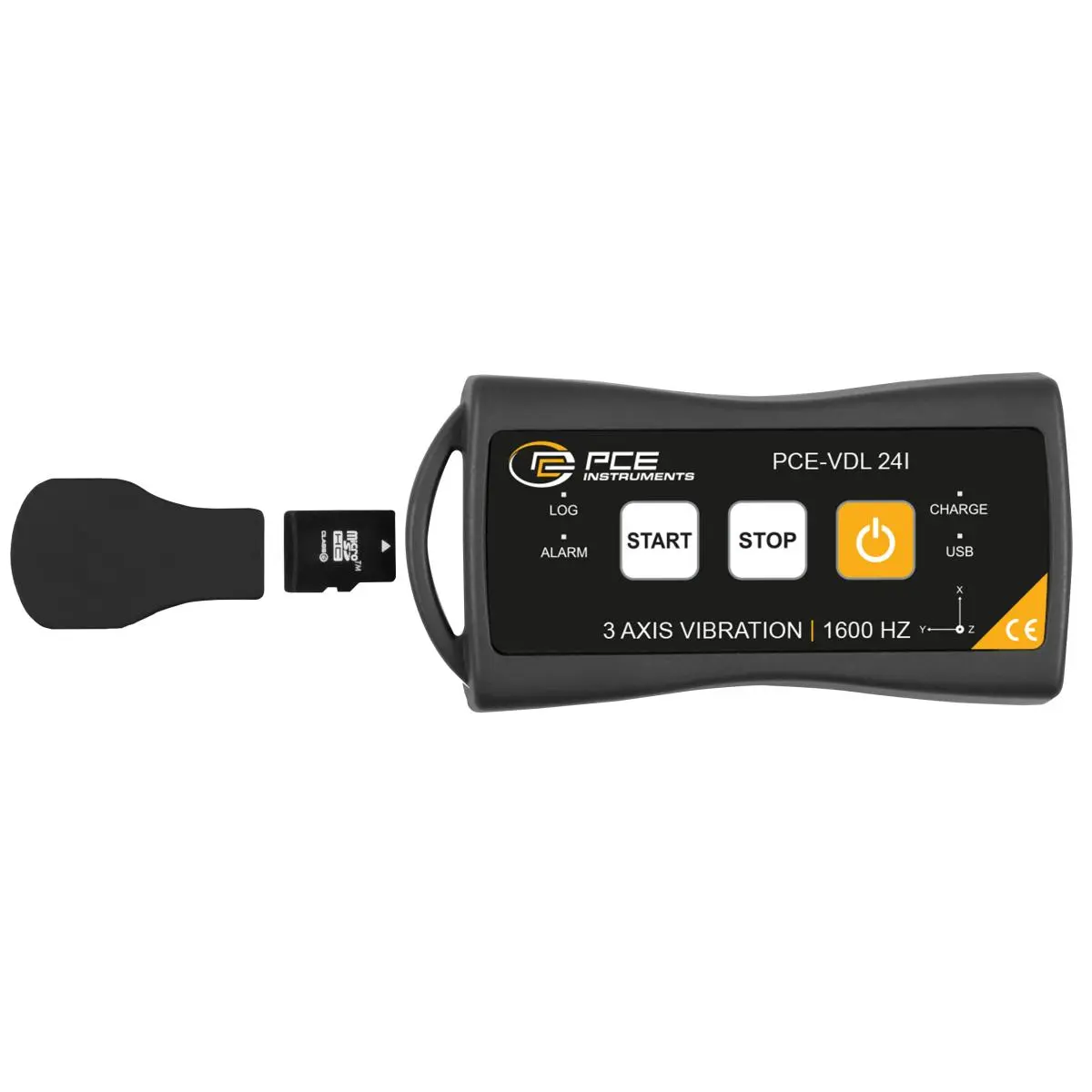

| Storage medium | Micro SD card |
| Storage capacity | 32 GB |

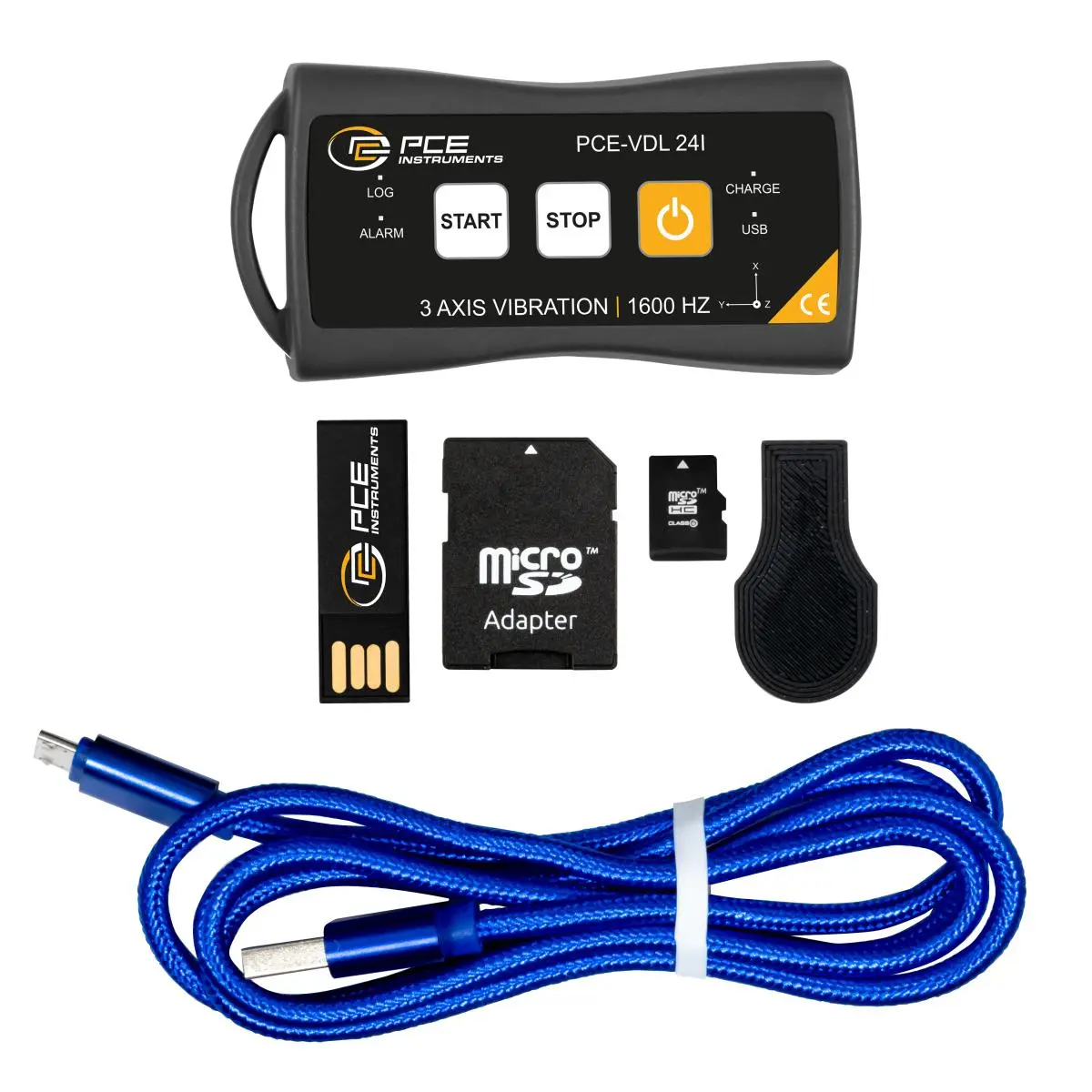

| Memory capacity (additional information) | 3.2 billion readings with included 32 GB micro SD memory card. A new file is automatically created after 200,000 readings |

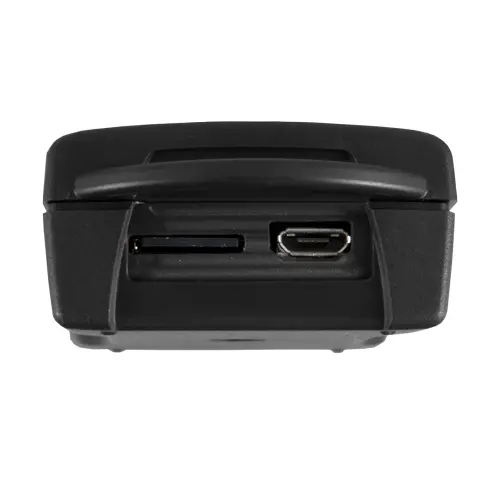

| Interface | Micro-USB |
| Sensor | 3-axis piezoelectric acceleration sensor |
| Operating time | 67 h |
| Protection class (device) | IP40 |
| Power supply | 5 V DC |
| Capacity | 700 mAh |
| Performance | 2,59 Wh |
| Operating conditions | -20 ... 65 °C , 0 ... 100 % RH |
| Storage conditions | 5 ... 45 °C , 10 ... 95 % RH |
| Dimensions ( L x W x H ) | 87 x 44 x 23 mm |
| Weight | 57 g |
