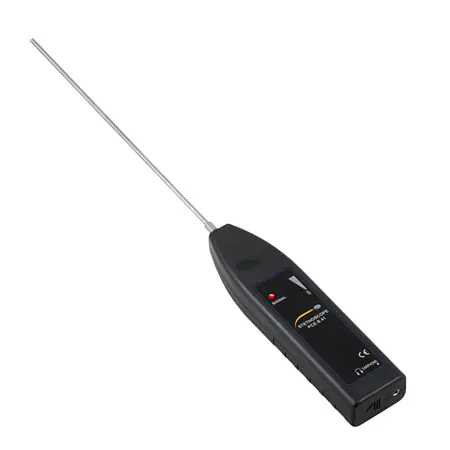

Accelerometer PCE-S 41

Accelerometer PCE-S 41

Order no.: PCE-S 41
GTIN (EAN): 4250348701282
£ 135.00
£ 162.00
price ex. (VAT / delivery)
:
4250348701282
PCE-S 41
Delivery time:1-2 working days

Description

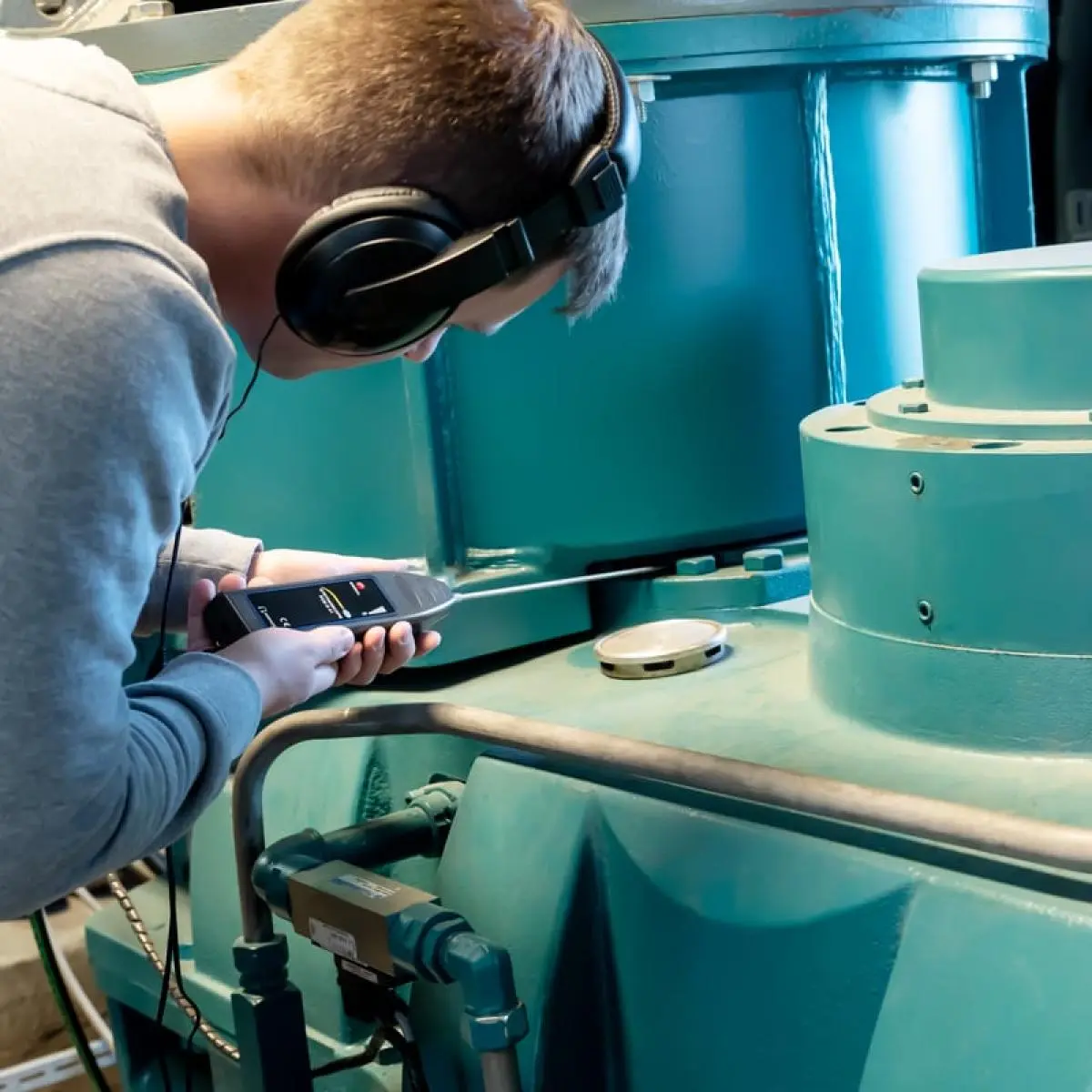

Accelerometer for use in machinery maintenance and repair
The PCE-S 41 Accelerometer is battery powered and easy to use. This Accelerometer can be used for detecting noise in machine components, such as gears, valves, vents and pumps. This makes the Accelerometer a useful tool in inspecting noise and vibration, giving the maintenance team the chance to locate the source of a problem before it becomes too costly. The enclosure of the accelerometer is made of ABS plastic which is comfortable to hold and operate. The device uses a piezoelectric transducer which can detect very low resonant noises. The earpiece is equipped with an adjustable headset that has a 2 m cable.

Highlights

- Measuring range : 100 Hz ...10 kHz
- Volume: adjustable
- incl. headphones
- Steel probes: 70 and 290 mm

Specification

General technical data
Frequency  100 ... 10000 Hz
Display type  without display
Operating time  30 h
Housing  ABS (acrylonitrile-butadiene-styrene copolymers)
Dimensions  Needle probe 1 x 290 mm, 1 x 70 mm (length)
Protection class (device)  IP20
Power supply  Battery
(Rechargeable) battery  1 x 9 V 9V block , Alkali-manganese
Capacity  640 mAh
Dimensions ( L x W x H )  206 x 50 x 32 mm
Weight  240 g

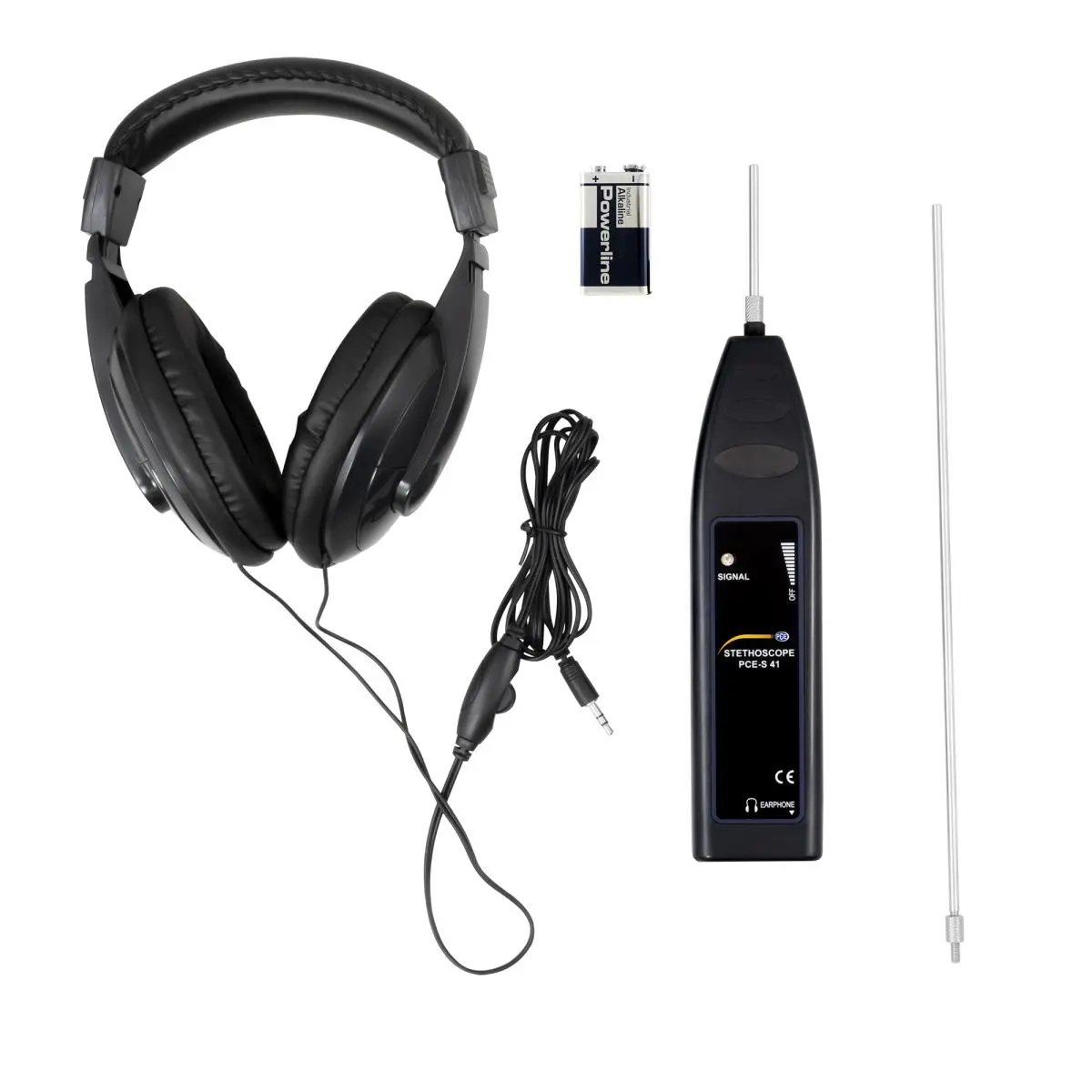

Delivery Scope

1 x Accelerometer PCE-S 41

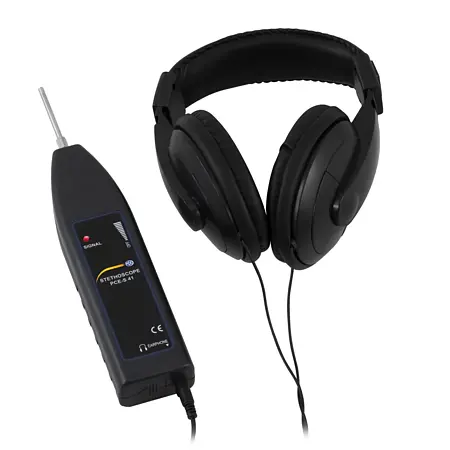

1 x Set of headphones
1 x 70 mm long sensor
1 x 290 mm long sensor
1 x Battery
1 x Carrying case
1 x User manual
