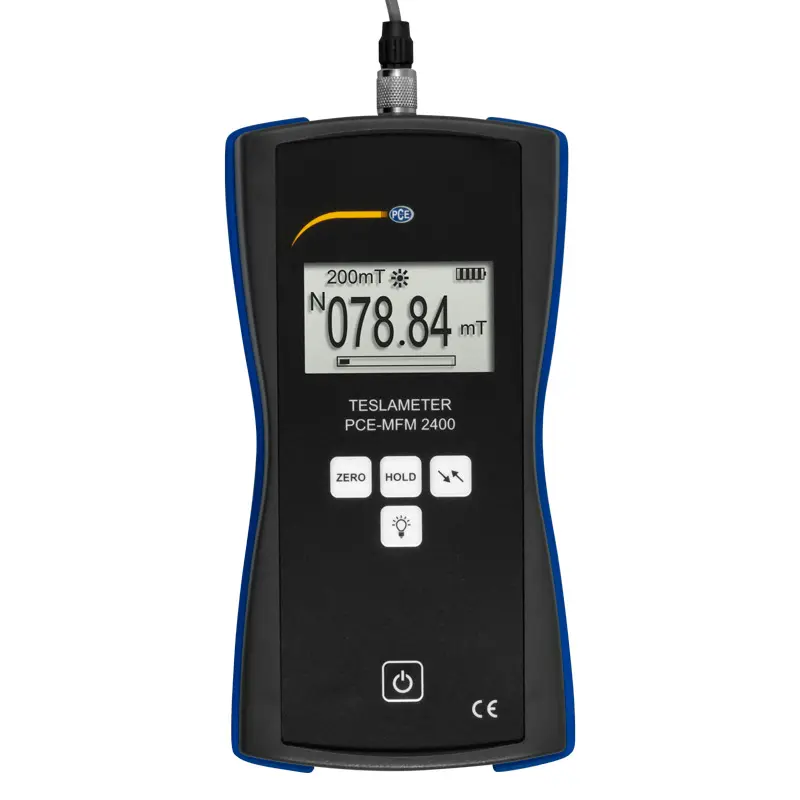

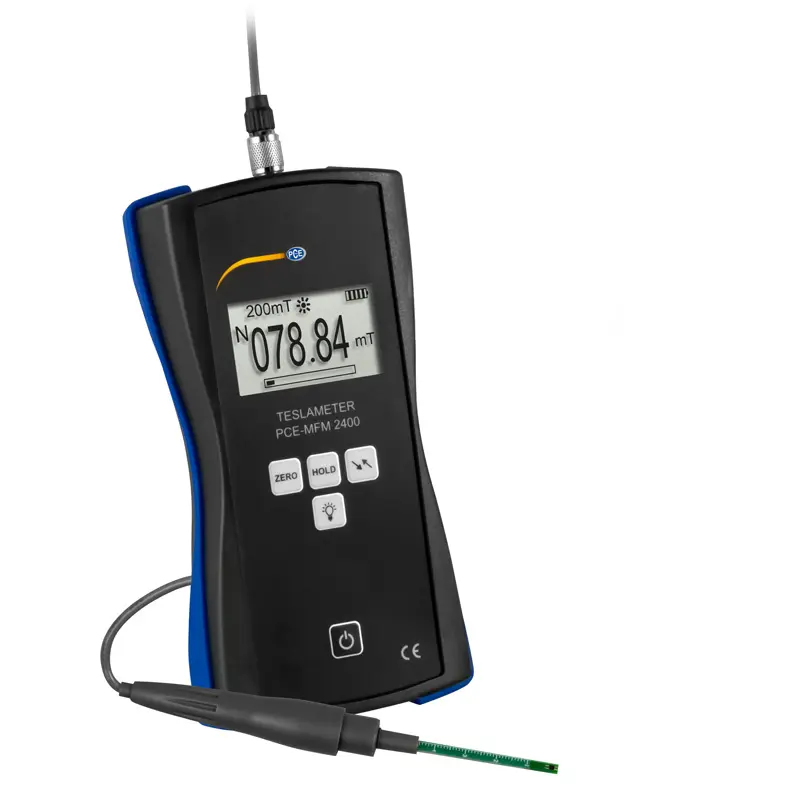

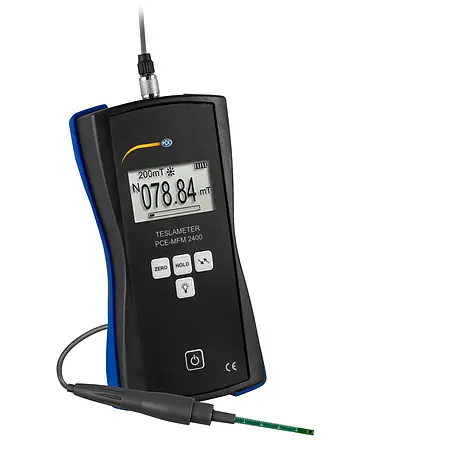

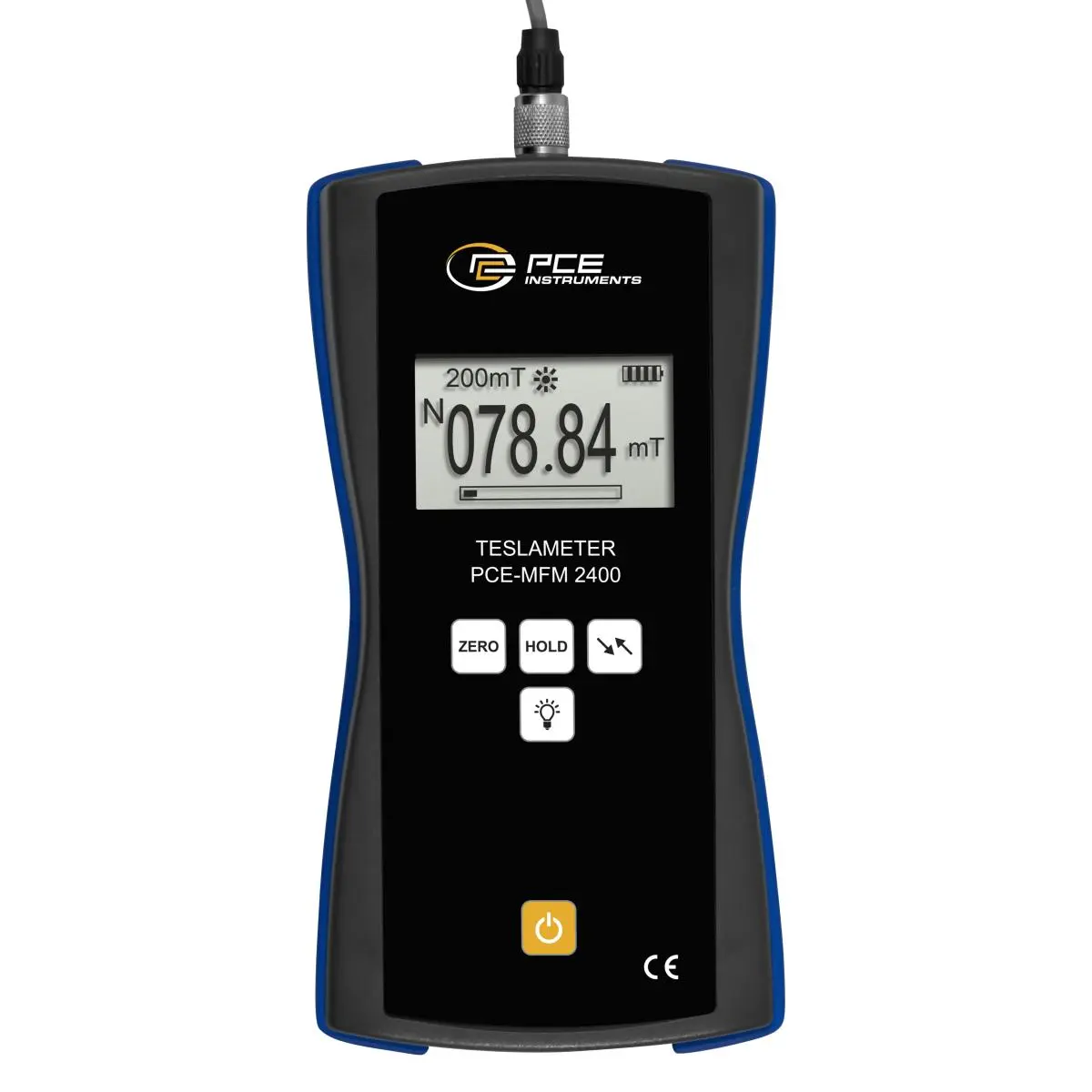

Magnetometer / Magnetic Field Detector PCE-MFM 2400

Magnetometer PCE-MFM 2400

Order no.: PCE-MFM 2400
GTIN (EAN): 4250348722096
£ 712.00
£ 854.40
price ex. (VAT / delivery)
:
4250348722096
PCE-MFM 2400
Delivery time:1-2 working days

Description

Precise Magnetometer with an accuracy of 1% /
automatic switch-off / transverse measurement / backlight /
Tesla and Gauss measurement / for static magnetic fields

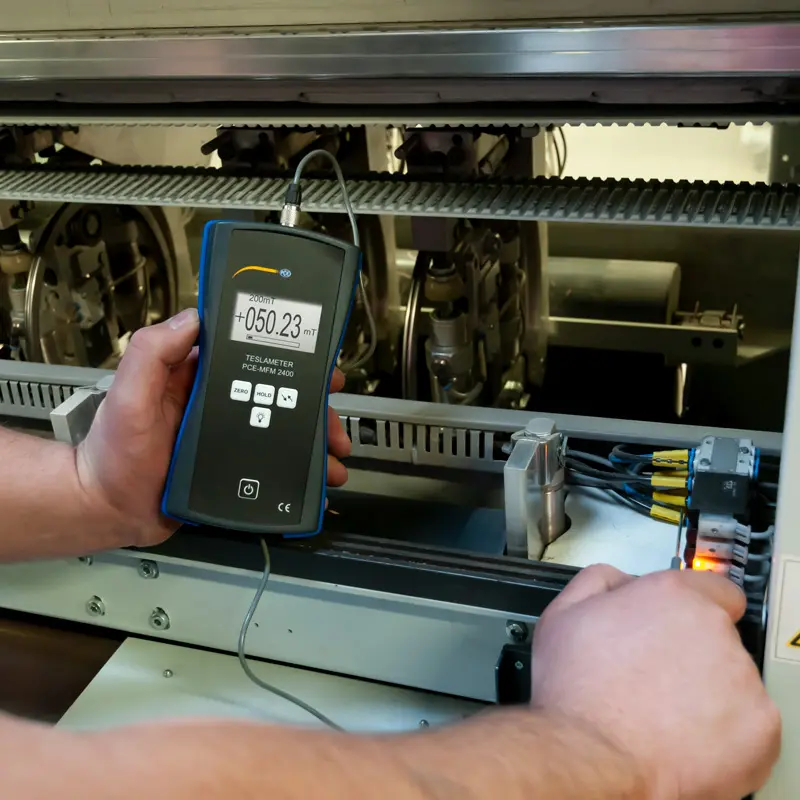

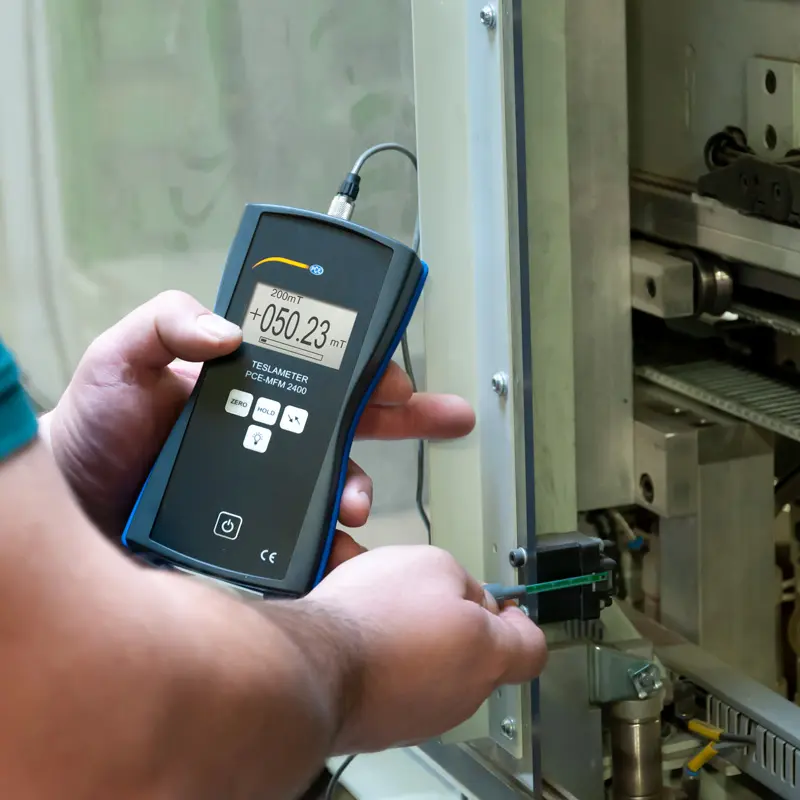

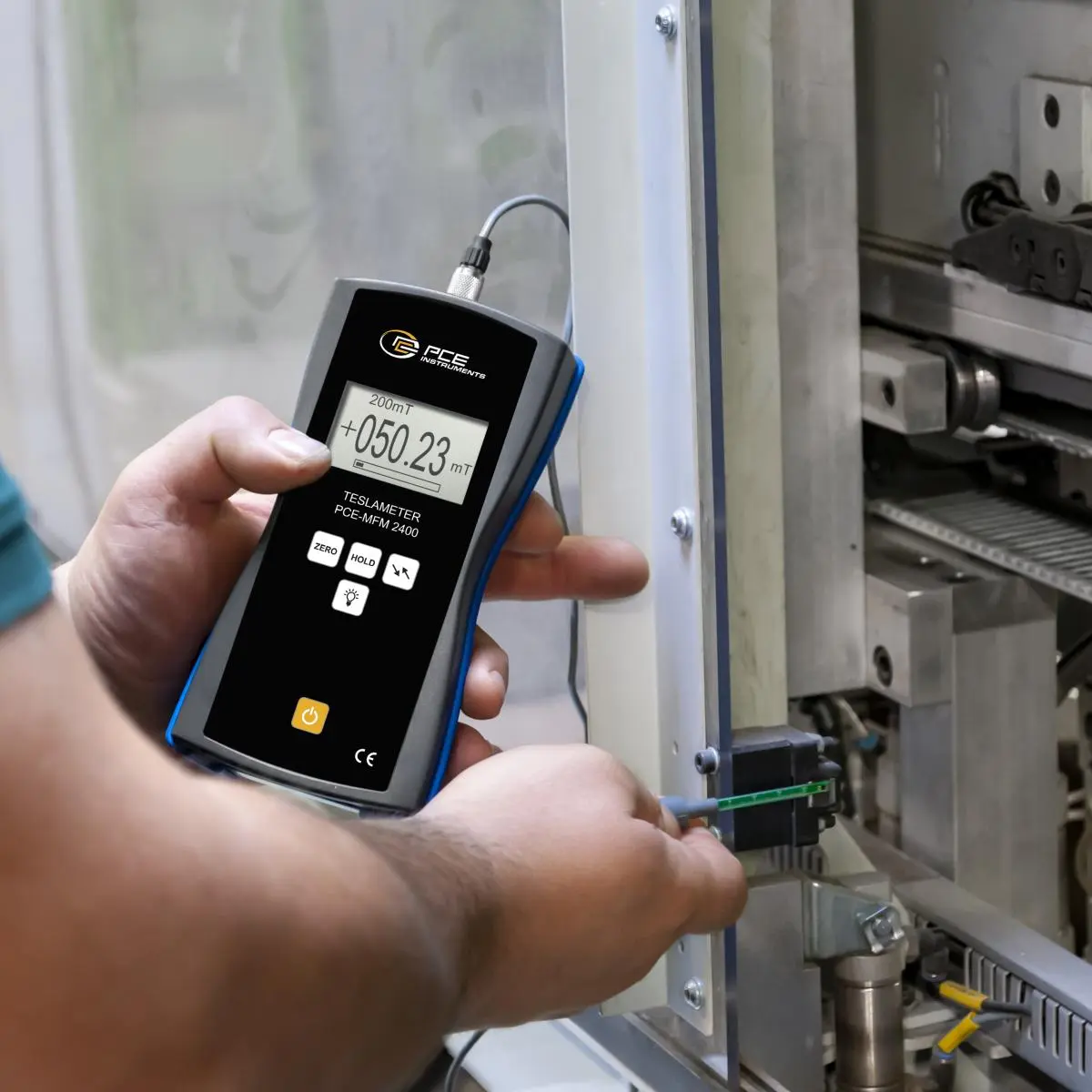

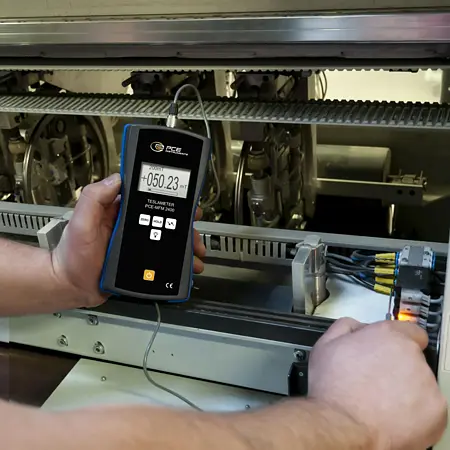

With a measuring range of 2,400 mT, the magnetometer covers a wide range of measuring tasks. The magnetometer has an accuracy of 1%. This makes the magnetometer a very precise measuring device. For example, the magnetometer can be used to test relays and permanent magnets for the existing magnetic field. The magnetometer is therefore used in production processes or in quality control.

With the backlight on the magnetometer, the measured values ​​are always easy to read even in poor lighting. Thanks to the automatic switch-off function, the magnetometer automatically switches itself off after 5 minutes. This ensures that the battery of the magnetometer does not discharge completely.

Highlights

- very precise measurement technology
- Measuring range up to 24,000 G and 2,400 mT
- transverse sensor
- for measuring static magnetic fields
- automatic shutdown

Specification

Magnetic field DC
Measuring range  0 ... 200 mT
Resolution  0,01 mT
Accuracy  ±1% of Rd

Magnetic field DC
Measuring range  200 ... 2400 mT
Resolution  0,01 mT
Accuracy  ±1% of Rd

Magnetic field DC
Measuring range  0 ... 2000 g
Resolution  0,1 g
Accuracy  ±1% of Rd

Magnetic field DC
Measuring range  2000 ... 24000 g
Resolution  0,1 g
Accuracy  ±1% of Rd

General technical data
Cable length  1 m
Measuring functions  HOLD
Units  mT, g

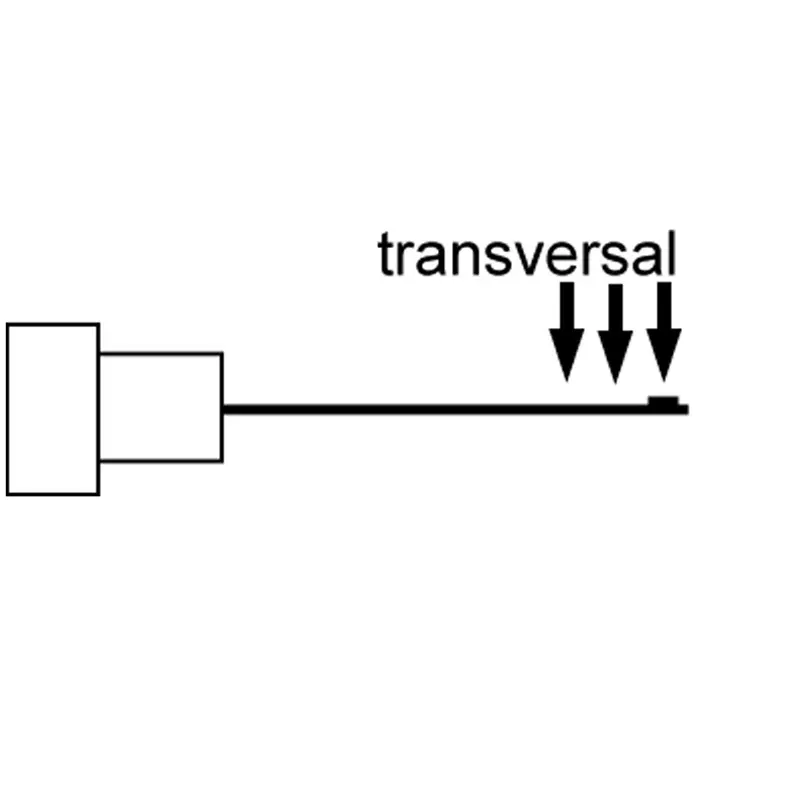

Measuring direction  transversal

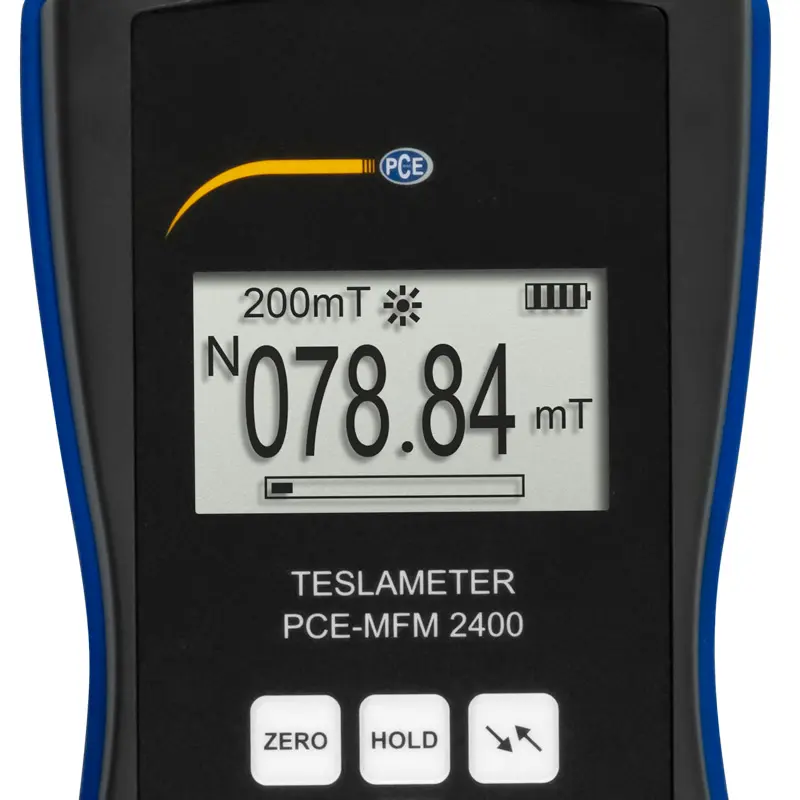

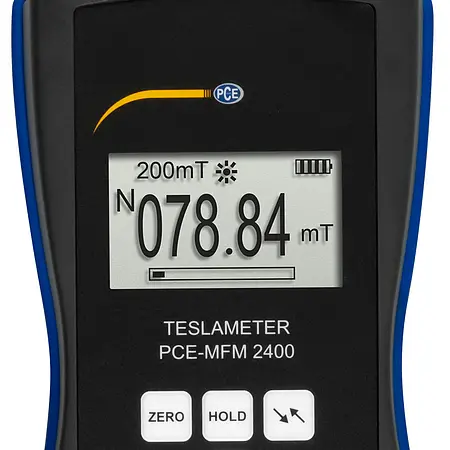

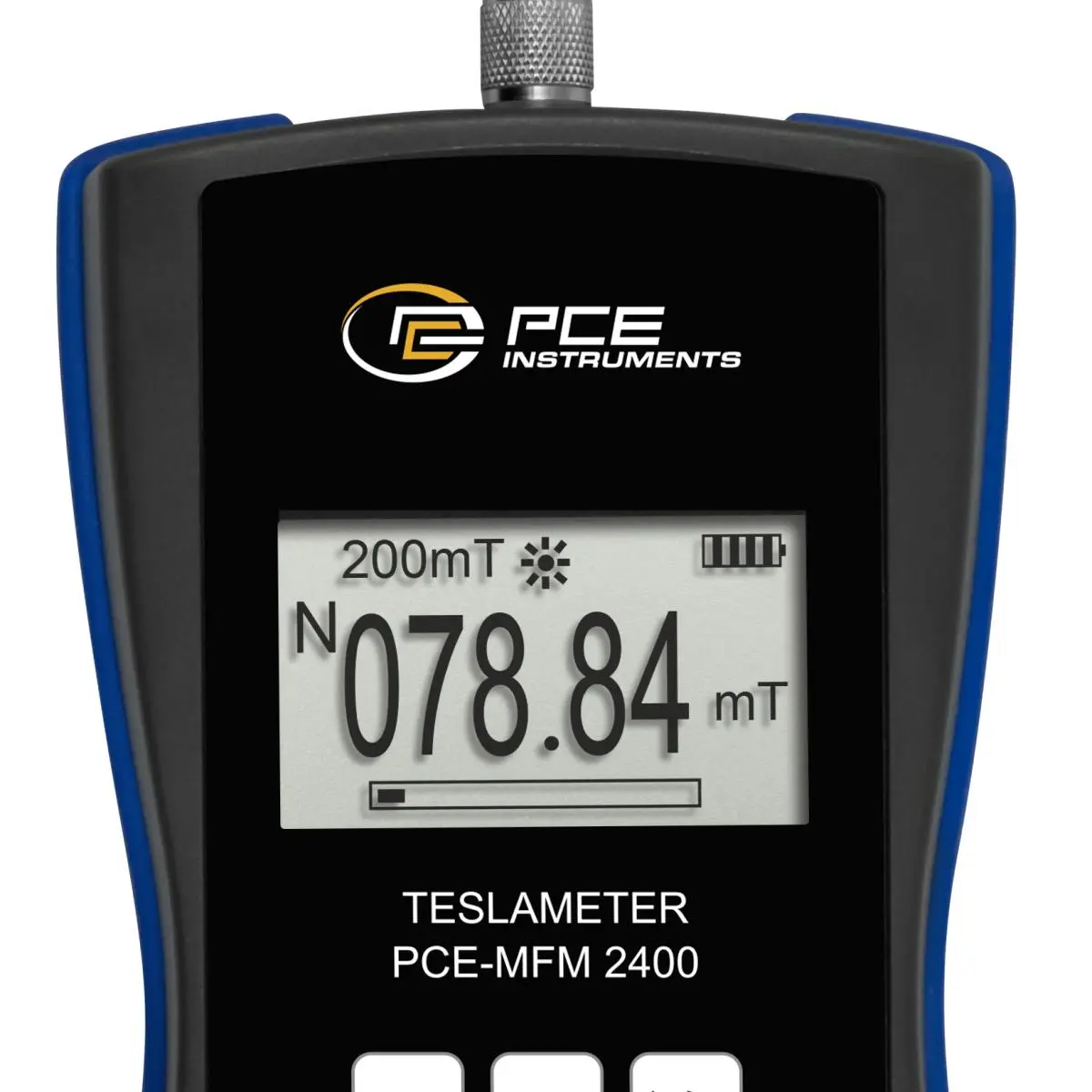

Display type  LCD with backlight
Measuring rate  1 Hz
Sensor  Hall sensor
Automatic power-off  5 min
Menu language  English, English (GB)
Protection class (device)  IP20
(Rechargeable) battery  1 x 9 V 9V block , Alkali-manganese
Capacity  640 mAh
Performance  5,76 Wh
Operating conditions  0 ... 50 °C , 0 ... 80 % RH
Storage conditions  -20 ... 50 °C , 0 ... 80 % RH
Dimensions ( L x W x H )  185 x 97 x 40 mm
Weight  310 g

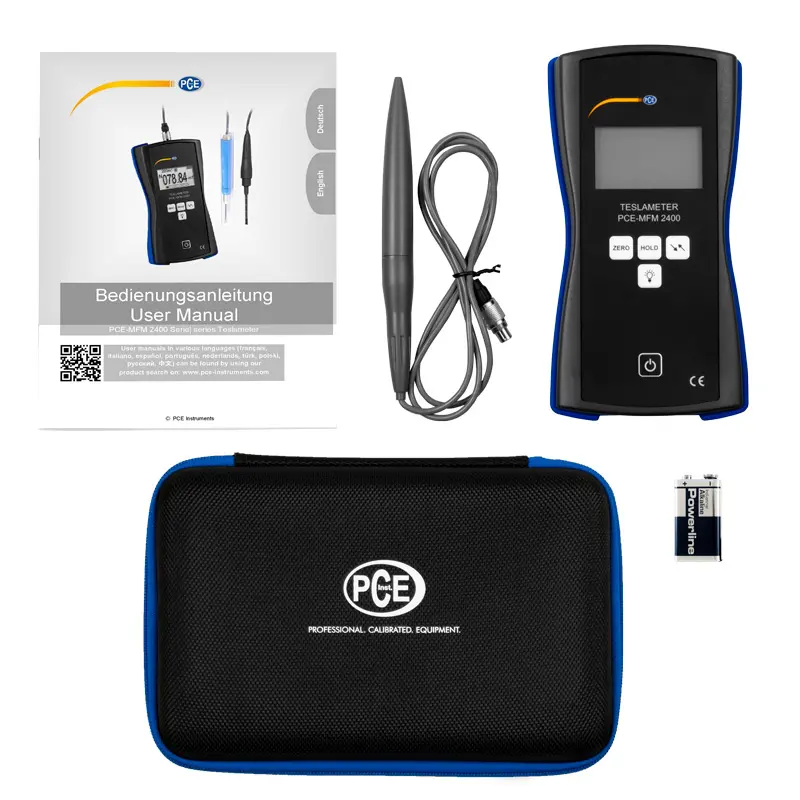

Delivery Scope

1 x Magnetometer / Magnetic Field Detector PCE-MFM 2400

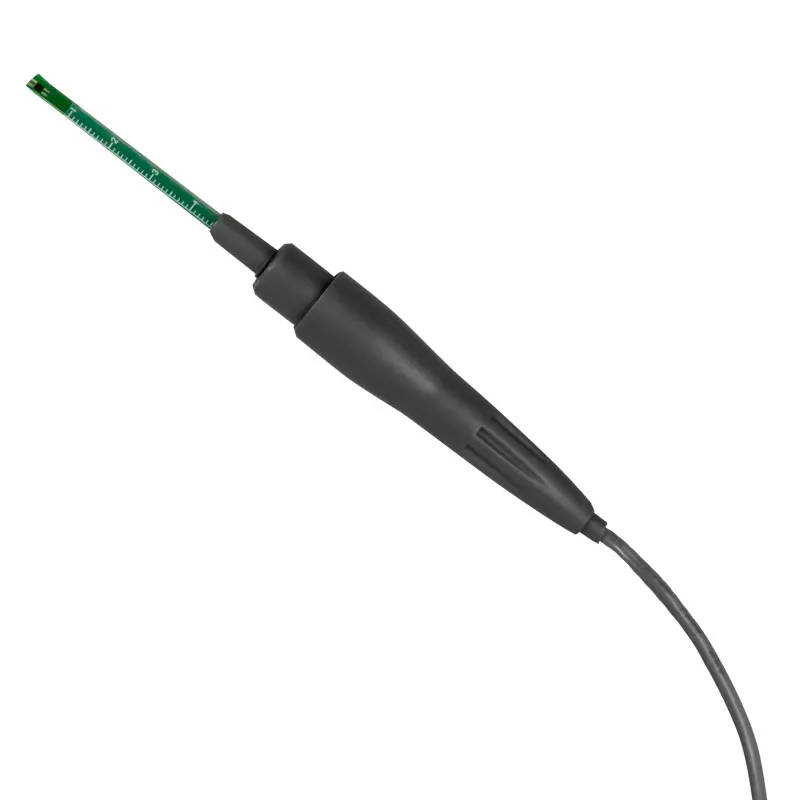

1 x Hall sensor (transverse)
1 x service bag
1 x 9 V block battery
1 x instruction manual
