Magnetometer / Magnetic Field Detector PCE-G28

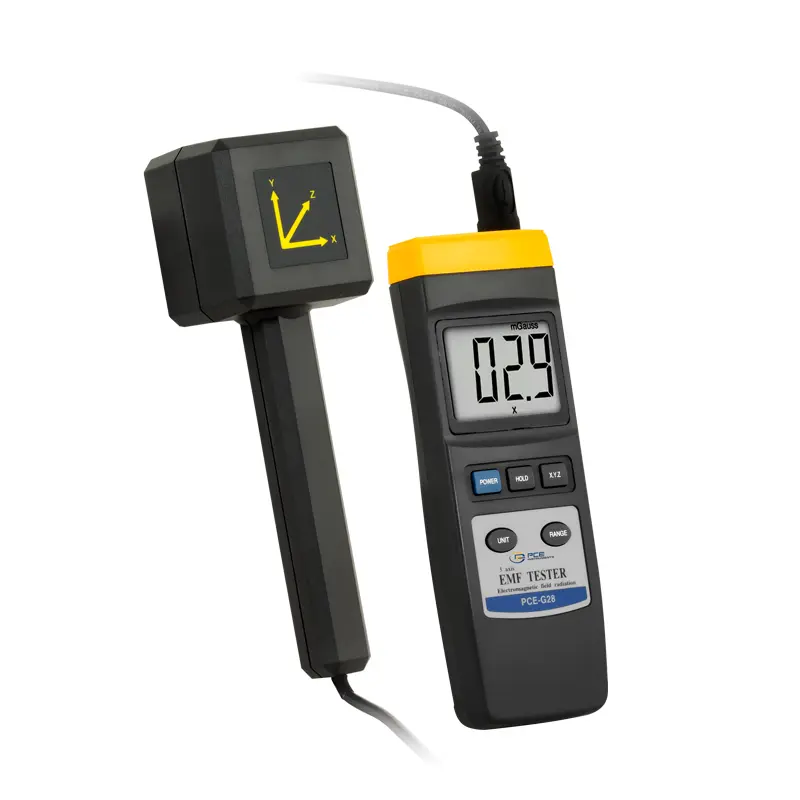

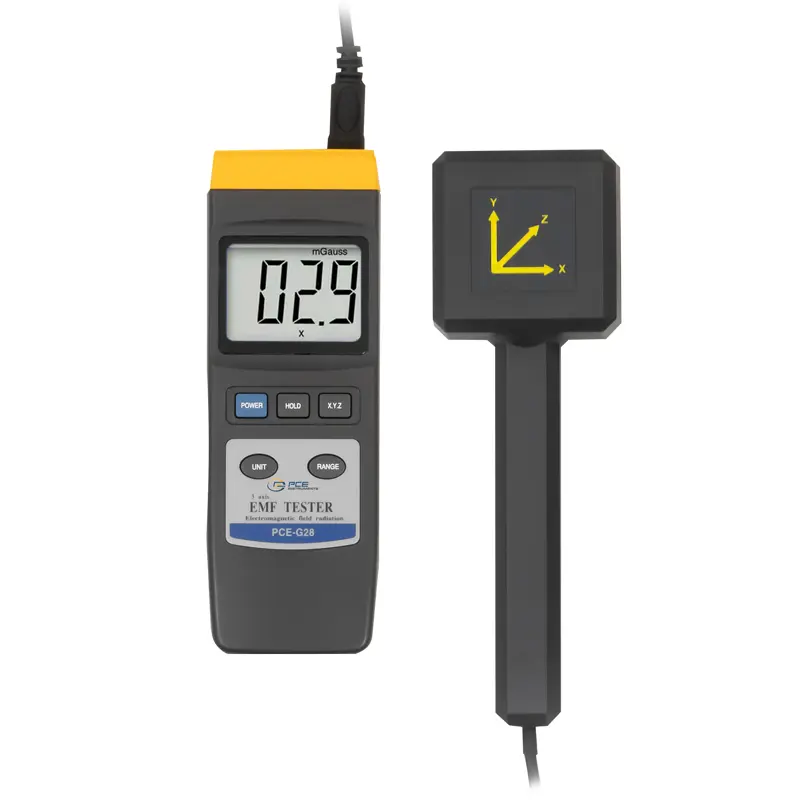

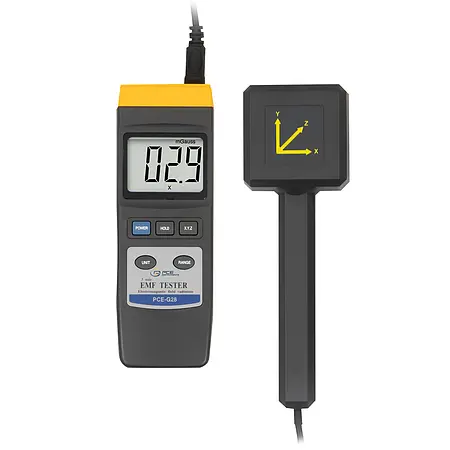

Magnetometer / Magnetic Field Detector PCE-G28 [zoom]
Magnetometer / Magnetic Field Detector PCE-G28

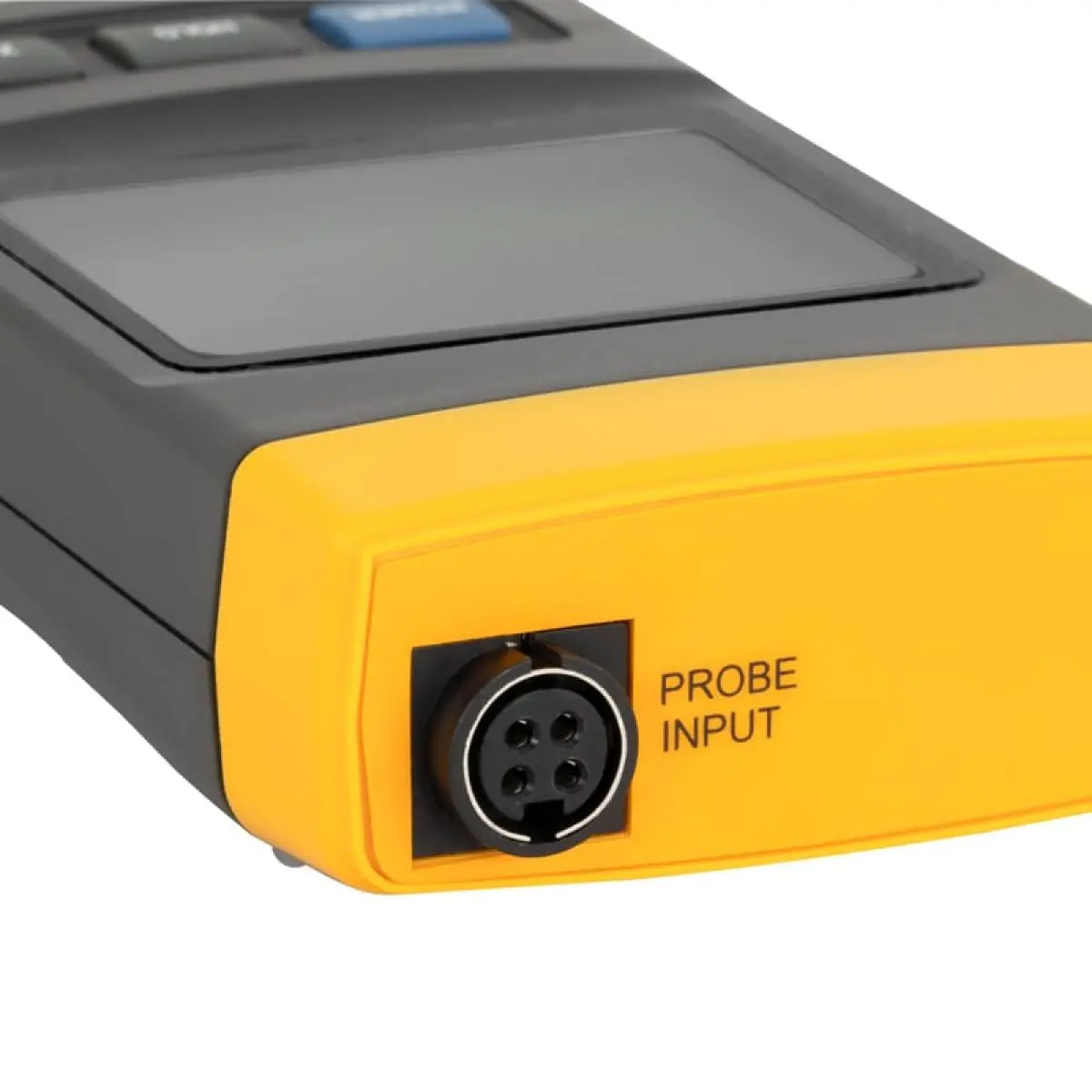

Magnetometer / Magnetic Field Detector Sensor connection

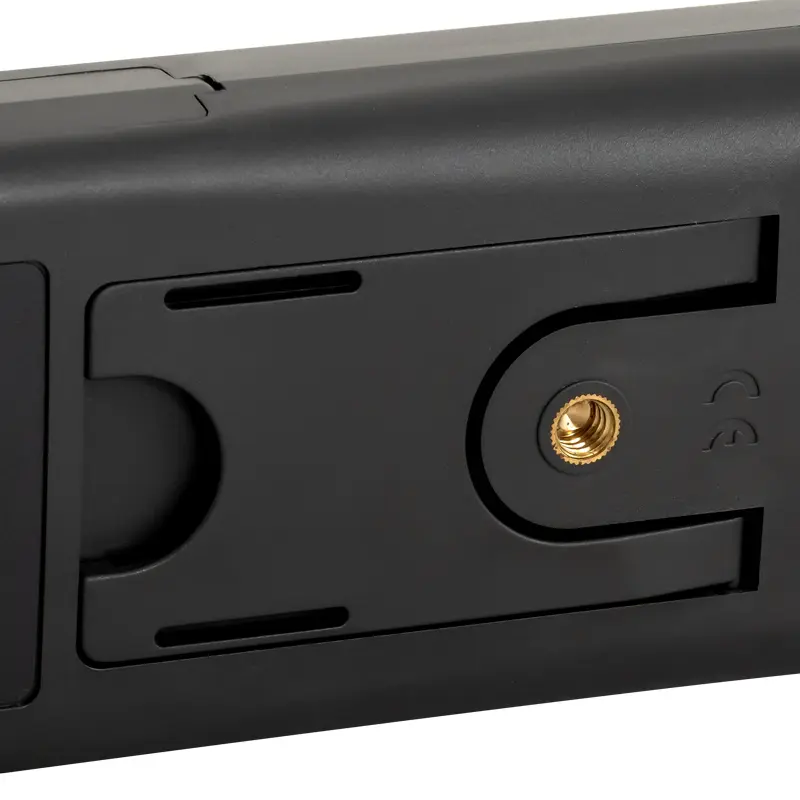

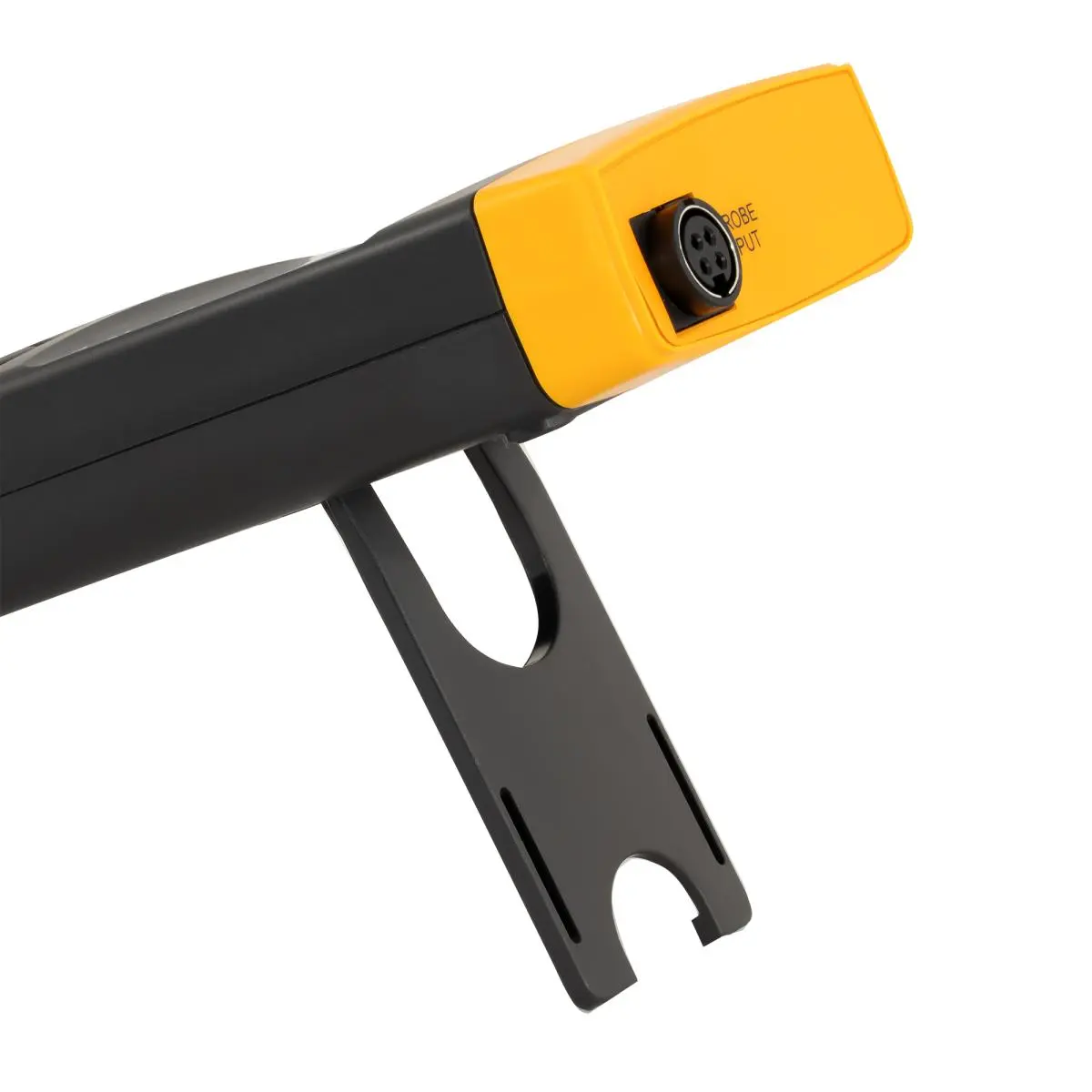

Magnetometer / Magnetic Field Detector Foot

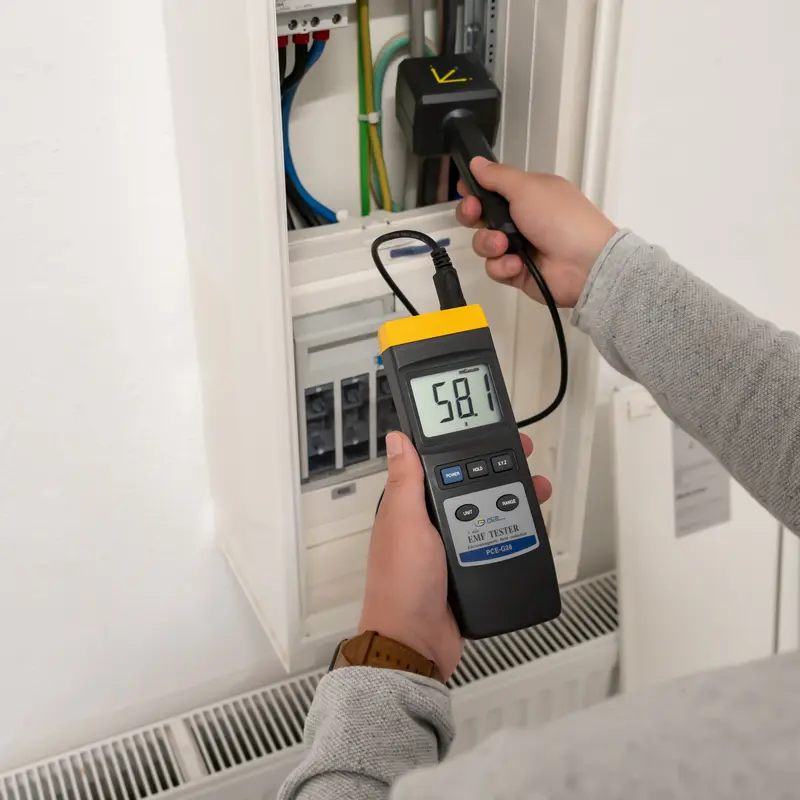

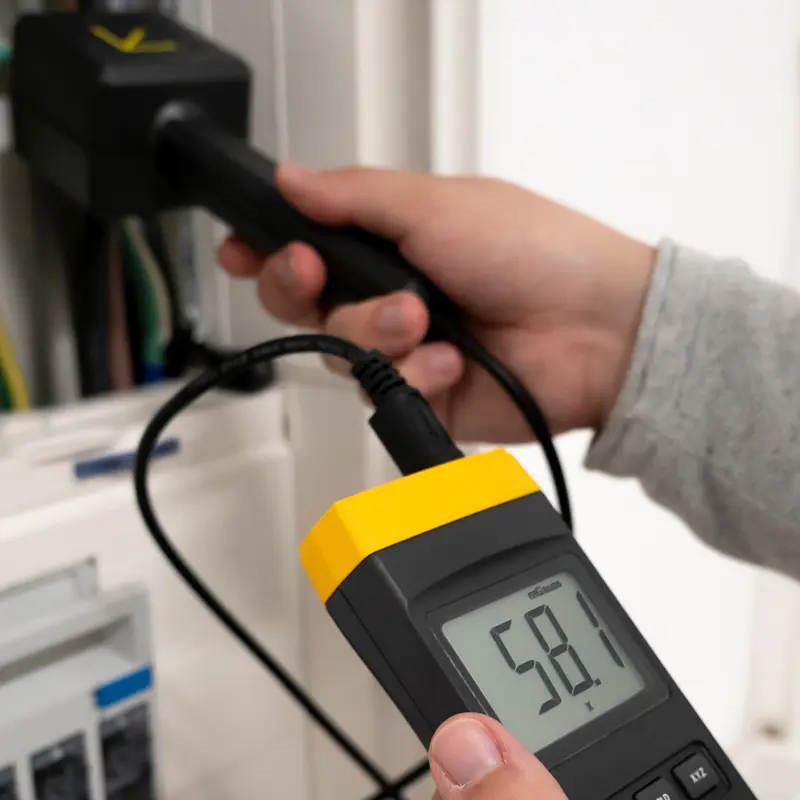

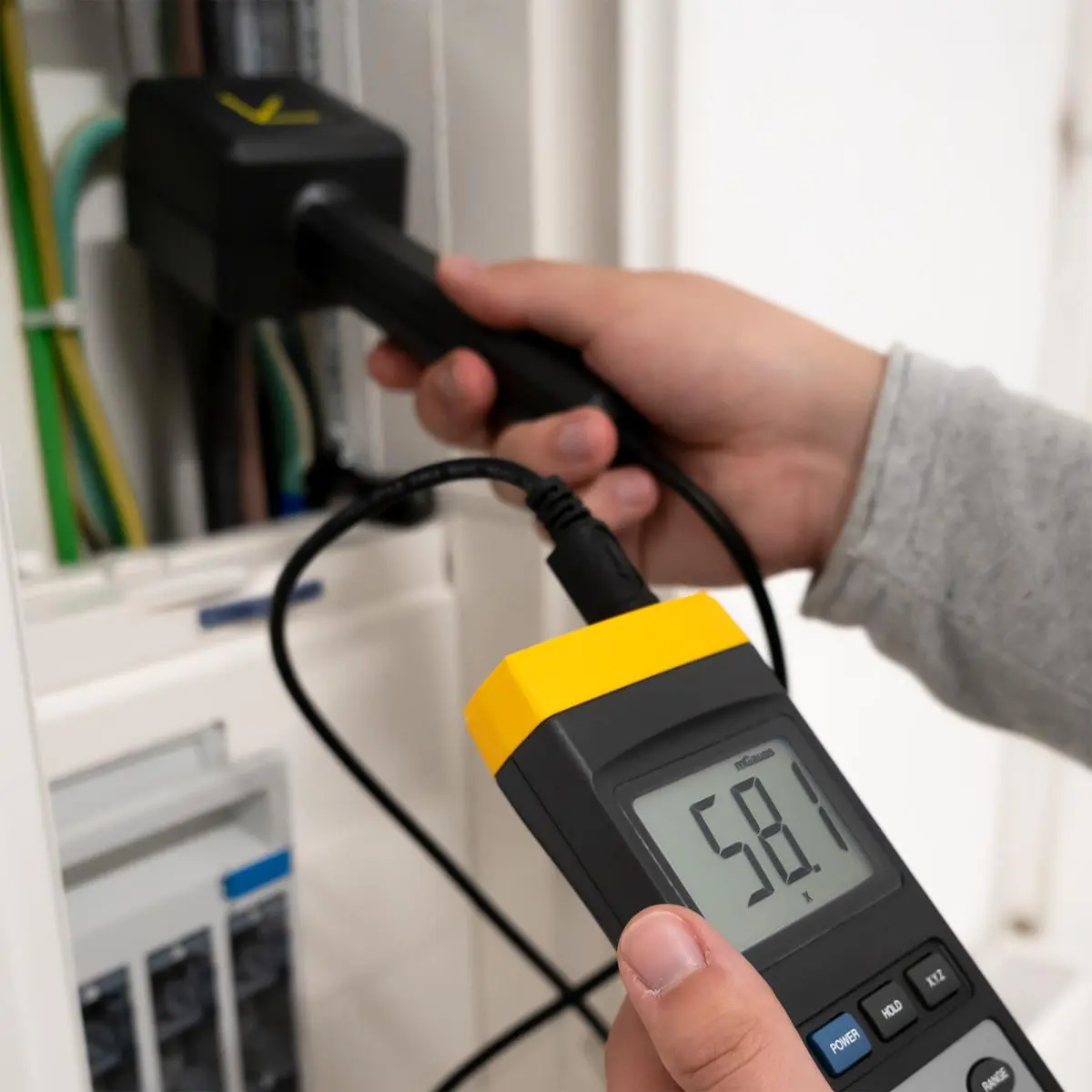

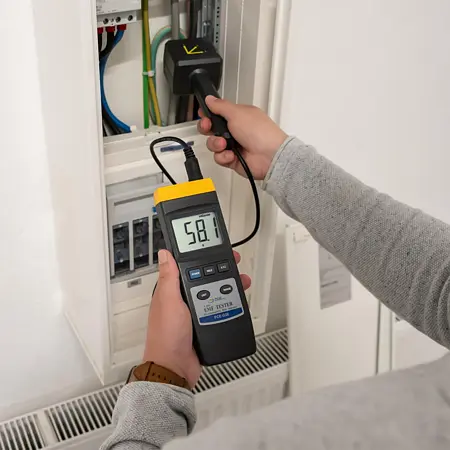

Magnetometer / Magnetic Field Detector Application picture
Magnetometer / Magnetic Field Detector Application picture
Magnetometer / Magnetic Field Detector Application picture

Magnetometer PCE-G28

Order no.: PCE-G28
GTIN (EAN): 4250348700865
£ 294.00
£ 352.80
price ex. (VAT / delivery)
:
4250348700865
PCE-G28
Delivery time:1-2 working days

Description

The PCE-G28 is a portable, handheld magnetometer that detects electromagnetic fields (EMFs) and displays measurement results in milliGauss (mG) or microTesla (µT). This magnetometer comes with an external 3-axis electromagnetic sensor (X, Y, Z direction).

Highlights

- Measurement range: 0 ... 20000 mG / 0 ... 2000 µT
- Accuracy: ± 4% + 3 digits / ± 5% + 3 digits / ± 10% + 5 digits
- Resolution: 0.1 mG / 0.01 µT
- Detects electromagnetic fields (EMFs) on three axes (X, Y, Z direction)
- Displays measurement results in milliGauss (mG) or microTesla (µT)
- Comes with an external 3-axis electromagnetic sensor
- Data hold functionality
- Ideal tool for checking transformers and measuring EMFs generated by power lines, computer monitors, electric motors and installations
- Meets IEC 801-1 (EN 50081-1) / IEC 204 (EN 60204) standards
- Measures EMFs through casings, coverings and housings, eliminating the need to dismantle parts for inspection

Specification

Magnetic field strength
Measuring range  0 ... 20 µT
Resolution  0,01 µT
Accuracy  ±4% +3 Digits / 50 - 60 Hz und < 3 V/m (RF)

Magnetic field strength
Measuring range  0 ... 200 µT
Resolution  0,1 µT
Accuracy  ±5% +3 Digits / 50 - 60 Hz und < 3 V/m (RF)

Magnetic field strength
Measuring range  0 ... 2000 µT
Resolution  1 µT
Accuracy  ±10% +5 Digits / 50 - 60 Hz und < 3 V/m (RF)

Magnetic field strength
Measuring range  0 ... 200 mGs
Resolution  0,1 mGs
Accuracy  ±4% +3 Digits / 50 - 60 Hz und < 3 V/m (RF)

Magnetic field strength
Measuring range  0 ... 2000 mGs
Resolution  1 mGs
Accuracy  ±5% +3 Digits / 50 - 60 Hz und < 3 V/m (RF)

Magnetic field strength
Measuring range  0 ... 20000 mGs
Resolution  10 mGs
Accuracy  ±10% +5 Digits / 50 - 60 Hz und < 3 V/m (RF)

General technical data
Frequency  30 ... 300 Hz
Display type  LCD
Dimensions  Probe 225 x 75 x 55 mm
Protection class (device)  IP20
(Rechargeable) battery  1 x 9 V 9V block , Alkali-manganese
Capacity  640 mAh
Operating conditions  0 ... 50 °C , 0 ... 85 % RH
Storage conditions  0 ... 50 °C , 0 ... 85 % RH
Dimensions ( L x W x H )  195 x 68 x 30 mm
Weight  470 g

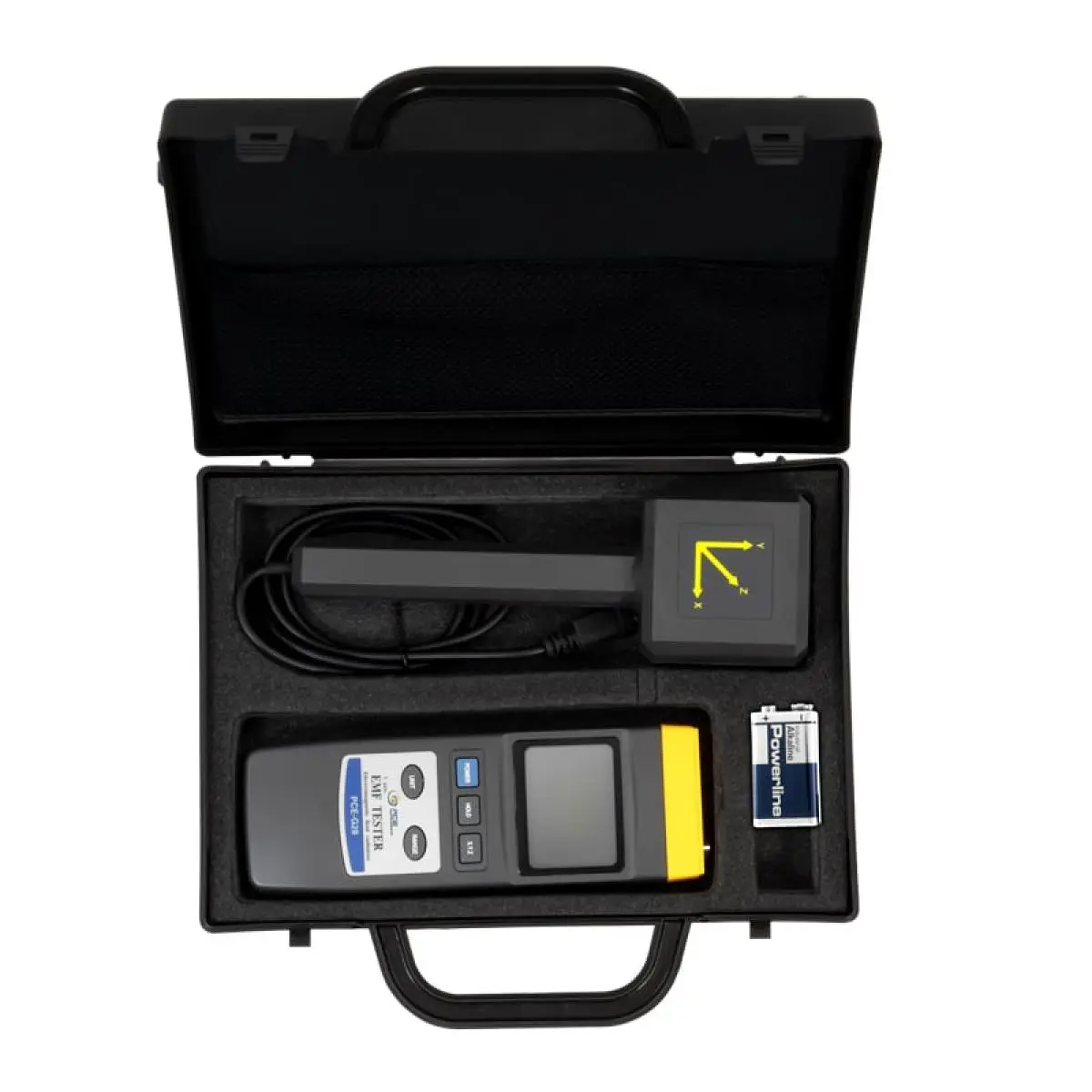

Delivery Scope

1 x Magnetometer / Magnetic Field Detector PCE-G28
1 x 3-axis electromagnetic sensor
1 x 9 V battery
1 x Carrying case
1 x User manual
