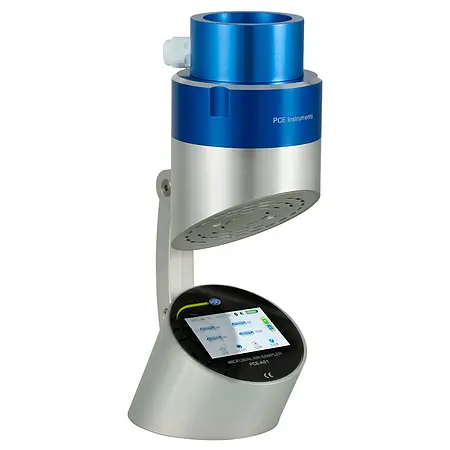

PCE-AS1 Air Sampler
Portable 100 lpm aerosol hygiene monitoring device for airborne microbial, microbiological, bacterial, mold, fungi and virus analysis
PCE-AS1 is an air sampling meter used to assess microbiological pollution and monitor hygiene. Designed for use in hospitals, clean rooms and food and beverage, cosmetics and pharmaceutical production facilities, the PCE-AS1 air sampler meets the latest requirements for devices used for airborne microbial analysis. Optional ISO calibration lab certificate as an accessory.

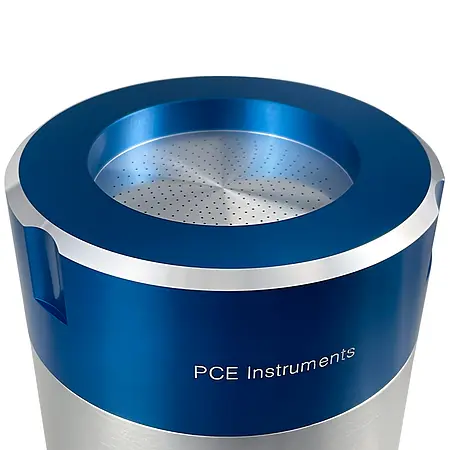

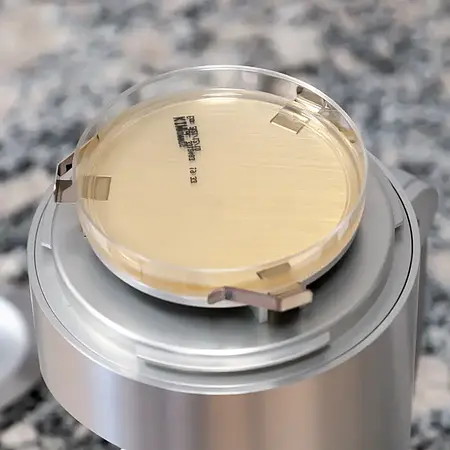

The PCE-AS1 air sampler uses the aerosol impaction principle or Andersen collision principle to assess air quality. The air taken in at the top of the instrument is pulled through 300 micropores and the resulting laminar air flow is directed onto the surface of an agar petri dish. When the sampling cycle is complete, the petri dish is removed and incubated. The bacterial and fungal counts can then be assessed in accordance with USP 797 and CAG-009 guidance.

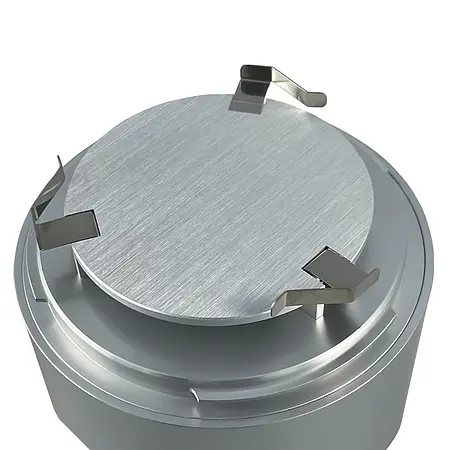

The collecting head should be sterilized in an autoclave at 121° C for 30 minutes (sterilization with a cloth with 75% alcohol is also possible.) The petri dish should also be sterilized with 75% alcohol.
|Micropores at collector head||300|
|Battery||6400-mA, rechargeable, up to 15 hours of continuous use at full charge|
Flow Error Rate
liters per minute (lpm) or 3.53 cubic feet per minute|
rate at |
|0.38 meters per second (m/s)|
|Measurement volume||10 ... 6000 liters, manually adjustable|
|Dimension of plate||ø 70 ... 90 x 15 mm / ø 2.76 x 3.54 x 0.59 inches|
|Data storage||Max. 99 parameters and 2000 measurement values|
|Dimensions||ø 120 x 300 mm / ø 4.72 x 11.81 inches|
|Standards||HACCP, FDA FMSA, ISO 14698-1|
|Weight||2.6 kg / 5.73 lb|
