Voltage Signal Converter PCE-SCI-U

Order no.: PCE-SCI-U

GTIN (EAN): 4250348722256

Description

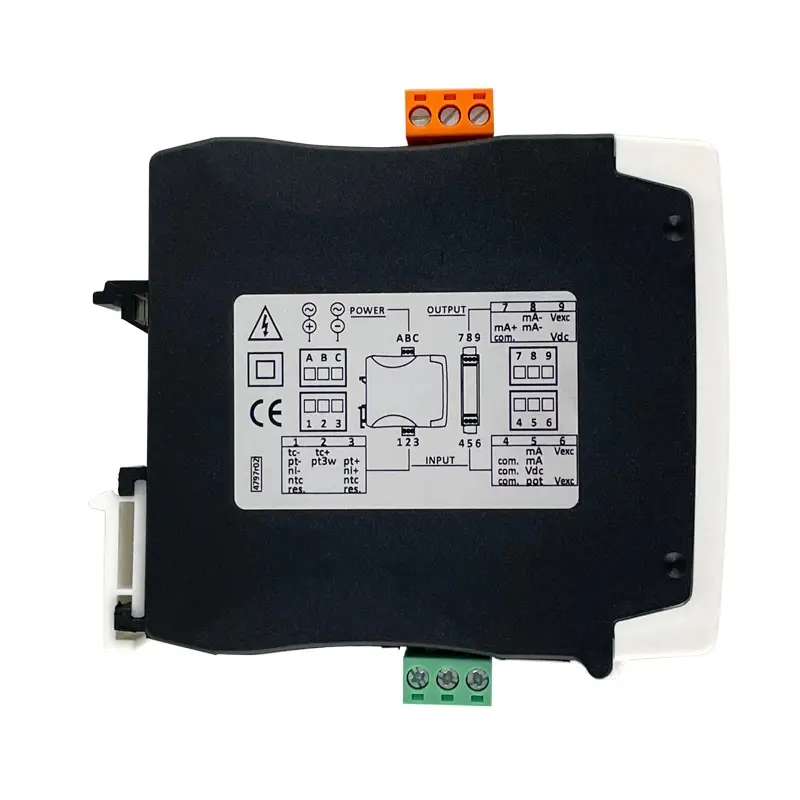

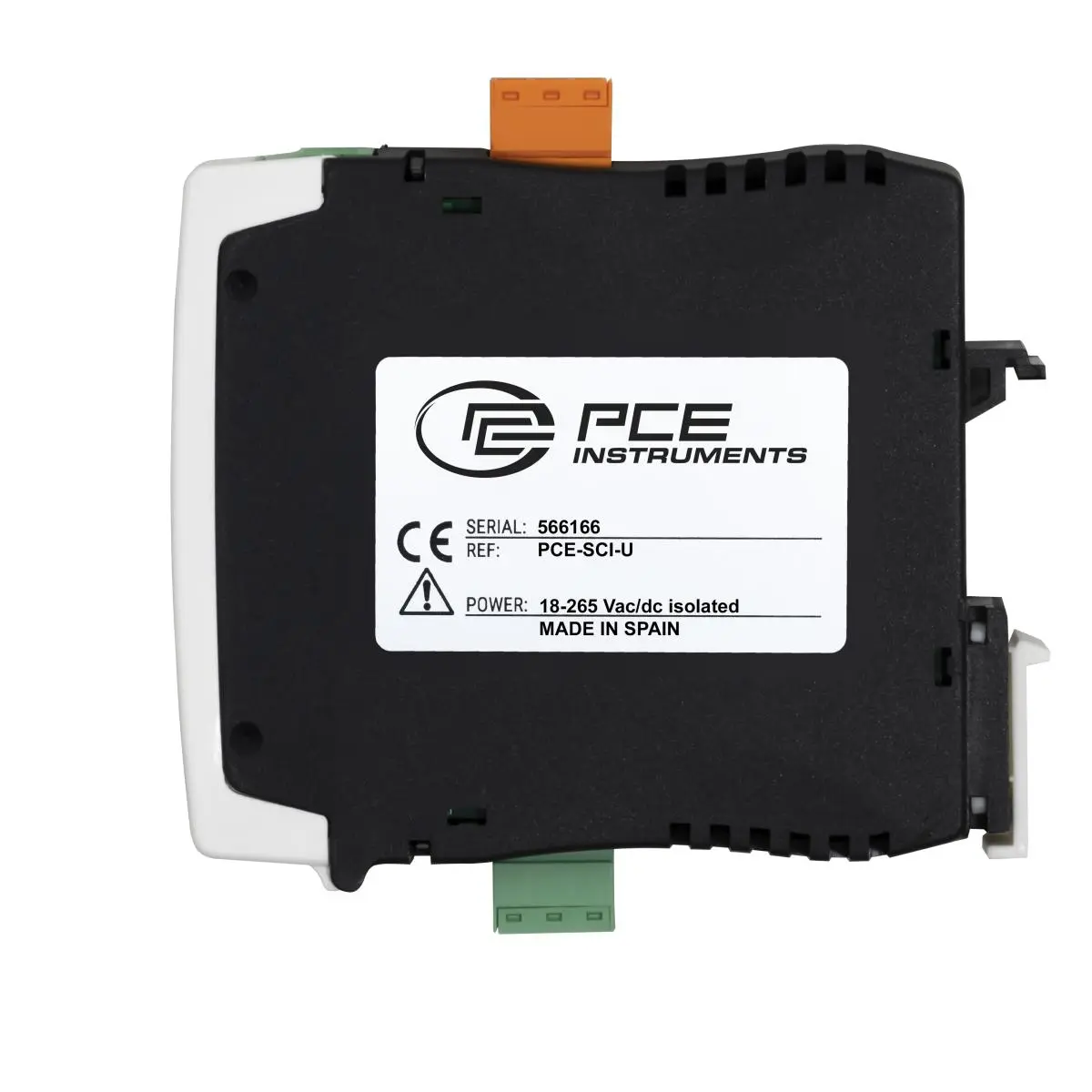

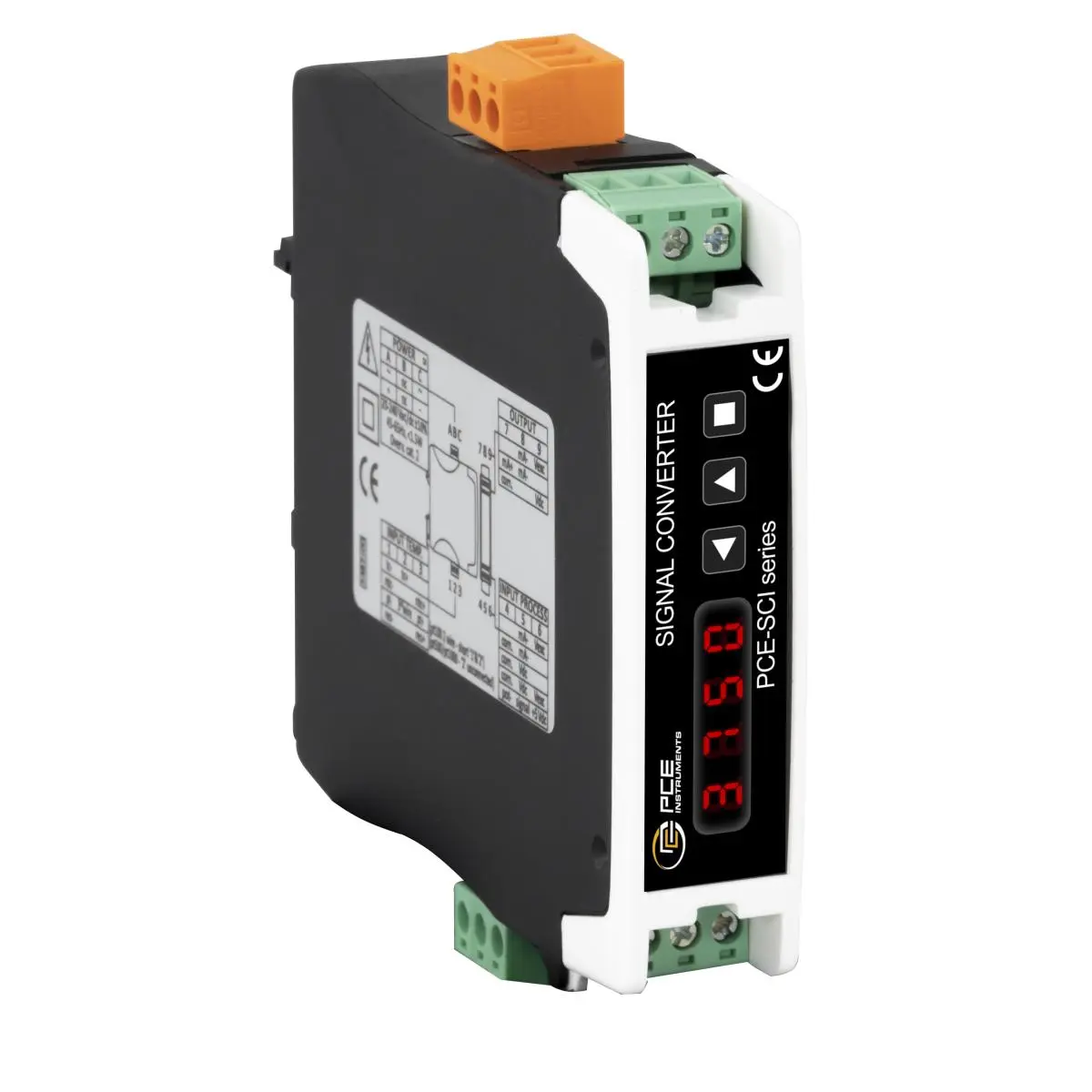

Voltage signal converter PCE-SCI-U
Transmitter Current - Voltage - Temperature Signal converter with more than 100 adjustable combinations / Analogue input signals (0 ... 10V, 4 ... 20-mA, Pt100, thermocouples) in galvanically isolated analogue standard signals

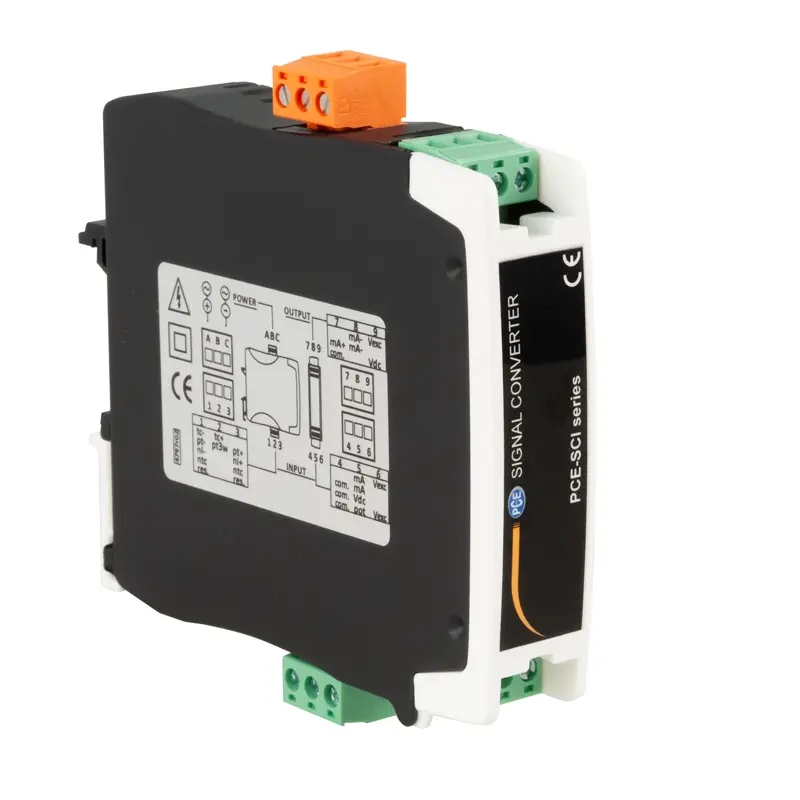

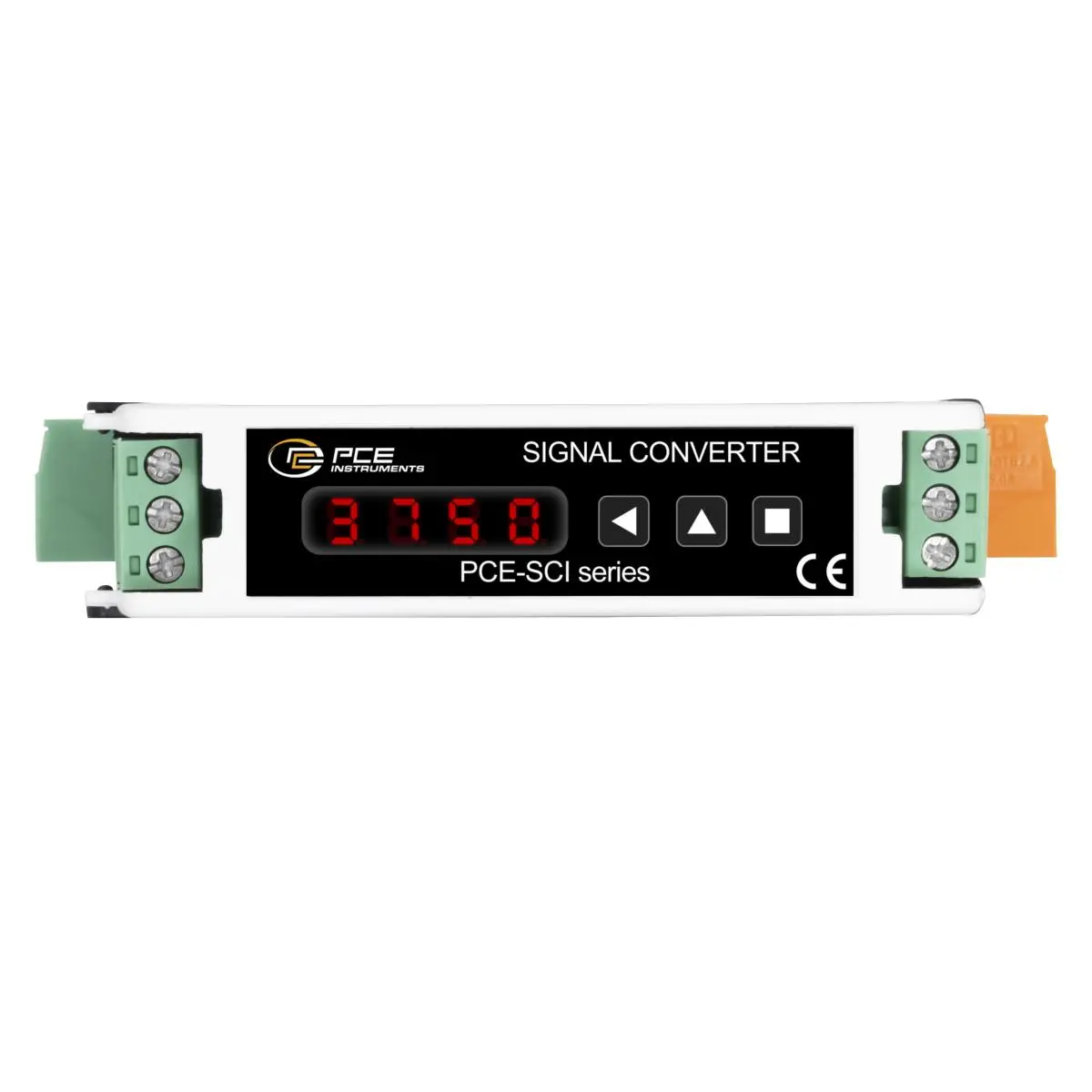

The transmitter converts an analog input signal into a corresponding analog output signal. The input and output signals from the transmitter are completely galvanically isolated. The input and output range is set via two buttons. The type of adjustment is displayed on an internal LED display.

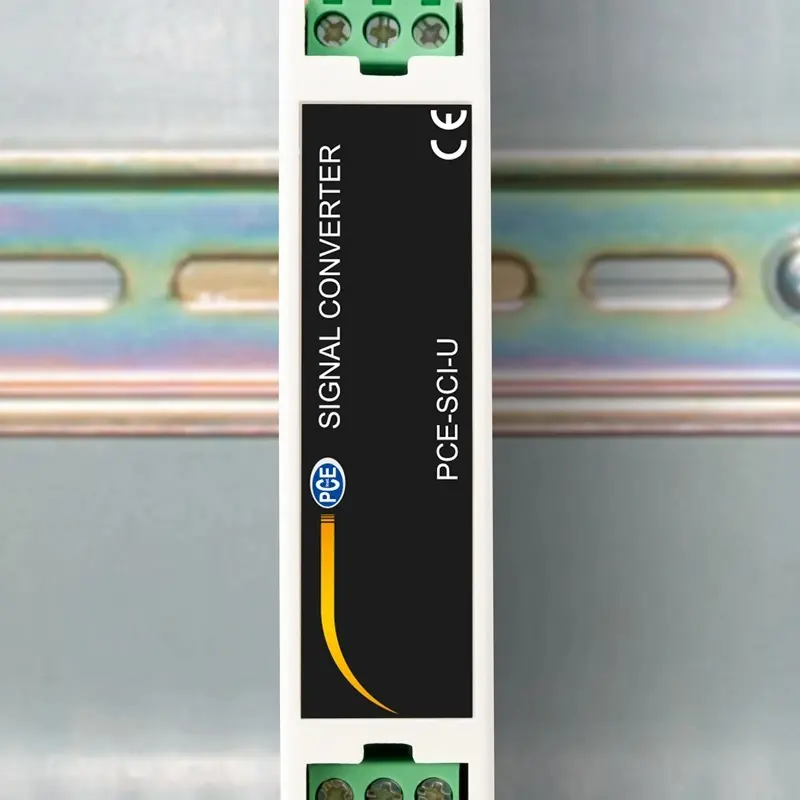

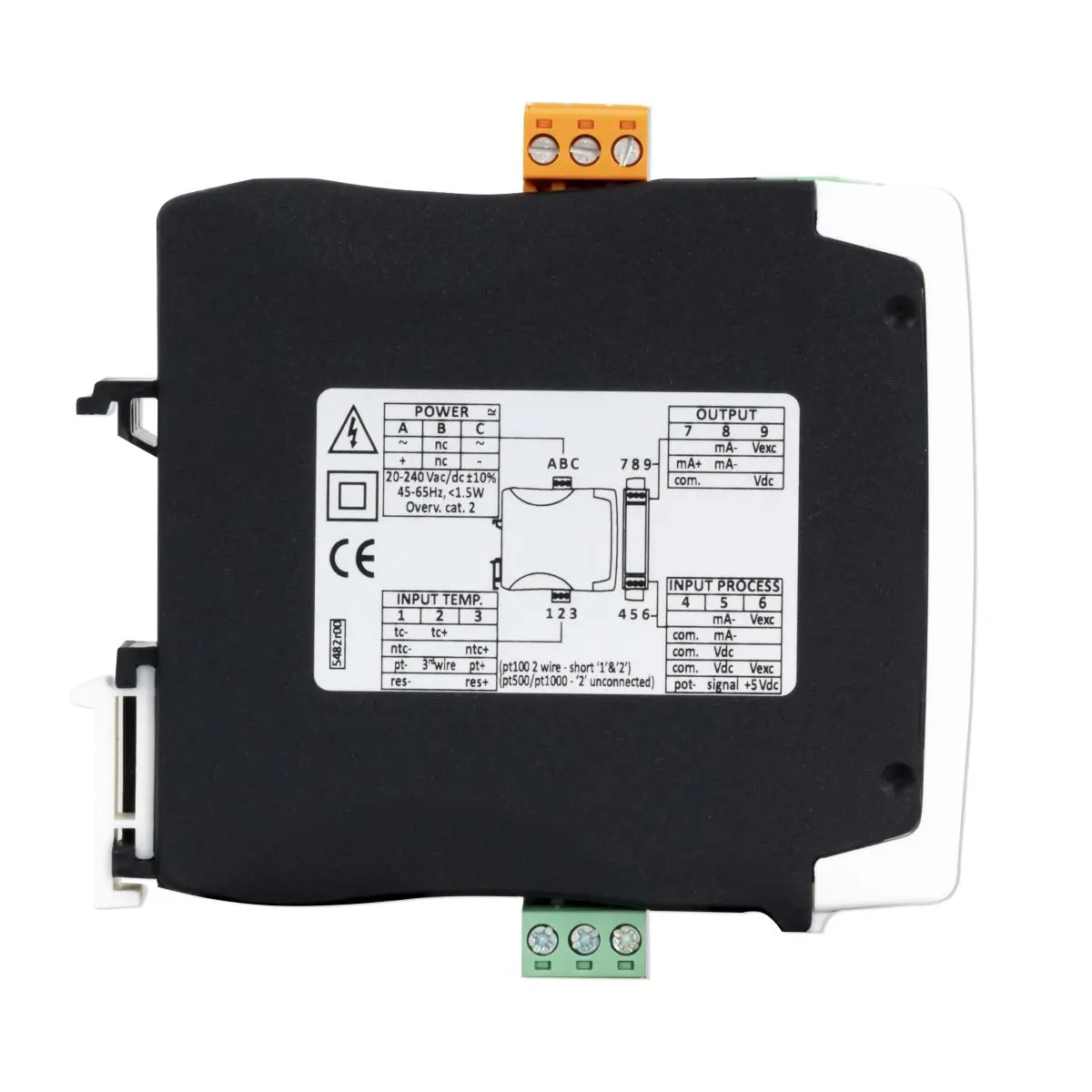

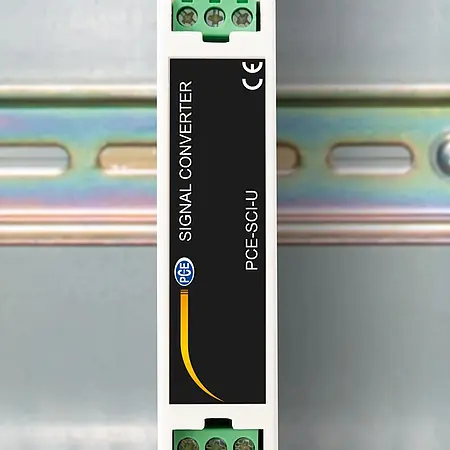

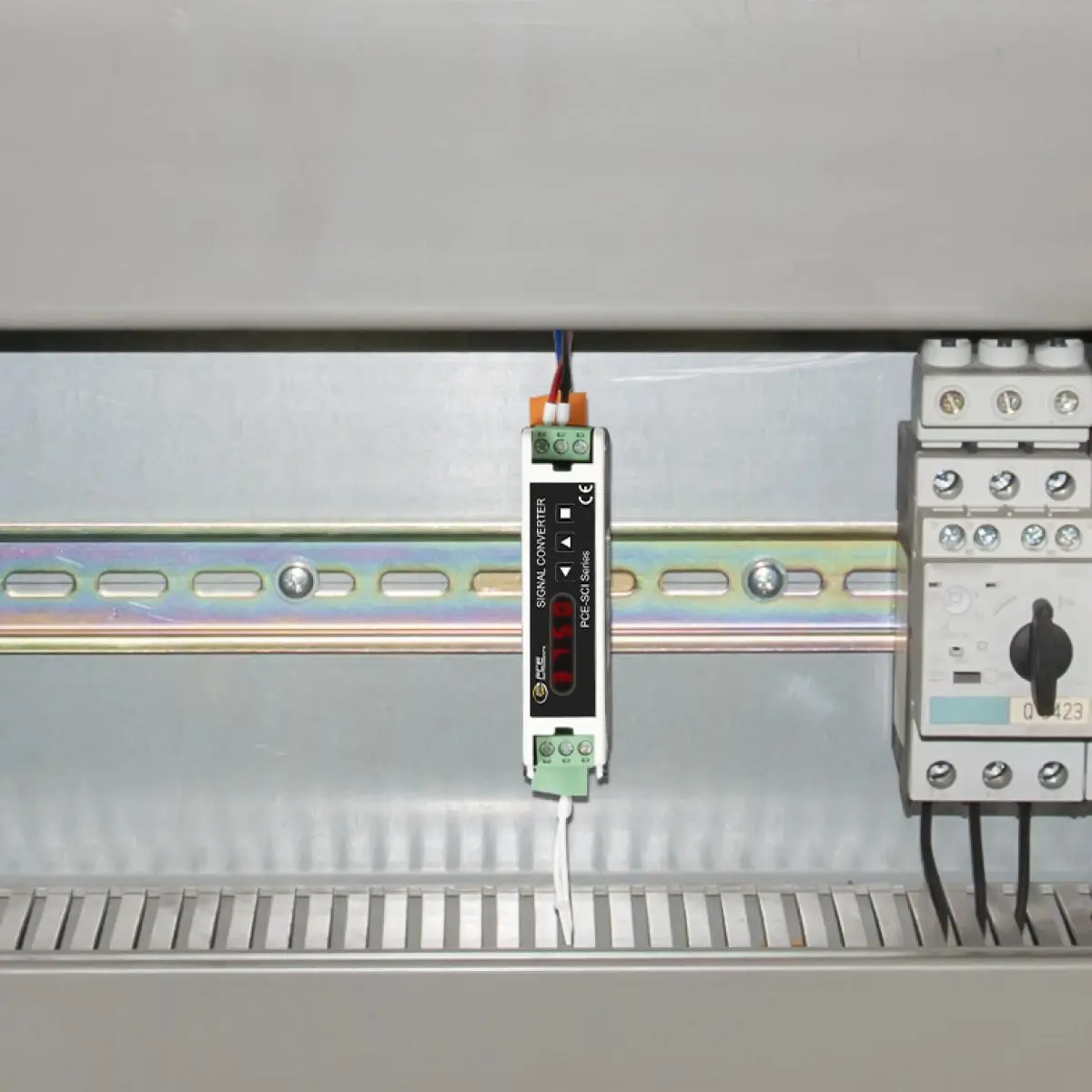

Over 100 different combinations of input and output, as well as the free scaling within the set ranges, make this transmitter a universally applicable device and save an expensive and laborious storage of different types. Since the input and output ranges can also be set identically, the transmitter can also be used for galvanic decoupling. The transmitter is simply snapped onto a C or DIN rail. The signal converter can be operated with a voltage between 18 ... 265V AC / DC.

Highlights

- Over 100 combinations pre-selected

- Freely scalable

- In operation in less than 5 minutes

- Converts analogue input range

- Completely galvanic isolation

- Power supply 18 ... 265 V AC/DC

Specification

NTC temperature
Measuring range	-60 ... +90 °C
Resolution	0,1 °C
Accuracy	<1% FS

Pt temperature
Battery type	Platinum 100
Measuring range	-200 ... +50 °C
Resolution	0,1 °C
Accuracy	<0.5% FS

Pt temperature
Battery type	Platinum 100
Measuring range	0 ... 700 °C
Resolution	0,1 °C
Accuracy	<0.3% FS

Pt temperature
Battery type	Pt500, Pt1000
Measuring range	-150 ... +630 °C
Resolution	0,1 °C
Accuracy	<1% FS

Temperature K-type
Measuring range	0 ... 1350 °C
Resolution	0,1 °C
Accuracy	<0.5% FS

Resistance
Measuring range	0 ... 100 kΩ
Resolution	0,1 kΩ
Accuracy	< 1% FS

Process current
Battery type	Entrance, Output
Measurement range min.	4 mA
Measurement range	20 mA
Accuracy	< 0.3% FS
Overload	max. 25V DC
Signal type	active, passive

Process voltage
Battery type	Entrance, Output
Measuring range	0 ... 10 V
Accuracy	< 0.3% FS
Overload	max. 25. In DC
Signal type	active, passive

Temperature J-type
Measuring range	0 ... 1200 °C
Resolution	0,1 °C
Accuracy	<0.5% FS

Temperature S-type
Measuring range	0 ... 1750 °C
Resolution	0,1 °C
Accuracy	<2% FS

Temperature R-type
Measuring range	0 ... 1750 °C
Resolution	0,1 °C
Accuracy	<2% FS

Temperature E-type
Measuring range	0 ... 900 °C
Resolution	0,1 °C
Accuracy	<0.5% FS

Temperature T-type
Measuring range	0 ... 400 °C
Resolution	0,1 °C
Accuracy	<1% FS

Temperature N-type
Measuring range	0 ... 1300 °C
Resolution	0,1 °C
Accuracy	<1% FS

Temperature Ni
Battery type	Ni100, Ni1000
Measuring range	-60 ... +180 °C
Resolution	0,1 °C
Accuracy	<1% FS

Potentiometer
Measuring range	0 Ω ... 20 kΩ
Accuracy	<1% FS
setpoint	0 ... 100 %

General technical data
Outputs	Active: 4 ... 20 mA; max. load 400 Ω Passive: 4 ... 20 mA; max. 30V Loop voltage 0 ... 10V ; max. load 1 kΩ
Display type	LED
Response time	300 ms
Warm-up time	15 min
Insulation	2300 Veff (max 60 s)
Performance	1,5 W
Cable cross-section from ... to	1 ... 2.5 mm²
Temperature-related deviation	150 ppm/°C and °F
Protection class (device)	IP30
Power supply	18 ... 265V AC/DC \| 45/65 Hz, isolated
Operating conditions	0 ... 50 °C , 0 ... 95 % RH
Storage conditions	-20 ... 70 °C , 0 ... 95 % RH
Dimensions ( L x W x H )	110 x 106 x 22 mm
Weight	124,5 g
