| Signal Input Range | 0 ... 20 mV |
| Minimal sensitivity | 0.1 μV / digit |
| Supply voltage of the measuring cell | 5V / 100-mA |
| Number of measuring cells |
1 ... 8x 350 Ohm measuring cell (s) |
| Display | 3.5 "LCD |
| Units | g, mN, mlb, Pa, kg, N, Ib, kPa, t, kN, klb, MPa |
| Measuring rate |
6, 12, 25, 50, 100, 200, 400, 800, 1600 Hz |

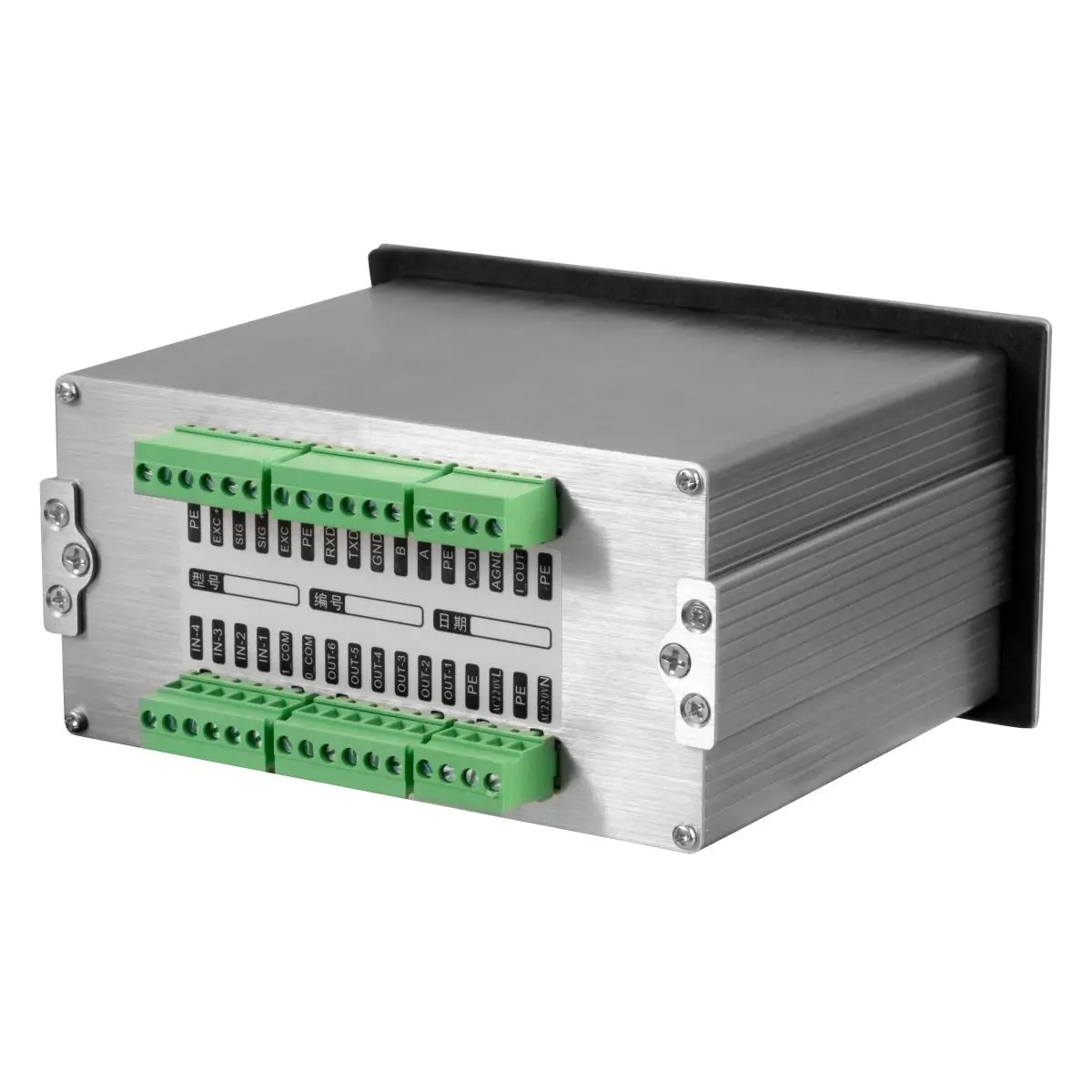

| Electrical connections | Screw |
| 1 ... 2.5 mm² | |
| Power supply | 220V AC / 50Hz |
| Input | < 10W |
| Degree of protection | Front: IP65 |
| Assembly | Panel cut |
| Size panel cutout | 152 x 76 mm / 6 x 3 in |
| Dimensions | 166 x 88 x 146 mm / 6.5 x 3.5 x 5.7 in |
| Weight | About 1150 g / 2.5 lbs |
| Operating conditions | -10 ... 40°C / 14 ... 104°F, max 85% RH |
| Storage conditions | -20 ... 50°C / -4 ... 122°F, max 85% RH |
The miniature force sensor can be used in many applications due to its compact dimensions. With a small force application surface, the miniature force transducer enables force measurement at small contact surfaces.
- Rated load / force F.S.: 10-50 kg / 100-500 N
- Limit load / force: 150 %
- Breaking load / force: 200 %
- Rated output: 1.0 – 1.5 mV/V
- Force sensor nominal load selectable!
Price excl. VAT &. delivery
2 year Warranty
The flat miniature force sensor has a height of only 11 mm. With a diameter of 20 mm, this miniature force sensor is very compact. This force sensor achieves a measurement uncertainty of only 0.5%.
- Rated load / force F.S.: 5-2000 kg / 50 N - 20 kN
- Limit load / force: 120 %
- Breaking load / force: 150 %
- Rated output: 1.0 – 1.5 mV/V
- Force sensor nominal load selectable!
Price excl. VAT &. delivery
2 year Warranty
This is a pressure cell as a force sensor with a high measuring range with small dimensions. The dimensions of the force sensor are only 9 mm in height and 19 mm in diameter.
- Rated load / force F.S.: 5-500 kg / 50-5000N
- Limit load / force: 120 %
- Breaking load / force: 150 %
- Rated output: 1.0 – 1.5 mV/V
- Force sensor nominal load selectable!
A force sensor made of stainless steel with a measurement uncertainty of only 0.5%. With the dimensions of Ø 13 mm and a height of 7 mm, the force sensor is very versatile.
- Rated load / force F.S.: 5-100 kg / 50-1000 N
- Limit load / force: 120 %
- Breaking load / force: 150 %
- Rated output: 1.0 – 1.5 mV/V
- Force sensor nominal load selectable!
The flat miniature force sensor has a height of only 4 mm. With a diameter of 12 mm, this miniature force sensor is very compact. This force sensor achieves a measurement uncertainty of only 0.5%.
- Rated load / force F.S.: 5-50 kg / 50-500 N
- Limit load / force: 120 %
- Breaking load / force: 150 %
- Rated output: 1.0 – 1.5 mV/V
- Force sensor nominal load selectable!
Thanks to its small dimensions, the miniature force sensor is easy to use on hard-to-reach measuring points. The height in particular is something special with this force sensor. With a diameter of only 10 mm, this force sensor is smaller in diameter than a 1 cent coin.
- Rated load / force F.S.: 5-100 kg / 50-1000 N
- Limit load / force: 120 %
- Breaking load / force: 150 %
- Rated output: 1.0 – 1.5 mV/V
- Force sensor nominal load selectable!
