Frequency Indicator PCE-N25S

Order no.: PCE-N25S
GTIN (EAN):
£ 80.00
£ 96.00
price ex. (VAT / delivery)
PCE-N25S
Prices excl. VAT excl. delivery
Delivery time: 1-2 working days
No
5-Digit LED
No

Description

Frequency Indicator PCE-N25S
5-digit LED display / IP65 protected front / optional sensor power supply system /
different inputs available / setup via software

The frequency indicator is used for processing standardised signals. Depending on your specific needs, the frequency indicator can be ordered with different inputs, such as 0...20 mA, 4...20 mA, 0...60 mV, 0...10 V, ±60 mV or ±10 V. The input signal of the frequency indicator is freely scalable, which increases its application possibilities.


The measured values are shown on the large 5-digit LED display. As an option, an integrated 24 V sensor power supply system is available for connecting 2-wire sensors or transducers. The power supply of the frequency indicator itself can also be selected, depending on your needs. To set up the frequency indicator, you can use the optional programming adaptor PCE-PD14 to connect it to a PC. There you can use the free PC software LPCon to adjust the settings.


Highlights

- IP65 protected front
- 6 different standardised signal inputs available
- configuration via software
- 5-digit LED display
- freely scalable

Specification

Technical specifications
Input (selectable) 0 ... 20 mA
4 ... 20 mA
0 ... 60 mV
0 ... 10 V
± 60 mV
± 10 V
Accuracy ± (0,2 % FS + 1 digit)
Internal resistance 10 Ohm ± 1 %
Scaling2 points
Display5-digits, 7 segments, LED, height: 14 mm
Display range-19999 ... 99999
Environmental conditionsDuring operation: -10 ... +55 °C
During storage: -25 ... +85 °C
Power supply230 V AC
110 V AC
24 V AC
85...235 V AC/DC
20...40 V AC/DC
Dimensions96 x 48 x 64 mm
Panel cutout 92 x 45 mm (according to DIN standard)
Protection class Front: IP 65
Weight < 200 g
Mounting Mounting clips with screws,

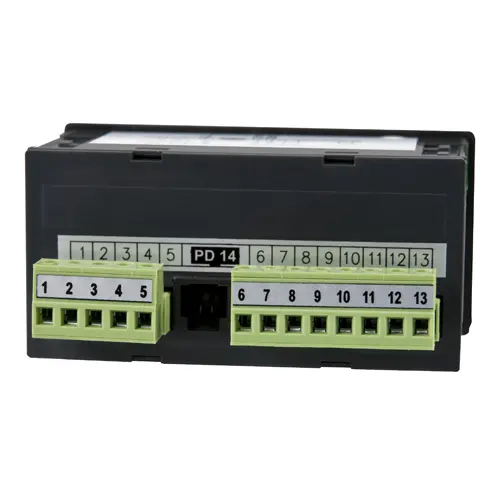

Connection via screw terminals
Housing robust plastic housing



Delivery Scope

1x Frequency Indicator PCE-N25S
1x mounting-clips
1x gasket seal
1x instruction manual
