Force Indicator PCE-N50F

Order no.: PCE-N50F
£ 610.00
£ 732.00
price ex. (VAT / delivery)
Delivery time: 1-2 working days
Force indicator PCE-N50F
Weighing terminal for load cells, force sensors, etc. / LCD display / Max. 1600 Hz sampling rate / Serial Modbus interface / Digital inputs / Outputs / Different units

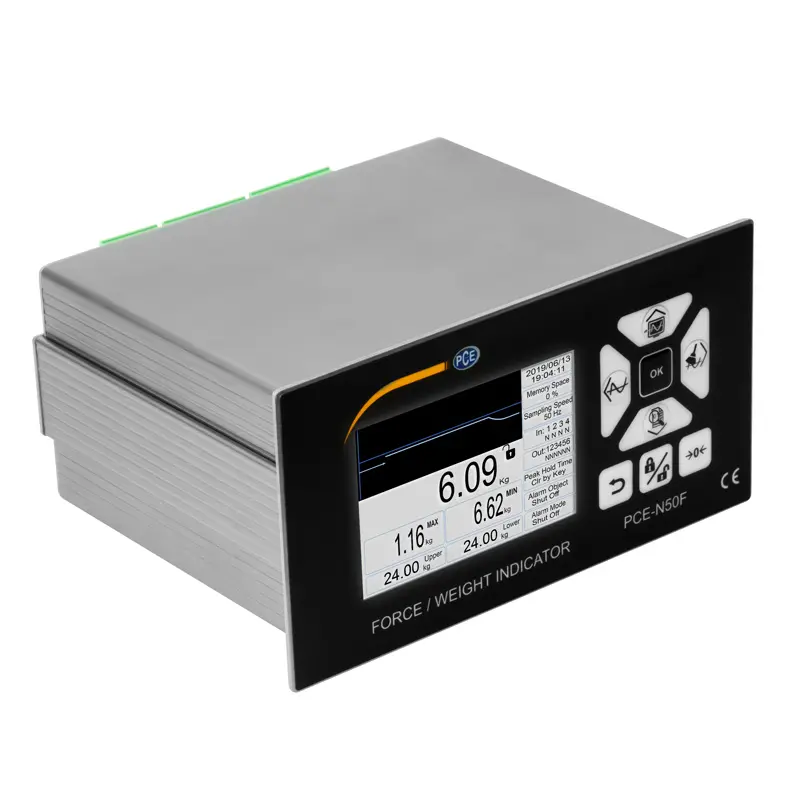

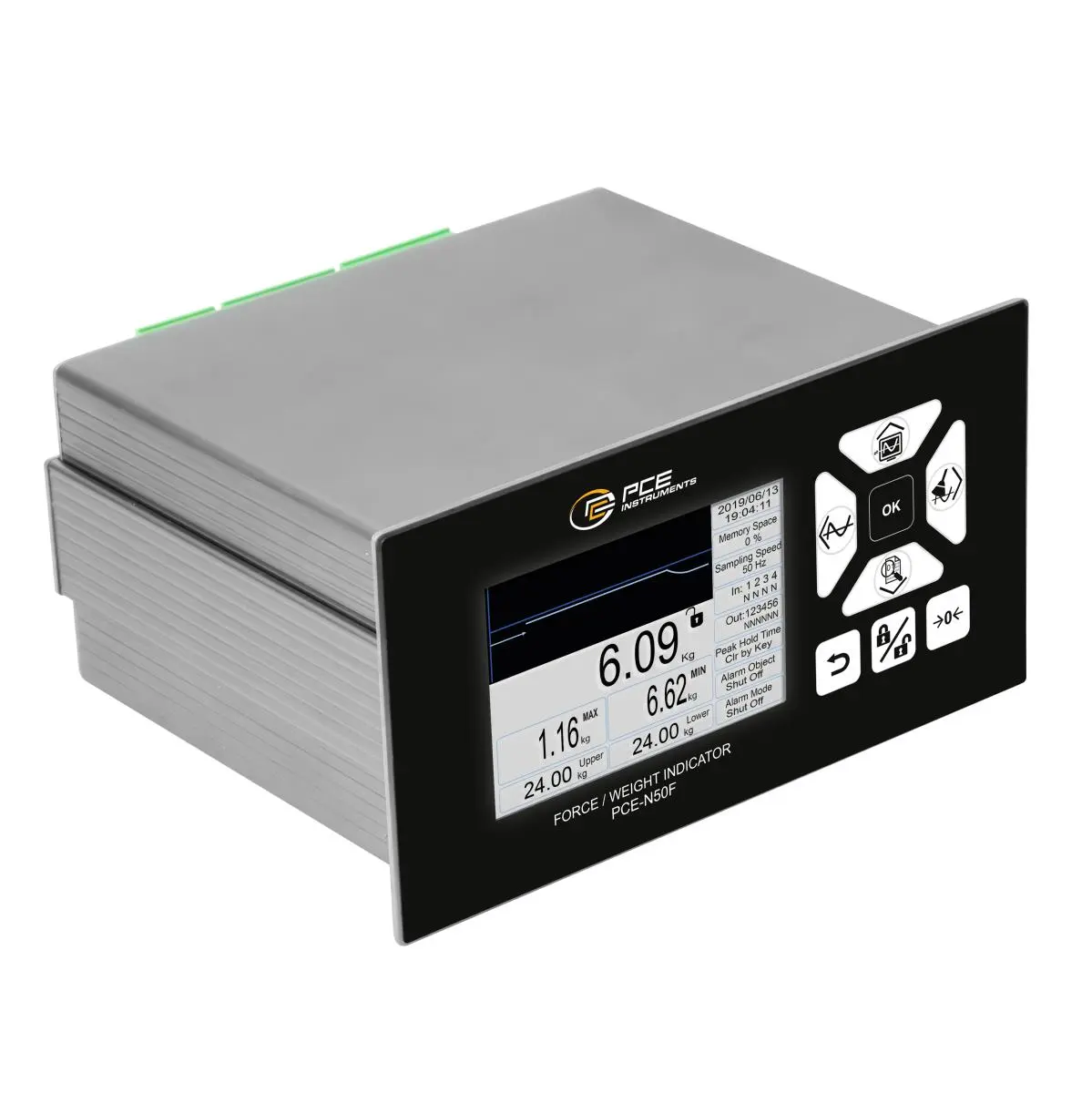

The force indicator is suitable for panel mounting. This force indicator can be used to show the weight, force or torque. The decisive factor here is the type of sensor that is connected to the force indicator. The calibration of the force indicator to the respective measuring cell is made via the menu with the aid of exact calibration weights. The force indicator is used for stationary and individual weighing solutions. Often the force indicator is used where the weight has to be determined continuously.

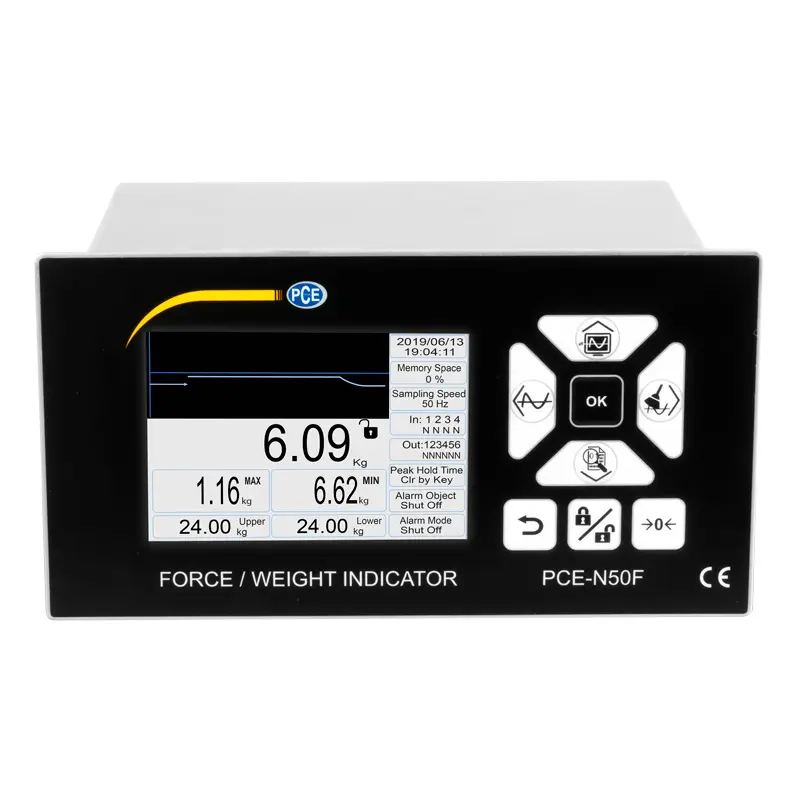

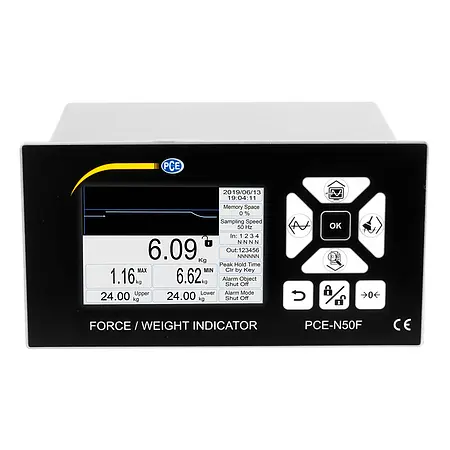

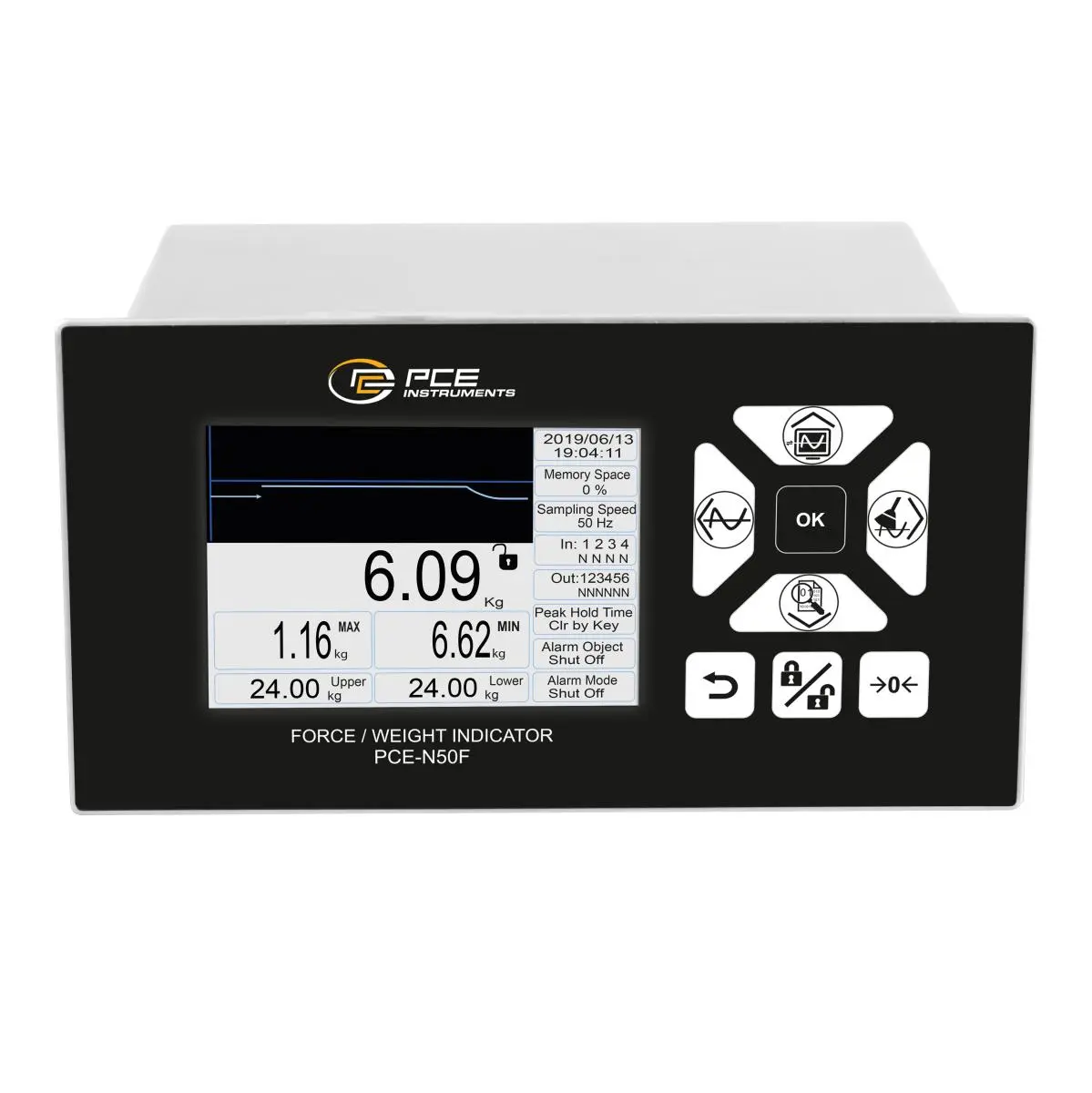

The display of the force indicator device is a graphic display, which shows not only the numerical measured value but also the course of the weighing process. The force indicator also displays the minimum and maximum weighing values. Using the keys, the force indicator can be tared or set to zero. In addition to the operation via the keys, the force indicator can be operated via the rear-side digital inputs. So external buttons can be connected, which tare the force display device etc.

- Up to 1600 Hz sampling rate
- LC display
- Minimum and maximum value determination
- Tare and zero function
- For load cells, force sensors, etc.
- Digital inputs and outputs
Signal Input Range 0 ... 20 mV
Minimal sensitivity 0.1 μV / digit
Supply voltage of the measuring cell      5V / 100-mA
Number of measuring cells
1 ... 8x 350 Ohm measuring cell (s)
Display 3.5 "LCD
Units g, mN, mlb, Pa, kg, N, Ib, kPa, t, kN, klb, MPa
Measuring rate
6, 12, 25, 50, 100, 200, 400, 800, 1600 Hz

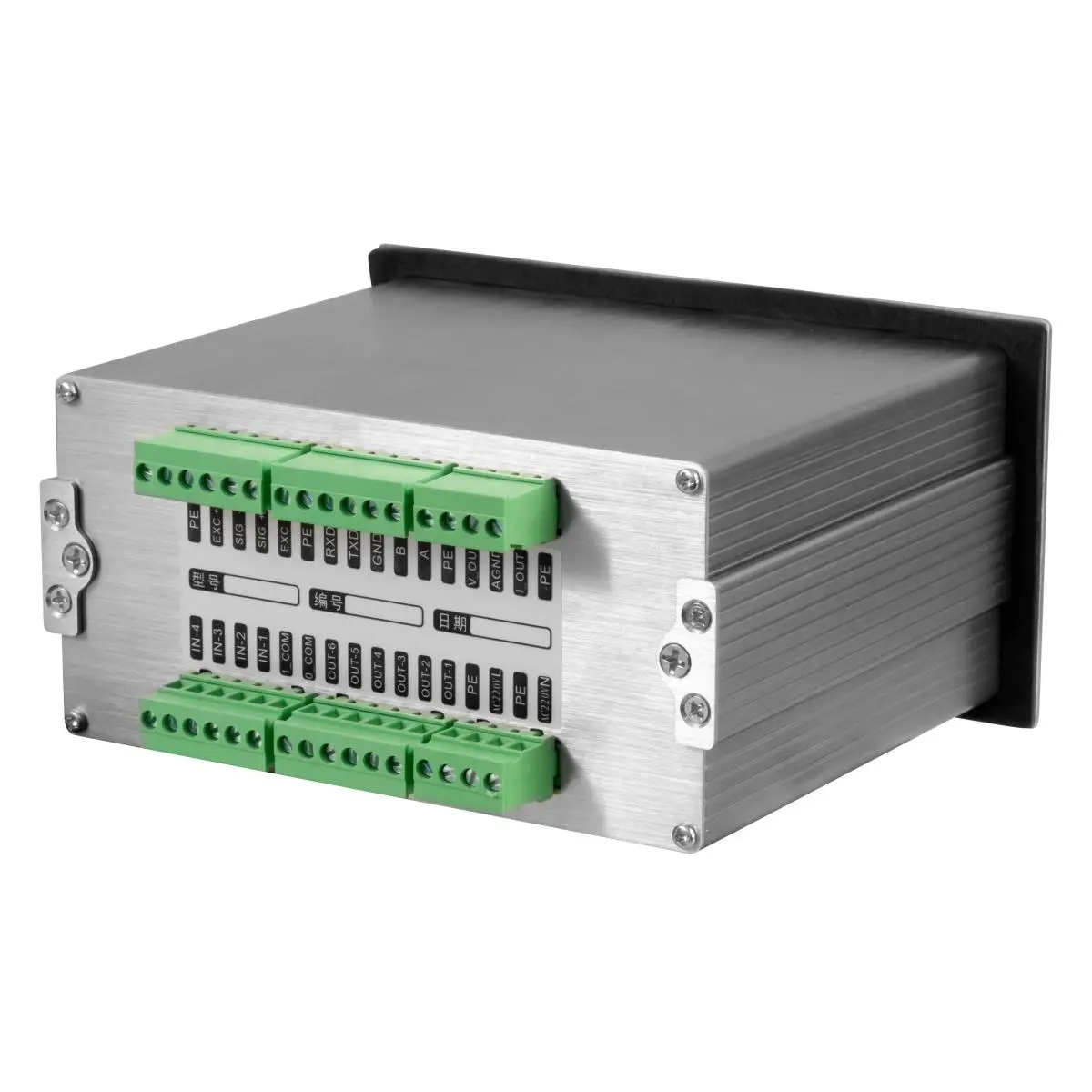

Electrical connections Screw
  1 ... 2.5 mm²
Power supply 220V AC / 50Hz
Input < 10W
Degree of protection Front: IP65
Assembly Panel cut
Size panel cutout 152 x 76 mm / 6 x 3 in
Dimensions 166 x 88 x 146 mm / 6.5 x 3.5 x 5.7 in
Weight About 1150 g / 2.5 lbs
Operating conditions -10 ... 40°C / 14 ... 104°F, max 85% RH
Storage conditions -20 ... 50°C / -4 ... 122°F, max 85% RH

1 x Force indicator PCE-N50F
1 x User manual
