Order no.: PCE-WSAC 50W 230-ICA

The anemometer PCE-WSAC 50W 230-ICA is useful for measuring the wind speed to help determine the preferred site for a wind turbine installation. The device also monitors the wind load on existing wind farms, as well as on cranes for safey purposes. Due to the integrated 4 ... 20-mA analogue output of the anemometer, the measured data can also be transferred to other controllers for evaluation.


- Measuring range up to 180 km / h
- Input: Pulse, analogue (4 ... 20-mA) or radio transmission
- 4 ... 20-mA analogue output
- Supply voltage: 110 ... 230V AC, 50/60 Hz
- Ambient temperature -20 .. . 70°C / -4 ... 158°F
- Units adjustable: km / h, mph, m / s
- Incl. ISO calibration certificate
Manufacturer: PCE Instruments
Test Instruments manufacturer

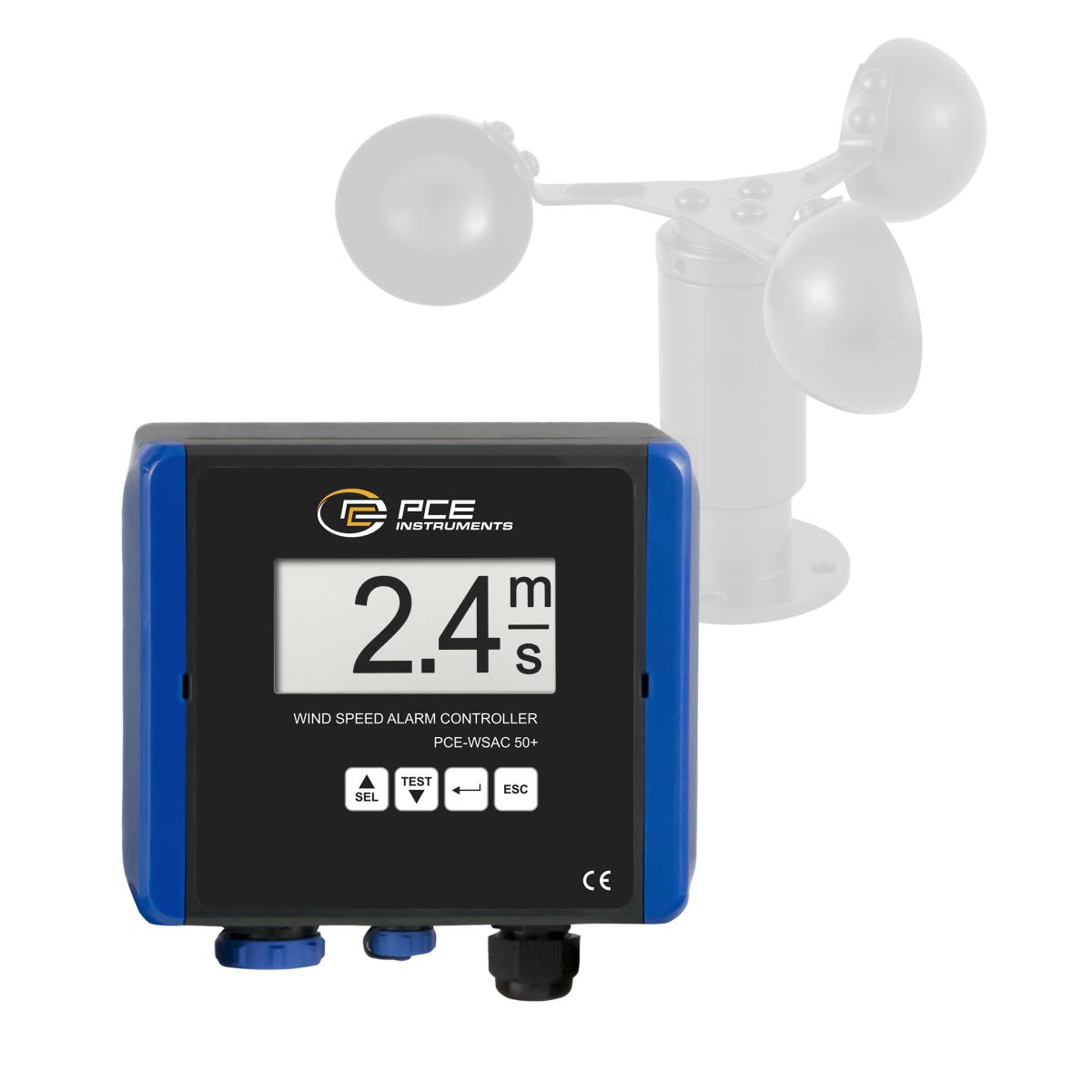

Order no.: PCE-WSAC 50W 24
The anemometer PCE-WSAC 50W is primarily used to measure and monitor the wind load on cranes or wind turbines. Furthermore, the wind situation can be measured and analyzed before commissioning a wind turbine. The high measuring range of up to 50 m/s of the anemometer means stormy gusts can also be monitored.

- Measuring range up to 180 km / h
- Input: pulse, analogue (4 ... 20-mA) or radio transmission
- 4 ... 20-mA analog output
- Supply voltage: 24V DC
- Ambient temperature -20 ... 70°C / -4 ... 158°F
- units adjustable: km / h, mph, m / s
Manufacturer: PCE Instruments
Test Instruments manufacturer

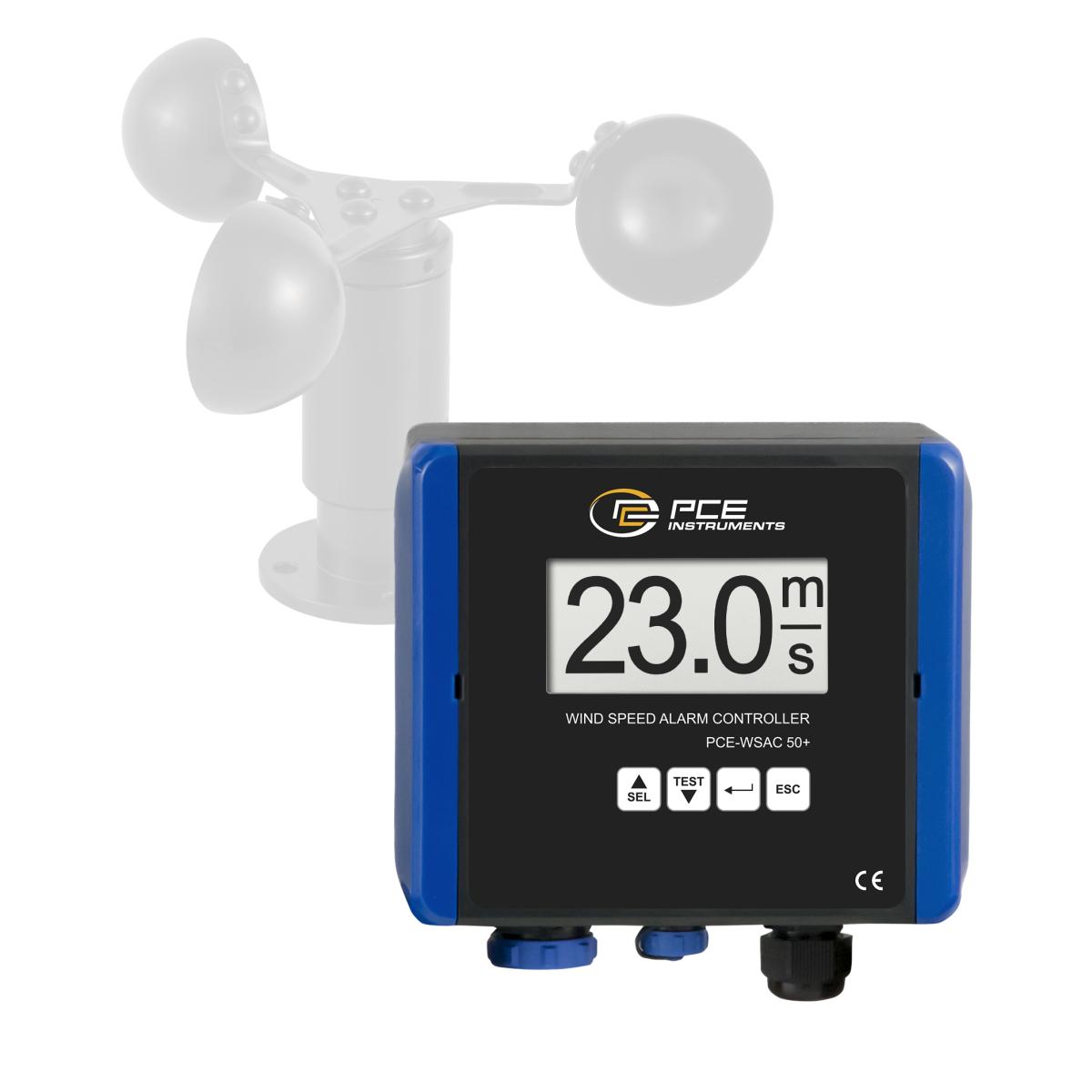

Order no.: PCE-WSAC 50W 230
The anemometer PCE-WSAC 50W 230 is primarily used to measure and monitor the wind load on cranes or wind turbines. Furthermore, the wind situation can be measured and analyzed before commissioning a wind turbine. The high measuring range of up to 50 m/s of the anemometer means stormy gusts can also be monitored.

- Measuring range up to 180 km / h
- Input: Pulse, analogue (4 ... 20-mA) or radio transmission
- 4 ... 20-mA analogue output
- Supply voltage: 110 ... 230V AC, 50/60 Hz
- Ambient temperature -20 .. . 70°C / -4 ... 158°F
- Units adjustable: km / h, mph, m / s
Manufacturer: PCE Instruments
Test Instruments manufacturer
Order no.: PCE-009-ICA

Data logger to measure air temperature and velocity with calculation of volume of air current and RS-232. This kind of airflow meter is mainly for use in HVAC systems. The logging instruments are manufacturer calibrated and are delivered incl. ISO calibration certificate.


- Measurement range: 0.2 ... 20.0 m/s
- Measurement range: 0.0 ... 50.0 °C / 32 ... 122°F (sensor)
- Volumetric flow:  0 ... 36,000 m3/min
- Internal memory: 16,000 values
- Incl. ISO calibration certificate

Manufacturer: PCE Instruments
Test Instruments manufacturer
Order no.: KWS1

Anemometer KWS 1 for, for example, PCE-WL windlogger. Simple cross-hair anemometer with pulse output and wind direction sensor. Wind measuring device for the measurement of the wind speed and the wind direction of the horizontal air flow. The shutter speed is scanned free of contact and wear and has a particularly light start-up. The wind flap position is detected by resistance. The digital measuring signals from the wind meter can be evaluated directly.


- Measuring range: 0.9 ... 40 m / s / 5 ... 355 °
- Output signal: 0 ... 100 Hz Pulse / 0 ... 1000 Ohm
- Installation: mast mounting 31 mm drm.
- Heating: No



Manufacturer: Adolf Thies GmbH & Co. KG
Test Instruments manufacturer
Order no.: PCE-WL 1-ICA

The Anemometer PCE-WL 1 is an ideal tool to measure and store the wind speed over a long period of time. The battery operation enables you to use the anemometer  for mobile applications. Since a wind power station is an expensive investment, you usually want to know what profits it will generate in advance. The Anemometer  PCE-WL 1 helps you determine these profits.


- Measuring range: 0.8 ... 40 m/s
- Accuracy: ± 0.5 m/s or 5% of measurement value
- Battery life up to 3 years
- 512 MB microSD card incl.
- incl. ISO Calibration Certificate

Manufacturer: PCE Instruments
Test Instruments manufacturer
Order no.: PCE-WL 1

The anemometer PCE-WL 1 is an ideal tool to measure and store the wind speed over a long period of time. The battery operation enables you to use the anemometer for mobile applications. Since a wind power station is an expensive investment, you usually want to know what profits it will generate in advance. The anemometer PCE-WL1 helps you determine these profits.


- Measuring range: 0.8 ... 40 m/s
- Accuracy: ± 0.5 m/s or 5% of measurement value
- battery life up to 3 years
- 512 MB microSD card incl.



Manufacturer: PCE Instruments
Test Instruments manufacturer
Order no.: PCE-009

This thermal anemometer has a good relation between price and quality and it combines accuracy and versatility with the ability to transfer data directly to a computer. This thermal anemometer forms a part of a professional's basic equipment to regulate and test ventilation systems. All the test instruments come manufacturer calibrated. ISO certification can be made as an option.


- Measurement range: 0.2 ... 20.0 m/s
- Measurement range: 0.0 ... 50.0°C / 32 ... 122°F (sensor)
- Volume of air current:  0 ... 36,000 m3/min
- Internal memory: 16,000 values
- Sampling rate: 1 sec



Manufacturer: PCE Instruments
Test Instruments manufacturer
Order no.: PCE-VA 20-SET-ICA

The PCE-VA 20-SET is a multi-functional anemometer including flow hoods for assessing and balancing heating, ventilation and air conditioning or cooling (HVAC) installations. This multi-faceted anemometer-thermometer-hygrometer incorporates a 10 cm / 3.9" diam. fan impeller, easy-to-view backlit LCD, and useful functions, e.g. display hold, average val, maximum val, minimum val, auto power-off, low battery indication, and imperial/metric option.


- Measures air flow velocity, volume flow, relative humidity, air temperature, dew
  point temperature and wet-bulb temperature
- Air flow velocity range: 0.2 ... 30 m/s (39.4 ... 5905.5 fpm)
- Accuracy: ±(1.5% of measured value + 0.3 m/s) when less than 20 m/s, ±(3% of
  measured value + 0.3 m/s) when more than 20 m/s
- Resolution: 0.1°C / 0.18°F
- Includes 2 x capture hoods (1 x round 210 mm / 8.3 in Ø, 1 x square 346 x 346
  mm / 13.6 x 13.6 in)
- incl. ISO Calibration Certificate

Manufacturer: PCE Instruments
Test Instruments manufacturer
Order no.: PCE-WSAC 50-711

Besides the present wind speed, the Anemometer PCE-WSAC 50-711 shows the average wind speed of the previous 2 minutes and 5 minutes. This anemometer is very sensitive allowing recording of low wind speeds. The PCE-WSAC 50-711 can be utilised in many wind recording applications across all industry sectors, e.g. building, quarrying, green energy and assembly lines.


- Pre-alarm and full alarm with visual and audible warnings
- Measuring range: 0 ... 110 mph
- Power supply: 230 V AC
- Signal input: 4...20 mA
- Optional interface: RS-485 modbus

- incl. ISO calibration certificate

Manufacturer: PCE Instruments
Test Instruments manufacturer
Order no.: PCE-WSAC 50-721

The prevailing wind speed and the mean wind speed (across two and five minutes) can be displayed by the PCE-WSAC 50-721 anemometer. The smallest of wind movement is detected by this convenient anemometer. The PCE-WSAC 50-721 anemometer is used for a variety of wind monitoring applications in both outdoor industry and outdoor sports.


- Pre-alarm and full alarm with visual and audible warnings
- Measuring range: 0 ... 110 mph
- Power supply: 230 V AC
- Signal input: 0...10 V
- Optional interface: RS-485 modbus
- incl. ISO calibration certificate

Manufacturer: PCE Instruments
Test Instruments manufacturer
Order no.: PCE-WSAC 50-811

For measurement and display of both the current wind speed and the mean wind speed (over 120 seconds and 300 seconds), the PCE-WSAC 50-811 is an ideal anemometer. Measurement of the slightest of wind motion is achieved by this sensitive instrument. The PCE-WSAC 50-811 can be applied to multiple wind monitoring applications in building and maintenance, agriculture and aviation and many other industries.


- Pre-alarm and full alarm with visual and audible warnings
- Measuring range: 0 ... 110 mph
- Power supply: 115 V AC
- Signal input: 4...20 mA
- Optional interface: RS-485 modbus

- incl. ISO calibration certificate

Manufacturer: PCE Instruments
Test Instruments manufacturer
Order no.: PCE-WSAC 50-821

The PCE-WSAC 50-821 anemometer can be successfully applied to various wind monitoring applications. The instrument clearly displays the prevailing wind speed and additionally the average wind speed over 2 and 5 minutes. The slightest of wind movement is detected by the PCE-WSAC 50-821 anemometer. Aerospace, recycling plants and fruit production are some example areas that can benefit from the device.


- Pre-alarm and full alarm with visual and audible warnings
- Measuring range: 0 ... 110 mph
- Power supply: 115 V AC
- Signal input: 0...10 V
- Optional interface: RS-485 modbus

- incl. ISO calibration certificate

Manufacturer: PCE Instruments
Test Instruments manufacturer
Order no.: PCE-WSAC 50-911

If your situation requires monitoring of the wind speed and the average speed figure over 2 minutes and 5 minutes, the PCE-WSAC 50-911 is the right anemometer for you. The device handles wind speeds from 0 mph to 110 mph. Multiple types of outdoor industry can benefit from the PCE-WSAC 50-911 anemometer, for example construction, agriculture and wind energy.


- Pre-alarm and full alarm with visual and audible warnings
- Measuring range: 0 ... 110 mph
- Power supply: 24 V DC
- Signal input: 4...20 mA
- Optional interface: RS-485 modbus

- incl. ISO calibration certificate

Manufacturer: PCE Instruments
Test Instruments manufacturer
Order no.: PCE-WSAC 50-921

The PCE-WSAC 50-921 anemometer is used in a multitude of wind monitoring situations. Besides the actual wind speed, the average wind speed across 120 seconds and 300 seconds is presented. The lightest of wind movement is detected by the PCE-WSAC 50-921 anemometer, and the instrument can be helpful across the full spectrum of outdoor industries.


- Pre-alarm and full alarm with visual and audible warnings
- Measuring range: 0 ... 110 mph
- Power supply: 24 V DC
- Signal input: 0...10 V
- Optional interface: RS-485 modbus

- incl. ISO calibration certificate

Manufacturer: PCE Instruments
Test Instruments manufacturer
Order no.: PCE-PDA 10L

The pitot pipe anemometer is a reliable differential pressure gauge for pressure measurement of air in the range of ±20 kPa. The Anemometer can be used in combination with various pitot pipes what makes the instrument very useful in air flow measurements of industrial plants.

- Measuring range pressure: ± 20 kPa  /  ± 150 mmHg /  ± 2.9 PSI
- Resolution: 1/ 10 Pa
- Accuracy: ± 0.5% of final value
- Min and Max value memory
- Datalogger and leak test
- Temperature measurement, flow measurement
- Pitot pipe not included in delivery / optionally selectable

Manufacturer: PCE Instruments
Test Instruments manufacturer
Order no.: CWG 1

Compact wind sensor CWG1 for weather monitoring. Basic cup anemometer with 4 … 20 mA output.


- Output: 4 … 20 mA
- Measurement reading range: 0 … 50 m/s
- Accuracy: ± 0,5 m/s or 3 % v.M



Manufacturer: Adolf Thies GmbH & Co. KG
Test Instruments manufacturer
Order no.: PCE-WSAC 50-710

PCE-WSAC 50-710 is an anemometer that displays the current wind speed as well as the average wind speed of the last 2 and 5 minutes. This anemometer allows measurement of the slightest of wind movements. PCE-WSAC 50-710 is used for a variety of wind monitoring applications in industries such as construction, mining, renewable energy and manufacturing.


- Pre-alarm and full alarm with visual and audible warnings
- Measuring range: 0 ... 110 mph
- Power supply: 230 V AC
- Signal input: 4...20 mA

- incl. ISO calibration certificate

Manufacturer: PCE Instruments
Test Instruments manufacturer
Order no.: PCE-WSAC 50-720

The PCE-WSAC 50-720 is a handy anemometer for showing the actual wind speed and the average wind speed of the prior 120 and 300 seconds. The measuring of minimal wind motion can be easily achieved by this accurate device. There are many outdoor areas of industry, e.g. excavation, wind farms, forestry, in which the PCE-WSAC 50-720 anemometer can be usefully deployed.


- Pre-alarm and full alarm with visual and audible warnings
- Measuring range: 0 ... 110 mph
- Power supply: 230 V AC
- Signal input: 0...10 V

- incl. ISO calibration certificate

Manufacturer: PCE Instruments
Test Instruments manufacturer
Order no.: PCE-WSAC 50-810

The PCE-WSAC 50-810 anemometer allows measurement of wind movements from 0 mph to 110 mph. This convenient anemometer is used to measure the current wind speed and also the average speed over 2 minutes and over 5 minutes. Many outdoor industries, for example farming and acquaculture, are in need of the wind monitoring functions of the PCE-WSAC 500-810.


- Pre-alarm and full alarm with visual and audible warnings
- Measuring range: 0 ... 110 mph
- Power supply: 115 V AC
- Signal input: 4...20 mA

- incl. ISO calibration certificate

Manufacturer: PCE Instruments
Test Instruments manufacturer
