Weighing Hook PCE-DDM 3WI-ICA incl. ISO Calibration Certificate

Order no.: PCE-DDM 3WI-ICA
ISO Calibration
US$ 1,379.00
PCE-DDM 3WI-ICA
ex. VAT, ex. delivery costs
Available in: 10 - 14 days

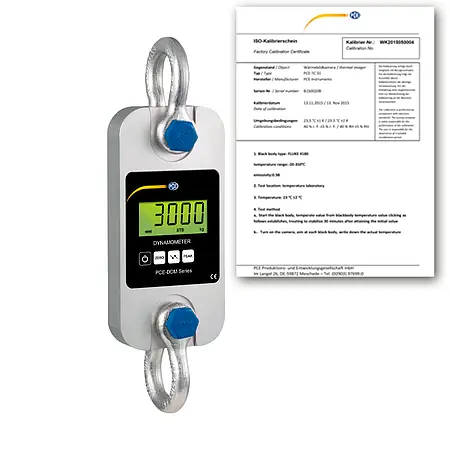

Weighing Hook - ICA incl. ISO Calibration Certificate
Measurement range up to 3 t / Peak hold function / Includes shackles and protective carrying case

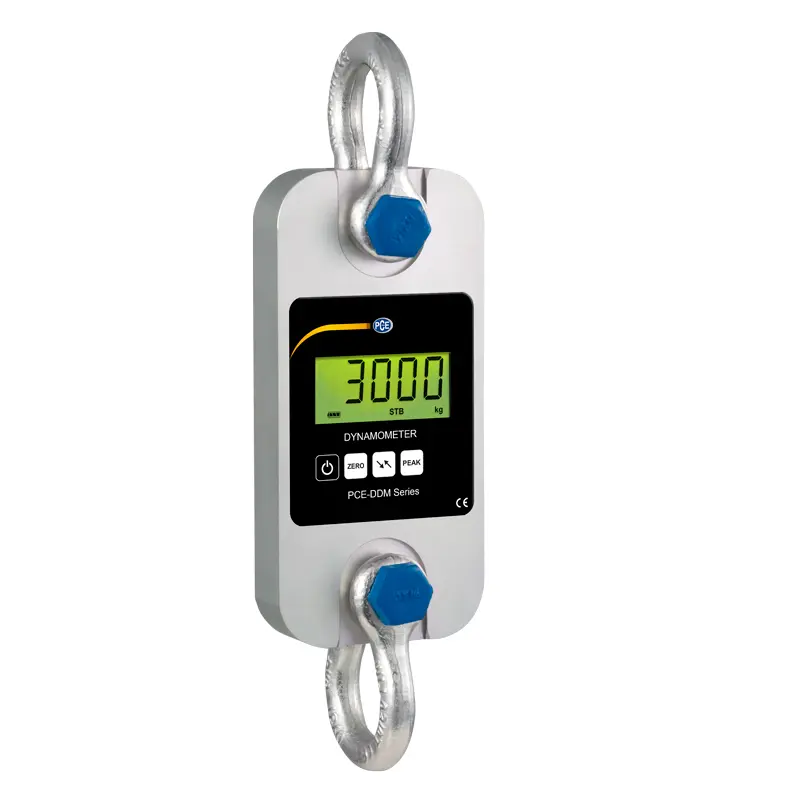

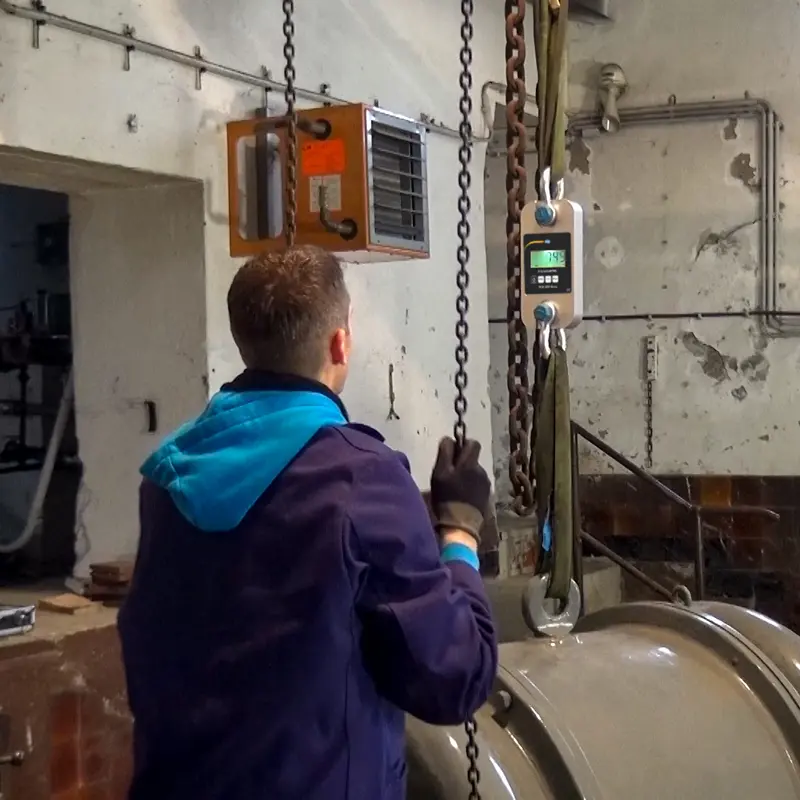

The PCE-DDM 3WI Weighing Hook is the ideal tool for weighing big loads and for measuring strong tensile forces. The PCE-DDM 3WI weighing hook is delivered in a protective carrying case and includes two shackles made of heavy-duty aluminum. The instrument is manufacturer calibrated, but can be certified to ISO standards for an additional fee. Despite its high measurement capacity, the weighing hook is a compact portable device with a low net weight. Interesting functions of the weighing hook are the peak hold function, summation function, and the ability to select different units of measurement such as kg / t / lbs / N / kN. The instrument is only suitable for weighing and for tension force testing. For compression force testing, please see the PCE-FB series force gauges.



- High capacity
- Compact and portable
- Long battery life
- PEAK hold function
- Summation function
- Units of measurement: kg / t / lbs / N / kN
- Adjustable gravitation range
- Shackles and carrying case included
- incl. ISO Calibration Certificate
Measuring range 3000 kg / 30 kN / 6614 lbs
Resolution 1 kg / 10 N / 2.2 lbs
Min. range 10 kg / 22 lbs
Weight (with shackle)
2 kg / 4.4 lbs
(5 kg / 11 lbs)
Accuracy ±0.1 % of measurement range
Tare range Max. 20 % of measurement range
Display LCD with 22 mm / 0.9 in digit height
Units of measurement     kg / t / lb / N / kN
Sampling rate 2.5 Hz
Operating temperature -10° C ... +40° C / +14° F ... +104° F
Power supply 3 x 1.5 V AA batteries
Operating time Approx. 50 hours



Technical drawing
Technische Zeichnungen der Zugmesslasche / Kraftmesslasche PCE-DDM
A B C D Ø E Ø F G H Material
260 mm
10.2 in		 123 mm
4.8 in		 37 mm
1.5 in		 195 mm
7.7 in		 51 mm
2.0 in		 24 mm
0.9 in		 30 mm
1.2 in		 365 mm
14.4 in		 Aluminum

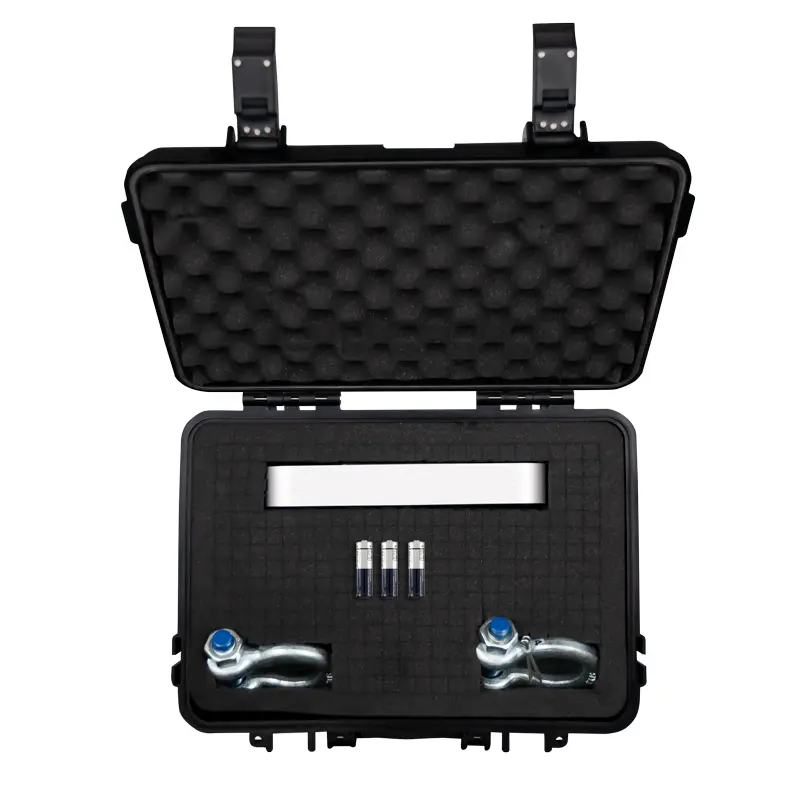

1 x PCE-DDM 3WI-ICA Weighing Hook
2 x shackles
1 x carrying case
3 x batteries
1 x user manual
1 x ISO calibration certificate



N.B. Calibration certificates are issued specifically for the customer and are excluded from the right of return.
