Order no.: PCE-DDM 3WI

Suspended Scale PCE-DDM 3WI

US$ 1,214.00
:
4250348716675
PCE-DDM 3WI
ex. VAT, ex. delivery costs
5 t
1 kg
Available in: 1-2 days

Description

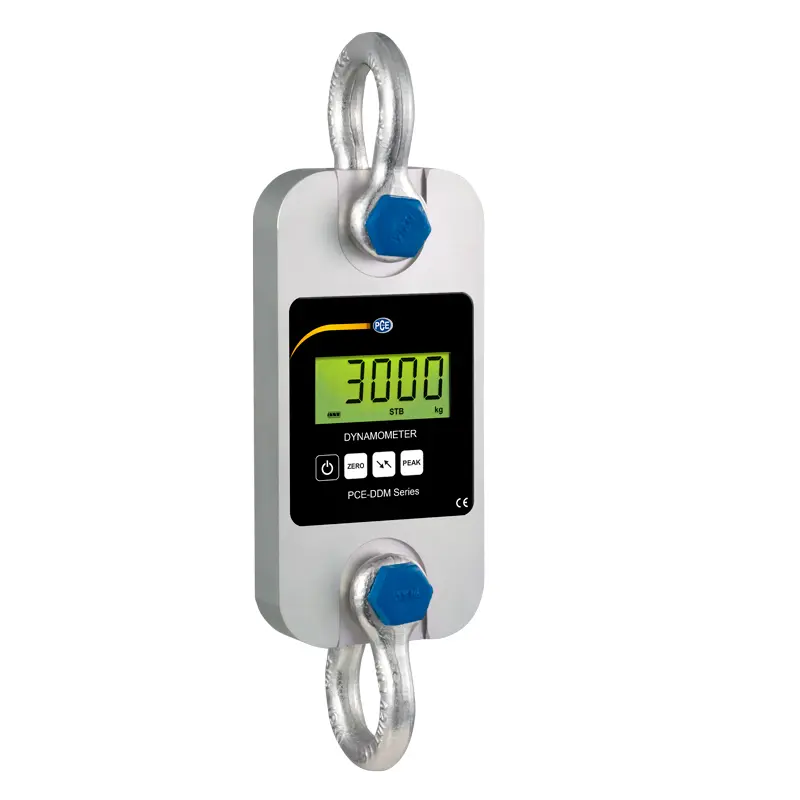

Suspended Scale PCE-DDM 3WI
Measurement range up to 3 t / Peak hold function / Includes shackles and protective carrying case

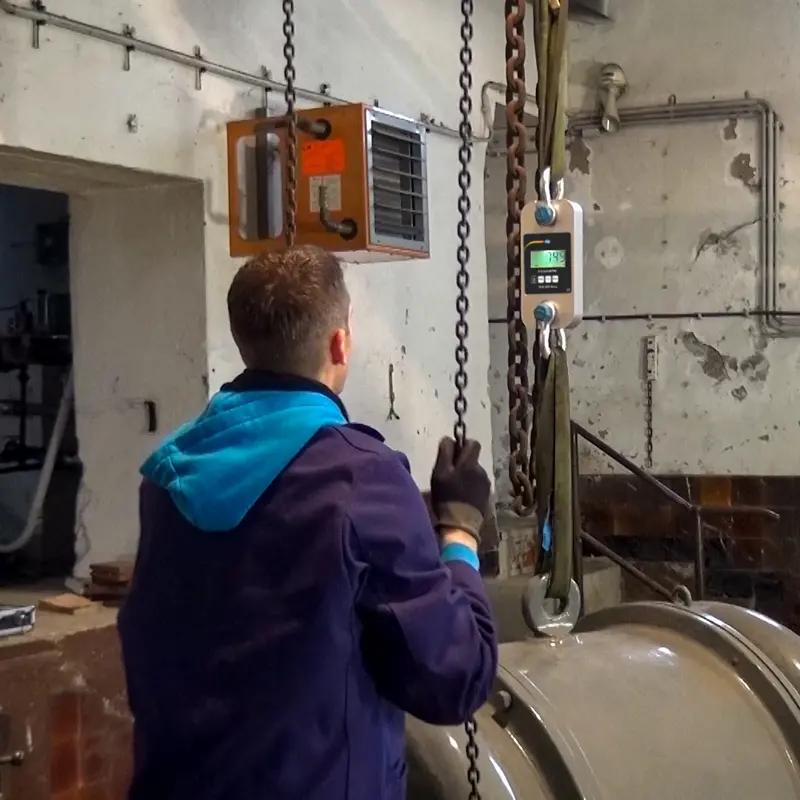

The suspended scale is the ideal tool for weighing big loads and for measuring strong tensile forces. The suspended scale is delivered in a protective carrying case and includes two shackles made of heavy-duty aluminum. The instrument is manufacturer calibrated, but can be certified to ISO standards for an additional fee. Despite its high measurement capacity, the suspended scale is a compact portable device with a low net weight. Interesting functions of the suspended scale are the peak hold function, summation function, and the ability to select different units of measurement such as kg / t / lbs / N / kN. The instrument is only suitable for weighing and for tension force testing. For compression force testing, please see the PCE-FB series force gauges.


Highlights

- High capacity
- Compact and portable
- Long battery life
- Peak hold function
- Summation function
- Selectable units of measurement: kg / t / lb / N / kN
- Adjustable gravitation range
- Remote control indicator, shackles and carrying case included

Specification

Measuring range 3000 kg / 30 kN / 6614 lbs
Resolution 1 kg / 10 N / 2.2 lbs
Min. range 10 kg / 22 lbs
Weight (with shackle)
2 kg / 4.4 lbs
(5 kg / 11 lbs)
Accuracy ±0.1 % of measurement range
Tare range Max. 20 % of measurement range
Display LCD with 22 mm / 0.9 in digit height
Units of measurement      kg / t / lb / N / kN
Sampling rate 2.5 Hz
Operating temperature -10° C ... +40° C / +14° F ... +104° F
Power supply 3 x 1.5 V AA batteries
Operating time Approx. 50 hours



Technical drawing
Technische Zeichnungen der Zugmesslasche / Kraftmesslasche PCE-DDM
A B C D Ø E Ø F G H Material
260 mm
10.2 in		 123 mm
4.8 in		 37 mm
1.5 in		 195 mm
7.7 in		 51 mm
2.0 in		 24 mm
0.9 in		 30 mm
1.2 in		 365 mm
14.4 in		 Aluminum

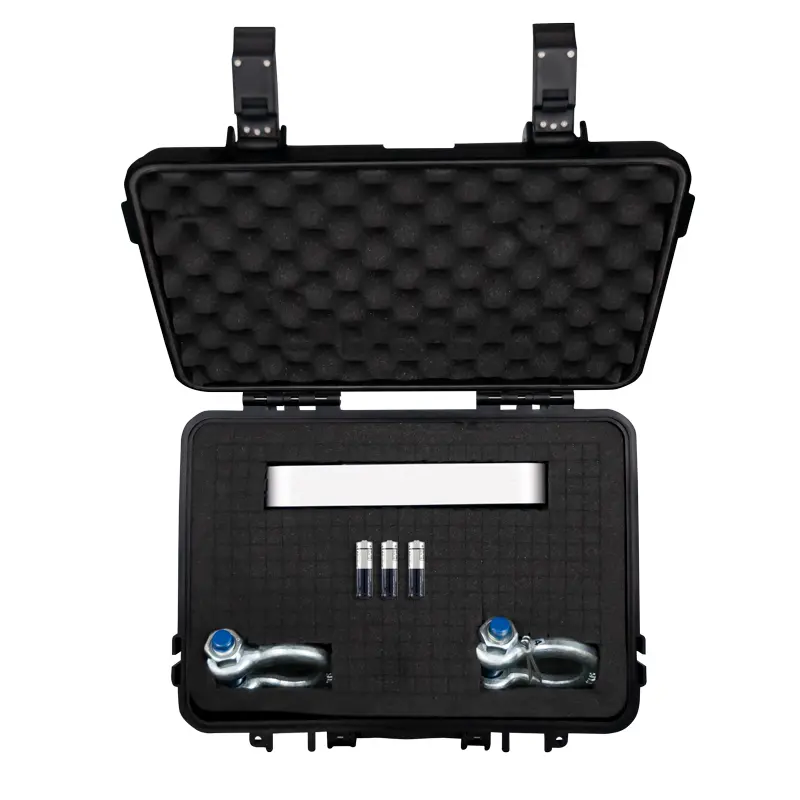

Delivery Scope

1 x Suspended Scale PCE-DDM 3WI
2 x shackles
1 x carrying case
3 x batteries
1 x user manual
