Order no.: PCE-DMS 310

Paper Scale PCE-DMS 310

Question / Callback

Available in: 1-2 days

Description

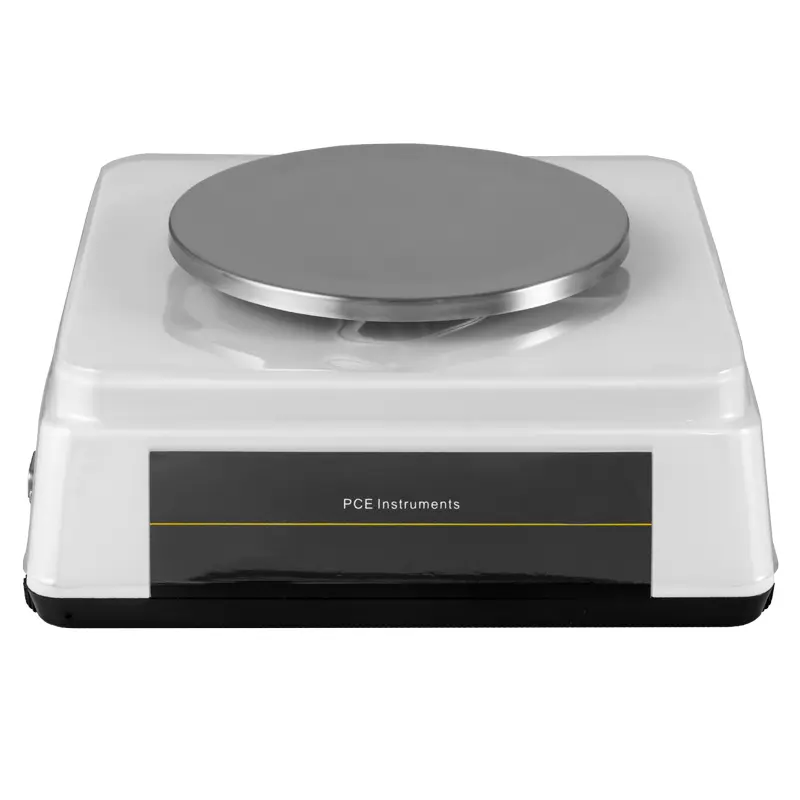

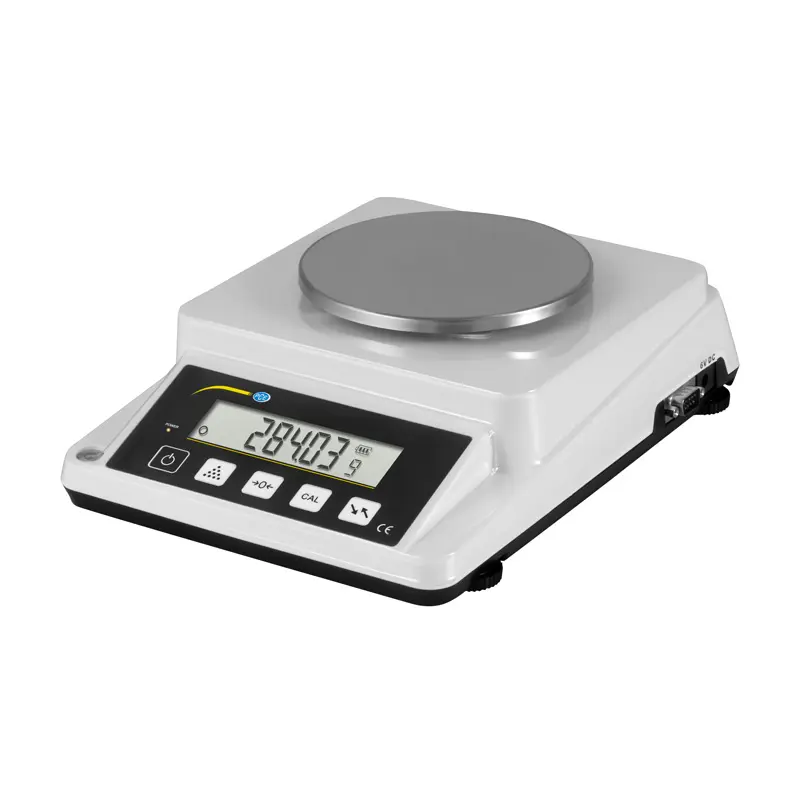

Paper scale PCE-DMS 310
Paper scale with direct display in g / m² Paper scale with RS-232 interface / Backlight / Piece counting function Measurement of basis weight / Also suitable for mobile use

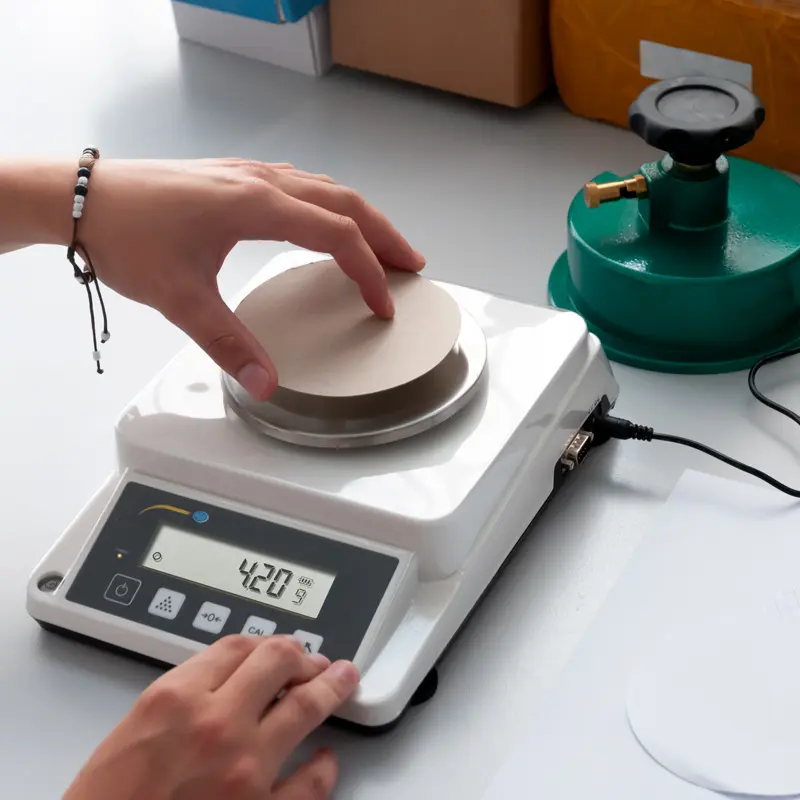

These paper scales were specially designed for the measurement of basis weight. Thanks to this paper scale, basis weight measurements can be carried out and evaluated within a very short time. With this paper scale, you can also determine, for example, the grammage of paper, cardboard or various textiles exactly. Weighing up to 1100 g at a resolution of 0.01 g can be carried out depending on the paper balance.

In addition to the basis weight measurement, the paper scales can also transfer the measured data to a PC. This is possible with the help of the installed RS-232 interface. The included power supply allows stationary use of the paper scales. Alternatively, the paper scale can also be used for mobile use. For this 3 x 1.5V AA batteries can be used. The optionally available paper sample level sampler ensures that the same samples are always used for basis weight determination.

Highlights

- High precision

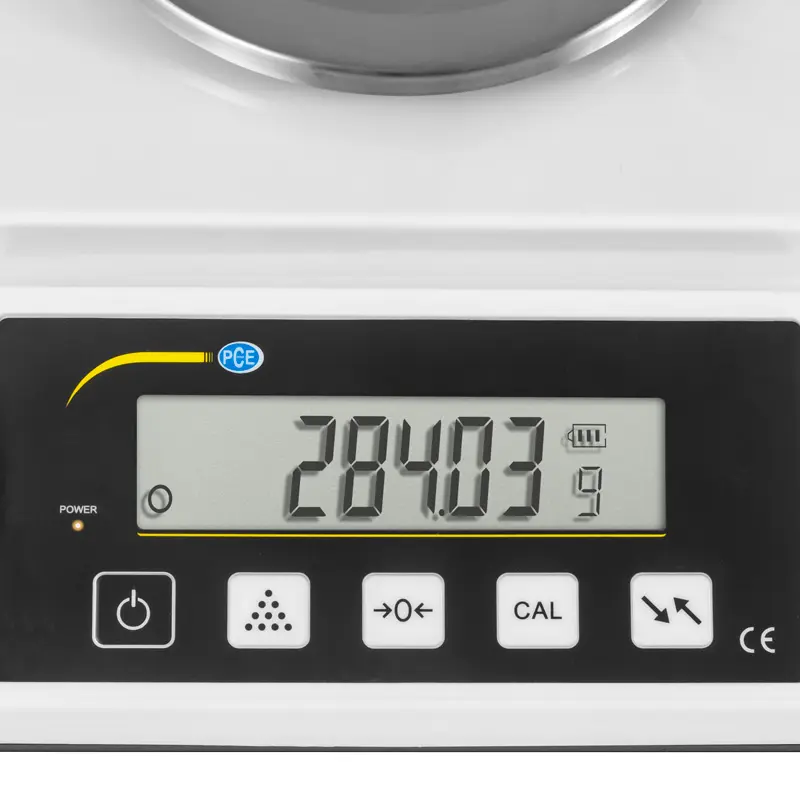

- Display with backlight
- RS-232 interface
- Piece counting function, weight per unit area
- Battery operation for mobile use

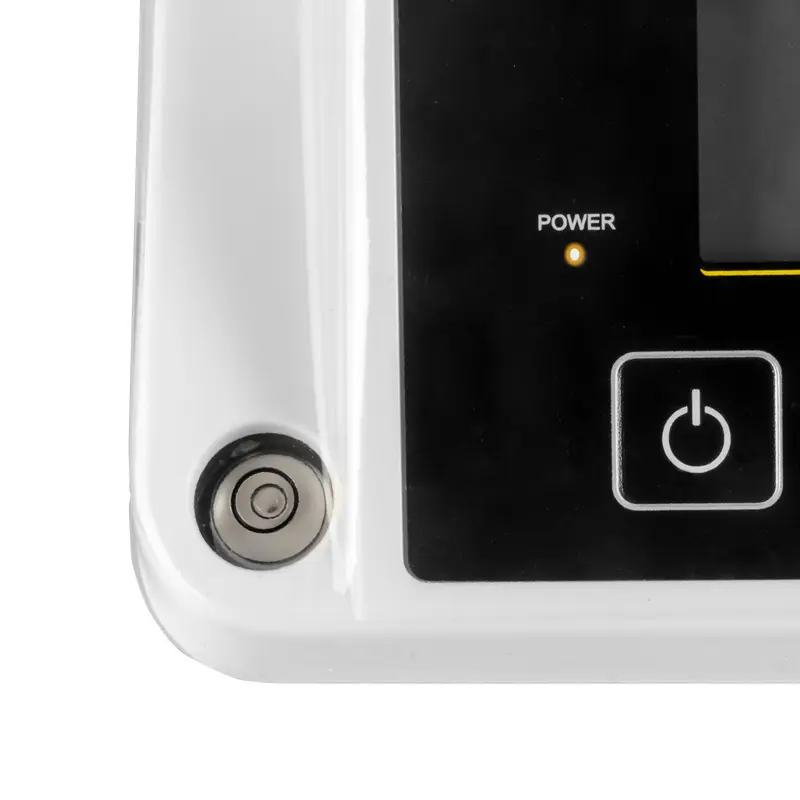

- Alignment of the balance with dragonfly

Specification

Measuring range	0 ... 310 g / 0 ... 31,000 g / m²
Resolution	0.01 g / 1 g / m²
Repeatability	± 0.02 g
Linearity	± 0.03 g
Stabilization period	<3 s
Operating conditions	17.5 ... 22.5°C / 63.5 ... 72.5°F, 85% rh non-condensing
Interface	Serial RS232
Power supply battery	3 x 1.5V AA
Power supply power supply	Primary: 100 ... 240V, 50/60 Hz
	Secondary: 6V, 500-mA
Dimensions of the support surface	270 x 200 x 80 mm / 10.6 x 7.9 x 3.1 in
Weight	2 kg / 4.4 lbs

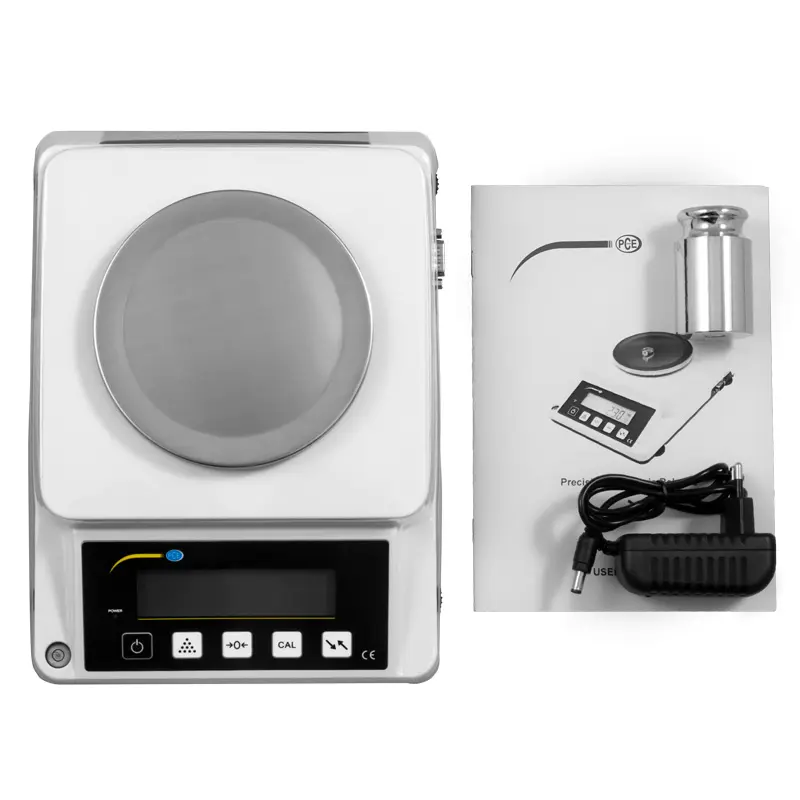

Delivery Scope

1 x Paper scale PCE-DMS 310

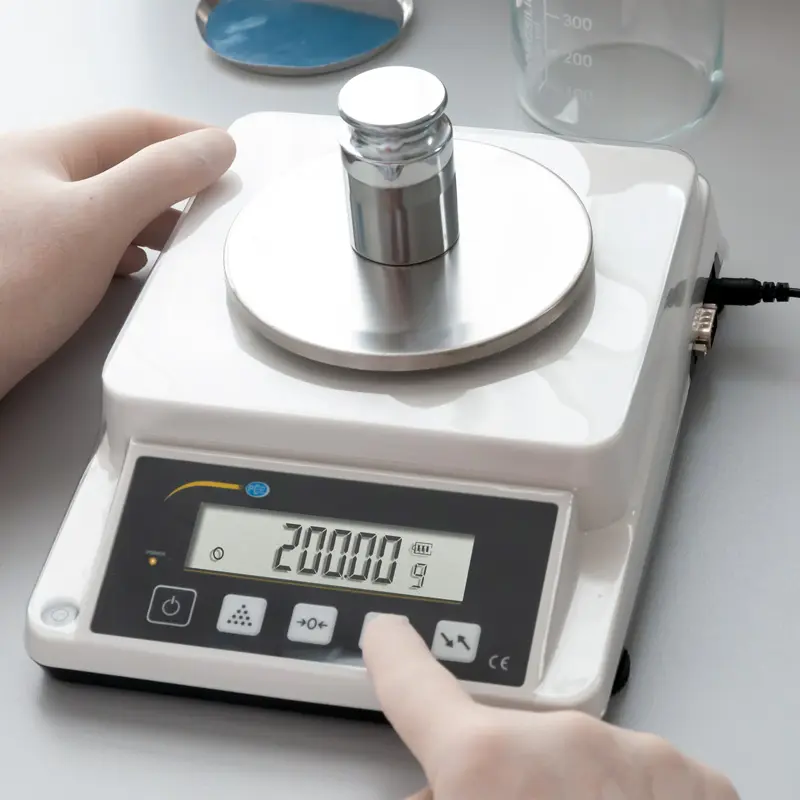

1 x Test weight
1 x Power supply
1 x User manual

Downloads

Datasheet

Accessories

Spare rubber pads for sample cutters MPC-UL-N

US$ 105.00

ex. VAT, ex. delivery costs

Replacement rubber pads for the 3mm / 0.12" Sample Cutter MPC-3

Pack of 10
ca. 30 x 20 x 1 cm / 11.8" x 7.9" x 0.4"

GSM Balances

GSM Balance Sample Cutter MPC-3

US$ 159.00

ex. VAT, ex. delivery costs

This round sample cutter features four internal blades for quick, easy and clean cutting of paper, leather, cotton, textiles, cork and more by hand.

Maximum sample thickness: 3 mm / 0.12"
Sample cut: 11.3 cm diameter /100 cm² / 15.5 in²
Stainless steel blades housed in cast steel casing

ISO Calibration Certificate for PCE-DMS Series

GSM Balances

ISO Calibration Certificate for PCE-DMS Series

US$ 153.00

ex. VAT, ex. delivery costs

ISO calibration certificate for the scales of the PCE-DMS series certifies the accuracy and is often required to comply with DIN ISO 9000.

N.B. calibration certificates are issued especially for the customer and are exempt from the right of return.
