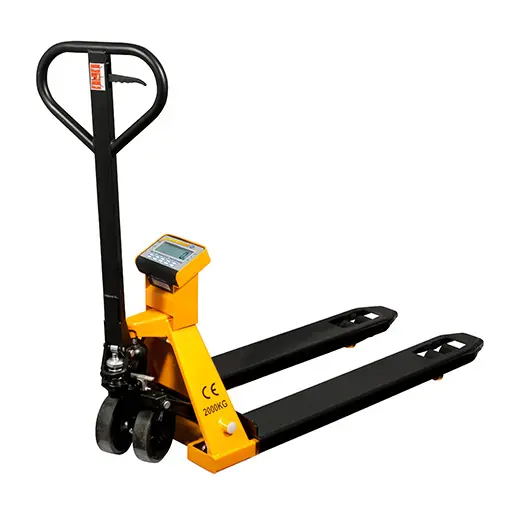

Pallet Truck Scales PCE-PTS 1N

Order no.: PCE-PTS 1N
US$ 1,518.00
ex. VAT, ex. delivery costs
5 t
1 kg
Available in: 1-2 days
Pallet truck scales up to 2000 kg / 1 kg readability / Taring function
Totalizing function / Piece counting function / Rechargeable battery / Automatic backlight

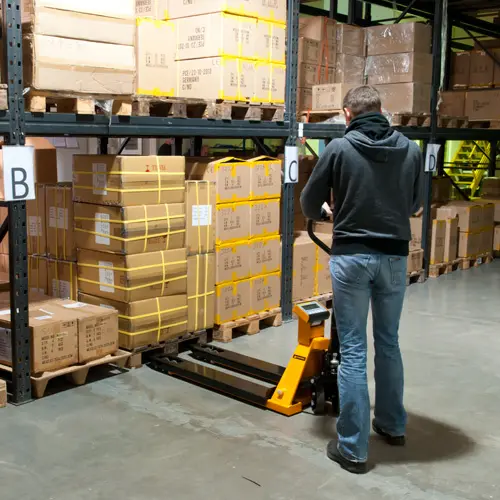

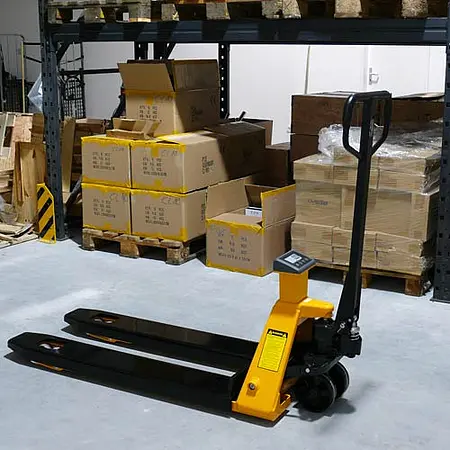

The pallet truck scales are a convenient way to save time and shorten work processes. These pallet truck scales can transport and weigh loads up to 2000 kg. For this purpose, four load cells are installed in the forks of the pallet truck scales, which form a weighing system with the evaluation unit. The display mounted on the pallet truck scales in no way limits the swiveling range of 180°. The pallet truck scales are powered by a rechargeable battery, which enables mobile and unrestricted use.

Despite the built-in scales, the forks of the pallet truck are particularly flat and therefore suitable for a wide variety of pallet types. For the transport cost calculation, the pallet truck scales can quickly and easily determine the weight of the pallet to be transported. The pallet truck scales can use the counting function to check the completeness of parts of the same weight, and the summation function can be used to check for overloading, with which up to 99 pallet weights can be added.

- Maximum load up to 2000 kg / 4409 lb
- Measurement uncertainty ± 0.2% full scale
- Summation function
- Piece counting function
- Auto OFF function (can be deactivated)
- Flat construction
- Battery operation
- Automatic backlight

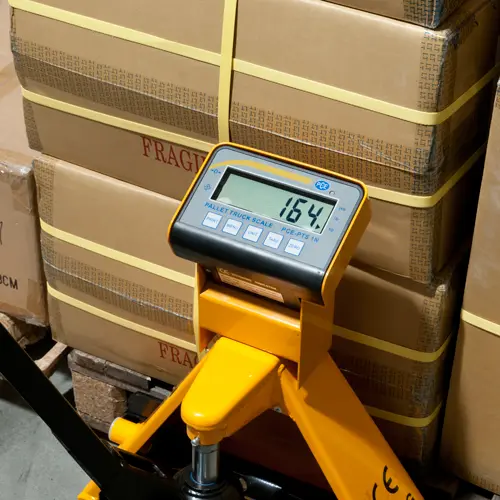

- LCD display with 30 mm digit height
- Swivel range

Weighing range2,000 kg / 4409 lb / 2.2 tons
Readability1 kg / 2.2 lb
Measurement uncertainty / accuracy
± 0.2% of full scale
Taring rangeover the full measuring range
Weighing unitskg / lb

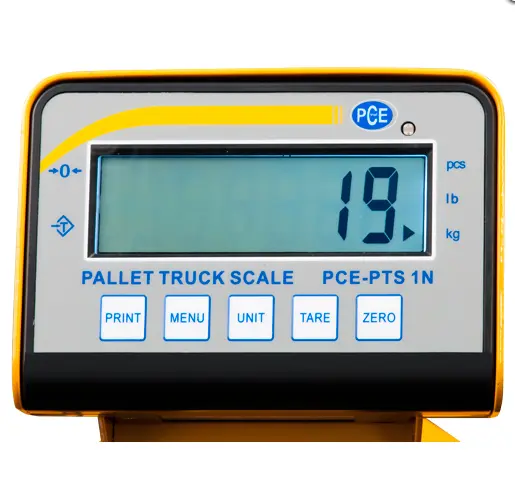

DisplayLCD, digit height 30 mm / 1.18"
Operating temperature-10 ... +40 °C / 14 ... 104 °F
Power supply6 V rechargeable battery (BAT-6V-4.5Ah)
Weightca. 85 kg / 187 lb

1 x Pallet Truck Scales PCE-PTS 1N
1 x Battery (installed internally)
1 x Battery charger
1 x User manual

NOTE: The customer is responsible for assembly unless professional assembly by PCE Instruments is added. See Accessories.
