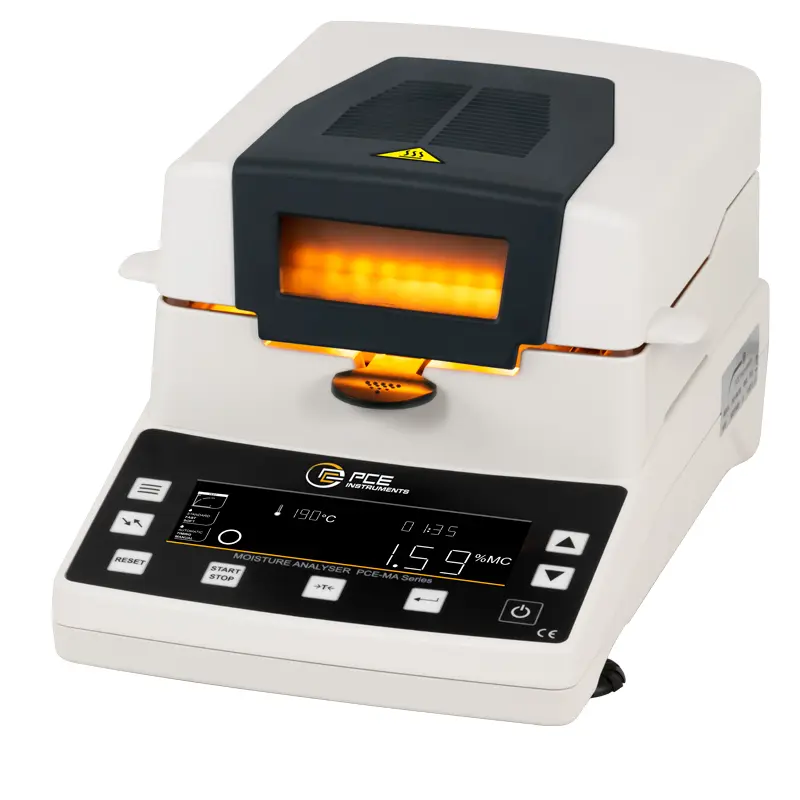

PCE-MA 202 Moisture Analyzing Balance
Oven-drying moisture analyzer for weighing and halogen-heating samples to determine moisture content
PCE-MA 202 is an oven-drying moisture analyzer or moisture balance for weighing and heating material samples to determine moisture content. The heating chamber is heated by halogen lamps up to 199 °C. In this chamber, the moisture analyzer or moisture balance dries the sample to be weighed, and then calculates the moisture content from the weight difference. The moisture analyzer can determine the smallest weight differences thanks to a readout, readability or resolution of 10 mg / 0.01 g / 0.1 %. The results are displayed on the large, easy-to-read LCD screen.
Up to 15 different drying programs can be stored in the memory of the moisture analyzer. Accordingly, the moisture analyzer is suitable for determining the moisture content of everything from food, biomass, pellets, pastes, animal feed, nuts, seeds, beans, lentils and legumes to soil, sand, ceramic clay, resin and brick materials. With the included 100 g weight, the moisture analyzer can be calibrated quickly and easily at any time.
Testing or weighing sample capacity | 200 g |
Readout, readability or resolution | 10 mg / 0.01 g / 0.1 % |
Heating element | Halogen lamp |
Temperature range | +40 ... +199 °C |
Heating time | 1 ... 99 min. adjustable |
Moisture content measurement range | 0 ... 100 % |
Memory | 15 drying programs |
Interface | RS-232 port |
Display | LCD, 9 membrane keys |
Power supply | 220 V / 50 Hz or 110 v / 60 Hz |
Dimensions | 200 x 180 x 380 mm / 7.87 x 7.09 x 14.96" |
ex. VAT, ex. delivery costs
ex. VAT, ex. delivery costs
The calibration procedure includes laboratory calibration process and ISO certification. The customers name and address is filled in. These certificates are comparable to NIST and UKAS certificates. They are accepted all over the world.
Calibration certificate for PCE-MB and PCE-MA series moisture balances.
The calibration certificate is issued especially for the customer and therefore is exempt from the right of return.
ex. VAT, ex. delivery costs
When drying liquids, pastes or substances that may melt or lose liquid during drying, it is advised to use glass fibre filters for PCE-MA moisture balances.
- Chemical resistant
- Usable for liquid and gelatinous materials
- Pack of 100
