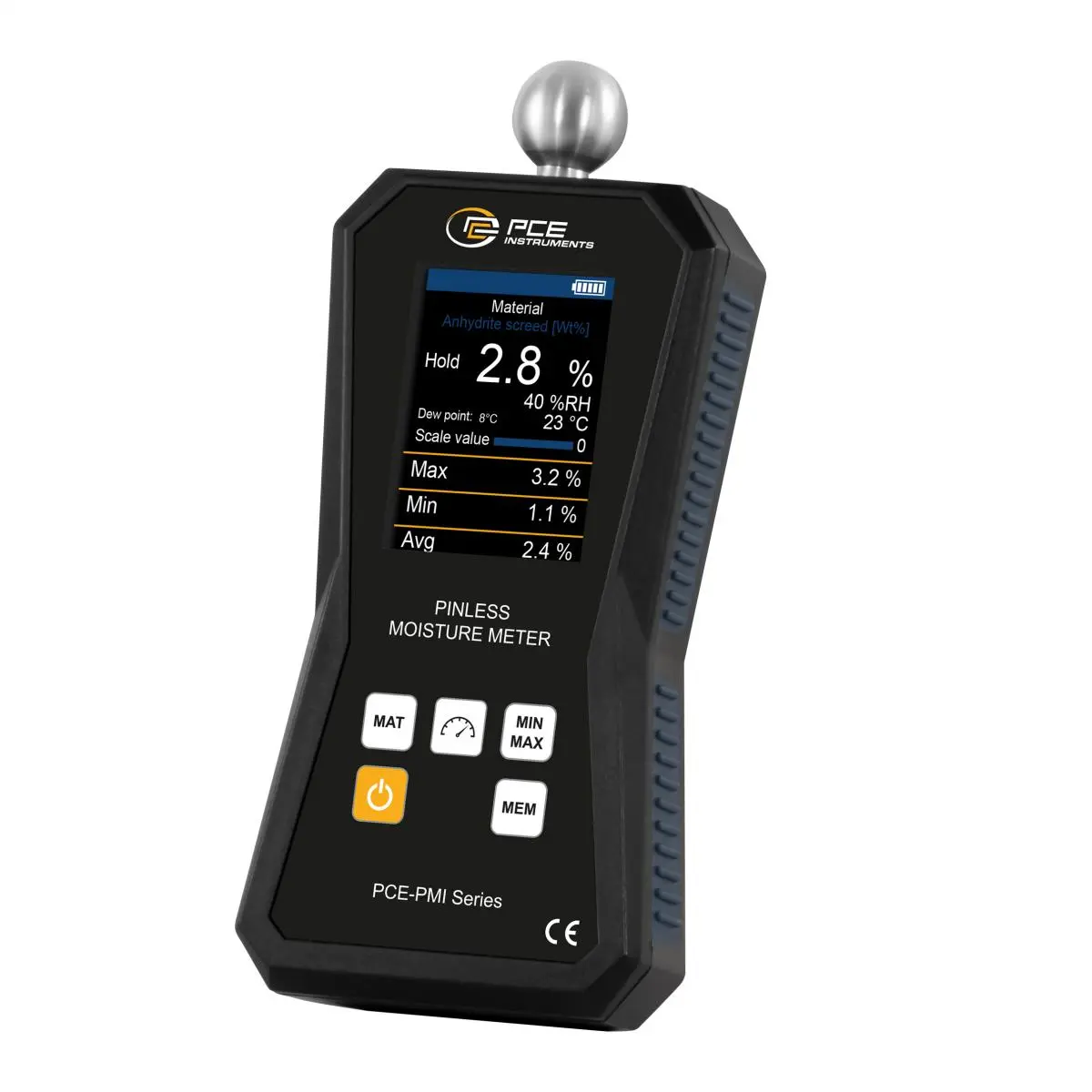

The Moisture Analyser / Moisture Analyzer is a versatile measuring instrument for non-destructive moisture detection in various building materials and types of wood. The Moisture Analyser / Moisture Analyzer can be used to precisely determine moisture values in screed, concrete, plaster, hardwood, and softwood. In addition, the Moisture Analyser / Moisture Analyzer measures the ambient temperature, relative humidity, and dew point, thus providing a comprehensive climate analysis for construction and renovation projects.

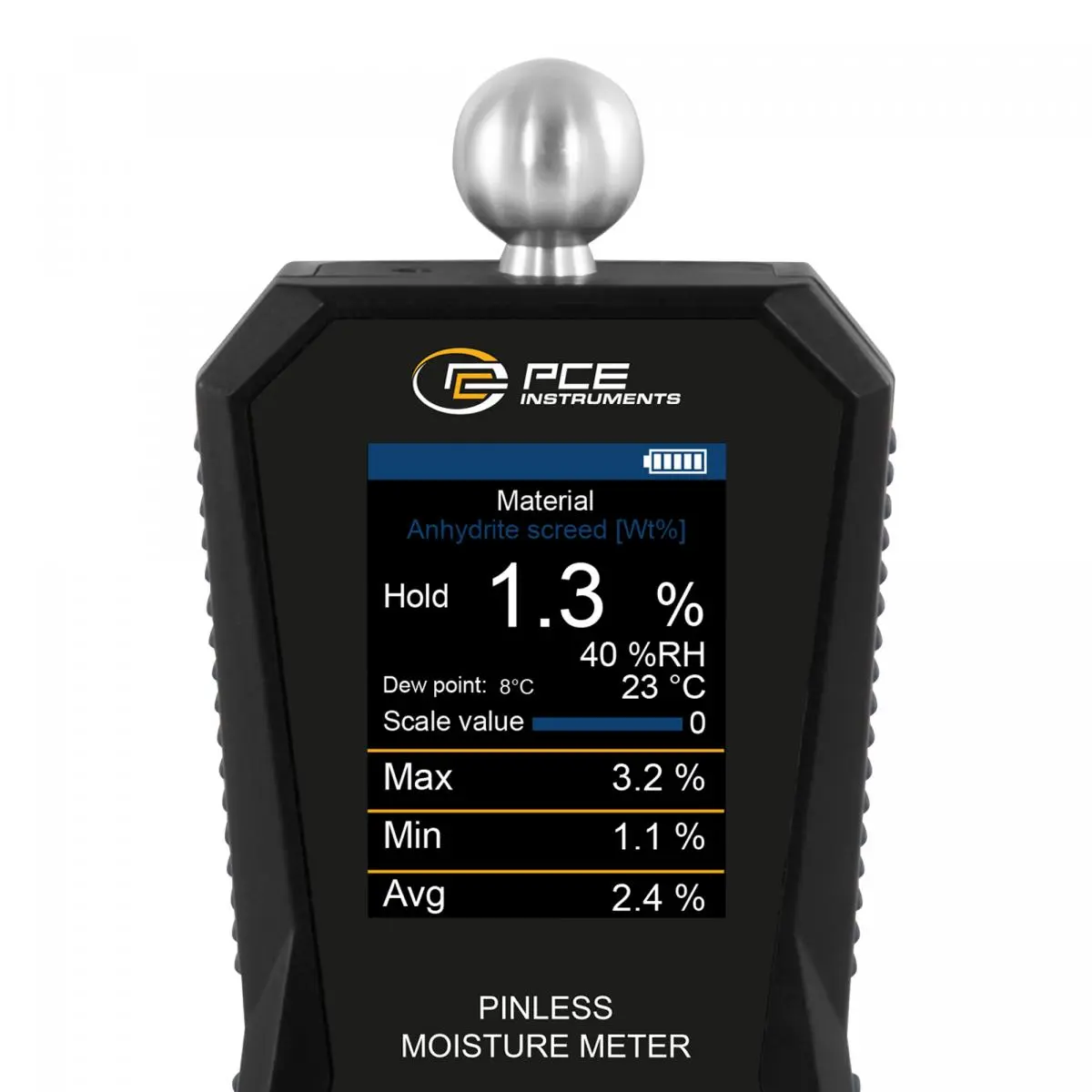

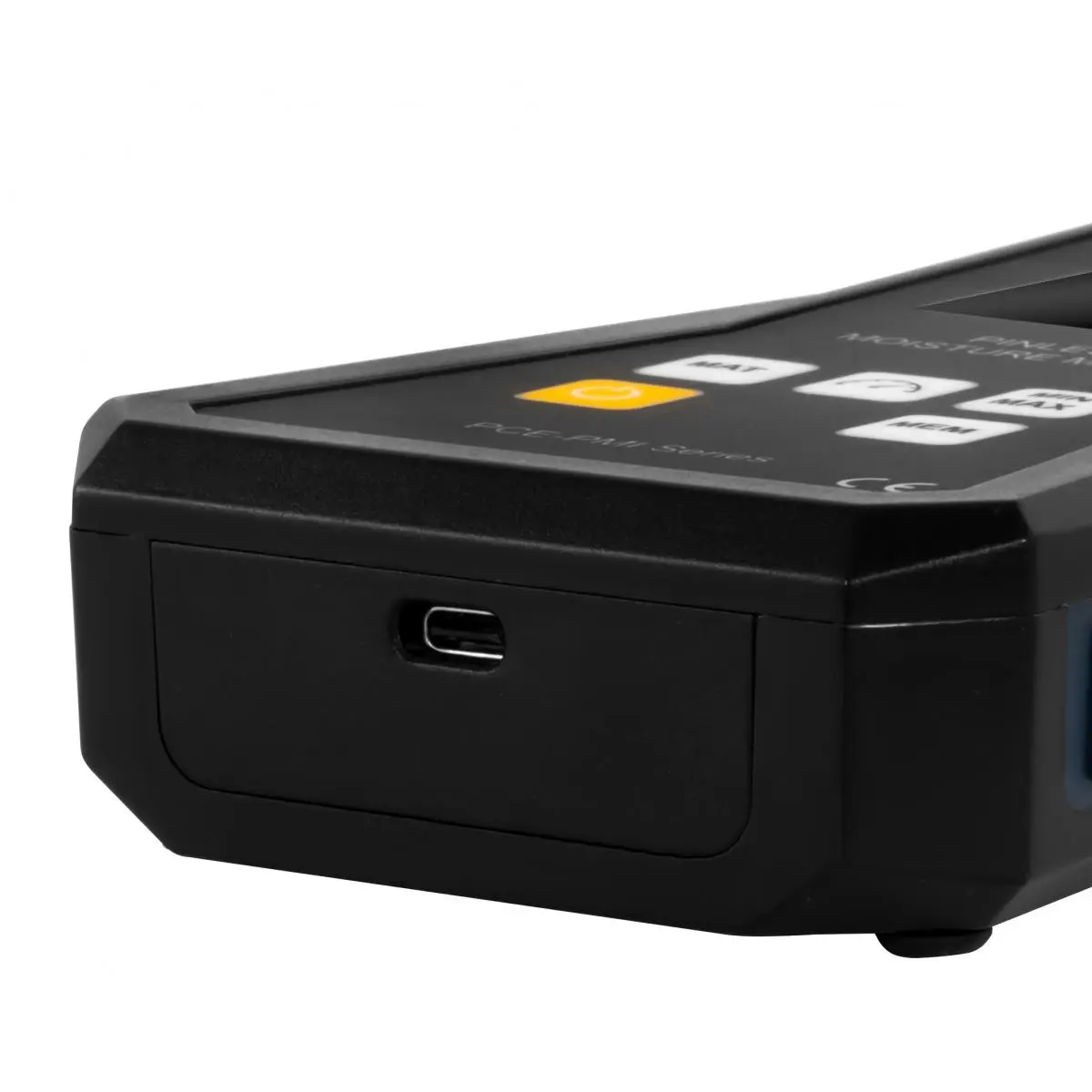

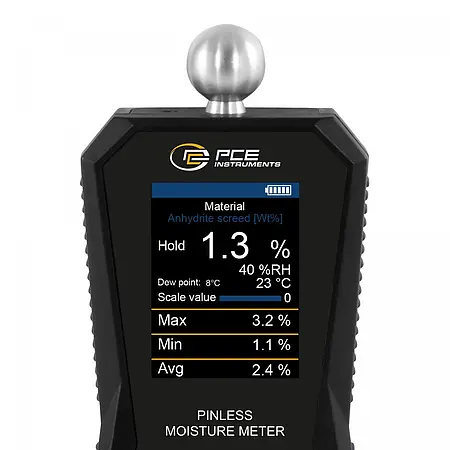

The 2.8-inch TFT color display ensures a clear presentation of all measured values. The Moisture Analyser / Moisture Analyzer has an internal memory with a capacity of 32 GB, which can store up to 10 million measurement points. Data can be easily read out, and the device charged via the USB-C interface. The menu navigation is multilingual and allows for convenient operation. Statistical functions, hold mode, and a data logger support professional documentation and evaluation of the measurements. The Moisture Analyser / Moisture Analyzer is ideal for site managers, surveyors, craftsmen, and anyone who needs precise moisture and climate measurements on construction sites, in building diagnostics, or in woodworking.
| Relative humidity | |
| Measurement range up to | 0 ... 100% RH |
| Resolution | 1% RH |
| Accuracy | 3% r.F. |
| Dew point | |
| Measurement range up to | -33 ... 65°C / −27.4 … 149°F |
| Resolution | 1°C / 1.8°F |
| Accuracy | 1°C / 1.8°F |
| Humidity | |
| Material | Anhydrite screed (% by weight) |
| Measurement range up to | 0 ... 3.5% |
| Resolution | 0.1 % |
| Accuracy | ±0.5% |
| Humidity | |
| Material | Anhydrite screed (CM%) |
| Measurement range up to | 0 ... 1.5% |
| Resolution | 0.1% |
| Accuracy | ±0.5% |
| Humidity | |
| Material | Cement screed (% by weight) |
| Measurement range up to | 0 ... 4.9% |
| Resolution | 0.1% |
| Accuracy | ±0.5% |
| Humidity | |
| Material | Cement screed (CM%) |
| Measurement range up to | 0 ... 4% |
| Resolution | 0.1% |
| Accuracy | ±0.5% |
| Humidity | |
| Material | Concrete |
| Measurement range up to | 0 ... 6% |
| Resolution | 0.1% |
| Accuracy | ±0.5% |
| Humidity | |
| Material | Gypsum screed |
| Measurement range up to | 0 ... 10% |
| Resolution | 0.1% |
| Accuracy | ±0.5% |
| Humidity | |
| Material | Hardwood |
| Measurement range up to | 0 ... 37% |
| Resolution | 0.1% |
| Accuracy | ±0.5% |
| Humidity | |
| Material | Softwood |
| Measurement range up to | 0 ... 51% |
| Resolution | 0.1% |
| Accuracy | ±0.5% |
| Humidity | |
| Material | Relative Scale |
| Measurement range up to | 0 ... 99.9% |
| Resolution | 0.1% |
| Accuracy | ±0.5% |
| Temperature | |
| Measurement range up to | 0 ... 65°C / 32 … 149°F |
| Resolution | 1°C / 1.8°F |
| Accuracy | 1°C / 1.8°F |
| General technical data | |
| Display type | TFT color display |
| Display size | 2.8 Inch |
| Interface | USB-C |
| Operating time | 18 h |
| Menu language | English (GB), English |
| Protection class (device) | IP52 |
| Power supply | 5V DC |
| (Rechargeable) battery | 1 x 3.7 V internal, Lithium polymer battery |
| Capacity | 2500 mAh |
| Operating conditions | -20 ... 60°C / −4 … 140°F, 35 ... 85% RH |
| Storage conditions | -20 ... 45°C / −4 … 113°F, 35 ... 85% RH |
| Dimensions ( L x W x H ) | 190 x 85 x 32 mm / 7.5 × 3.3 × 1.3 in |
| Weight | 263 g / 0.58 lb |
