LAB Scale PCE-EP 150P2

Order no.: PCE-EP 150P2

US$ 482.00
PCE-EP 150P2
ex. VAT, ex. delivery costs
Available in: 1-2 days
Two range - LAB Scale / higher resolution / counting function /
sum function/ detachable tripod / battery /
container weighing function/ bidirectional RS232 interface

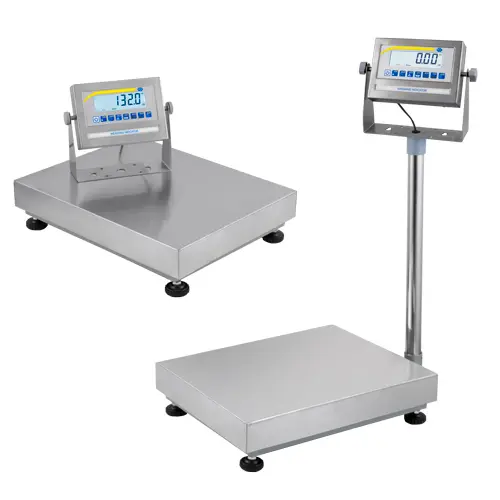

The robust LAB Scale is a real all-rounder. The stand of the LAB Scale can be easily separated along with the tripod mount from the platform and possibly sunk into the workbench. The cable between the platform and the display has a plug attached and is about 1.6 m long. The display of the laboratory balance is in a stainless steel housing with protection class IP54. The display can be placed on the workbench, on the wall, or on the stand of the platform scales. P2 - weighing surface: 500 x 600 mm

In addition to the standard functions such as counting, summing, gross / net weighing, limit weighing function and the PEAK Hold function, the laboratory balance has two special functions, i.e.the filter function for dynamic weighings and the container weighing function. The bidirectional RS232 interface allows convenient communication with a PC or printer. With the Per Query Command, the weight of thelaboratory balance can be queried from the PC. A similar laboratory balance, but in calibrated form, we can provide with the PCE-SD series.

- Single Point platform scale (1 load cell)
- Two-range scale 60/150 kg
- Freely adjustable measuring unit kg/...
- Bidirectional RS232 interface
- Battery or mains operation
- Display IP54 protection

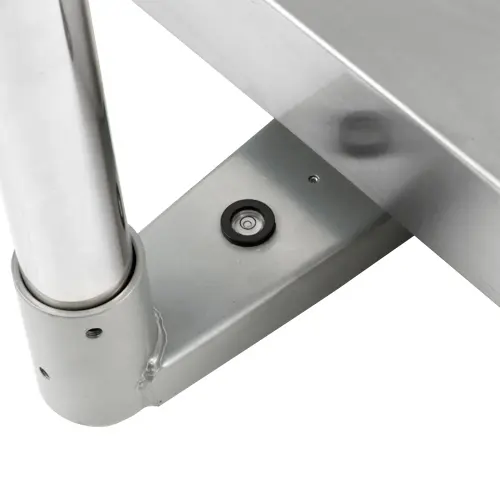

- Tripod incl. removable tripod mount
- Off timer (deactivated)
- Hold function (freezing the weight display)
- PEAK / MAX weighing function
- Sum function
- Piece counting function
- Animal weighing function
- Weighing function limit MIN / OK / MAX
- Container weighing function
- Filter function

Measuring rangeMax. 1 = 60 kg / Max. 2 = 150 kg
Resolutionup to 60 kg = 10 g
from 60 kg ... 150 kg = 20 g
Measurement uncertainty± 3 d (three times the resolution)
Platform size [P1]500 x 600 mm
Tare functionOver the entire weighing range
InterfaceRS-232 Bidirectional / D-SUB 9 Female
- Analog output 4-20 mA 1/1000 +
- 4 Potential-free outputs LO / OK / HI / Stable
set as a pulse signal or continuous signal.
DisplayLCD with 25 mm digit height
Unitskg / lb
and freely adjustable weighing unit such as kg/m
Cable length to displayca. 160 cm / plug attached
Power supply6V / 4.5Ah battery or 9 V / 1.2 A power adapter (incl.)
Power consumption 70 mA
Protection classIP54
Working temperature0 ... + 40 °C / 10 ... 80 % r.H.
Dimensionssee Download file "Diagram"
Weightca. 25.5 kg

1x LAB Scale PCE-EP 150P2
1x Display, Tripod incl. Bracket, Power Adapter, Manual
