Portable Industrial Scale PCE-PB 200N-ICA incl. ISO Calibration Certificate

Order no.: PCE-PB 200N-ICA
ISO Calibration
US$ 259.00
4250348723154
PCE-PB 200N-ICA
ex. VAT, ex. delivery costs
Available in: 10 - 14 days

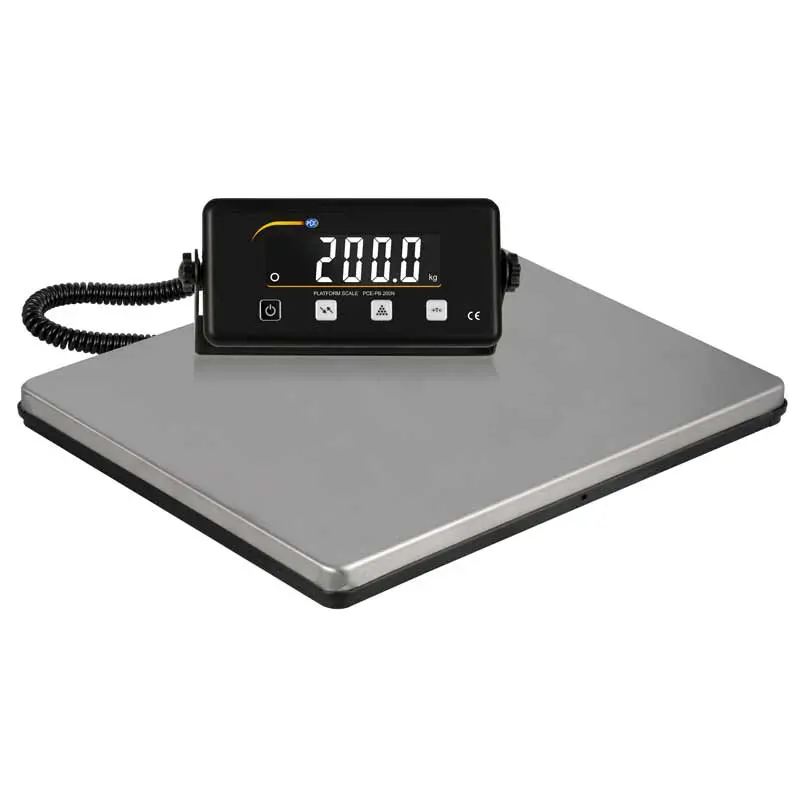

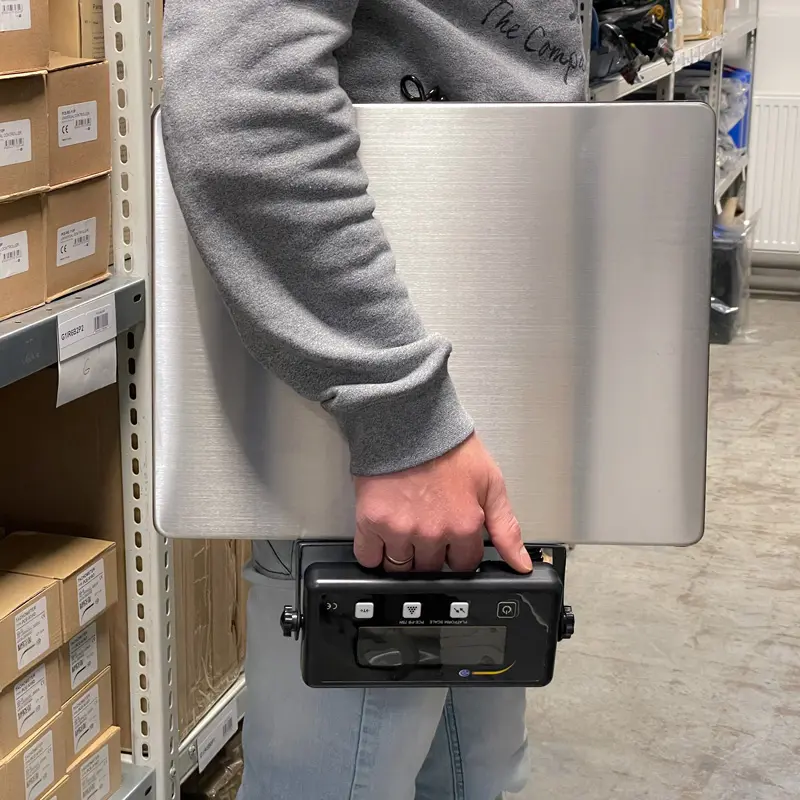

Portable industrial scale with external display / Max. weighing range up to 200 kg / LC display /
Large and flat weighing surface of 350 x 390 x 40 mm / Battery and mains operation

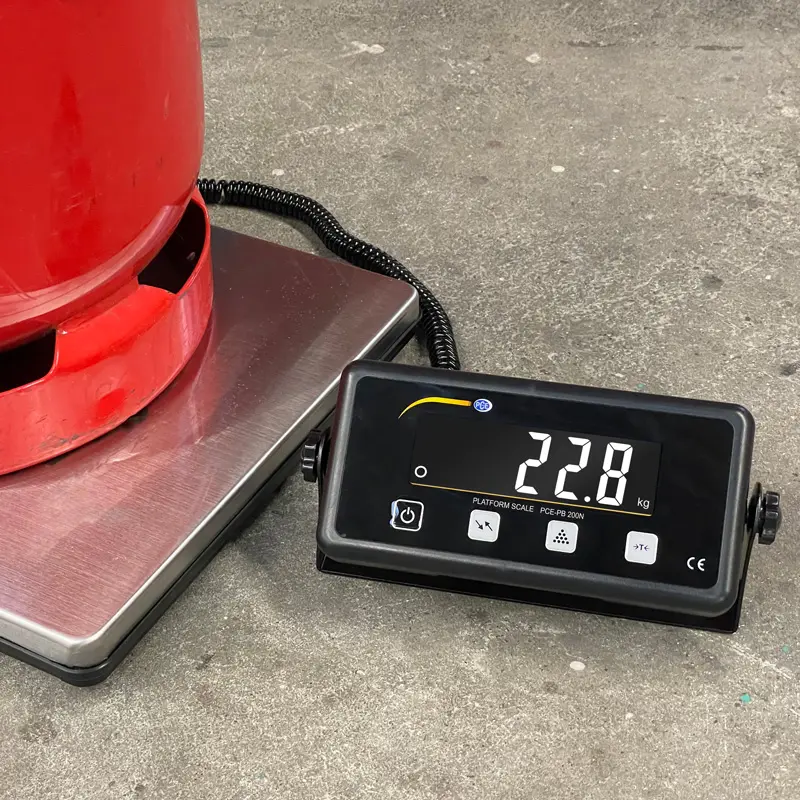

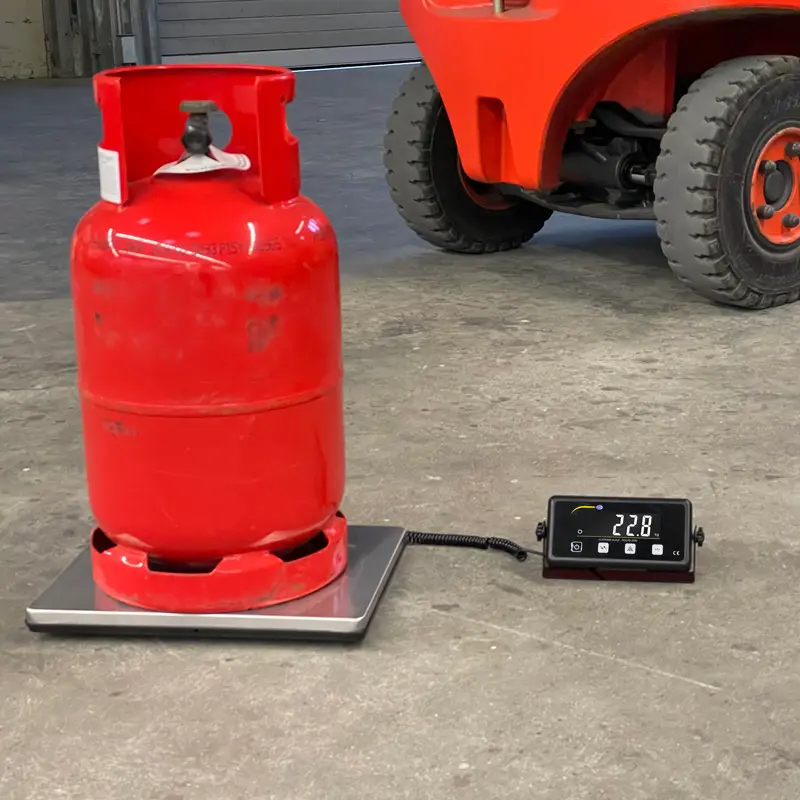

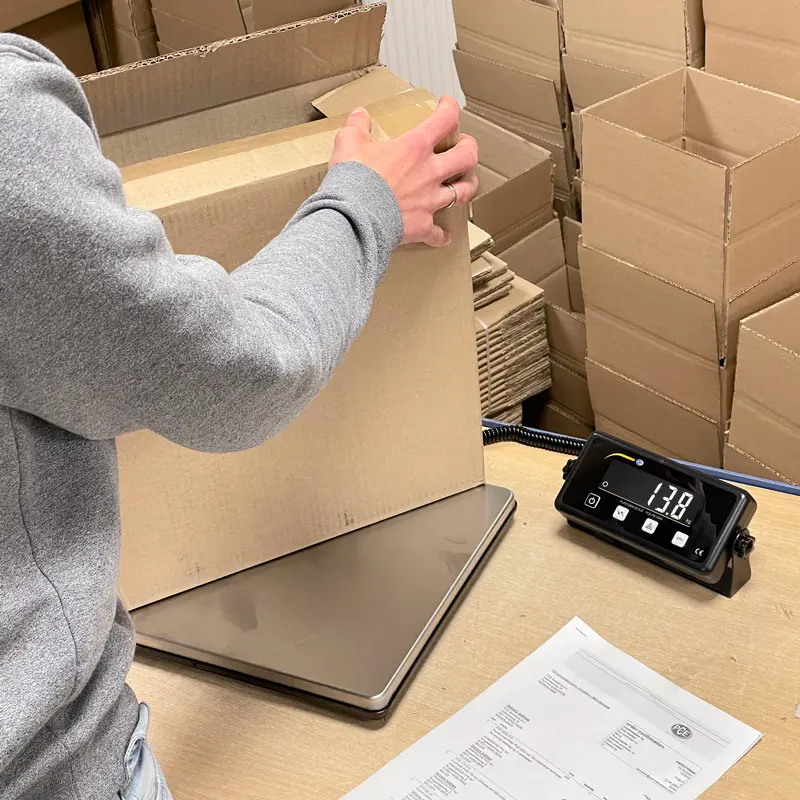

The portable industrial scale with a maximum weighing range of up to 200 kg and a weighing surface of 350 x 390 mm is the ideal measuring device for determining the weight of parcels or the contents of propane gas bottles. With an accuracy of ±0.3 kg, the portable industrial scale is a precise measuring device. Furthermore, the portable industrial scale can be used for the dosing of paints. This makes the portable industrial scale a universally applicable test device in production, warehouse and logistics.

In addition to the normal measuring mode, the portable industrial scale has a counting function. With the counting function, the portable industrial scale determines, for example, the number of batteries in a package. Another function is the automatic zeroing, with which the portable industrial scale sets the zero point again after switching on. This function can also be deactivated in order to resume a measurement with the portable industrial scale. The tare key can be used to manually reset the measured value to zero at any time, for example to hide the weight of trays, boxes or other packaging materials.

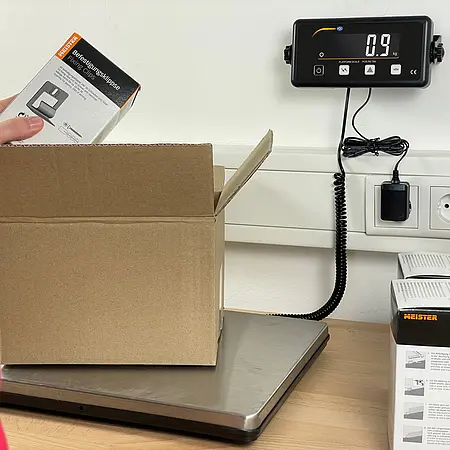

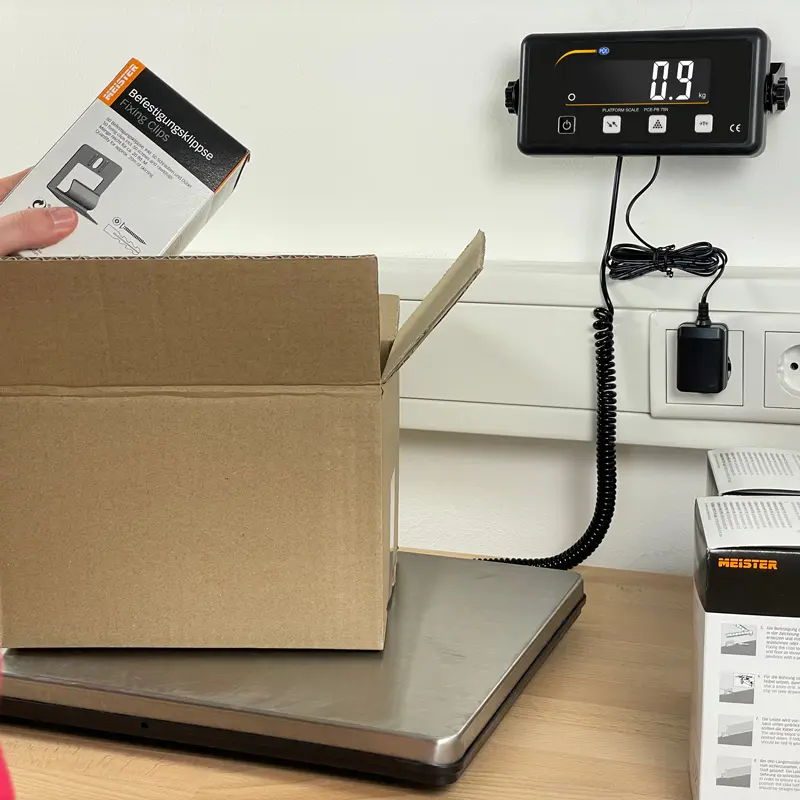

The portable industrial scale can be used stationary because of the power supply unit and the wall bracket included in the scope of delivery to attach the display. With the additional option of battery operation, the portable industrial scale can also be used on the move. The portable industrial scale has an automatic switch-off function to save the batteries used. This will automatically turn off the portable industrial scale after five minutes of inactivity.

- Counting function
- Weighing units kg, lb, oz/lb
- Weighing surface of 350 x 390 mm / 13.7 x 15.3"

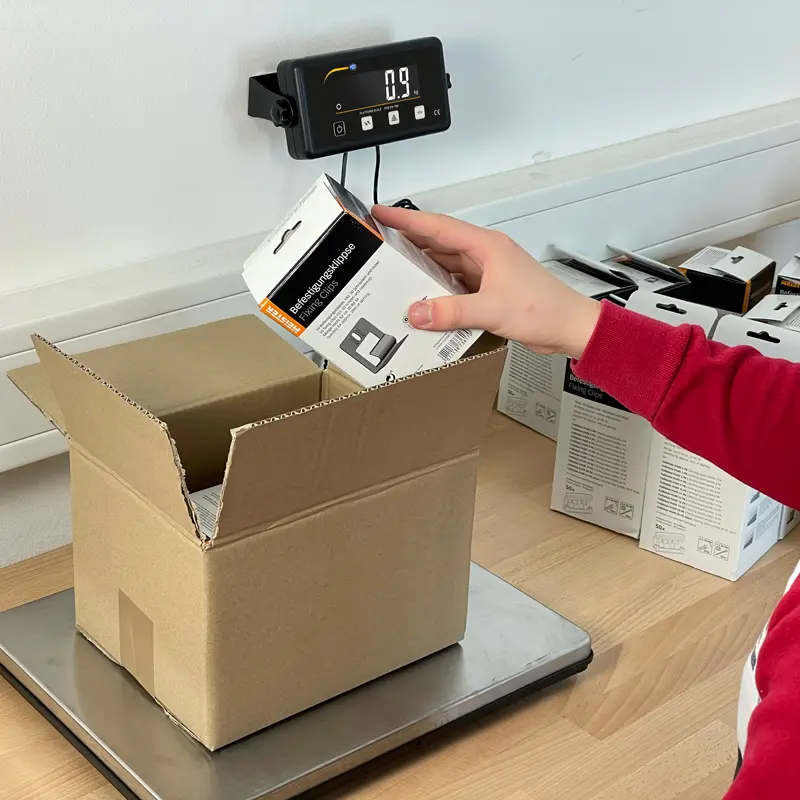

- Wall mounting bracket for the display
- Automatic shutdown when inactive
Weighing range200 kg / 440 lb
Resolution0.1 kg / 3.5 oz
Accuracy±0.3 kg / 10.5 oz
Minimum load0.3 kg / 10.5 oz

Further specifications
Unitskg, lb, oz/lb

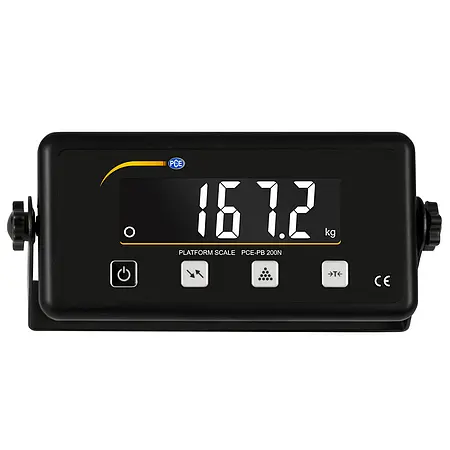

Display when the measuring range is exceeded
"0_Ld"
Display when voltage is too low"LO"
Operating conditions5 ... 35 °C / 41 ... 95 °F, <85% RH, non-condensing
Power supply battery4 x 1.5 V AA batteries

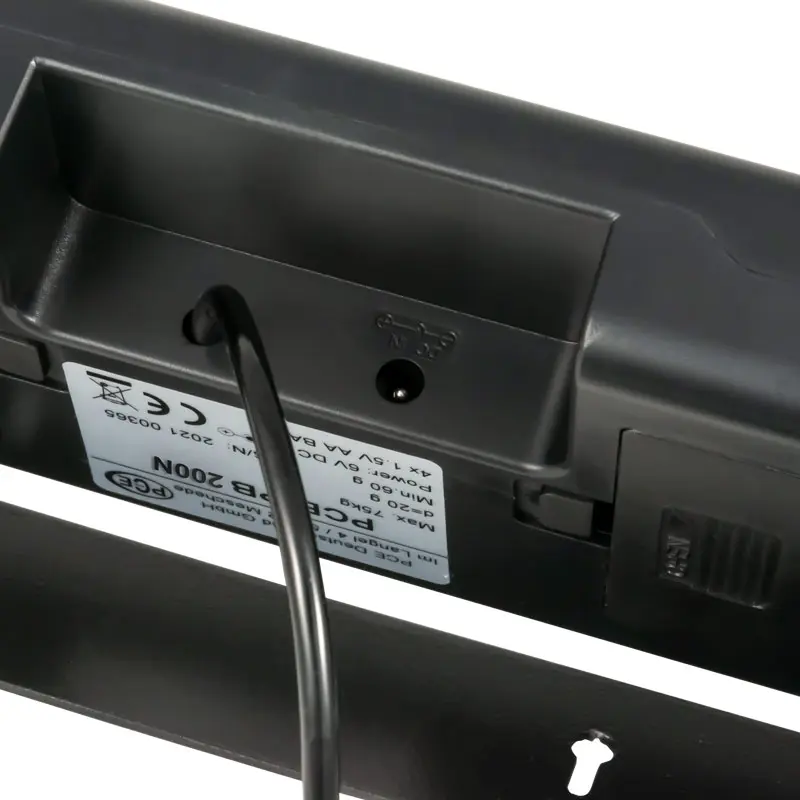

Mains power supplyprimary: 100 ... 240 VAC, 50/60 Hz, 0.3 A
 secondary: 6 VDC, 1 A
Dimensions platform350 x 390 x 40 mm / 13.7 x 15.3 x 1.5"
Dimensions display180 x 88 x 33 mm / 7.0 x 3.4 x 1.3"
Weightca. 3 kg / 6.6 lb

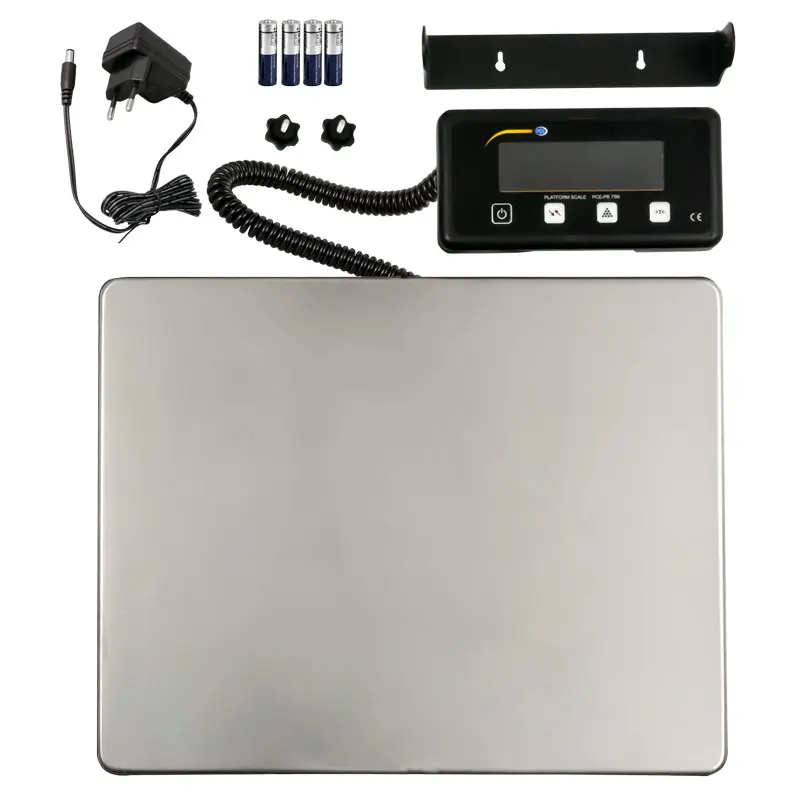

1 x Portable Industrial Scale PCE-PB 200N
4 x 1.5 V AA batteries
1 x 6 V DC / 1 A mains power adapter
1 x Wall mounting bracket
1 x Instruction manual

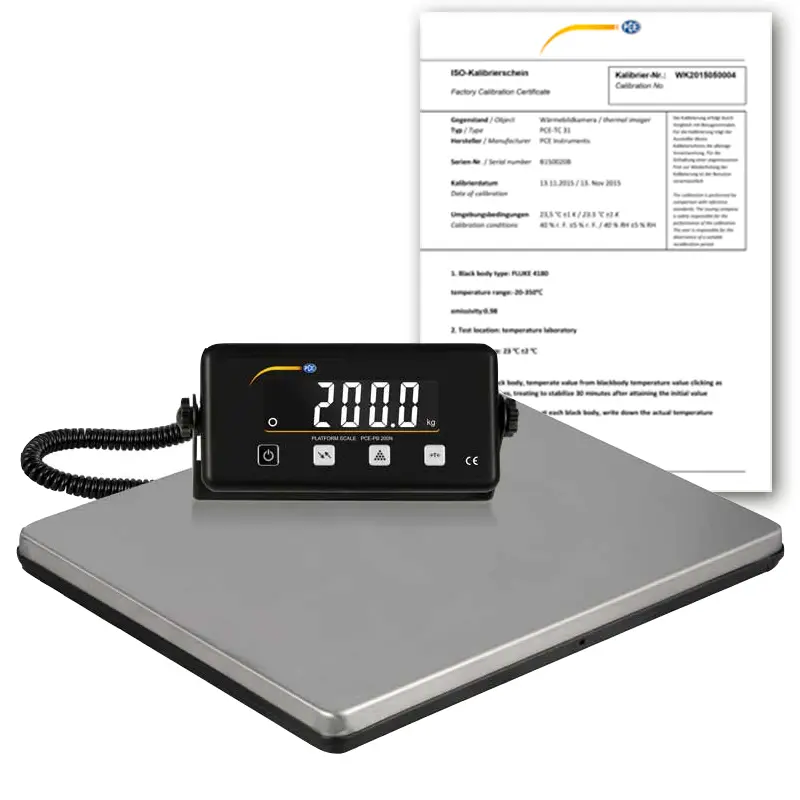

1 x ISO Calibration Certificate


N.B. Calibration certificates are issued specifically for the customer and are excluded from the right of return.
