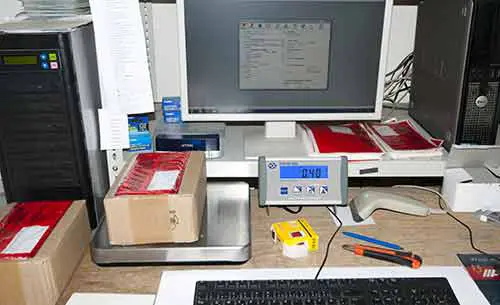

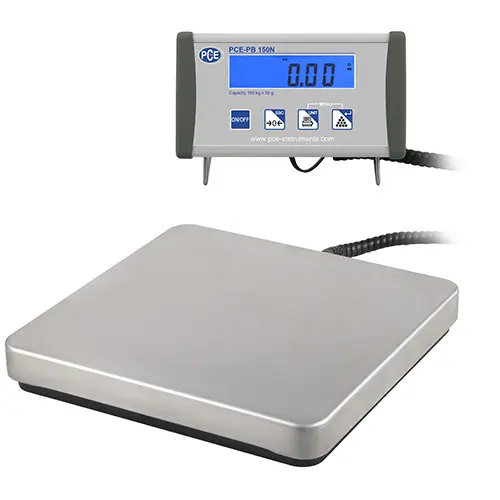

The USB platform scale of the PCE-PB N series is a versatile platform scale. The functions of the USB platform scale are very extensive, but one function is particularly interesting for shipping. It is the bidirectional USB interface of the platform scales that enables control by the PC. However, the USB platform scales of the PCE-PB N series can be used with the optional, inexpensive "ProCell" software. This software simulates keyboard input, similar to a scanner. With the help of this software, the platform scale can then transfer the weight value into active fields.
Another advantage of this platform scale is the wired display. The display is supplied with a stand, but it is also suitable for wall mounting. Other interesting functions of the platform scales are the piece counting function, PEAK hold function, function for level control, measuring units such as kg / lb / N (Newton) / g, adjustable background lighting, adjustable automatic switch-off and the option to operate the scales with power pack or batteries.
| Weighing range (Max) | 150 kg / 330 lbs | ||
| Minimum load (Min) | 150 g / 5.3 oz | ||
| Readability (d) | 50 g / 1.7 oz | ||
| Possible measuring tolerance | ± 200 g / 7 oz | ||
| Weighing plate (L x W x H) | 300 x 300 x 45 mm / 11 x 11 x 1.7" | ||
| Display | LCD 20 mm / 0.78" digit height (illuminated) | ||
| Display cable | 90 cm/ 35" spiral cable extendable to approx. 1.5 m / 60" (Plug connection on the display) | ||
| Measurement units | kg / g / lb / N (Newton) | ||
| Functions | - PEAK Hold Function (maximum value display) - multiple tare over the full measuring range - level control (auto tare OFF function) - piece counting function (min.1 pc) - animal weighing function - adjustable filters for fast response time - adjustable shutdown and lighting | ||
| Interface | USB bidirectional (query with Sx + CR + LF) | ||
| Working temperature | +5 ... +35 °C / 41 ... 95 °F / max. 85% r.H. | ||
| Power supply | DC9V / 200 mA power supply unit or 6 x AA 1.5V batteries | ||
| Dead weight | ca. 4 kg / 8.8 lbs | ||
| Recommended calibration weight | M1 class (freely selectable) |
ex. VAT, ex. delivery costs
ex. VAT, ex. delivery costs
ex. VAT, ex. delivery costs
ex. VAT, ex. delivery costs
ex. VAT, ex. delivery costs
PCE-SOFT-Procell is a software package that runs in the background and is used to transmit the weight data from the scale or balance to a program where keyboard input is possible — such as Microsoft Excel, Word, UPS, DHL or SAP — as keyboard input is simulated by the software. (Note: If you only have a USB interface or port on your computer, you must use an RS-232 to USB adapter.)
