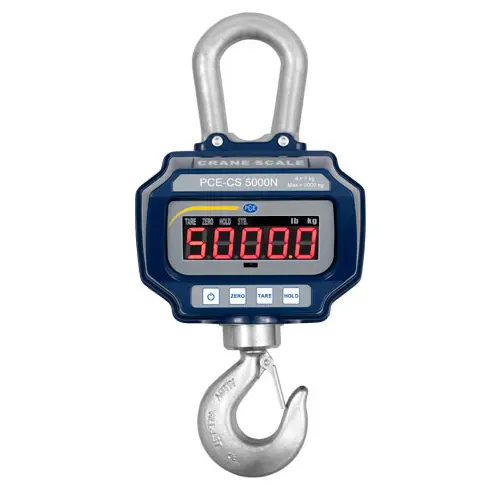

Heavy Duty Scale PCE-CS 5000N

Order no.: PCE-CS 5000N

GTIN (EAN): 4250348712806

Your PCE Instruments Benefits

Bilingual Technical Support (EN / ES)

Special Promotions

Public Service, Military and First Responder Discount

30 Day Return Policy

2 Year Warranty

Accessory

Calibration certificate CAL-10T

US$ 471.00

Description

PCE-CS 5000N is a digital battery-powered Heavy Duty Scale that displays measurement values in kilograms (kg) or pounds (lbs). The Heavy Duty Scale comes factory calibrated and includes a hook, shackle and remote control. For an additional fee, the scale can be calibrated according to ISO standards.

Highlights

Displays measurement values in kilograms (kg) or pounds (lbs)
Comes factory calibrated (see accessories for optional ISO calibration)
Includes hook, shackle and remote control
Features zero, tare, hold, sum, power-saving automatic shutdown and timed backlighting functions

Maximum weighing capacity

5000 kg / 11023 lbs ≈ 5 Tons

Resolution

1 kg / 2.2 lbs

Tare range

100 % full scale

Zero range

4 % full scale

Settling time

≥ 2 seconds

Units of weight

kg / lbs

Overload

100 % full scale + 9 verification scale interval

Limit load

150 %

Display

2.2 cm x 1.1 cm / 0.87 in x 0.43 in
HTN LCD with backlight

Power supply

3 x 1.5 V AAA batteries

Operating conditions

-10° C ... +40° C / +14° F ... +104° F
≤ 90 % RH

Weight (approx.)

24.3 kg / 53.58 lbs

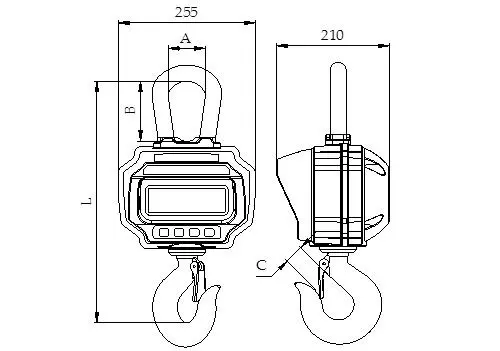

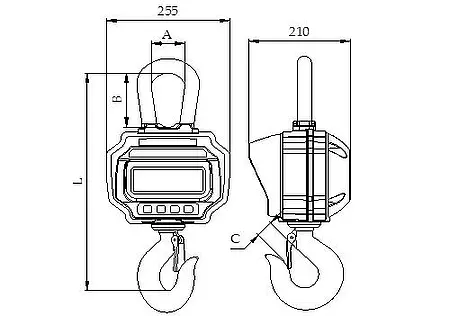

Dimensions

See diagram below

[zoom]

A: 68 mm / 2.67 in
B: 112 mm / 4.40 in
C: 36 mm / 1.42 in
L: 450 mm / 17.72 in

1 x PCE-CS-5000N Heavy Duty Scale
1 x battery charger
1 x remote control with batteries
1 x user manual

Specification

Weighing range	5000 kg / 5 t / 11023 lbs
Resolution / measurement uncertainty	1 kg (2.2 lbs) / ± 4 kg (± 8.8 lbs)
Taring range	over the full measuring range
Settling time	5 sec.
Weighing units	kg / lb
Housing	aluminium
Display / digit height	LED red / 35 mm / 1.37"
Operating temperature	-10 °C ... +40 °C / 14 °F ... 104 °F
Power supply	6 V - 4 Ah battery internal / BAT-6V-4.5Ah
Battery life	up to 200 hours
Dimensions (see diagram above)
A	68 mm / 2.67"
W	112 mm / 4.40"
C	36 mm / 1.42"
L	450 mm / 17.72"
Weight	ca. 12.5 kg / 27.5 lb
