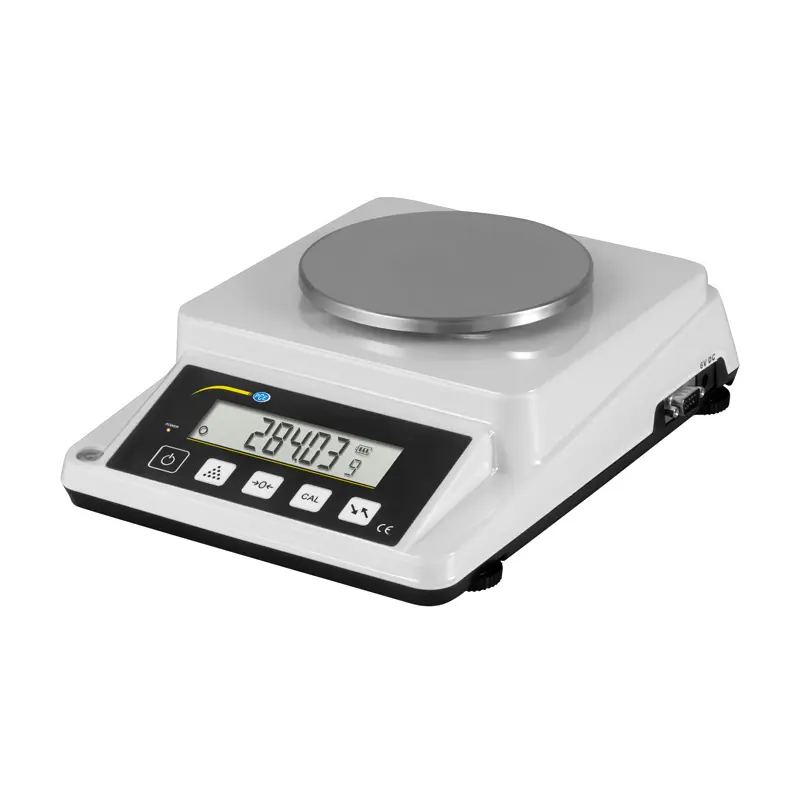

GSM Balance PCE-DMS 310

Order no.: PCE-DMS 310
US$ 334.00
4250348721235
PCE-DMS 310
ex. VAT, ex. delivery costs
Available in: 1-2 days
GSM Balance PCE-DMS 310
Paper scale with direct display in g / m² Paper scale with RS-232 interface / Backlight / Piece counting function Measurement of basis weight / Also suitable for mobile use

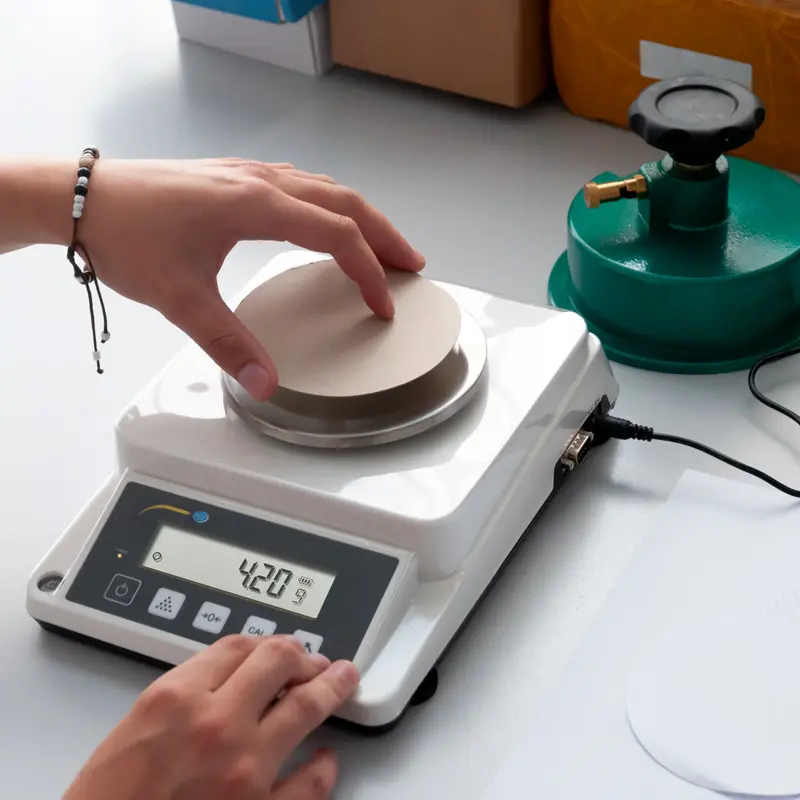

These paper scales were specially designed for the measurement of basis weight. Thanks to this paper scale, basis weight measurements can be carried out and evaluated within a very short time. With this paper scale, you can also determine, for example, the grammage of paper, cardboard or various textiles exactly. Weighing up to 1100 g at a resolution of 0.01 g can be carried out depending on the paper balance.

In addition to the basis weight measurement, the paper scales can also transfer the measured data to a PC. This is possible with the help of the installed RS-232 interface. The included power supply allows stationary use of the paper scales. Alternatively, the paper scale can also be used for mobile use. For this 3 x 1.5V AA batteries can be used. The optionally available paper sample level sampler ensures that the same samples are always used for basis weight determination.

- High precision

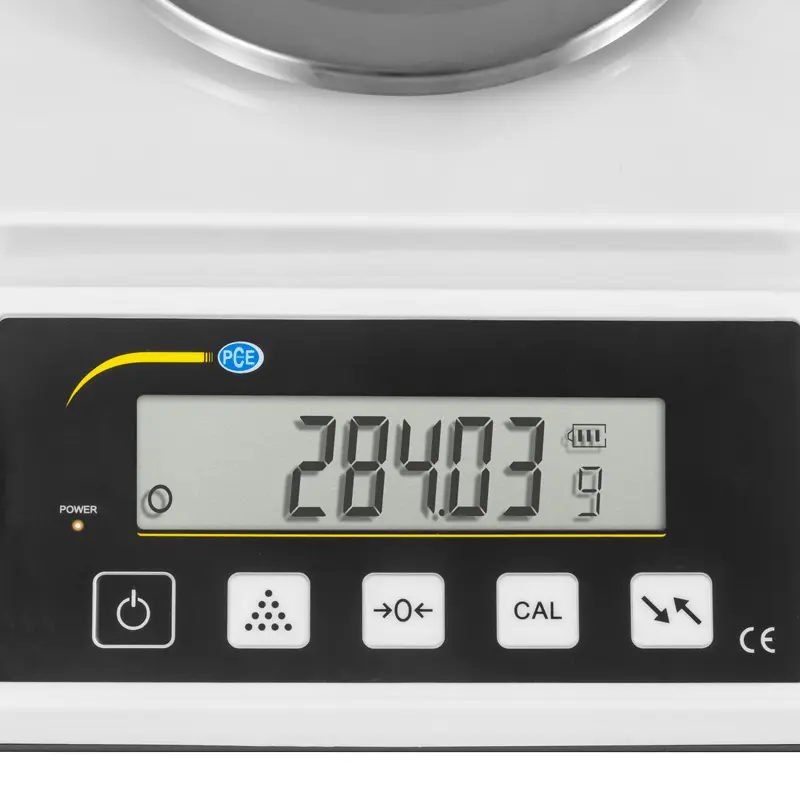

- Display with backlight
- RS-232 interface
- Piece counting function, weight per unit area
- Battery operation for mobile use
- Alignment of the balance with dragonfly
Measuring range 0 ... 310 g / 0 ... 31,000 g / m²
Resolution 0.01 g / 1 g / m²
Repeatability ± 0.02 g
Linearity ± 0.03 g
Stabilization period <3 s
Operating conditions 17.5 ... 22.5°C / 63.5 ... 72.5°F, 85% rh non-condensing
Interface Serial RS232
Power supply battery 3 x 1.5V AA
Power supply power supply Primary: 100 ... 240V, 50/60 Hz
  Secondary: 6V, 500-mA
Dimensions of the support surface        270 x 200 x 80 mm / 10.6 x 7.9 x 3.1 in
Weight 2 kg / 4.4 lbs

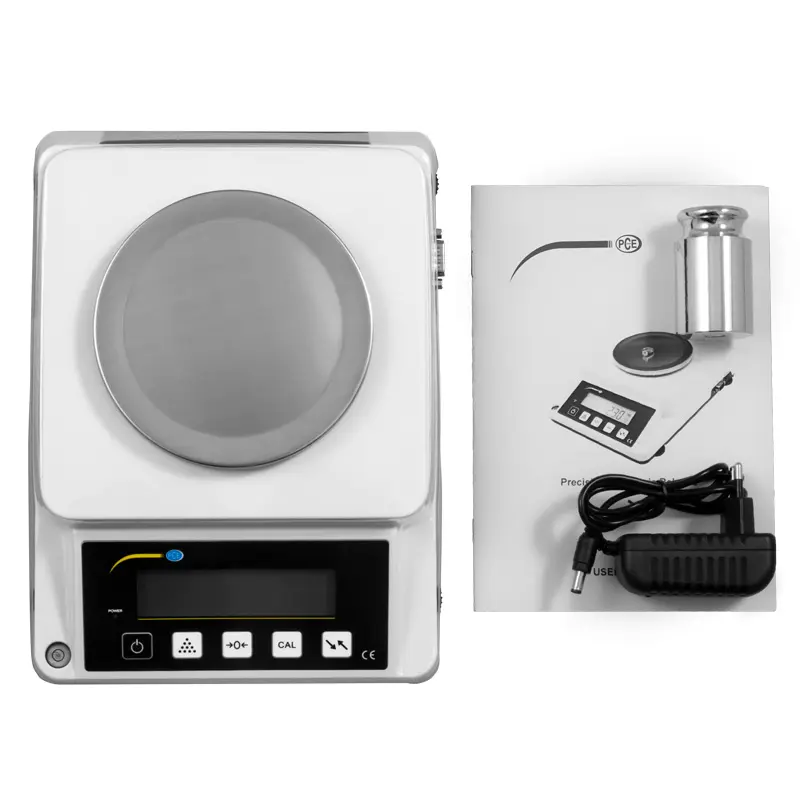

1 x GSM Balance PCE-DMS 310

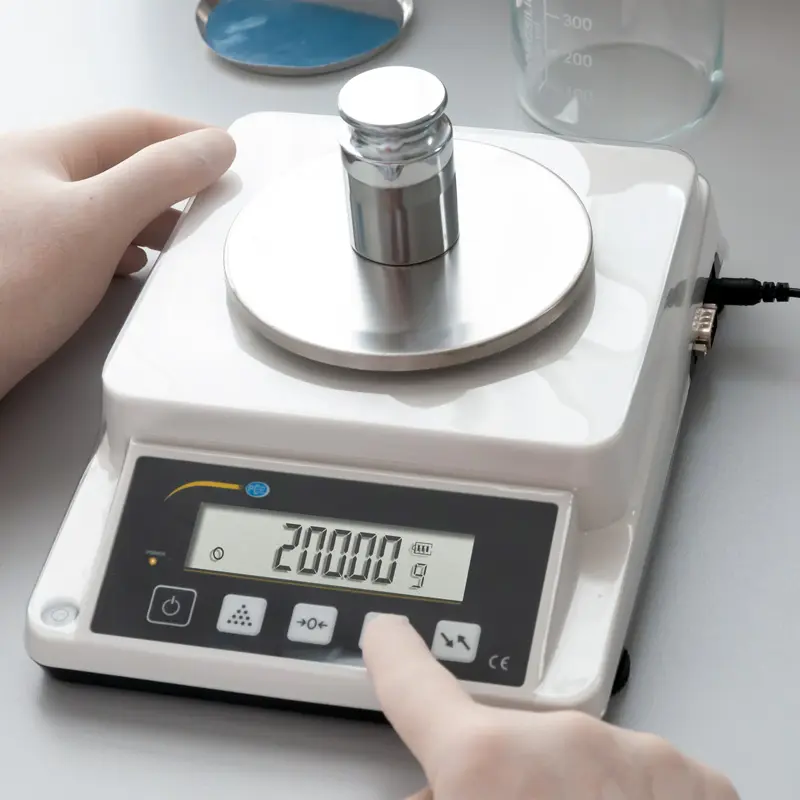

1 x Test weight
1 x Power supply
1 x User manual

Accessories

Order no.: CAL-PCE-DMS
ISO Calibration Certificate for PCE-DMS Series
ISO calibration certificate for the scales of the PCE-DMS series certifies the accuracy and is often required to comply with DIN ISO 9000.

N.B. calibration certificates are issued especially for the customer and are exempt from the right of return.
Catalogue: Weighing Equipment / Scales and Balances / GSM Balances
US$ 153.00

ex. VAT, ex. delivery costs

Test Instruments manufacturer
Order no.: MPC-3
GSM Balance Sample Cutter MPC-3
This round sample cutter features four internal blades for quick, easy and clean cutting of paper, leather, cotton, textiles, cork and more by hand.

- Maximum sample thickness: 3 mm / 0.12"
- Sample cut: 11.3 cm diameter / 100 cm² / 15.5 in²
- Stainless steel blades housed in cast steel casing
Catalogue: Weighing Equipment / Scales and Balances / GSM Balances
US$ 159.00

ex. VAT, ex. delivery costs

Test Instruments manufacturer
Order no.: PCE-FSC 25
GSM Balance Round Sample Cutter PCE-FSC 25
25 cm² / 3.87 in² round sample cutter for paper and textiles, four blades, robust and compact

- Robust and compact
- Four internal stainless steel blades
- Material thickness: 0-5 mm / 0-0.19"
- Sample diameter: 56.4 mm / 2.22"
- 25 cm² / 3.87 in² sample size
- With mechanical lock
- Suitable for many materials
Catalogue: Weighing Equipment / Scales and Balances / GSM Balances
US$ 264.00

ex. VAT, ex. delivery costs

Test Instruments manufacturer
Order no.: PCE-FSC 20
GSM Balance Round Sample Cutter PCE-FSC 20
20 cm² / 3.10 in² round sample cutter for paper and textiles, four blades, robust and compact

- Robust and compact
- Four internal stainless steel blades
- Material thickness: 0-5 mm / 0-0.19"
- Sample diameter: 50.47 mm / 1.98"
- 20 cm² / 3.10 in² sample size
- With mechanical lock
- Suitable for many materials
Catalogue: Weighing Equipment / Scales and Balances / GSM Balances
US$ 264.00

ex. VAT, ex. delivery costs

Test Instruments manufacturer
Order no.: PCE-FSC 10
GSM Balance Round Sample Cutter PCE-FSC 10
10 cm² / 1.55 in² round sample cutter for paper and textiles, four blades, robust and compact

- Robust and compact
- Four internal stainless steel blades
- Material thickness: 0-5 mm / 0-0.19"
- Sample diameter: 37.5 mm / 1.47"
- 10 cm² / 1.55 in² sample size
- With mechanical lock
- Suitable for many materials
Catalogue: Weighing Equipment / Scales and Balances / GSM Balances
US$ 264.00

ex. VAT, ex. delivery costs

Test Instruments manufacturer
Order no.: MPC-UL-N
Spare rubber pads for sample cutters MPC-UL-N
Replacement rubber pads for the 3mm / 0.12" Sample Cutter MPC-3

- Pack of 10
- ca. 30 x 20 x 1 cm / 11.8" x 7.9" x 0.4"
US$ 105.00

ex. VAT, ex. delivery costs

Test Instruments manufacturer
Order no.: MPC-EK3
Spare blades for sample cutters MPC-EK3
40 spare blades for the sample cutter 3mm / 0.12"
US$ 66.00

ex. VAT, ex. delivery costs

Test Instruments manufacturer
