Compact Scale PCE-MS PC300-1-60x70-M

Order no.: PCE-MS PC300-1-60x70-M
Verification for Trade / conformity assessment

US$ 474.00
PCE-MS PC300-1-60x70-M
ex. VAT, ex. delivery costs
0.1 kg
Available in: 1-2 days
Compact Scale / Verifiable / Max. capacity 300 kg / Verification value: 100 g / Incl. verification (conformity assessment)

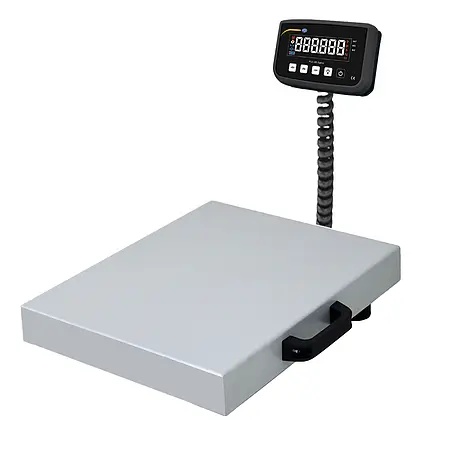

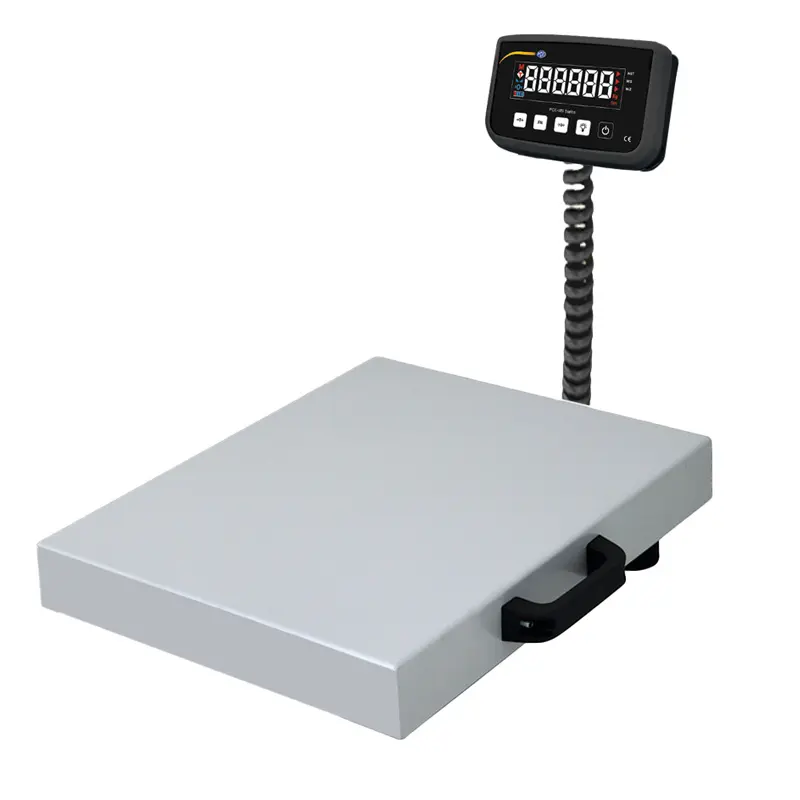

The compact scale is characterized by the large weighing platform of 60 x 70 cm. Despite the size, the compact scale is well suited for mobile use. On the long side of the powder-coated weighing plate there is a carrying handle and a compartment for the 90 cm spiral cable. This coiled cable can be extended to a length of up to 2.5 m and allows versatile positioning of the display unit

The compact scale has a plug-in display with a digit height of 28 mm. The internally built-in rechargeable battery enables a service life of up to 25 hours in continuous operation. The built-in bidirectional USB-B interface rounds off the flexible use.

The compact scale is delivered with a conformity assessment, which means that the first verification is not necessary. The conformity assessment refers to a defined geographic zone around the planned installation site of the scale in order to allow the greatest possible flexibility in use.

Scale type single-range scale
Weighing range [Max] 300 kg / 661 lb
Resolution [d] 100 g / 3.52 oz
Weighing unit kg
Verification value [e] 100 g / 3.52 oz
Verification class [e] M III
Minimum load [Min] 2 kg / 4.4 lb
Taring range multiple tare over the entire weighing range, automatic and manual tare deletion possible
Weighing plate [WxD] 600 x 700 mm / 23.6 x 27.5"
Interface USB-B bidirectional
Display LCD, white on black
Digit size [WxH] 15 x 28 mm / 0.59 x 1.1"
Power supply internal lead battery 6 V / 4.5 Ah / 101 x 70 x 50 mm / 3.9 x 2.7 x 1.9" / 850 g / 30 oz
external power supply 7.8 V / 1.2 A AC / 110 V - 230 V
Battery life
up to 25 hours (continuous operation)
Battery saving mode yes after 30 seconds without use (can be deactivated)
Load cell 500 kg / 1102 lb / IP 65
Operating temperature   -10 ... +40 °C / 14 ... 104 °F
Weight 21.5 kg / 47 lb

1 x Compact Scale PCE-MS PC300-1-60x70-M
1 x Mains power adapter
1 x Instruction Manual
incl. verification (declaration of conformity)

The place of installation of the scales with Postcode (ZIP), Town, Country must be specified
