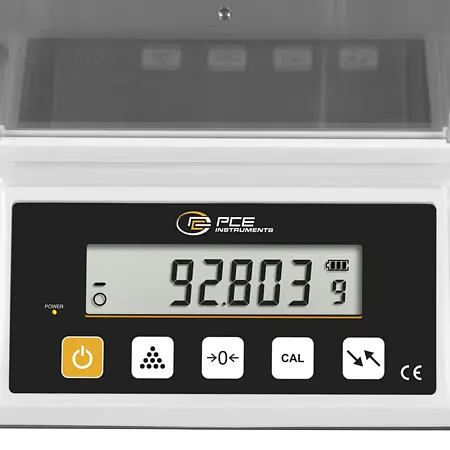

The Analytical Balance is a scale for daily laboratory use. Another function besides the normal measurement function of the Analytical Balance is the piece-counting function. This function allows the Analytical Balance to determine the number of screws, for example. Thus, for example, the Analytical Balance can also be used in logistics. So that the display is readable even in poor lighting conditions, the display of the Analytical Balance has a backlight.

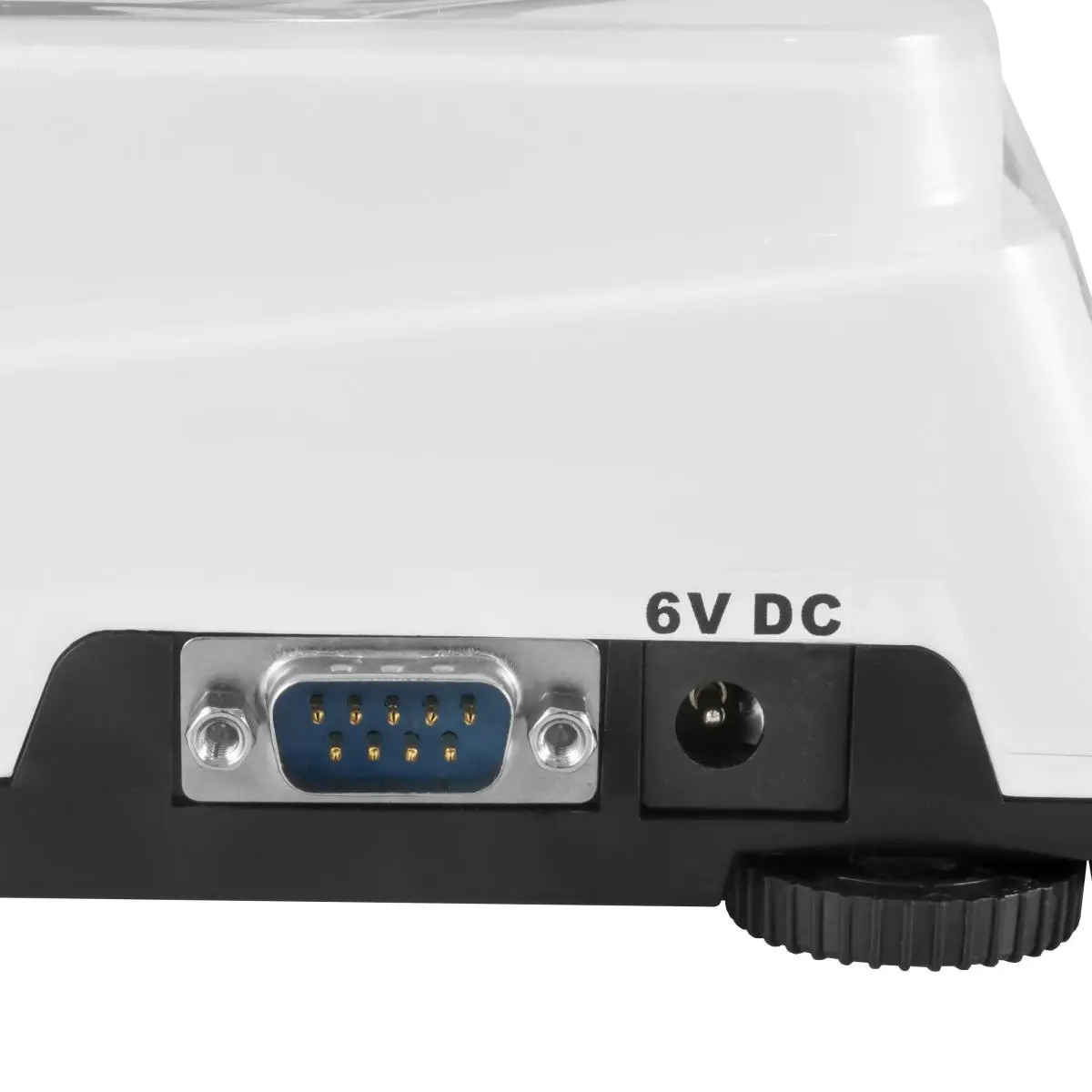

In addition to the measuring functions, the Analytical Balance also has an RS-232 interface. Thanks to this interface, the measured values can be transferred to a PC, for example. This Analytical Balance can be used for stationary as well as mobile use. For mobile use, the Analytical Balance requires 3 x 1.5 V AA batteries, which can be used quickly and easily.
| Weighing range | |
| Measurement range up to [Max] | 310 g |
| Resolution [d] | 0,001 g |
| Accuracy | Class II |
| General technical data | |
| Measuring functions (additional information) | Piece counting function |
| Interface | RS232 |
| Repeatability | 0,002 g |
| Housing | Plastic |
| Calibration | external |
| Dimensions | Wiegeplatte: Ø 90 mm |
| Settling time | < 3 s |
| Linearity | ±0.003 g |
| Protection class (device) | IP20 |
| Power supply | 100 ... 240V AC | 50/60 Hz 6V DC, 500 mA |
| Connector type | Device-europlug |
| Operating conditions | 0 ... 40 °C , 50 ... 85 % RH |
| Storage conditions | 0 ... 50 °C , 50 ... 85 % RH |
| Dimensions ( L x W x H ) | 270 x 265 x 190 mm |
| Weight | 3100 g |
