TS Manager Software for PCE-SDD High-Temperature Data Logger Series

Order no.: SOFT-PCE-STERIL-VAL
GTIN (EAN):
US$ 1,484.00
ex. VAT, ex. delivery costs
SOFT-PCE-STERIL-VAL
Available in: 1-2 working days
Your PCE Instruments Benefits
Bilingual Technical Support

Bilingual Technical Support (EN / ES)

Special Promotions

Special Promotions

Public Service, Military and First Responder Discount

Public Service, Military and First Responder Discount

30 Day Return Policy

30 Day Return Policy

2 Year Warranty

2 Year Warranty

Description

The software is used to transfer measurement results from the vibration meter to a computer or portable computer. These measurement values can be also transferred to other calculation programs such as: MS Excel. The delivery includes a cable with a USB adapter (driver included).

Highlights

- Data in the devices can not be edited
- Data can not be edited in software
- Access for each user by login and password
- Client / server setup and shared database
- Multi-user access
- Multi-level user with different features for each customer and validated instrument database for validation activities
- Logbook: recording, not editable, of all operations performed
- Data analysis through pre-set or customizable parameters
- Possibility of comments before and after the measurement

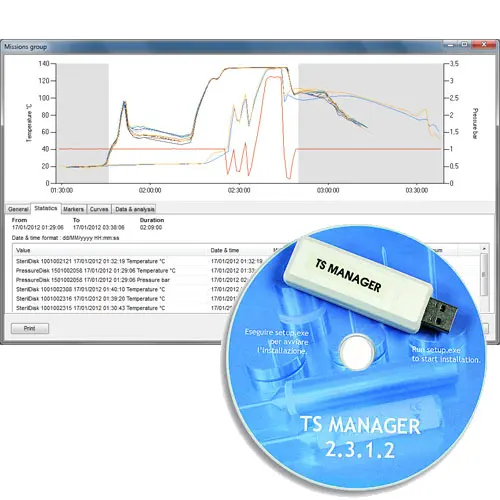

- Display of measured values ​​as a graph, with zoom and table
- Multi-graph analysis
- Diagram divided into sections with analysis and statistics for each section
- Synchronized data table with statistics for each acquisition: maximum, minimum, average, maximum-minimum, maximum-average, average-minimum
- Theoretical temperature calculation based on pressure in a saturated steam environment
- Printing of customizable reports
- Data and reports can be exported as HTML and Excel

Specification

SystemWindows XP, Vista, 7, 8, 10 (32/64-bit)
Compliant regulationsFDA CFR Part 11
Supported data loggersPCE-SDD series
data managementClient / server database with individual measurements, groups, customers, measuring instruments, measuring locations and program sequences
data representationGraph, table, markers for start and end, printing of all data, multigraph function
Customizable parametersAcquisition step, mission duration, analysis type (lethality with Z and reference temperature values, overkilling for validation)
Calculated parametersLethality (F0, PU, ​​A0 etc.)
languagesGerman, English, Italian


Delivery Scope

1 x TS Manager software
1 x incl. USB access key (temperature / pressure sensor)
