Teststand PCE-TF 4

Name: Teststand PCE-TF 4
Brand: PCE Instruments
SKU: 2201974
Price: 4141 USD
Availability: InStock

Order no.: PCE-TF 4

GTIN (EAN):

Your PCE Instruments Benefits

Bilingual Technical Support (EN / ES)

Special Promotions

Public Service, Military and First Responder Discount

30 Day Return Policy

2 Year Warranty

Free Standard Shipping (US)

Description

Manual material test stand for tensile and compressive force up to 5000 N / manual operation (hand crank) / two columns

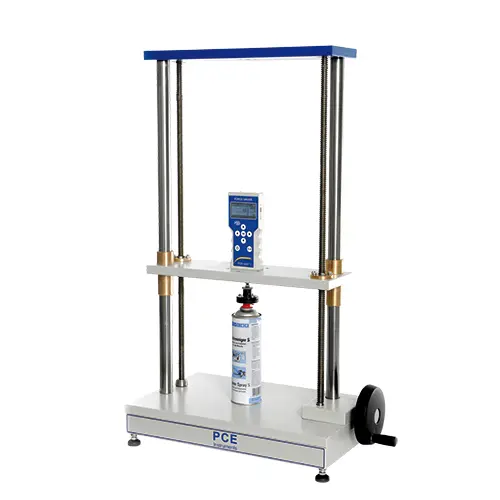

The two-column manual material test stand PCE-TF 4 is suitable for manual testing of tensile and compressive forces of up to 5000 N. It is frequently used for occasional material and component tests or in production monitoring. The manual material test stand PCE-TF 4 ensures a high degree of stability and enables the user to carry out various testing tasks due to its ample working space. The crossbeam of the material test stand is moved by means of a hand crank and makes a precise traverse distance possible which makes testing very easy.

Highlights

- manually operated (hand crank)
- up to 5000 N
- for tensile and compressive force
- two columns
- ample working space
- for hand-held force gauges and force transducers

Specification

Technical specifications

Force range	≤5000 N
Overall height	870 mm
Overall width	590 (485) mm
Overall depth	310 mm
Overall stroke	590 mm
Working space width / depth	341 / 310 mm
Radius of action around force axis	163 mm
Crossbeam borehole Baseplate borehole	M12 M12
Weight Measuring path indication	~32 kg path measuring rod (optional)
Drive	manually via hand crank

Delivery Scope

Delivery content

1 x material test stand PCE-TF 4, 1 x crossbeam, 1 x instruction manual

Optional accessories
- fixing material
