Order no.: PCE-WMM 50-RDU

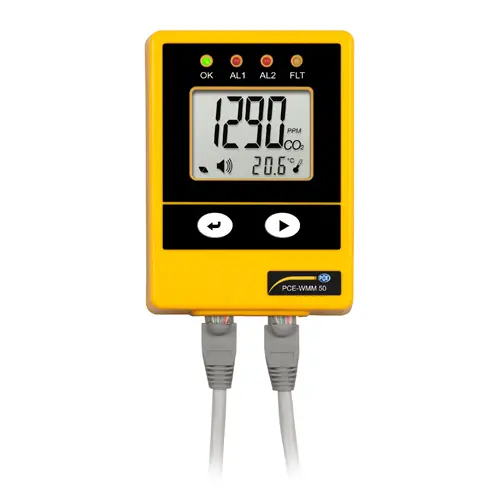

Remote display PCE-WMM 50-RDU for gas warning system

US$ 317.00
PCE-WMM 50-RDU
ex. VAT, ex. delivery costs
Available in: 1-2 days

Description

The remote display can be used as a spare part or as an additional warning unit for the PCE-WMM 50. The remote display for the PCE-WMM 50 gas warning system is simply connected via the additional RJ45 socket.

- Connection via RJ45
- Up to 3 remote displays can be used
- Suitable for PCE-WMM 50

Specification

Reporting unit

Temperature (gas / environment)

0 ... +45 °C / +32 ... +113 ºF

Audible alarm

80 dbA

Optical alarm / status indicators 4 LEDs: operation, alarm 1 & 2, error

Display elements

LC Display
4-digit: In the range 0 ... 9999 ppm
3-digit in the range 1 ... 5 %
3-digit temperature display

Menu items

Function check of the connection between the main unit and the signaling unit
Switchover from °C to °F

Controls

Function test, reset, menu selection, enter, switch from °C to °F

Power supply

Via connection to the main unit

Housing material

plastic

Dimensions

118 x 85 x 34 mm / 4.65 x 3.35 x 1.34" (without connections)

Weight

ca. 130 g / 4.5 oz


Delivery Scope

1 x Remote display PCE-WMM 50 RDU
