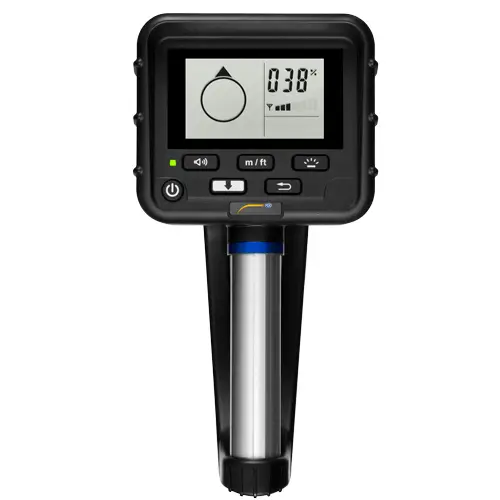

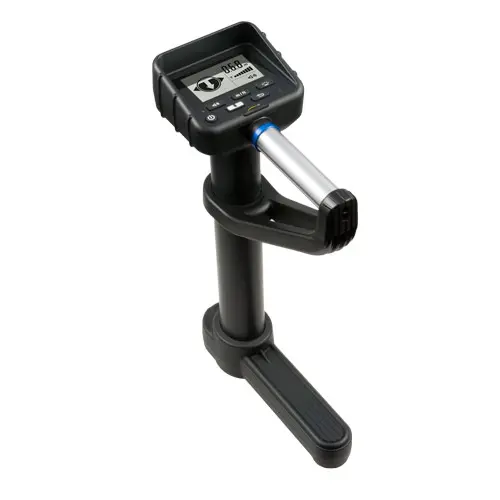

Locator PCE-VE-LOC for videoscope

Order no.: PCE-VE-LOC

GTIN (EAN):

Your PCE Instruments Benefits

Bilingual Technical Support (EN / ES)

Special Promotions

Public Service, Military and First Responder Discount

30 Day Return Policy

2 Year Warranty

Highlights

- Handset / digital

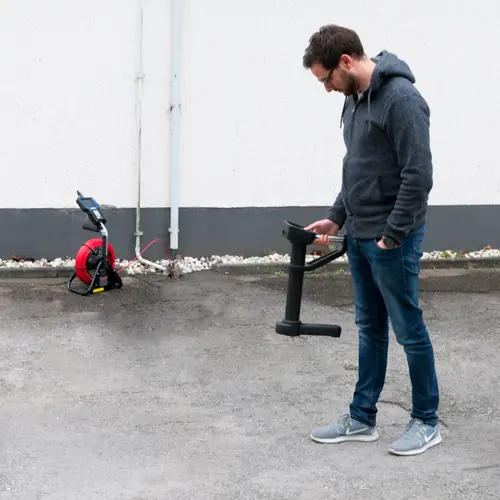

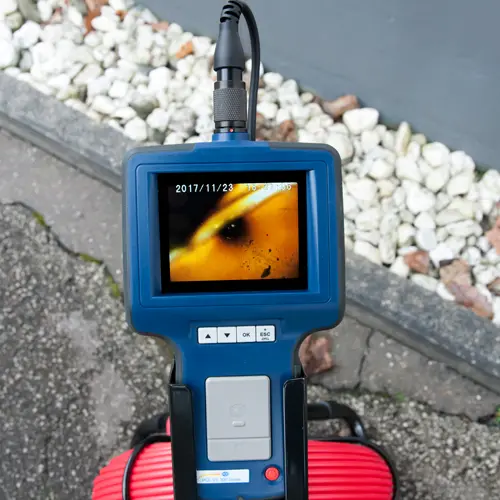

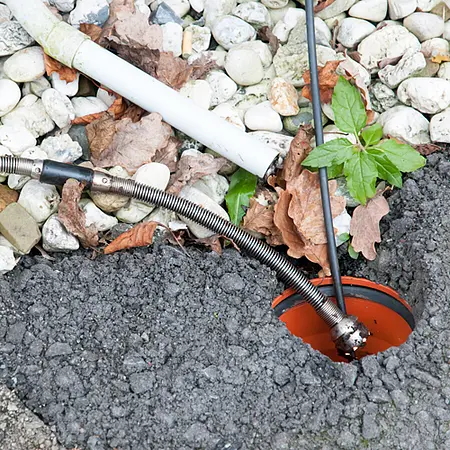

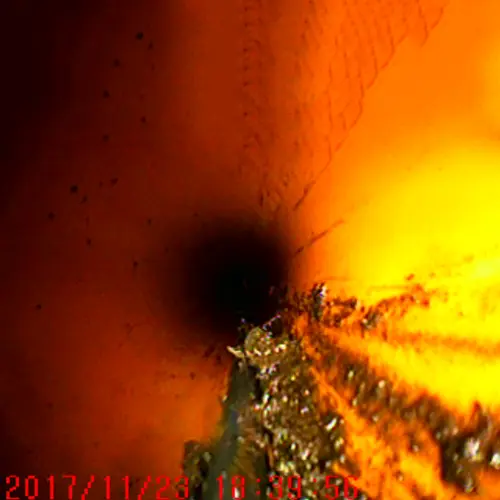

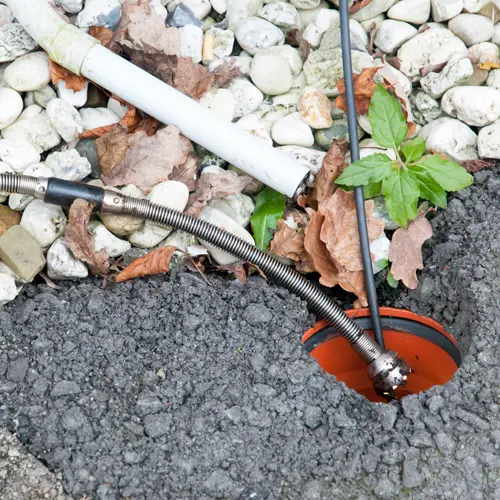

- Hand-held device / digital - Receiver for video endoscope PCE-VE 380N, PCE-PIC 20 and PCE-PIC 40 sewer camera

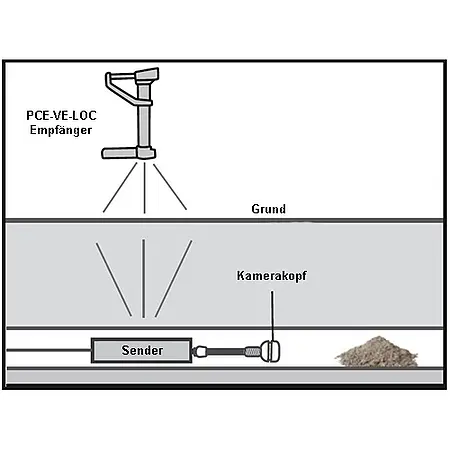

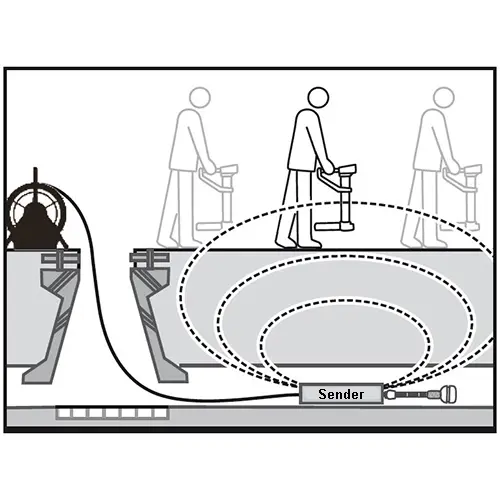

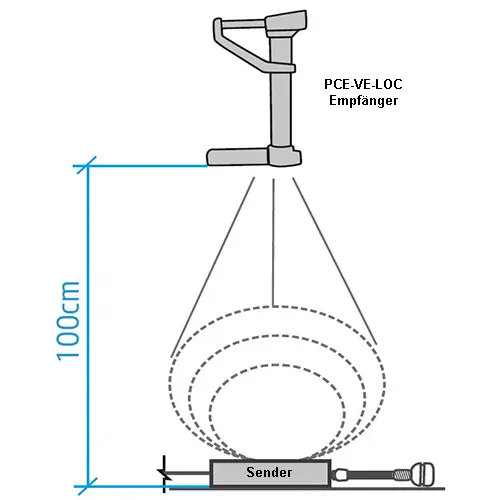

- To determine the location of damage
- DC charging connection

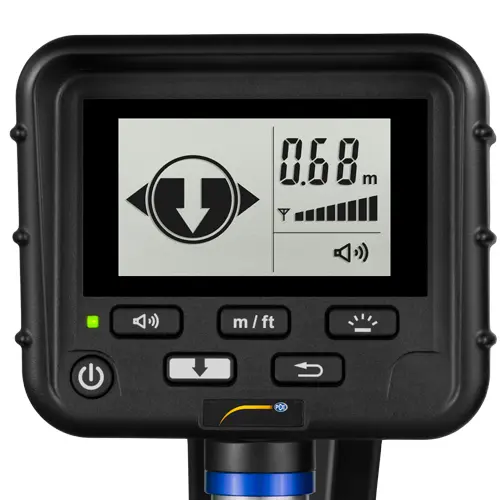

- LED backlight
- Easy calibration
- Adjustable units m/ft

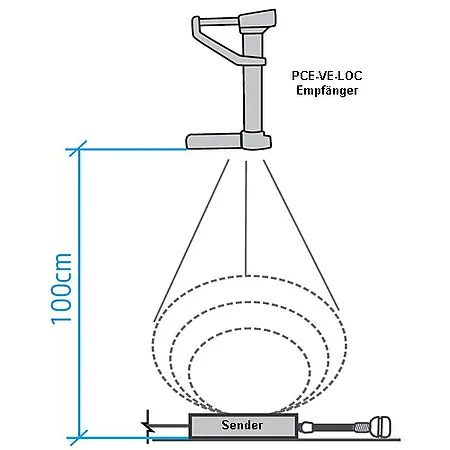

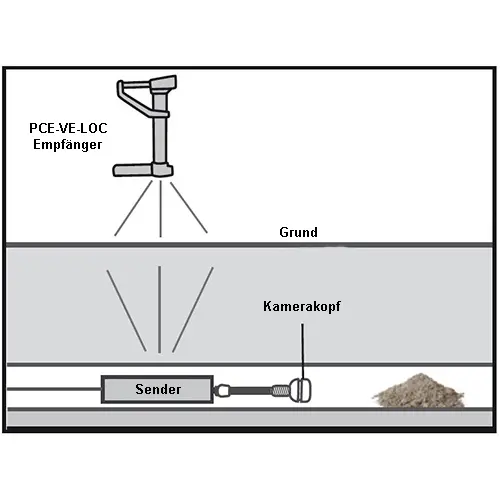

- Test depth up to 1.8 m / 5.9 ft
- Acoustic signal tone
- Beep will be shorter when approaching the transmitter
- Beep ON / OFF

Specification

Power supply	3.7V / 2000-mA Li battery
Input	282-mA
Battery charge	3...4 hours
Power adapter	5.5V, 1.8A
Humidity	95%, non condensing
Operating temperature	-10...60°C (14...140 °F)
Storage temperature	-20...80°C (-4...176 °F)
IP protection	IP55
Dimensions	L: 293.5mm (11.55") B: 144mm (5.66") H: 486.5mm (19.15")
Weight	2 kg (4.4 lbs)

Delivery Scope

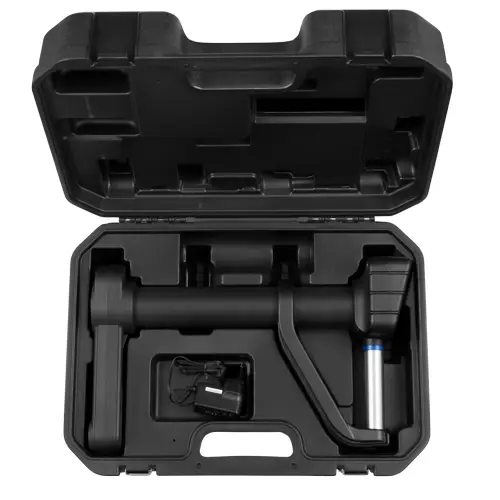

1 x Locator PCE-VE-LOC

Downloads

Manual
