Order no.: PCE-5000-10N-Probe

Automatic Test Probe PCE-5000-10N-Probe


US$ 10,263.00
PCE-5000-10N-Probe
ex. VAT, ex. delivery costs
Available in: 1-2 days

Description

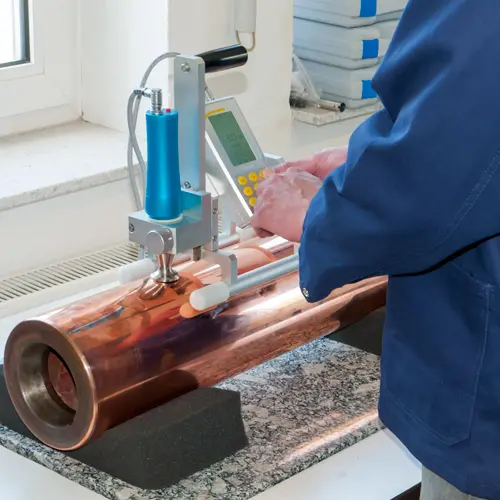

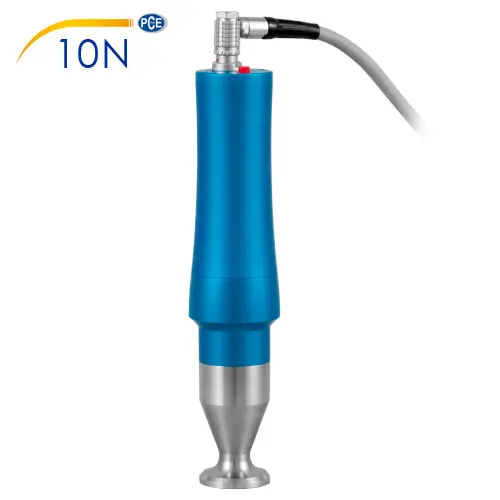

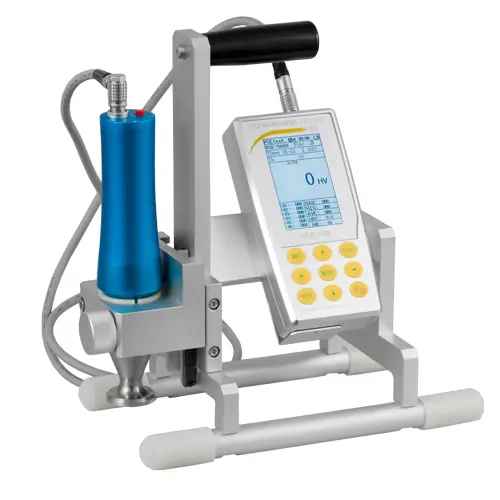

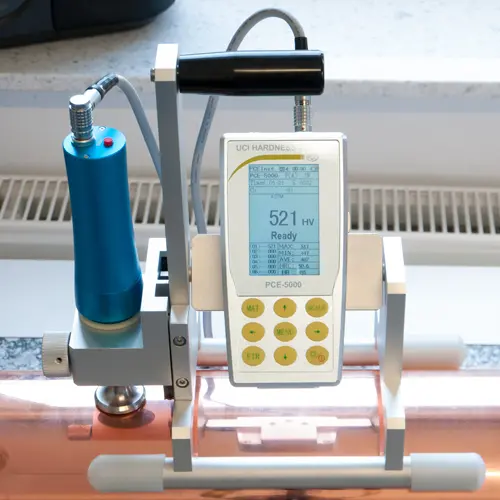

Automatic test probes for the PCE-5000 hardness tester with a test force of 10N. The test probe can be used in conjunction with the test rig for the hardness testing of chromium-plated or copper-coated printer rolls. This test probe makes it possible to carry out various hardness measurements in a highly accurate and repeatable manner. Through the ultrasonic testing method, hardness measurements can be carried out without destruction. The probe can be operated with one button. By carrying out the measurement with the test stand, the influence of movements in the measurement is eliminated. Furthermore, measurement with the automatic test probe can also be done for thin or light metals.



Meter and test stand are not included


Highlights

- Automatic 10N probe

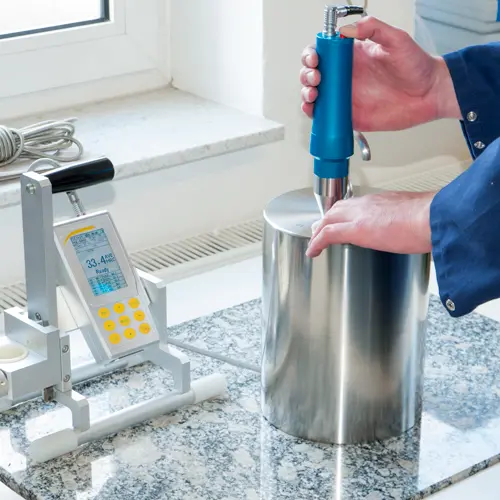

- For use with the test stand or in manual operation

Specification

Test force 10 N
Diameter 46 mm / 1.8 in
Length 197.5 mm / 7.8 in
Diameter of test head 3.7 mm
Minimum weight of specimen 0.3 kg
Minimum thickness of specimen 2 mm

Delivery Scope


1 x Test probe PCE-5000-10N-Probe
