Wood Moisture Meter PCE-WMH-3

Order no.: PCE-WMH-3
GTIN (EAN): 4250348702067
US$ 853.00
ex. VAT, ex. delivery costs
:
4250348702067
PCE-WMH-3
Available in: 1-2 days
Handheld

Description

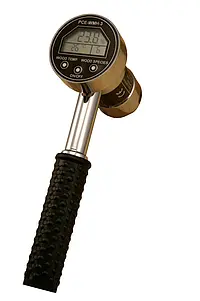

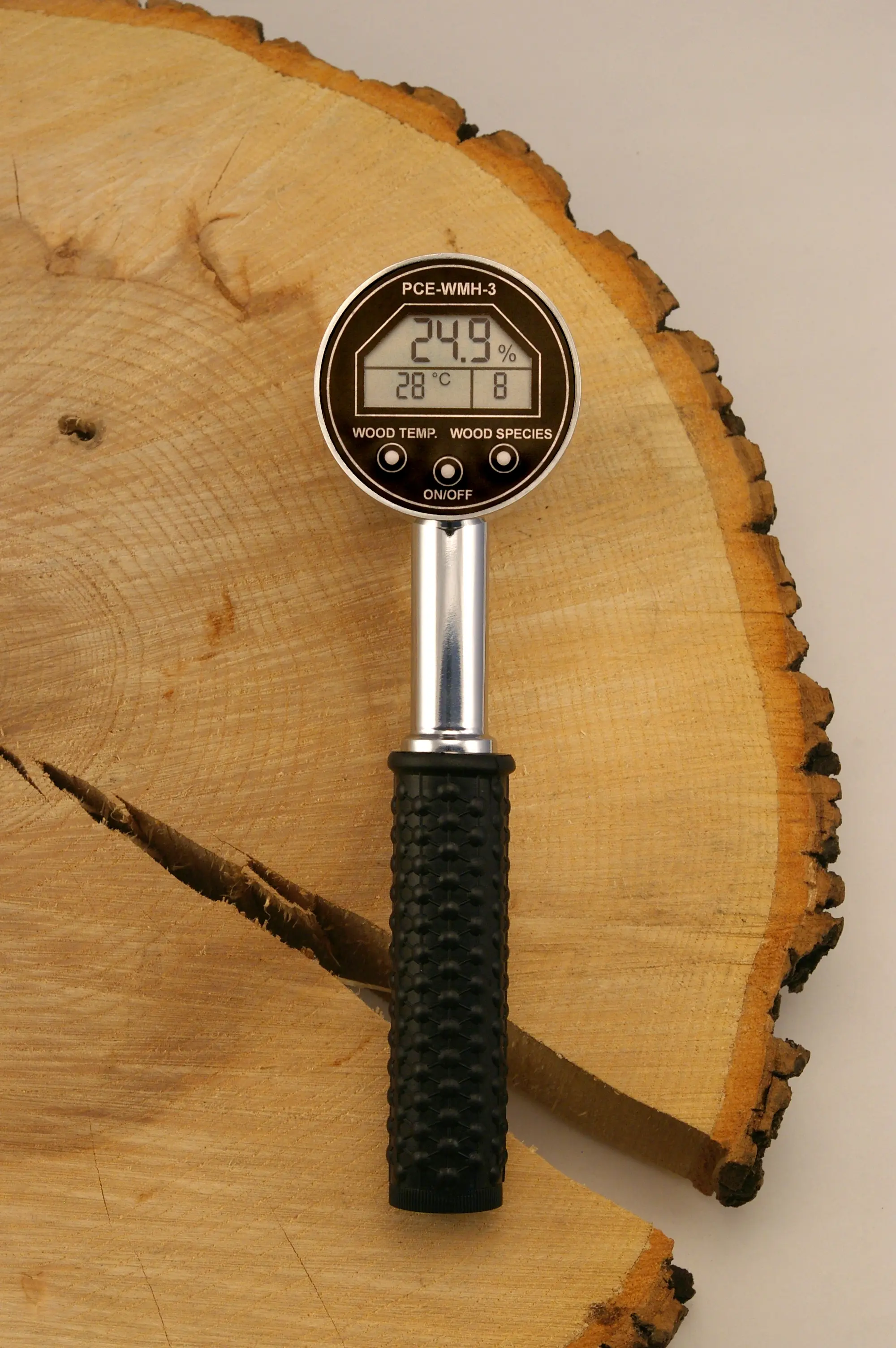

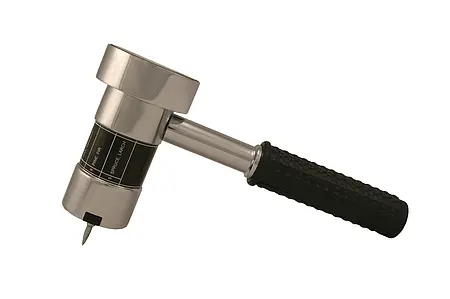

PCE-WMH-3 Wood Moisture Meter
Features preset characteristic curves for measuring 270 different wood types

PCE-WMH-3 is a portable handheld digital moisture meter or analyzer used to measure the moisture content of wood. This hammer-style wood moisture analyzer features preset characteristic curves for measuring moisture in 270 different wood types.

A table of exotic wood type coefficient values is provided in the user manual to allow for proper calculation. The table lists coefficient values for exotic wood types including but not limited to Gonzales Alves, Pine, Brazilian-Rosewood, Chipboard, Cedar, Dogwood, European Aspen, Elm, Oak, Juniper, Maple, Ash, Quebracho Blanco and Colorado, Sandalwood, Mahagony, Olive, Umbrella, Pear, Persimmon, African Walnut, Teak, Willow and more.


Highlights

- Delivers moisture content measurements in seconds
- Preset characteristic curves for 270 wood types
- Automatic temperature compensation
- Compact, handheld, portable
- Easy-to-read LCD screen
- No preparation required
- Battery powered

Specification

Measurement range 6 ... 60 % moisture content
Accuracy ±1 % (within 6 ... 12 % range), ±2 % (13 ... 28 %), ±2 %(29 ... 60 %)
Resolution 0.1 %
Number of different wood types 270
Wood temperature range -10 ... +60 ºC / 14 ... 140 °F
Display LCD
Electrode dimensions Approx. 3.5 x 12 mm / 0.1 x 0.4", 2.5 x 8 mm / 0.09 x 0.3", 2 x 6 mm / 0.07 x 0.2" diameter
Power supply 1 x 12V 23A battery
Battery life Approx. 10000 measurements
Unit dimensions Approx. 180 x 80 x 42 mm / 7 x 3.1 x 1.6"
Unit weight Approx. 0.8 kg / 1.77 lbs

Delivery Scope

1 x PCE-WMH-3 wood moisture meter
1 x pair of electrodes
1 x replacement pair of electrodes
1 x battery
1 x user manual
