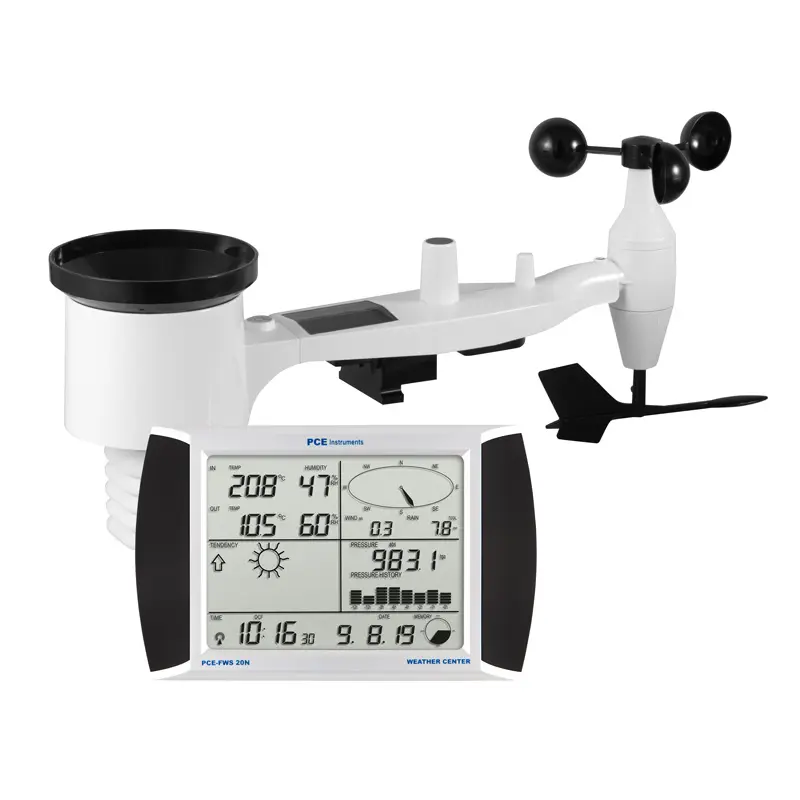

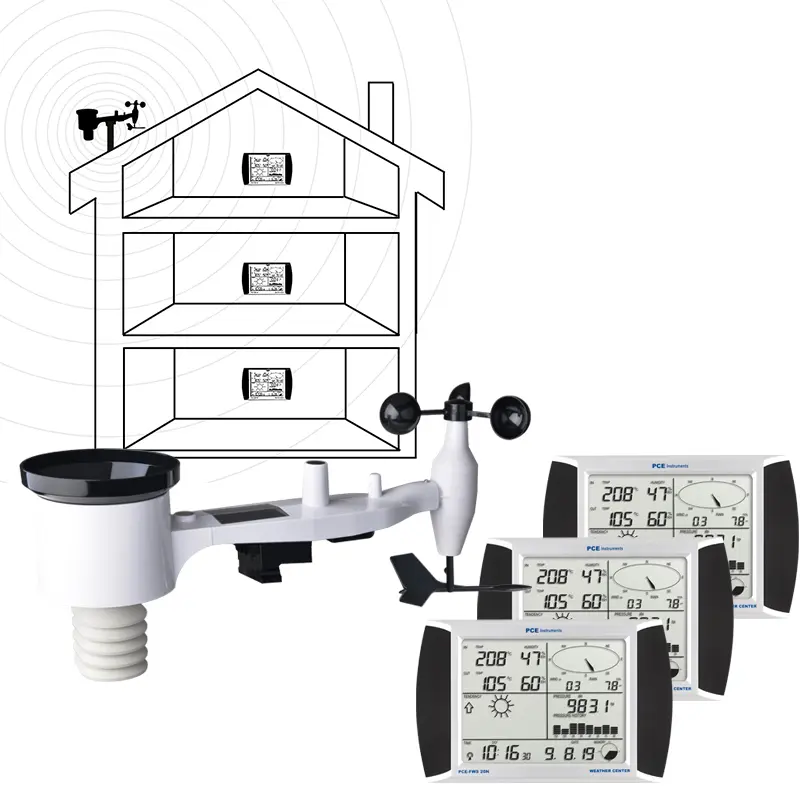

Replacement display for weather station PCE-FWS 20N (also possible with multiple displays)
The display is only for weather stations that were purchased since April 2011.
Inside | ||
Measuring function | ||
Air temperature | ||
Measuring range | Resolution | Accuracy |
0 ... +50 °C | 0.1 | - |
32 ... 122 °F | ||
Measuring function | ||
Rel. Humidity | ||
Measuring range | Resolution | Accuracy |
1 ... 99 % | 1 % | - |
Measuring function | ||
Air Pressure |
||
Measuring function | Resolution | Accuracy |
300 ... 1100 hPa | 0.1 hPa | ± 3 hPa |
8.85 ... 32.5 inHg | 0.01 inHg | |
Measuring interval: 48 seconds | ||
Alarm time: 120 seconds | ||
Outside | ||
Measuring function | ||
Air temperature | ||
Measuring range | Resolution | Accuracy |
-40 ... 60 °C | 0.1 | ±1 °C |
-40 ... 140 °F | ||
Measuring function | ||
Rel. Humidity | ||
Measuring range | Resolution | Accuracy |
1 ... 99 % | 1 % | ±4 % within 20 ... 80 % |
±6 % within 20 ... 80 % |
||
Measuring function | ||
Rainfall | ||
Measuring range | Resolution | Accuracy |
0 ... 9999 mm | 0.3 mm at <1000 mm | ±6 % |
1 mm at >1000 mm | ||
Measuring function | ||
Wind speed | ||
Measuring range | Resolution | Accuracy |
0 ... 50 m/s | 0.1 | ±1 m/s at <5 m/s |
0 ... 100 mph | ±10 % at >5 m/s | |
Reception range 100 m, 300 feet | ||
Frequency: 868 MHz (Europe) | ||
Measuring interval: 48 seconds | ||
Protection class: IP X3 | ||
Other specifications | ||
7 inch touchscreen | ||
Backlit illuminated display | ||
Setting the time | manual and automatic (DCF 77) | |
Power supply display | 3 x 1.5 V AA | |
Power supply outdoor module | 2 x 1.5 V AA | |
Dimensions display | 230 x 150 mm | |
Dimensions outdoor module | 400 x 117 mm | |
Weight display | ca. 551 g | |
Weight outdoor module | ca. 545 g | |

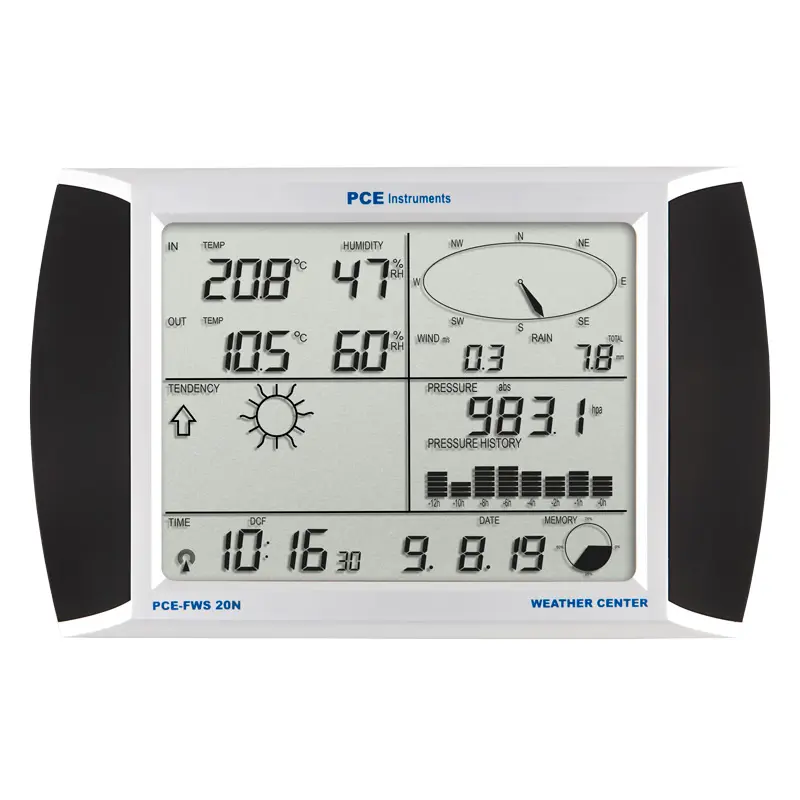

Display | ||
- Indoor temperature in Celsius or Fahrenheit | ||
- Outside temperature in Celsius or Fahrenheit | ||
- Indoor humidity | ||
- Outdoor humidity | ||
- Air pressure gauge in inHg or hPa | ||
- Absolute or relative air pressure display selectable | ||
- Precipitation indication in mm or inch | ||
- Rain gauge 1 hour, 24 hours, 1 week, 1 month, since the last reset | ||
- Dew point temperature display | ||
- Weather forecast | ||
- Weather forecast trend display | ||
- Storm warning | ||
- Display of weather data | ||
- Programmable alarms for different weather conditions | ||
- Storage of the minimum and maximum values of the received weather data | ||
- Wind speed in mph, km/h, m/s, knots or Beaufort selectable | ||
- Wind direction indicator | ||
- Wind chill temperature display (sensed temperature) | ||
- LED backlight | ||
- Battery life of the weather station about 1 to 2 years | ||
- Radio clock | ||
- 12 or 24 hours display | ||
- Calendar | ||
- Time zone adjustable | ||
- Power saving function | ||

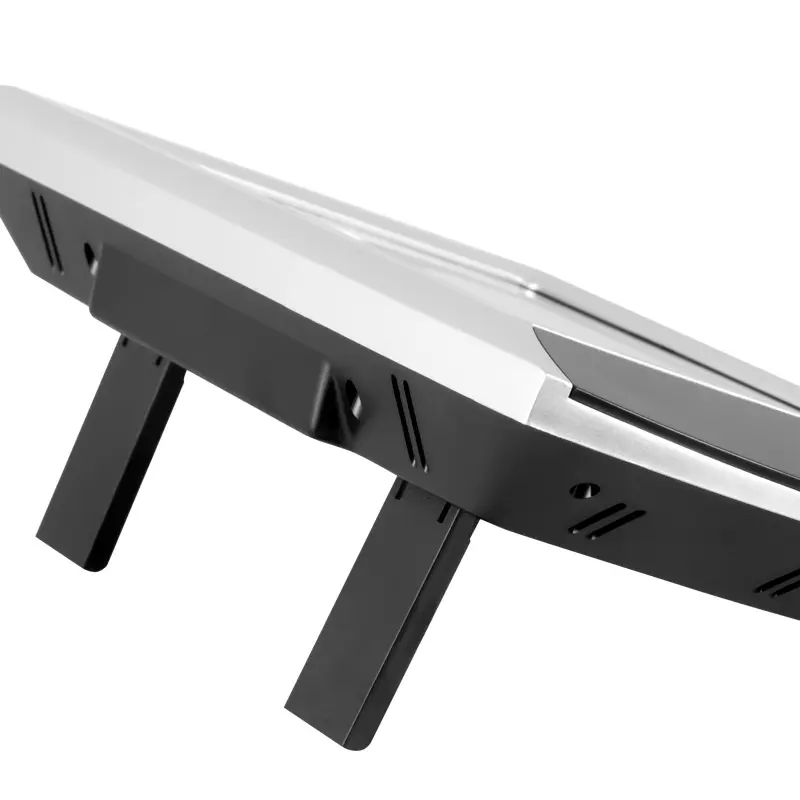

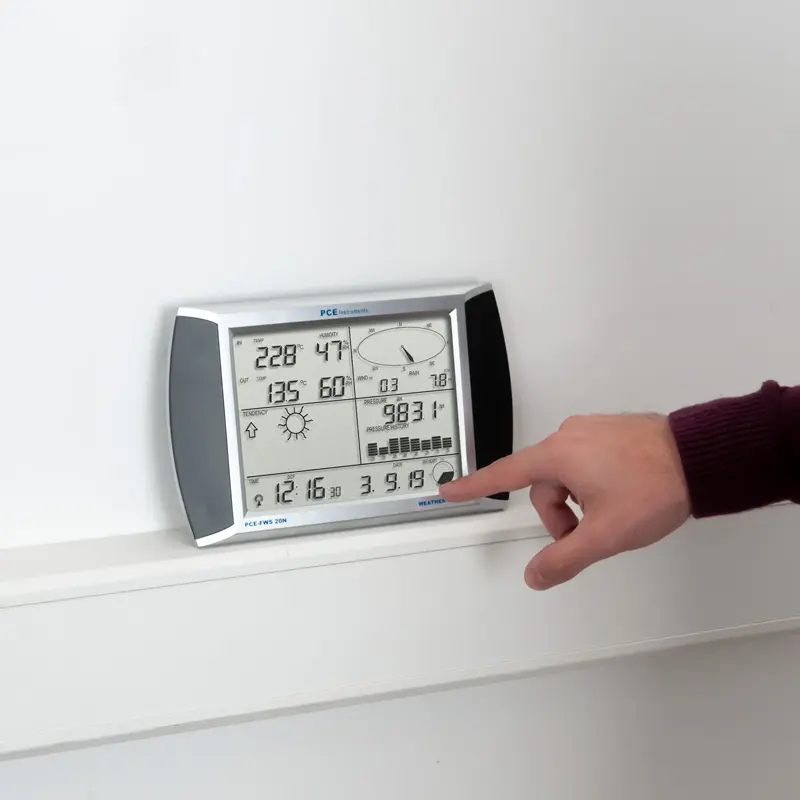

- The weather station display can be used as a wall model or stand model | ||
- Permanent adjustment of weather data and radio clock signal | ||

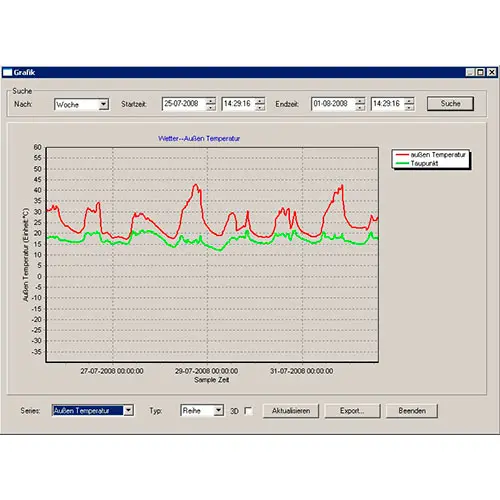

- Ring memory for 4080 complete weather records | ||
(adjustable storage interval 5 to 240 min) | ||
Adjustable alarm functions on the weather station | ||
- Humidity inside max. alarm | ||
- Temperature inside max. alarm | ||
- Humidity outside max. alarm | ||
- Temperature outside max. alarm | ||
- Wind chill max. alarm | ||
- Dew point max. alarm | ||
- Air pressure max. alarm | ||
- Wind speed max. alarm | ||
- Wind gust speed max. alarm | ||
- 1 hour of precipitation max. alarm | ||
- 24 hrs precipitation max. alarm | ||
- Humidity inside min. alarm | ||
- Temperature inside min. alarm | ||
- Humidity outside min. alarm | ||
- Temperature outside min. alarm | ||
- Wind chill min. alarm of the weather station | ||
- Dew point min. alarm | ||
- Air pressure min. alarm | ||
Storable measured values via the weather station (with time / date) | ||
- 1 hour of precipitation max. | ||
- 24 hours of precipitation max. | ||
- Week precipitation max. | ||
- Month precipitation max. | ||
- Humidity inside min. | ||
- Temperature inside min. | ||
- Humidity of the weather station outside min. | ||
- Temperature outside min. | ||
- Wind chill temperature min. | ||
- Dew point temperatur min. | ||
- Weather station air pressure min. | ||
- Humidity inside max. | ||
- Temperature inside max. | ||
- Humidity of the weather station outside max. | ||
- Temperature of the weather station outside max. | ||
- Wind chill temperature max. | ||
- Dew point temperature max. | ||
- Air pressure max. | ||
- Wind speed max. | ||
- Wind direction | ||
- Gusts of wind speed max. |
