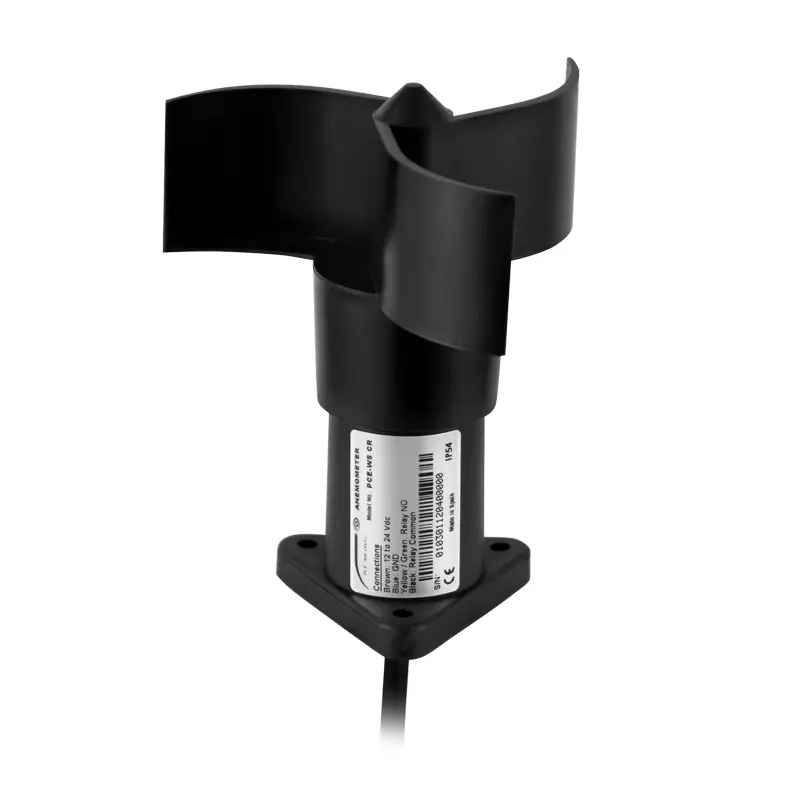

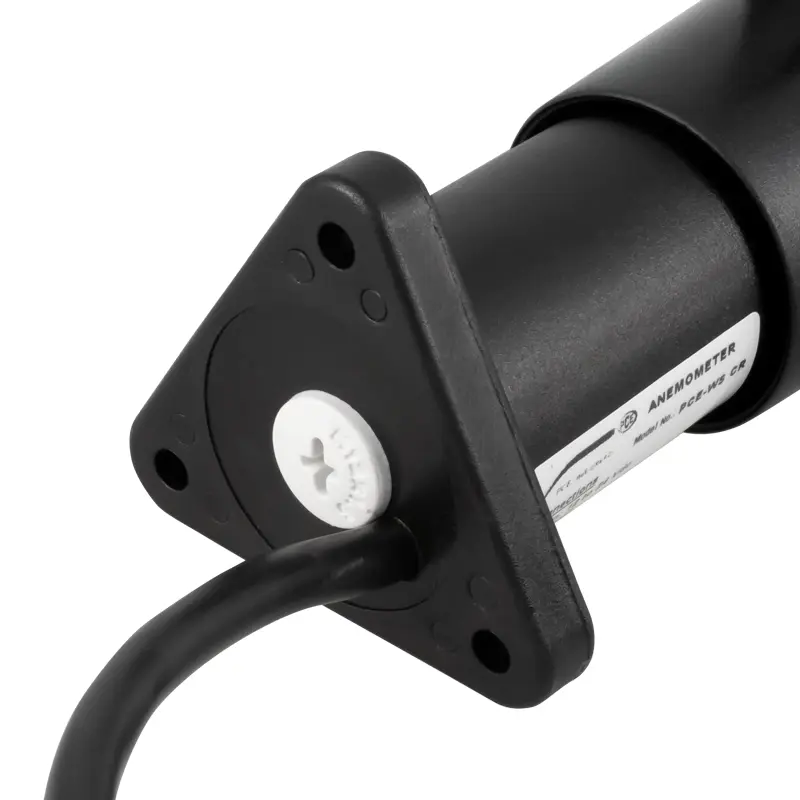

Weather Station PCE-WS CR

Order no.: PCE-WS CR
US$ 356.00
4250348722645
PCE-WS CR
ex. VAT, ex. delivery costs
Agriculture, Industry, Home automation
Available in: 1-2 days
Robust Weather Station for fixed installation / various output signals /
for wind warning systems, building services and building automation

The weather station impresses with its compact design and various output signals. The weather station can be used for applications in warning technology, building automation and home technology. Depending on the weather station, a 4 ... 20 mA, 0 ... 10 V, Modbus or pulse output is available. The weather station is designed as a star, so that operation independent of the wind direction is guaranteed.

The weather station is made of robust plastic and is therefore resistant to rust and corrosion. The weather station is also protected to IP 54. The design of the weather station also ensures that it is particularly protected against high-frequency and electromagnetic radiation. The measuring range extends between 2.62 ... 164.04 ft/s, 0.8 ... 50 m / s. The weather station has a 65 ft, 20 m connection cable as standard. A stainless steel mounting kit for the weather station is optionally available.

- Robust PA plastic housing
- IP 54 protection
- mA, V, pulse or Modbus output
- Long lifetime
- Direct measurement of wind speed
- Measurement from 2.62 ft/s, 0.8 m/s
Measuring range 0.8 m/s ... 50 m/s, 2.62 ... 164.04 ft/s
Measurement from ≤0.8 m/s, ≤2.62 ft/s
Output Adjustable relay
Accuracy <4 m/s: ± 0.27 m/s, <13.12 ft/s: ± 0.89 ft/s
  >4 m/s: ± 3 %, >13.12 ft/s: ± 3%
Operating voltage 12 ... 24 V DC
Operating temperature range -20 ... +80 °C, -4 ... +185 ° F at ≤95 % rel. humidity
Maximum wind speed 55 m/s, 180.45 ft/s, 123 mph

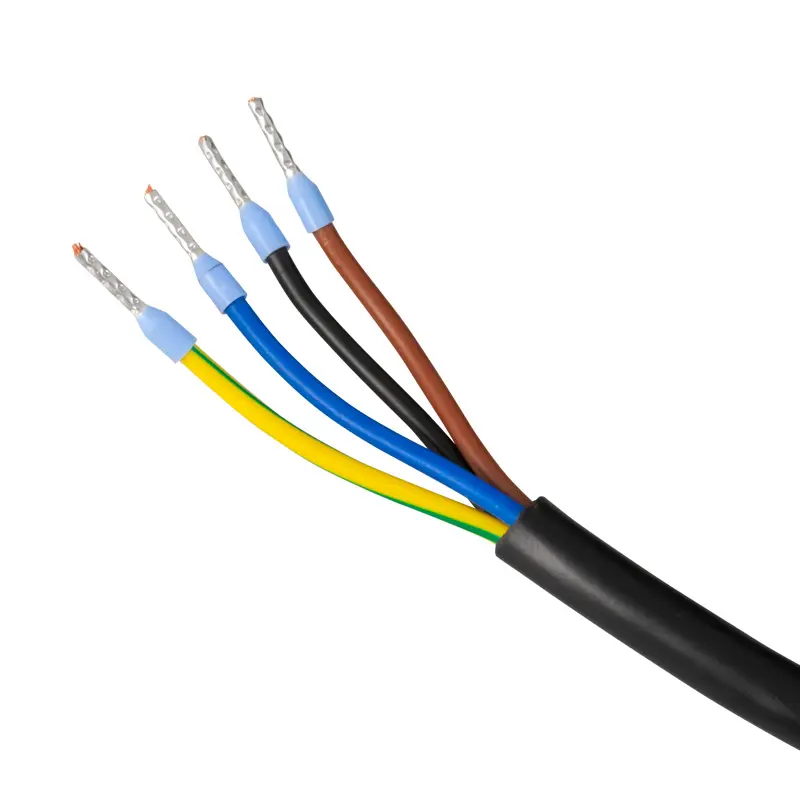

Electrical connection 20 m, 65 ft connection cable
Protection class IP 54

1 x Weather Station PCE-WS CR
1 x User manual
