Water Analysis Meter PCE-228-R

Order no.: PCE-228-R
GTIN (EAN): 4250348702241
US$ 501.00
ex. VAT, ex. delivery costs
:
4250348702241
PCE-228-R
Available in: 1-2 days
pH, Redox/ORP, Temperature
Yes (SD card)
Yes (RS-232)

Description

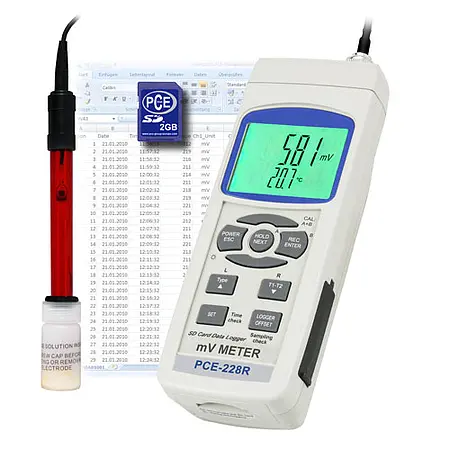

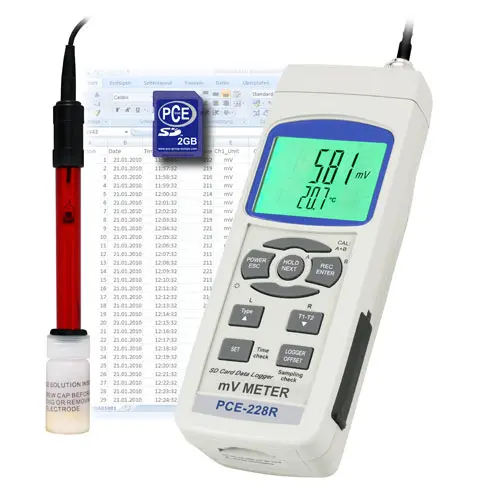

PCE-228-R Water Analysis Meter Portable Redox Meter, for both pH and temperature values with RS-232 interface and optional software

The PCE-288-R Water Analysis Meter or Redox Meter is a very easy to use meter to measure mV / pH / ºC. In the PCE-228-R Redox Meter, values can be directly stored in the SD memory card (Excel format) or can be directly transferred in real time to a PC or laptop by means of the RS-232 interface. Both Redox value and temperature can be directly transferred to a PC by means of the RS-232 interface, so we offer you software and a RS-232 data cable as optional accessories. Temperature compensation (function available only for measurements of pH) can be made by hand or automatically by means of a temperature sensor included in the delivery of the Redox Meter. So, all the previously mentioned characteristics provide this Redox Meter with a high reliability. The PCE-228-R Redox Meter has a three-point calibration. Redox, temperature and pH values can be determined by means of the combined meter. To determine the pH value, an additional pH electrode must be purchased. You can find the pH electrode in the accessories tab. We recommend the PW 03 electrode option. PCE-228-R Redox Meter is powered by batteries (one 9V battery is included in the delivery).

Highlights

- Good quality at an affordable price
- SD memory card (1 ... 16 GB)
- Values are directly stored in Excel format in the SD memory card (any additional software is required)
- RS-232 interface for real time data transference
- Measures Redox, pH value and temperature
- High accuracy
- Low battery indication
- Large LCD display
- Adjustment of the measurement rate
- Easy-to-use
- Compact case
- Redox OPR-14 sensor and stainless steel temperature sensor are included
- Automatic calibration
- Automatic / manual temperature compensation (only for pH measurements not for Redox ones)
- BNC connection
- Suitable for laboratories or on-the spot Redox measurements.
- Additional Redox electrode

Specification

Measurement ranges1999 ... 0 ... 1999 mV
0.00 ... 14.00 pH
(only with optional pH electrode)
0.0 ... 65.0°C (only temperature sensor)
Resolution1 mV
0.01 pH
0.1°C
Accuracy (a 20°C)± (0.5% + 2 digits)
± (0.02 pH + 2 digits)
± 0.5°C
Calibration Automatic three-point calibration
Temperature compensationAutomatic form 0 ... 65°C or by hand between 0 ... 100°C by removing temperature sensor.
(only for pH measuremnts)
ElectrodeRedox OPR-14 electrode,
1 meter cable and BNC plug
Measurement rateAdjustable from 1 second up to
8 hours 59 min 59 seg
Memory SD card from 1 ... 16 GB
(2 GB card included)
Display LCD: 52 x 38 mm / 2 x 1.5 in
InterfaceRS 232
SoftwareOptional component
Power supply 6 x 1.5V AA battery /
9V adaptor (optional)
Environmental conditions0 ... 50°C / 32 ... 122°F max. 80% H.r.
Dimensions 177 x 68 x 45 mm / 7 x 2.7 x 1.8 in
Weight 490 g / 1.1 lbs

Delivery Scope

1 x PCE-228-R Water Analysis Meter
1 x ORP 14 electrode
1 x SD memory card (2 GB)
1 x Temperature sensor
6 x Batteries
1 x User's manual
