US$ 298.00
ex. VAT, ex. delivery costs
Survey softwareforVideoscopePCE-VE-Nseries(onlyfor 5.5mmcable)
**Attention: NOT compatible with the VE 200 Series!***
Call to Order
Monday - Friday
9:00 a.m. - 5:00 p.m. ET
(561) 320-9162
Monday - Friday
9:00 a.m. - 5:00 p.m. ET
(561) 320-9162

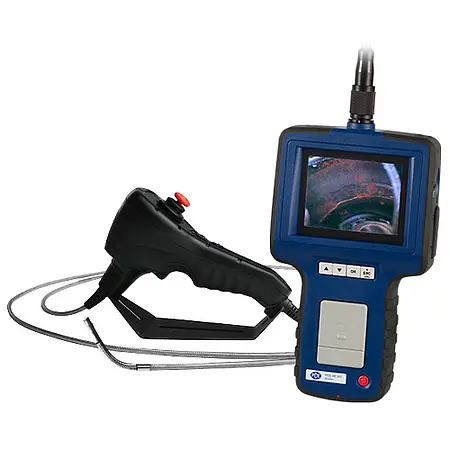

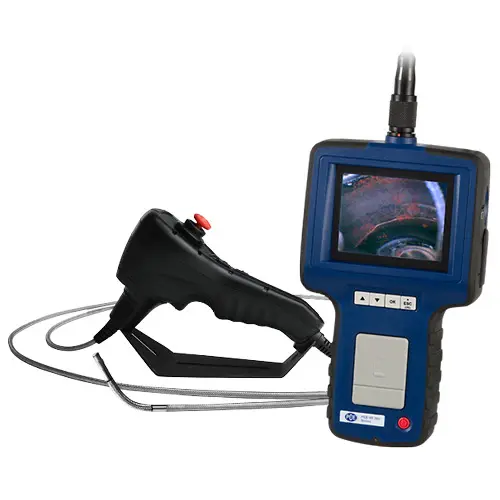

PCE-VE 370HR3 Videoscope

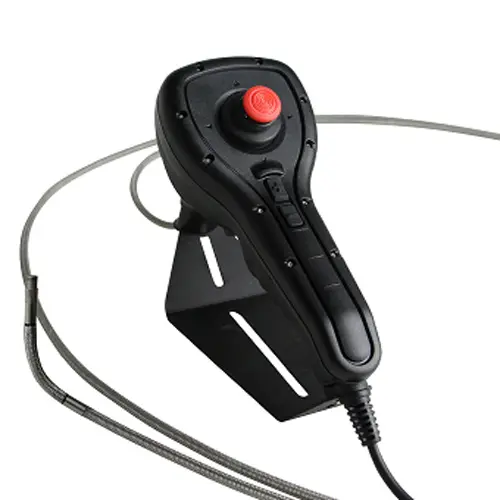

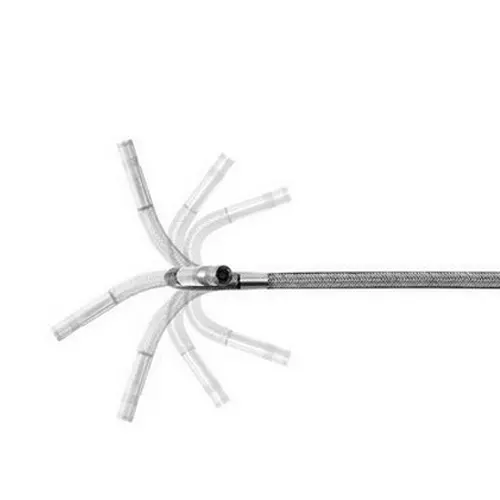

Four-way articulating inspection camera, borescope or industrial endoscope with IP67 ingress protection rating, boost functionality and 5 LED lights (3 front, 2 side) for optimal illumination
PCE-VE 370HR3 is a four-way articulating videoscope, industrial endoscope, inspection camera or borescope for the non-destructive inspection (NDI) of machines, equipment and more. This industrial borescope is an ideal tool for diagnosing issues in hard-to-reach places. The waterproof camera head features 5 LED lights (3 front, 2 side) for optimal illumination. In addition, digital image magnification or zoom of up to 2 times is available, plus boost functionality for improved image quality in the dark.
The borescope stores the recorded images and videos directly to an SD card memory (included), allowing easy transfer to a PC. The 3 m / 9.8 ft cable length and 6.0 mm / 0.24 in diameter allow the video inspection camera unique access to view the insides of walls, pipes, vents, ducts, engines and machinery, thus eliminating the need for costly and time-consuming dismantling. Mechanical engineering, manufacturing, automotive, aviation, construction, plumbing and heating, ventilation, air conditioning and refrigeration (HVACR) professionals alike find this video inspection camera useful in a variety of applications.
***Not for medical use***
Cable diameter |
6.0 mm / 0.24 in |
Cable length |
3 m / 9.8 ft |
Depth of field |
1.5 … 10 cm / 0.59 ... 3.94 in |
Field of view |
67° |
| Bending radius | 90 mm / 3.54 in |
| Illumination | 3 LEDs automatic |
| Boost function | For improved image quality in the dark |
| Image sensor | CMOS |
| Picture rate | 30 frames per second (fps) |
| Display |
88.9 mm / 3.5 in TFT LCD monitor |

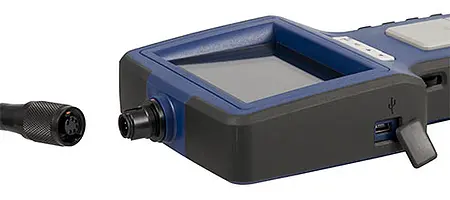

| Interface | Mini USB 1.1 / AV out |
| Storage options | Image or video |
| Storage | 8 GB memory card (can be increased to 32 GB) |
| Compression format | MPEG 4 |
| Picture format | JPEG (640 x 480 pixel resolution) |
| Video output format | NTSC / PAL |
| Video format | ASF (320 x 240) |
| Operation and storage temperature | -10 ... 50°C / 14 ... 122°F |
| Voltage supply | Rechargeable 3.7V lithium-ion battery |
| Dimensions, handheld device | 207 x 118 x 37 mm / 8.15 x 4.65 x 1.46 in |
| Weight, incl. carrying case | 450 g / 1 lb |
| Protection type, camera | IP 67 = Dust tight, no ingress of dust, complete protection against contact. Protected against liquid immersion up to 1 m / 3.28 ft, ingress of water in harmful quantity shall not be possible when the enclosure is immersed in water under defined conditions of press and time (up to 1 m / 3.28 ft of submersion). |
|
|
|
ex. VAT, ex. delivery costs
**Attention: NOT compatible with the VE 200 Series!***
ex. VAT, ex. delivery costs
ES-45 VE 300N is a 45º mirror designed to increase the field of vision by 90º for PCE-VE series borescopes, industrial endoscopes, videoscopes and inspection cameras.
**Attention: NOT compatible with the VE 200 Series!***
ex. VAT, ex. delivery costs
The cable holder can be used for all 5.5 mm diameter cables of the PCE-VE N series. Ideal attachment for use when a rigid cable tip is desired.
**Attention: NOT compatible with the VE 200 Series!***
ex. VAT, ex. delivery costs
Screw-on magnetic hook attachment for removing small metallic objects from hard-to-reach places. This magnetic attachment is screwed securely onto the head of the camera cable, so the attachment stays firmly connected. Suitable for use with 5.5 mm diameter cables only.
**Attention: NOT compatible with the VE 200 Series!***
ex. VAT, ex. delivery costs
PCE-VE-4W1-HR is a four-way articulating camera cable for PCE VE Series industrial endoscopes, borescopes, videoscopes and inspection cameras.
**Attention: NOT compatible with the VE 200 Series!***
ex. VAT, ex. delivery costs
PCE-VE-4W3-HR is a four-way articulating camera cable for PCE VE Series industrial endoscopes, borescopes, videoscopes and inspection cameras.
**Attention: NOT compatible with the VE 200 Series!***
ex. VAT, ex. delivery costs
PCE-VE-2W3-HR is a two-way articulating Hyperion camera cable for PCE VE Series industrial endoscopes, borescopes, videoscopes and inspection cameras.
**Attention: NOT compatible with the VE 200 Series!***
ex. VAT, ex. delivery costs
PCE-VE-2in1-N is a 2-in-1 semi-flexible camera cable for PCE VE Series industrial endoscopes, borescopes, videoscopes and inspection cameras.
ex. VAT, ex. delivery costs
PCE-VE-N-SCS includes two semi-flexible camera cables for PCE VE Series industrial endoscopes, borescopes, videoscopes and inspection cameras.
**Attention: NOT compatible with the VE 200 Series!***
ex. VAT, ex. delivery costs
PCE-VE-N-SC1 is a semi-flexible camera cable for PCE VE Series industrial endoscopes, borescopes, videoscopes and inspection cameras.
**Attention: NOT compatible with the VE 200 Series!***
ex. VAT, ex. delivery costs
GB-25-PCE-VE-N is a guide ball attachment for PCE VE Series industrial endoscopes, borescopes, videoscopes and inspection cameras. The guide ball facilitates passage of the camera cable through tight spaces without contaminating the lens. The guide ball also aids in unscrewing the camera head.
**Attention: NOT compatible with the VE 200 Series!***
ex. VAT, ex. delivery costs
GB-15-PCE-VE-N is a guide ball attachment for PCE VE Series industrial endoscopes, borescopes, videoscopes and inspection cameras. The guide ball facilitates passage of the camera cable through tight spaces without contaminating the lens. The guide ball also aids in unscrewing the camera head.
**Attention: NOT compatible with the VE 200 Series!***
ex. VAT, ex. delivery costs
ex. VAT, ex. delivery costs
Flexible borescope cable suitable for all borescopes of the PCE-VE-N series with front camera / 2 meters / Ø 5.5 mm
ex. VAT, ex. delivery costs
PCE-VE-N-SC10 is a flexible camera cable for PCE VE Series industrial endoscopes, borescopes, videoscopes and inspection cameras.
**Attention: NOT compatible wit the VE 200 Series!***
ex. VAT, ex. delivery costs
1 m (3.28 ft) with HighRes function borescope cable for PCE-VE-N series borescopes 1 meter / Ø 5.5 mm / semi-rigid
ex. VAT, ex. delivery costs
ex. VAT, ex. delivery costs
Centering brush suitable for PCE-VE-N-SC22
ex. VAT, ex. delivery costs
PCE-VE-N-SC2 is a semi-flexible camera cable for PCE VE Series industrial endoscopes, borescopes, videoscopes and inspection cameras.
**Attention: NOT compatible with the VE 200 Series!***
ex. VAT, ex. delivery costs
PCE-VE-N-SC30 is a semi-flexible camera cable for PCE VE Series industrial endoscopes, borescopes, videoscopes and inspection cameras.
**Attention: NOT compatible with the VE 200 Series!***
ex. VAT, ex. delivery costs
PCE-VE-N-SC10 is a semi-flexible camera cable for PCE VE Series industrial endoscopes, borescopes, videoscopes and inspection cameras.
