The digital Torque Meter / Torque Tester combines state-of-the-art technology with a robust design and guarantees maximum precision for a wide range of assembly tasks. With its two intelligent operating modes, comprehensive protective functions and reliable 220 V power supply, this Torque Meter / Torque Tester is the ideal solution for industrial, workshop and assembly applications.
In torque mode, the desired torque can be set quickly and continuously. The value can be conveniently adjusted using the operating buttons and the screwdriving process begins with a simple pull of the trigger. Torque + Angle Mode enables controlled tightening not only via the torque, but also via the angle of rotation - perfect for applications that require maximum precision.
Other highlights of the Torque Meter / Torque Tester include precise torque adjustment with high repeat accuracy, a multi-stage gearbox for reliable power transmission and alarm and control functions that help the user to assess the tightening result. Integrated protective functions such as temperature monitoring prevent overheating and extend the service life of the tool. Thanks to the mains-powered design, continuous work is possible without charging breaks.
Another highlight is the software supplied, which can be used to conveniently read out all the recorded screwdriving data. This allows users to document and analyze torque values, results and process data. The software also allows centralized settings to be made directly on the device.
The torque screwdriver is ideal for precise screw connections in mechanical and plant engineering. It also ensures reliable results when assembling wind turbines and steel structures. In the automotive sector, it is an indispensable tool for maintenance and repairs. It can also be used in a wide range of applications in heavy industry and construction.
| Torque | |
| Measurement range up to | 400 ... 2500 Nm |
| Resolution | 1 Nm |
| Accuracy | ±5 % of Rd |
| General technical data | |
| Cable length | 3,2 m |
| Units | Nm |
| Connections | 1 inch |

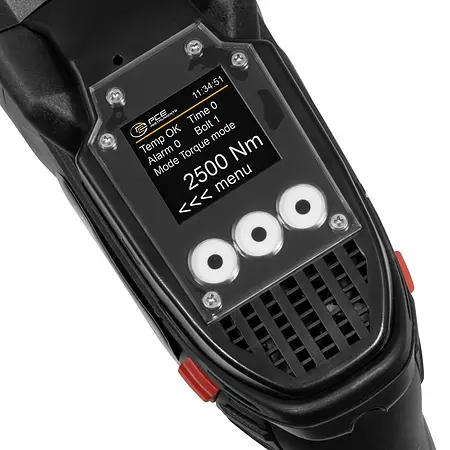

| Display type | TFT colour display |
| Display size | 1,1 Inch |
| Storage medium | Internal memory |
| Storage capacity | 66536 Values |

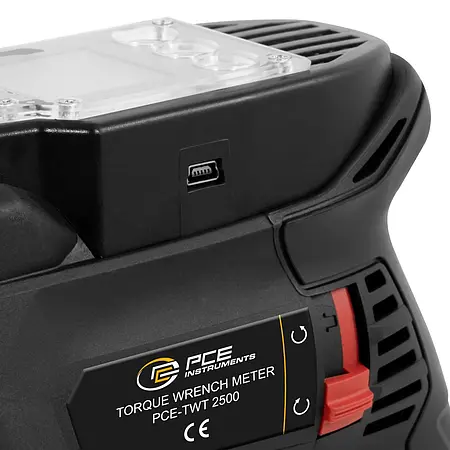

| Interface | Mini-USB |
| Max. current consumption | 6 A |
| Speed | 7,5 RPM |
| Menu language | English (GB), English, Chinese |
| Protection class (device) | IP20 |
| Power supply | 110 ... 220V AC |
| Connector type | Euro plug |
| (Rechargeable) battery | 2 x 18 V Battery pack , Lithium-ion battery |
| Capacity | 5200 mAh |
| Operating conditions | -20 ... 50 °C , 10 ... 90 % RH |
| Storage conditions | -20 ... 50 °C , 10 ... 90 % RH |
| Dimensions ( L x W x H ) | 310 x 85 x 250 mm |
| Weight | 8000 g |
