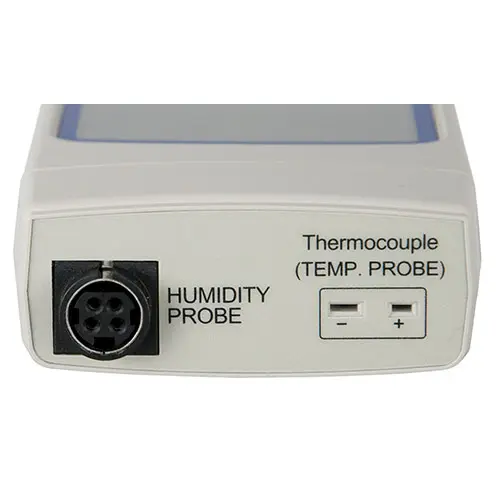

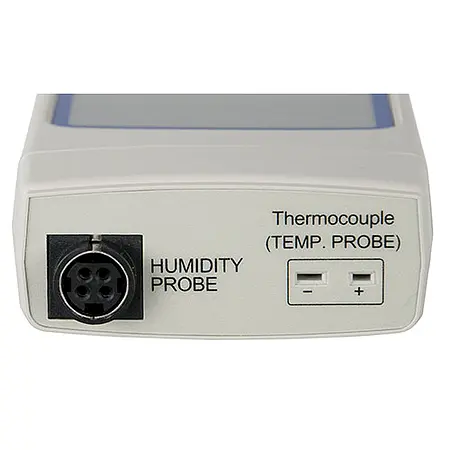

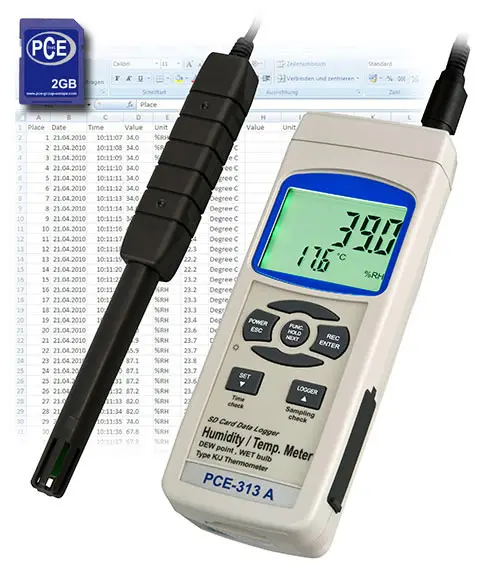

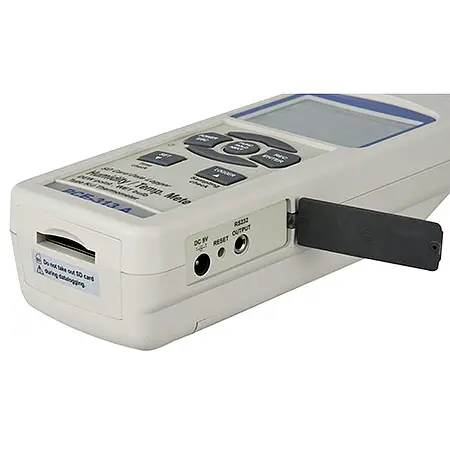

The thermo hygrometer has been designed for professional applications in the air-conditioning and measurement technologies. In addition to the relative humidity, the thermo hygrometer determines the ambient temperature. You also have the possibility to measure the temperature of, for instance, a wall via the K type thermocouple connection and by using the optionally available surface probe. The SD card memory (1 … 16 GB) enables humidity and temperature readings to be recorded at an adjustable sampling rate in direct mode or permanently in data logging mode. To use these functions, you can previously program or preset the thermo hygrometer by means of the keypad and then record permanently on site without having to observe the process all the time. For permanent recording we recommend to power the thermo hygrometer via the power adapter which can be optionally purchased. The readings recorded in line with the data logging function can be transferred to a PC for further analysis (.xls file on the SD card). Additionally, you can check the columns of figures for outliers or create a graph in Excel.
Ranges | |
- Relative humidity | 5 ... 95% RH |
- Temperature | 0 ... 50°C / 32 ... 122°F |
- Type K | -50 ... 1300ºC / -58 ... 2372°F |
- Calculated dew point | -25.3 ... 48.9ºC / -13.5 ... 120°F |
- Wet bulb temperature | -21.6 ... 50ºC / -6.9 ... 122°F |
Resolution | |
- Relative humidity | 0.1% RH |
- Temperature | 0.1°C / 0.18°F |
- Type K | 0.1°C / 0.18°F |
- Calculated dew point | 0.1°C / 0.18°F |
- Wet bulb temperature | 0.1°C / 0.18°F |
Accuracy | |
- Temperature | ±0.8ºC / 1.4ºF |
- Relative humidity | ≥70% RH±3% of the measurement value ±1% RH |
<70% RH±3% RH | |
- Type K | ± (0.4% + 0.5ºC / 32.9ºF) |
Memory | SD card (1 ... 16 GB) |
Measurement rate | Adjustable, 1 ... 3600 seconds |
Display | LCD 52 x 38 mm / 2 x 1.5 in, with backlight |

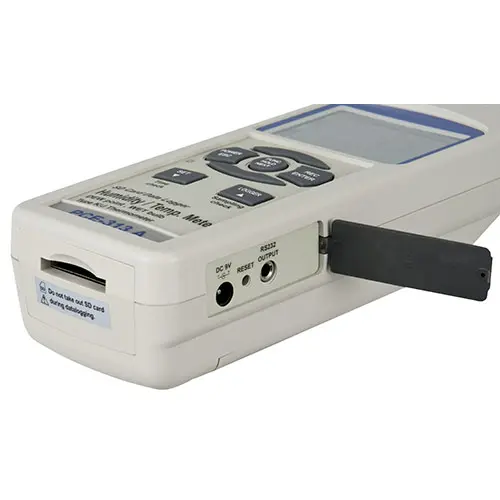

Interface | RS-232 |
Operating conditions | 0 ... 50°C / 32 ... 122ºF < 85% RH |
Power supply | 6 x 1.5V batteries / 9V mains adapter (optional) |
Dimensions | 177 x 68 x 45 mm / 7 x 2.7 x 1.8 in |
Weight | Approx. 490 g / 1.1 lbs |
1 x Thermo Hygrometer PCE-313 A

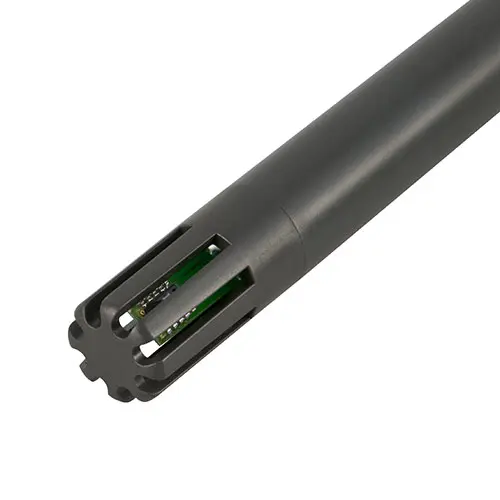

1 x Sensor for temperature and humidity
1 x SD card (2 GB)
6 x Batteries
1 x Manual

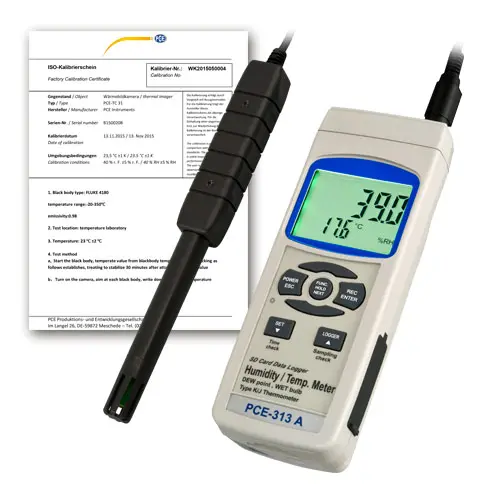

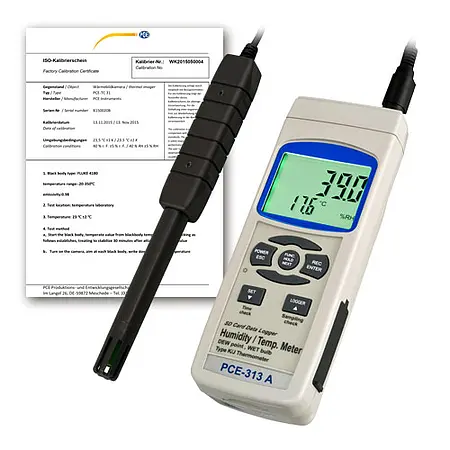

1 x ISO Calibration Certificate
Calibration certificates are issued specifically for the customer and are excluded from the right of return.
