Thermo-Anemometer PCE-EM 750

Thermo-Anemometer PCE-EM 750

Order no.: PCE-EM 750
GTIN (EAN): 4250348738462
US$ 127.00
ex. VAT, ex. delivery costs
:
4250348738462
PCE-EM 750
Available in:1-2 days
Your PCE Instruments Benefits
Bilingual Technical Support

Bilingual Technical Support (EN / ES)

Special Promotions

Special Promotions

Public Service, Military and First Responder Discount

Public Service, Military and First Responder Discount

30 Day Return Policy

30 Day Return Policy

2 Year Warranty

2 Year Warranty

Description

Thermo-Anemometer / Compact sensors / Acoustic alarm / MIN, MAX and average value / Tripod connection / Battery operation

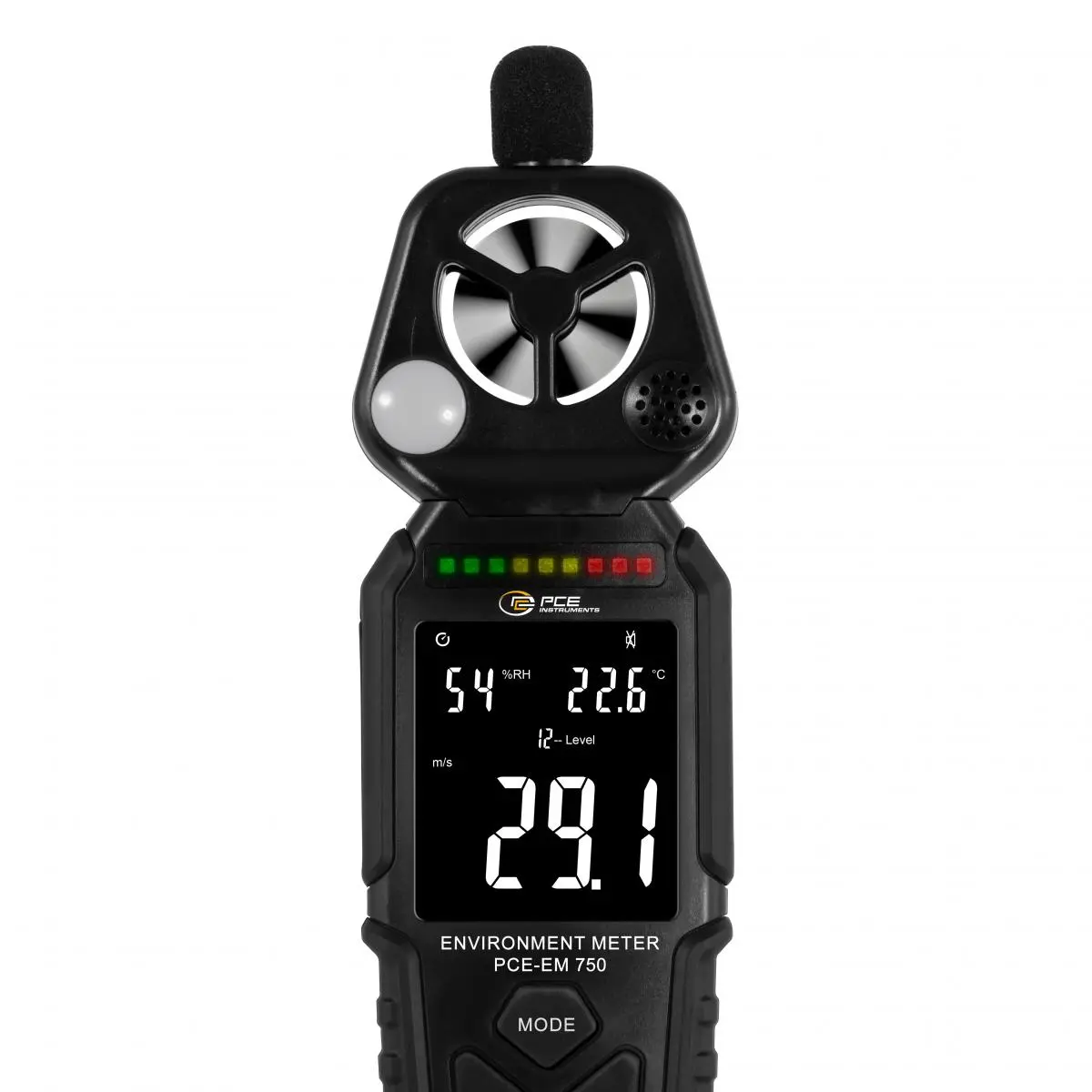

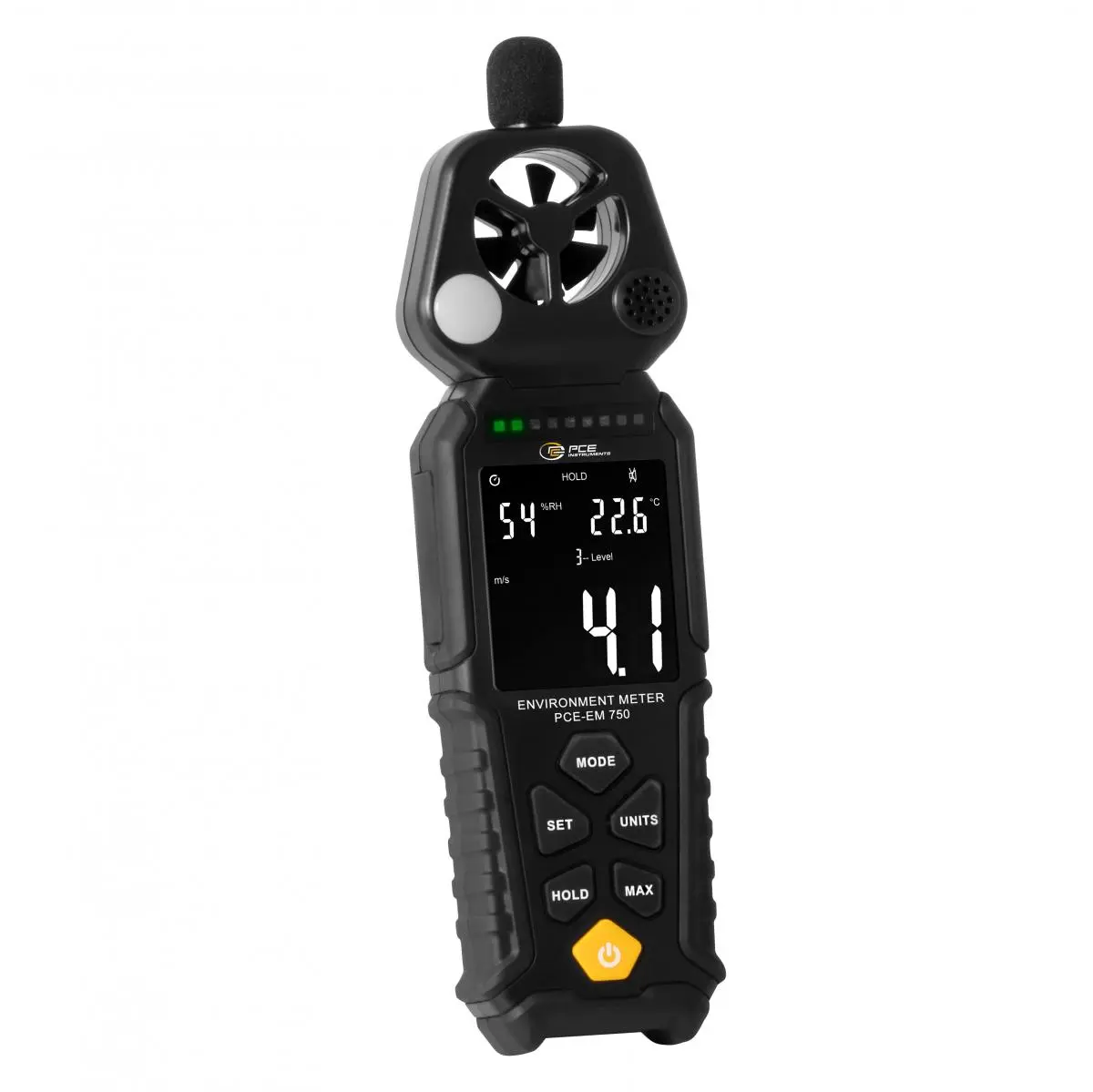

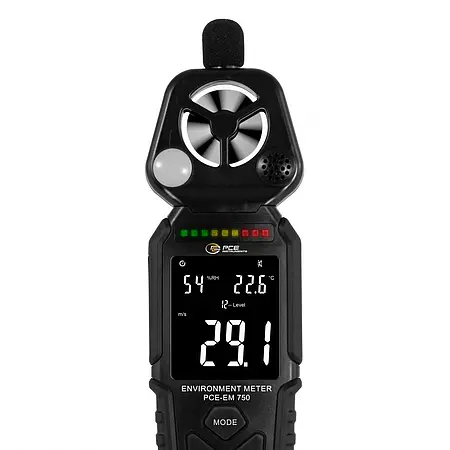

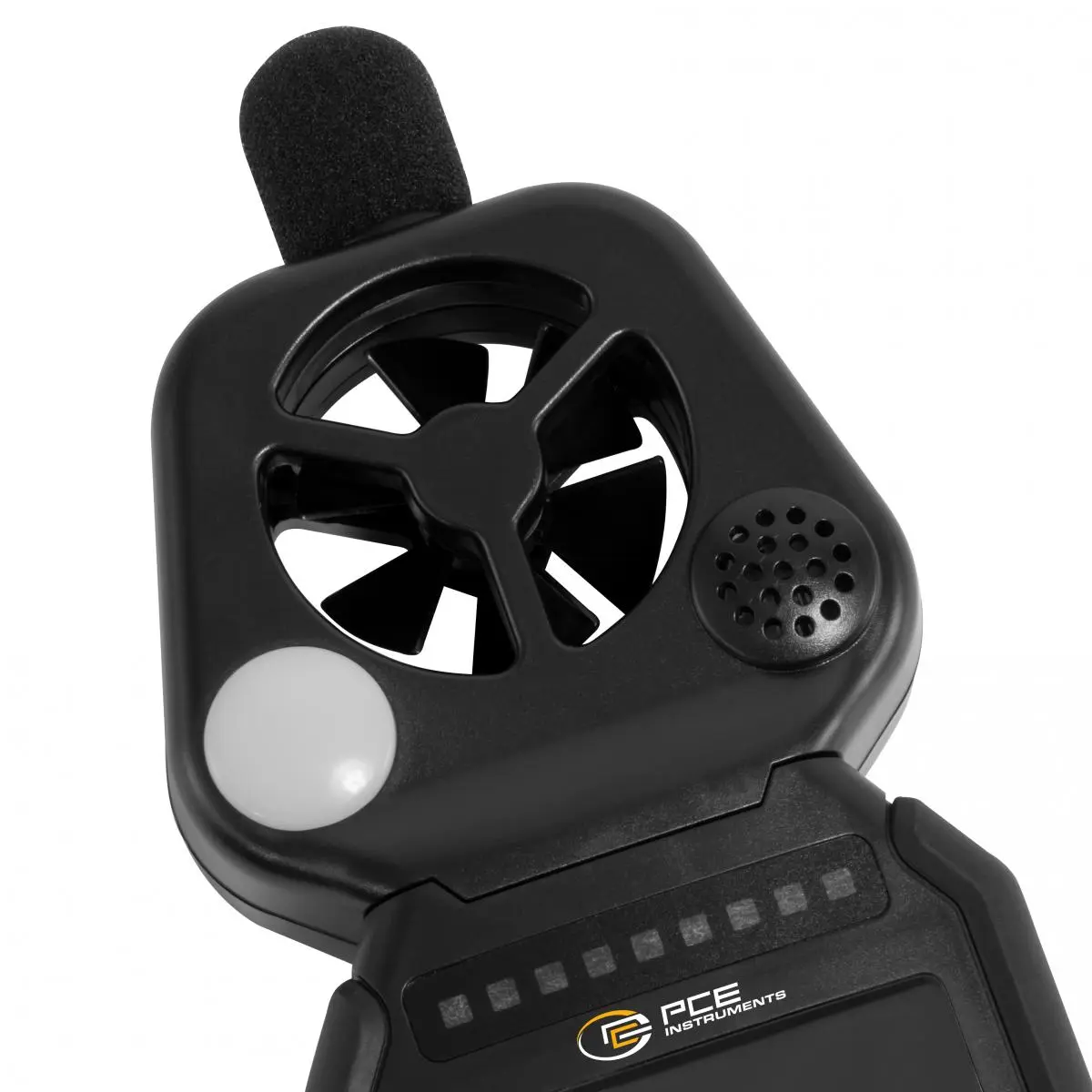

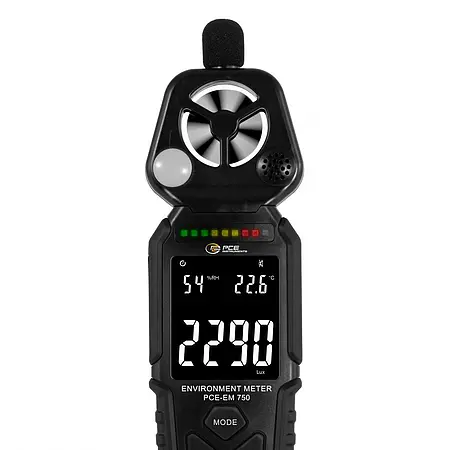

This multifunctional Thermo-Anemometer combines five important functions in a single, compact device. It measures sound level, light intensity, air speed, temperature and humidity - and thus reliably covers the most important environmental parameters. The Thermo-Anemometer has an easy-to-read color display and an additional LED display that indicates at a glance whether the measured values are within the desired range. A switchable acoustic interval alarm ensures that deviations are recognized immediately, even if the display is not constantly in view.

In addition to the measuring functions, the Thermo-Anemometer offers practical additional features such as a colored bar display, the display of minimum and maximum values and the selection of different units. Operation is intuitive, the design is compact and designed for a long service life.

Thanks to the flexible power supply with batteries or USB-C cable, the Thermo-Anemometer is always ready for use - whether for noise measurements in occupational safety, for checking lighting in the workplace, for safety tests on construction sites or for monitoring environmental conditions in industry and trade. A practical carrying case, a windscreen, batteries and a USB-C cable are included so that the device can be used both mobile and stationary.


Highlights

- 6 in 1 environmental measuring device
- Sound level, light intensity, wind speed
- Volume flow
- Adjustable alarm
- Colored bar graph display
- Many measuring units

Specification

Relative humidity
Measurement range up to  35 ... 80 %
Resolution  0,1 %
Accuracy  ±5 %

Relative humidity
Measurement range up to  20 ... 100 %
Resolution  0,1 %
Accuracy  ±7 %

Speed
Measurement range up to  0,5 ... 30 m/s
Resolution  0.1 m/s
Accuracy  ±3% v.Mw. ±3 Digits

Speed
Measurement range up to  1,75 ... 105 km/h
Resolution  0.1 m/s
Accuracy  ±3% v.Mw. ±3 Digits

Speed
Measurement range up to  98,4 ... 5905 ft/min
Resolution  1 ft/min
Accuracy  ±3% v.Mw. ±3 Digits

Speed
Measurement range up to  0,97 ... 58,3 knots
Resolution  0.1 knots
Accuracy  ±3% v.Mw. ±3 Digits

Speed
Measurement range up to  1,11 ... 67 mph
Resolution  0.1 mph
Accuracy  ±3% v.Mw. ±3 Digits

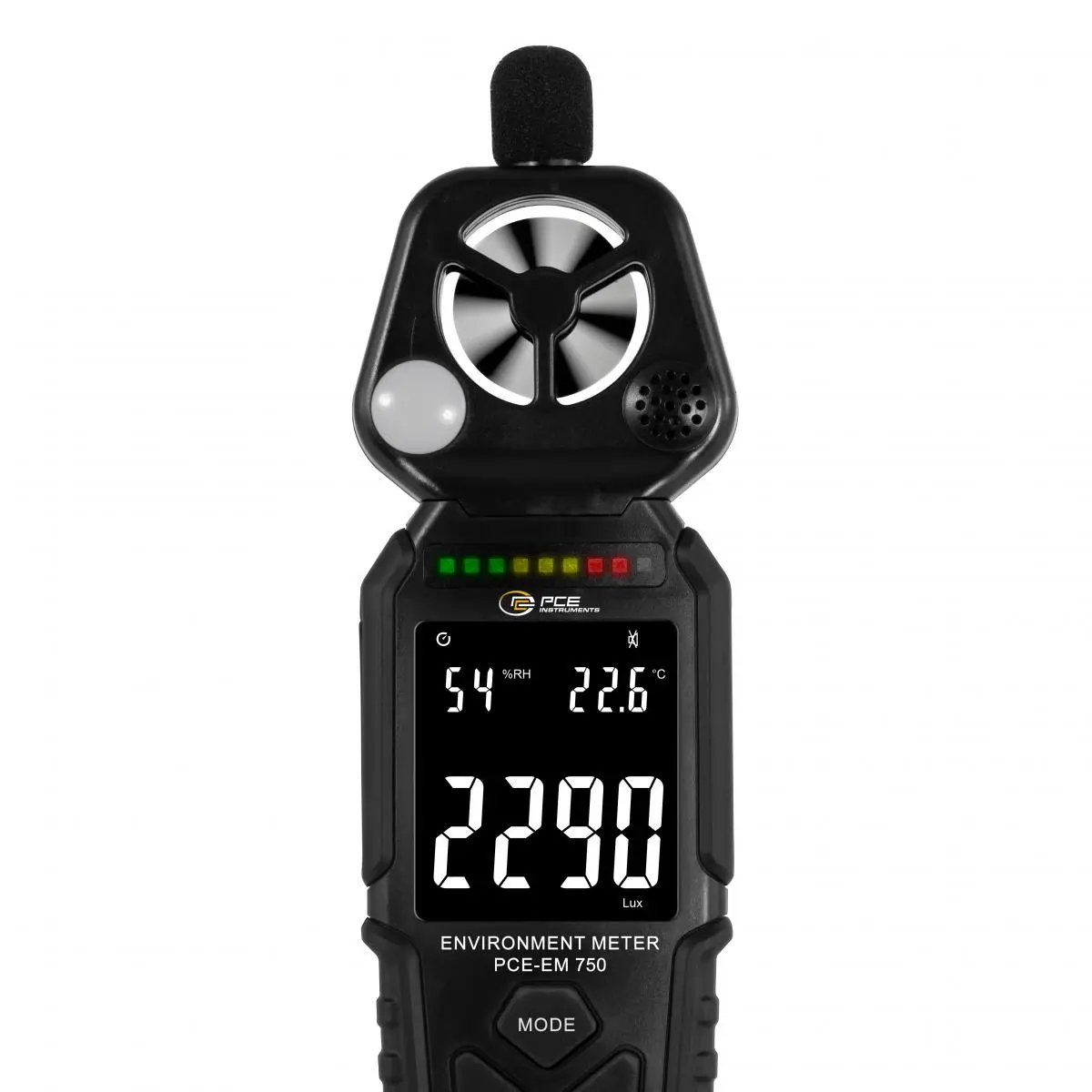

Light
Measurement range up to  0 ... 10000 lx
Resolution  0,1 lx
Accuracy  ±3.5% v.Mw. ±8 digits

Light
Measurement range up to  10000 ... 200000 lx
Resolution  1 lx
Accuracy  ±4.5% v.Mw. ±10 Digits

Sound level
Measurement range up to  35 ... 130 dB
Resolution  0,1 dB
Accuracy  ±2 dB

Volume flow
Measurement range up to  150 ... 9000 CMM
Resolution  1 CMM
Accuracy  ±3% v.Mw. ±3 Digits

Volume flow
Measurement range up to  787 ... 47244 CFM
Resolution  1 CFM
Accuracy  ±3% v.Mw. ±3 Digits

Temperature
Measurement range up to  -20 ... +60 °C
Resolution  0,1 °C
Accuracy  ±1 °C

General technical data
Measuring functions  MAX, MIN, HOLD
Time weighting  slow (1 s)
Frequency  31.5 ... 8000 Hz
Frequency weighting  A
Display type  LCD
Display size  2,75 Inch
Measuring rate  2 x per second

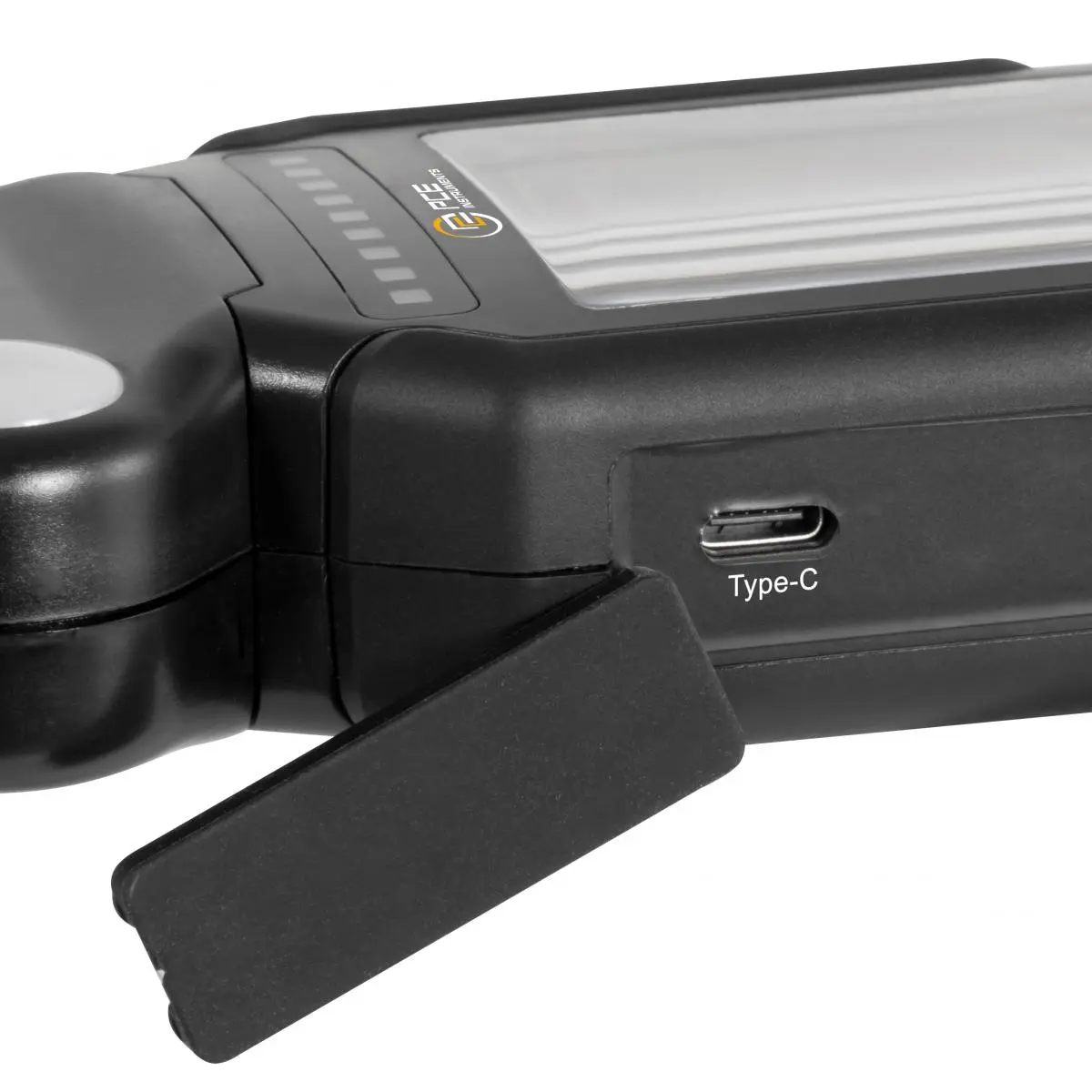

Interface  USB-C
Standard(s)  IEC 61672-1 (Class II)
Operating time  30 h
Automatic power-off  15 min
Automatic power-off can be deactivated  Yes

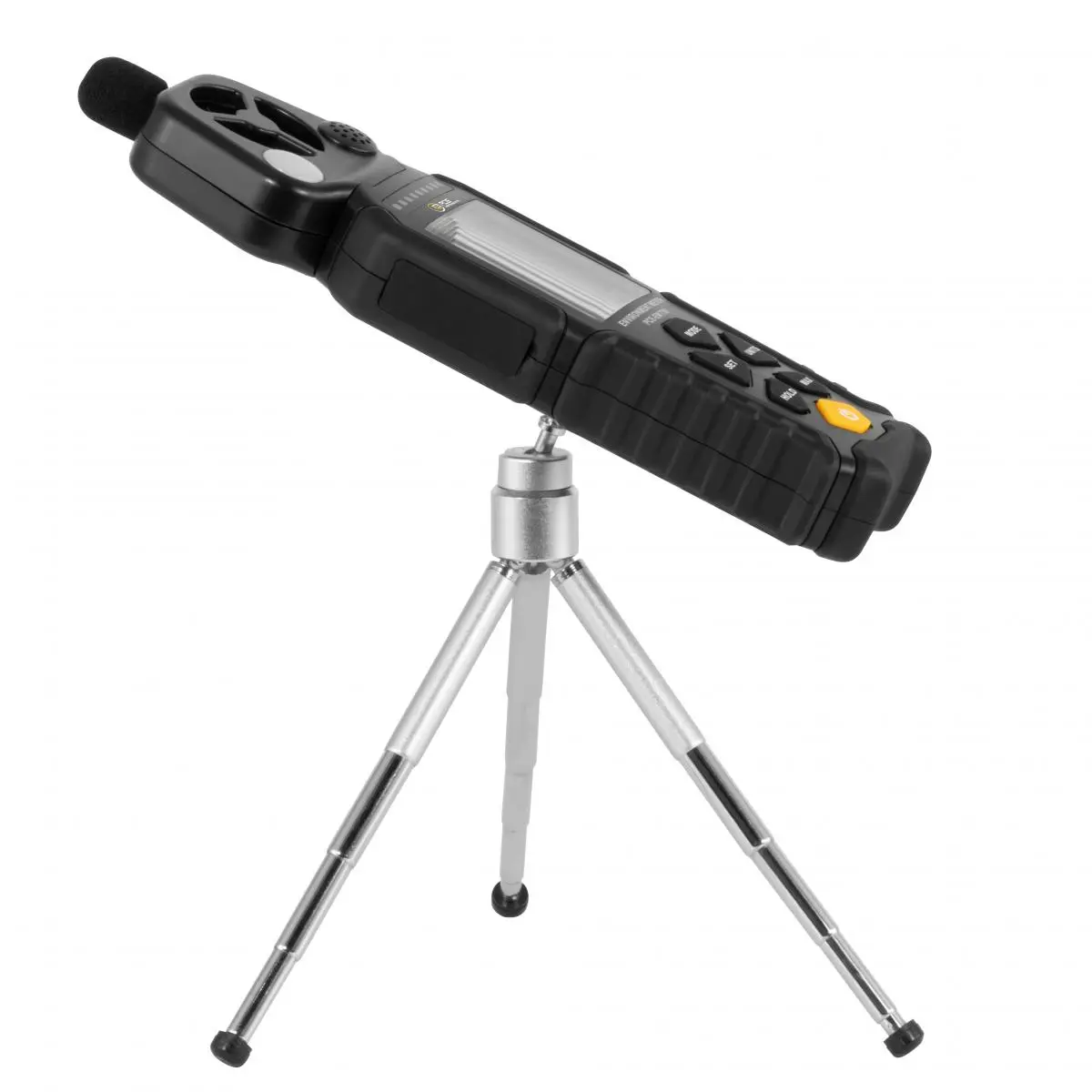

Tripod thread  1/4 inch
Alarm  optical, Acoustic
Alarm modes  Sound level: Value see instructions, interval alarm 20 s active, 60 s inactive
Light intensity: Value adjustable 20 ...999 lx
Air velocity: Value see instructions, interval alarm 20 s active, 60 s inactive
Protection class (device)  IP20

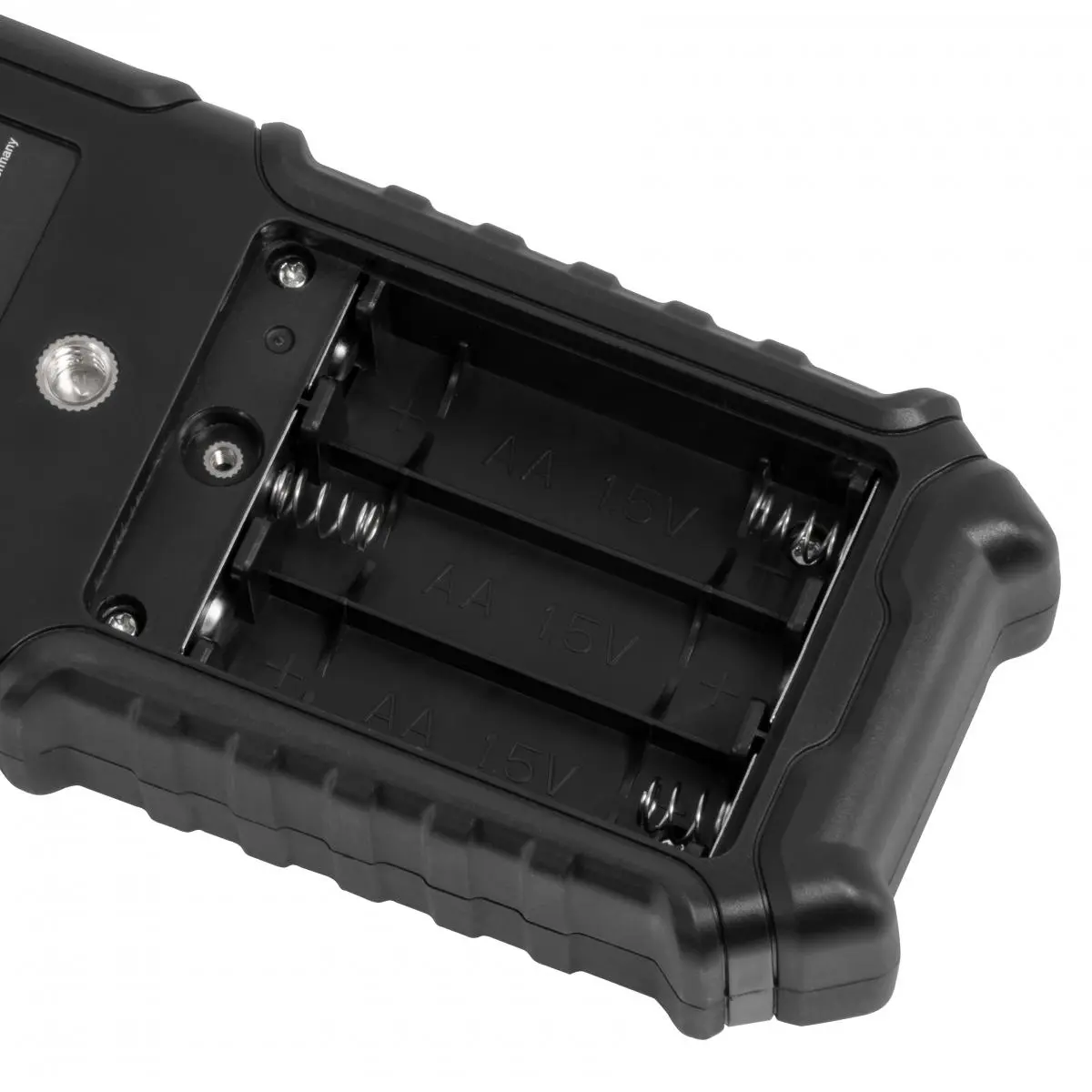

(Rechargeable) battery  3 x 1,5 V AA battery , Alkali-manganese
Capacity  3000 mAh
Operating conditions  -20 ... 60 °C , 10 ... 90 % RH
Storage conditions  -20 ... 60 °C , 10 ... 90 % RH
Dimensions ( L x W x H )  250 x 70 x 32 mm
Weight  225 g

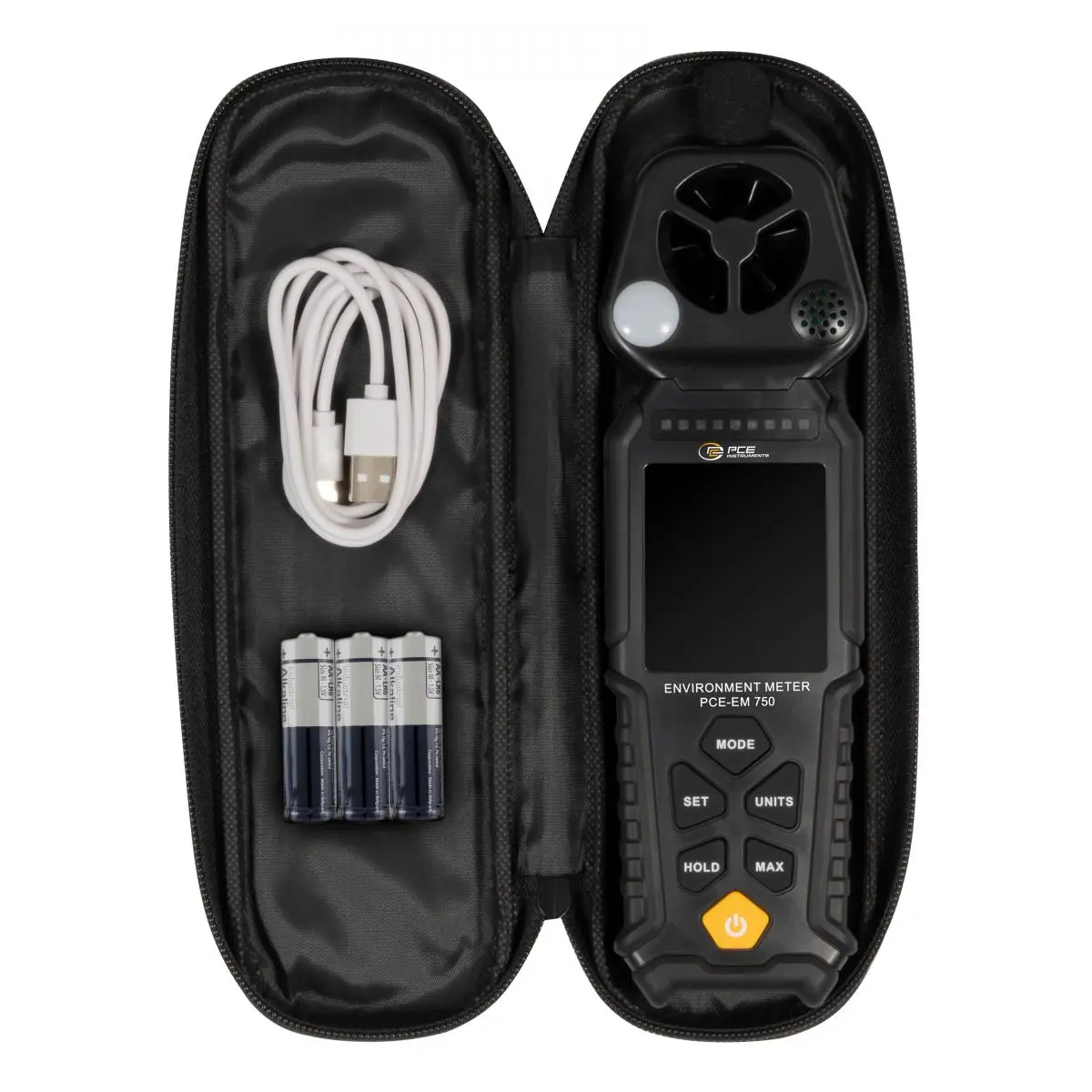

Delivery Scope

1 x Thermo-Anemometer PCE-EM 750
1 x Carrying case
3 x 1.5V AA batteries
1 x Operating instructions
1 x USB-C cable
(only for continuous operation, not for charging)
