Order no.: PCE-CSM 3

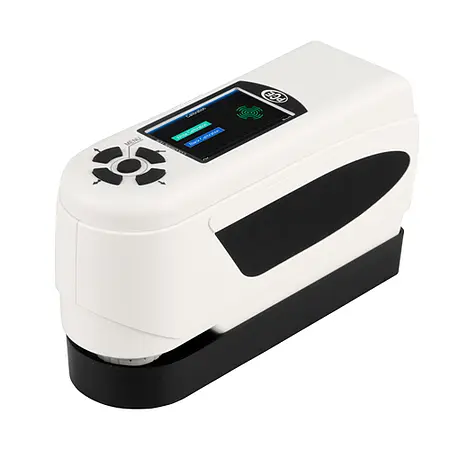

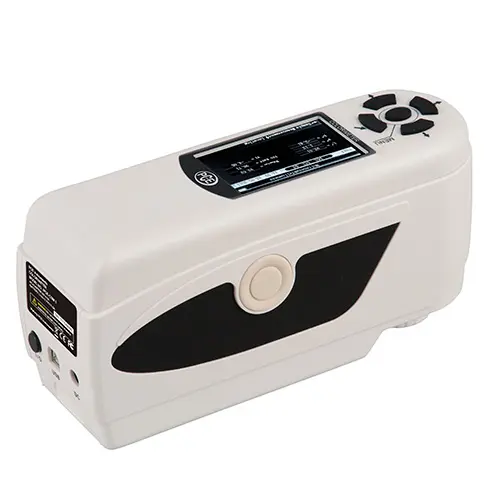

Color Test Instrument PCE-CSM 3

US$ 2,335.00
:
4250348716477
PCE-CSM 3
ex. VAT, ex. delivery costs
Available in: 1-2 days

Description

Color meter PCE-CSM 3 for quality control
PC software included / Li-ion battery / different color spaces /
determination of reference values and samples / white calibration

The color meter PCE-CSM 3 was developed for quality control and offers a very high accuracy. When using the color meter, you can choose between different color spaces (CIE L*a*b*C*h, CIE L*a*b*). After a measurement with the color meter, the reading can be used as a reference value while other readings can be recorded as a sample and later be compared to the reference value easily.



In addition to the individual color space coordinates, the deviation between the reading is also displayed. When using the color meter, it is possible to store up to 100 reference values and up to 20,000 samples on the device. The measured data can also be transferred to a PC via the USB interface. A special PC software is included in the package.

Highlights

- CIE L*a*b*C*h, CIE L*a*b*
- white calibration
- determination of reference values and samples
- measuring aperture is 8 mm
- rechargeable lithium-ion battery
- high accuracy
- easy to use
- incl. PC software

Specification

Measuring geometry 8°/d
Measuring aperture Diameter 8 mm
Sensor Silicon photoelectric diode
Color spaces CIE L*a*b*C*h, CIE L*a*b*
Color difference formular ΔE*ab, ΔL*a*b, ΔE*C*h
Errors between each equipment ≤0.50 ΔE*ab
Repeatability Standard deviation within ΔE*ab 0.08
Average of 30 measurements of standard white plate
Light source D65
Storage 100 reference values, 20,000 samples

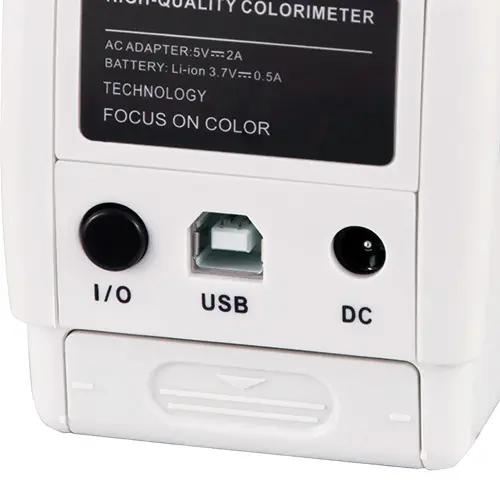

Interface USB
Power supply Rechargeable lithium-ion battery
3.7 V @ 3,200 mAh
Charging time 2 h (8 h at first use)
Battery life > 3,000 measurements
Lamp life 3 years, more than 1 million measurements
Operating conditions 0 ... +40 °C / 32 ... +104 °F
0 ... 85 % RH
Dimensions 200 x 70 x 100 mm / 7.8 x 2.7 x 3.9 in
Weight 500 g / 17.6 oz

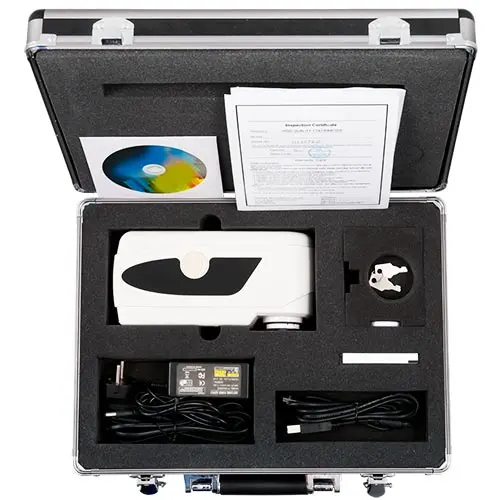

Delivery Scope

1 x Color meter PCE-CSM 3
1 x Lithium-ion battery
1 x Mains adapter
1 x Calibration plate (white)
1 x PC software
1 x Instruction manual

Downloads

Accessories

Accessories

Color Meter / Colour Meter
Calibration certificate CAL-CSM
US$ 587.00

ex. VAT, ex. delivery costs

ISO calibration certificate, e.g. to comply with your DIN ISO 9000. For this purpose, we hand over the measuring device to our in-house calibration laboratory. You as the customer, the measured values and the serial number are recorded in this ISO calibration certificate.

- Factory calibration (ISO 9001)
- 12 measuring Points
- CIE-Lab or CIE-LCH
- type A, C, D65 or D50
- viewing angle 2° or 10°
- measuring geometry 8°:di or 0°:45°a

Calibration certificates are issued specifically for the customer and are excluded from the right of return.
Test Instruments manufacturer
Universal Test Set PCE-CSM-UTC
US$ 1,503.00

ex. VAT, ex. delivery costs

PCE-CSM-UTC is a universal test set that is light proof for liquid and gel sample testing

  • For testing liquids, powders and other non-solids
  • For use with PCE-CSM 3, PCE-CSM 6 and PCE-CSM 7 color meters
  • Volume is 125 ml or 4.2 ounces
  • Includes 2 quartz sample boxes
  • Sample box is 60 by 60 by 60 mm

Test Instruments manufacturer
Photometer
Replacement battery PCE-CSM-BAT
US$ 168.00

ex. VAT, ex. delivery costs

Replacement battery for:

PCE-CSM 3
PCE-CSM 6
PCE-CSM 7
PCE-CSM 8
PCE-CSM 10

Test Instruments manufacturer
Color Meter / Colour Meter
White Test Block PCE-WTB-CSM 1-7
US$ 168.00

ex. VAT, ex. delivery costs

White test block; for PCE-CSM 1-7

Test Instruments manufacturer
ISO Calibration Certificate for CAL-PCE-CSM
US$ 599.00

ex. VAT, ex. delivery costs

CAL-PCE-CSM is an ISO 17025 calibration certificate.

- Includes device testing and calibration performed by a laboratory
- Certificate lists test criterion, confirming the device meets the applicable ISO standard(s)
- Each ISO calibration certificate is personalized for the customer; therefore, ISO calibration certificates are exempt from the right of return


Test Instruments manufacturer
