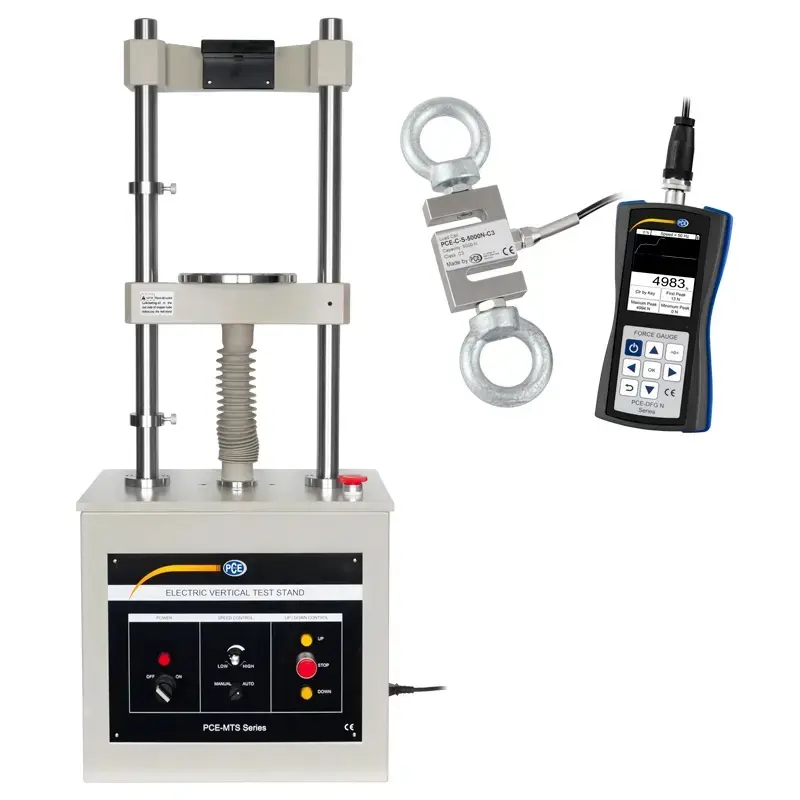

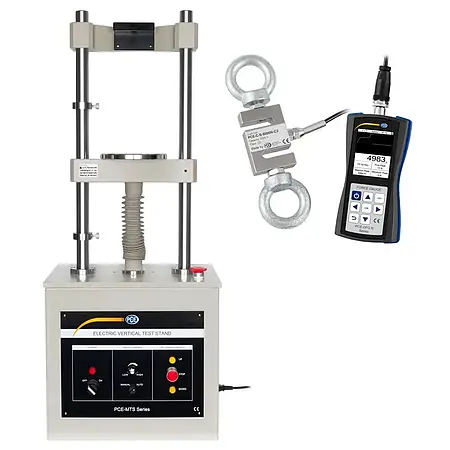

Tension Dynamometer PCE-MTS500-DFG N 5K-KIT incl. Force Test Stand

Order no.: PCE-MTS500-DFG N 5K-KIT
US$ 3,871.00
PCE-MTS500-DFG N 5K-KIT
ex. VAT, ex. delivery costs
digital
external
yes
yes
Available in: 10 - 14 days
Tension dynamometer including force test stand
with external measuring cell and USB interface for connection to a PC


The tension dynamometer measures both tensile forces and compressive forces and this with a very high resolution. The tensile force and the compressive force are often determined in the test laboratory, e.g. to determine the yield point, the tear-off force, the force required to operate a button or switch. The force gauge is supplied with an external measuring cell. Depending on the model, the force gauge can measure up to 10,000 N / 2,248 lbs. Models for 1000N / 225 lbs, 2500N / 562 lbs and 5000N / 1,124 lbs are available. Various eyes or hooks with M10 or M12 threads can be adapted in the measuring cells. However, you can mount your own devices with this thread on the measuring cell.

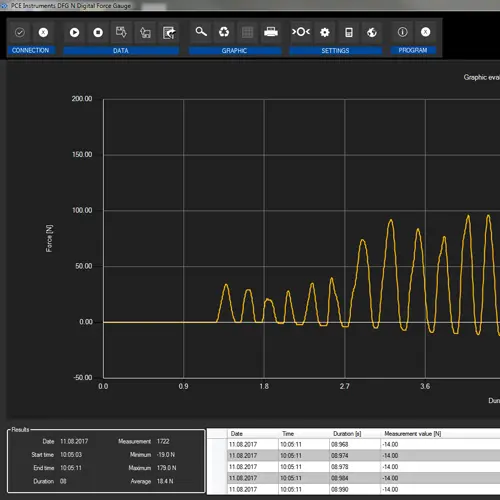

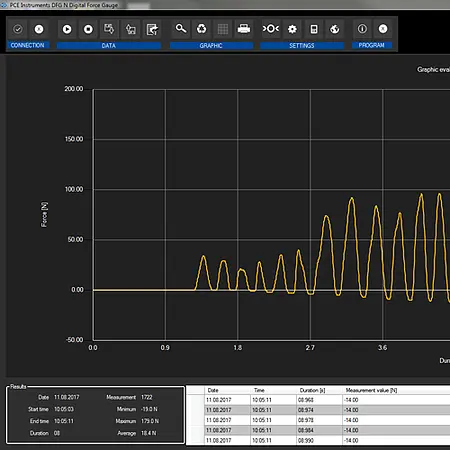

The tension dynamometer is equipped with a USB interface. This interface enables the measurement data to be read into the PC software. So it is possible to create measurement reports and to save and export them. The force gauge has a graphic LCD that displays the measured values ​​numerically and graphically. Furthermore, the force gauge is protected according to IP54 and can therefore also be used in harsh industrial environments. Likewise, tensile and compression tests can also be carried out outdoors in poor weather conditions without any problems.

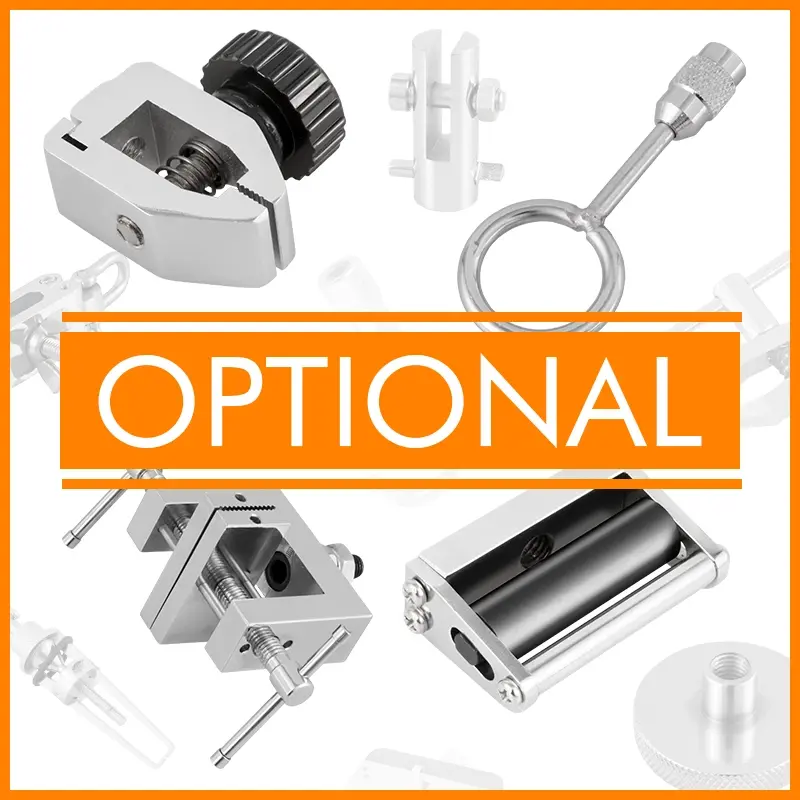

Various force test stands are available for adaptation to the force gauge. The internal memory for measured values ​​and the hooks, extensions and tips included in the scope of delivery complete the capabilities of this force gauge. You too can rely on proven industrial quality when measuring forces. A special feature of the PCE-DFG N force gauge is that the measuring cells can be exchanged between the models. By entering the sensitivity in mV / V, all measuring cells can be used with just one handheld device.

Motorized test stand up to 5000 N, all force measuring devices of the PCE series with internal and external force measuring cell adaptable, large stroke, adjustable feed speed
Our motorized test stand can be coupled and operated in various versions with our force gauges, the PCE series. The motorized test bench allows you to carry out almost all of your compression and tensile force applications with repeatable accuracy. The use of the motorized test bench offers the operator the most precise equality of test bench and sample.

The maximum force range of the motorized test stand is 500 kg. The use of the motorized test bench requires a power connection. The feed speed is variably adjustable between 30 mm/min and 230 mm/min. The precise measurement procedure is thus guaranteed with the motorized test stand. The force-displacement measuring stand is compatible with the following device series: PCE-FB series, PCE-FM series, PCE-DFG series and the PCE-PTR 200.

The motorized test stand comes into play wherever the human body reaches its limits in terms of force measurement. The user of the motorized test stand is obliged to prepare a risk analysis. If it emerges from this that the type of application and the samples pose a risk to the user, a safety device may be required, especially in the case of the test stand operated by an electric motor.

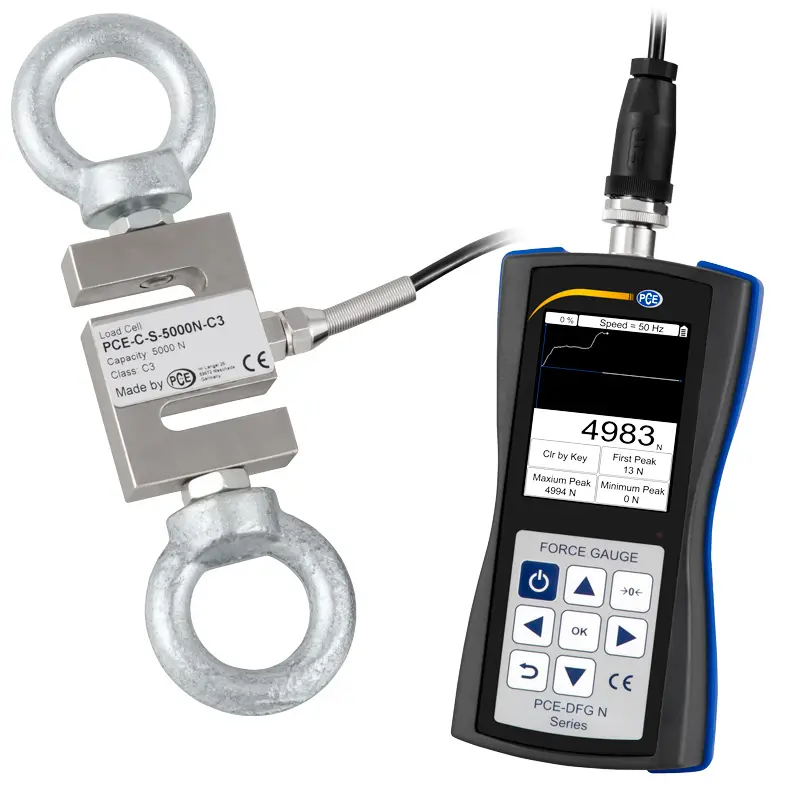

Tension Dynamometer PCE-DFG N 5K
- USB interface
- Graphic display
- Fast response time
- PC software
- Memory for 100 measurements
- Measuring cells can be changed easily

Test Stand PCE-MTS500
- Adjustable feed speed
- Robust steel design
- Adjustable travel
- Large force measuring range
- Mains connection
- All PCE force devices adaptable
- Manual or automatic operation
Tension Dynamometer PCE-DFG N 5K
Measuring range 0 ... 5,000 N / 1,124 lbs
Resolution 1 N / 0.22 lbs
Accuracy ± 0.1% of the measuring range
Measurement units N, kg, lb, KPa
Display 2.8" TFT graphic display
Alarm Modes Inside, Outside, Crack, Shutdown
Sampling rate 6 ... 1600 Hz
Storage 100 measurements
Power supply NiMH battery, 6V / 1600-mAh
Battery life About 10 hours
Power adapter / charging adapter     12V / 1A
Outputs Interface: USB
Switching output: 12V / 50-mA
Protection class IP 54
Operating and storage conditions -10 ... 50°C / 14 ... 122°F
5 ... 95% rh non-condensing
Mounting thread measuring cell
Up to 1,000 N / 225 lbs
2,500 ... 10,000 N / 562 ... 2,248 lbs

M10
M12

Dimensions 200 x 97 x 42 mm / 7.9 x 3.8 x 1.7 in
Weight 540 g / 1.2 lbs

Test Stand PCE-MTS500
Force rangemax. 5000 N (500 kg / 1100 lbs)
Travel distance                                       max. 300 mm / 11.8"
Feed rate30 ... 230 mm/min / 1.18 ... 9.05 in/min
Test tableØ 160 mm/ 6.3"
Sample widthmax. 200 mm / 7.9"
Guide columnsØ 32 mm / 1.3"
Dimensions1020 x 400 x 250 mm / 40.2 x 15.7 x 9.8"
Weightca. 60 kg / 132 lbs

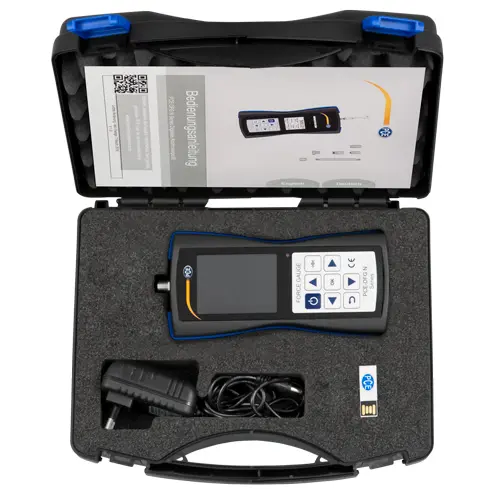

1 x Tension Dynamometer PCE-MTS500-DFG N 5K-KIT
1 x Test Stand PCE-MTS500

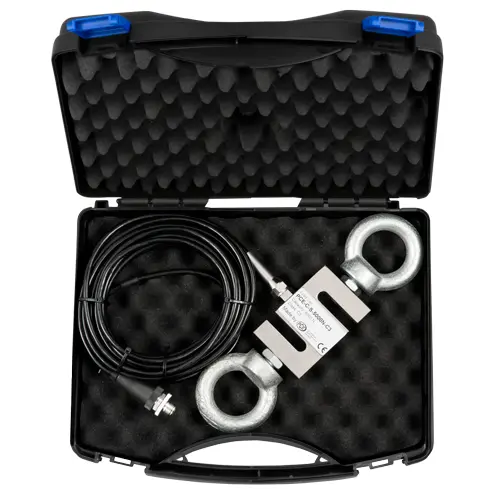

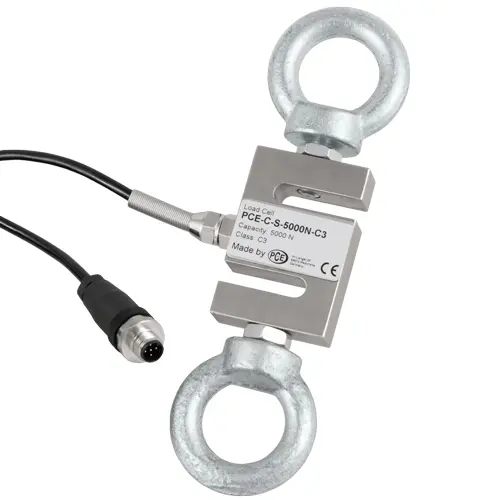

1 x Load cell
2 x Eyebolt
1 x USB cable
1 x Charger
1 x PC software
2 x User manual
