Tension Dynamometer PCE-FM 200

Force gauge for tensile force measurement and pressure force measurement up to 200 N

USB interface and downloadable evaluation software for data transmission / Many measuring adapters

The tension dynamometer PCE-FM 200 is a handheld device that measures up to 200 N. The force gauge can determine the units N, kg and lb. The scope of delivery of the PCE-FM 200 force gauge includes various adapters with different shapes. These can be screwed onto the device and thus offer the optimum solution for differently designed surfaces in the measurement of pressure and tension. In addition to the adapters, an extension rod is also supplied, which allows measurements in hard to reach places. This extension rod has a length of 65 millimeters. The scope of delivery of the PCE-FM 200 force gauge includes flat head adapter, hook adapter, ball head adapter, chisel head adapter and a notched head adapter, whereby the hook adapter is used for tensile force measurements.

The PCE-FM 200 tension dynamometer offers the option of mounting the force gauge on a test stand by means of threads on the rear of the device. Test stands are always used in a force gauge if reproducible measurement results are required during the force measurement. These test stands are ideal additions to a force gauge, because they are operated by a precise handwheel or a motor. In addition, both tensile and compressive force measurements can be performed on them. Experiments in the laboratory are thus possible with the force gauge as well as the inspection of incoming goods.

Attention: The internal load cell is maintenance-free, light and characterized by extremely long service life. For the production of this load cell only high quality materials are used, which guarantee maximum safety and longevity. The force gauge has an overload range. If you exceed this, you destroy the internal load cell. So if you select a force gauge for your application, then for safety's sake move to the next higher model at the measuring range.

- Differently shaped measuring adapters

- Downloadable evaluation software

- Device for mounting on test stands

- Peak measurement

- Power supply via charging adapter

- Delivery includes extension rod

- Evaluation via USB interface

- Fast display of measured value

Measuring range	2 ... 200 N / 0.2 ... 20 kg / 0.4 ... 45 lbs
Resolution	0.1 N / 0.02 lbs
Pressure calibration	1 Mpa
Load cell	Integrated load cell with M6 connection
Measuring range	1 ... 100% of the full scale
Measurement accuracy	±0.5%
Units	n, kg, lb
Display	LCD
Operating temperature	10 ... 30°C / 50 ... 86°F
Relative humidity	15 ... 80%
Working conditions	The device must not be located near sources of vibration or corrosive substances
Weight	1 kg / 2.2 lb

1 x Tension Dynamometer PCE-FM 200

1 x Downloadable evaluation software

1 x Flathead adapter

1 x Hook adapter

1 x Ball head adapter

1 x Chisel head adapter

1 x Notch head adapter

1 x Adapter for extension rod

1 x Extension rod (65 mm / 2.55")

1 x USB cable

1 x Charging adapter (240 V)

1 x Equipment case

1 x Operation manual

man-force-gauge-pce-fm-200-pce-fm-50n-pce-fm-500n-en.pdf

Manual

Accessories

Re-Calibration for Force Gauge over 50kg / 500N

Order no.: RE-CAL-FG 2

Re-Calibration for Force Gauge over 50kg / 500N

ISO re-calibration incl. certificate for force gauge over 50 kg / 500 N / 112 lbs. This is often required to comply with ISO/IEC 17025.

If your calibration certificate expires, you can easily return your meter for re-calibration. We carry out the calibration and send you the device with a new calibration certificate.

Calibration certificates are issued specifically for the customer and are excluded from the right of return

Manufacturer: Gilsbach + Bach GmbH

US$ 289.00

ex. VAT, ex. delivery costs

Order no.: CAL-FG

ISO Calibration Certificate CAL-FG

CAL-FG is a calibration certificate for companies that wish to incorporate the device into their array of internal quality control tools or for annual recalibrations. The calibration certificate includes calibration in accordance with ISO standards and a document containing all the readings taken.

The calibration certificate is issued especially for the customer and therefore is exempt from the right of return.

Tension Dynamometer PCE-FM 200

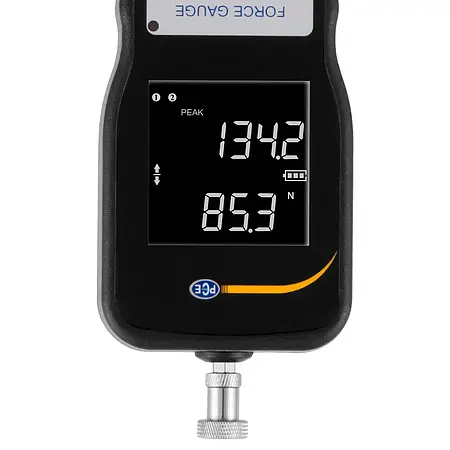

Tension Dynamometer PCE-FM 200 display

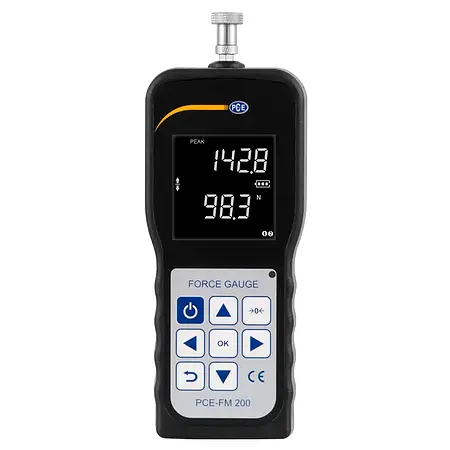

Tension Dynamometer PCE-FM 200 front

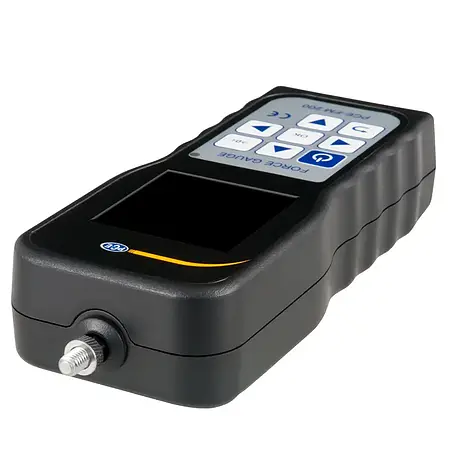

Tension Dynamometer PCE-FM 200 sensor

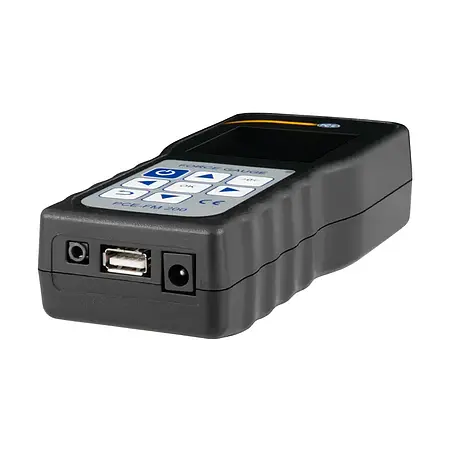

Tension Dynamometer PCE-FM 200 USB connection

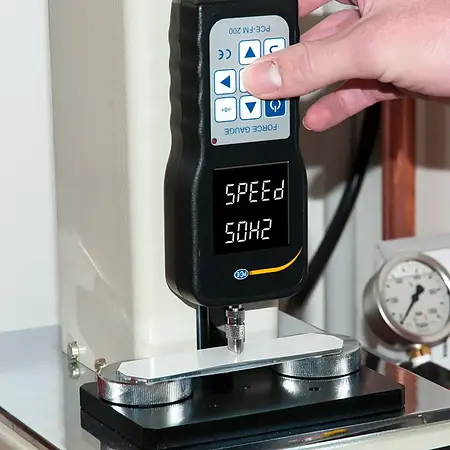

Tension Dynamometer PCE-FM 200 application

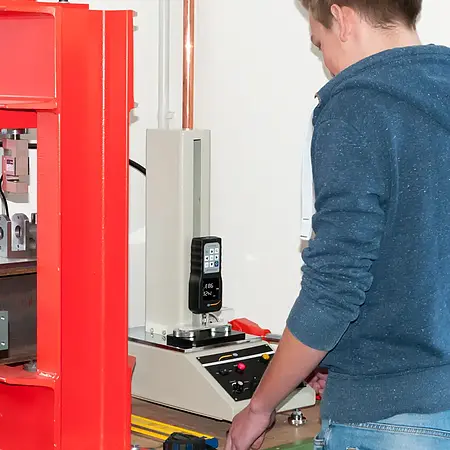

Tension Dynamometer PCE-FM 200 application

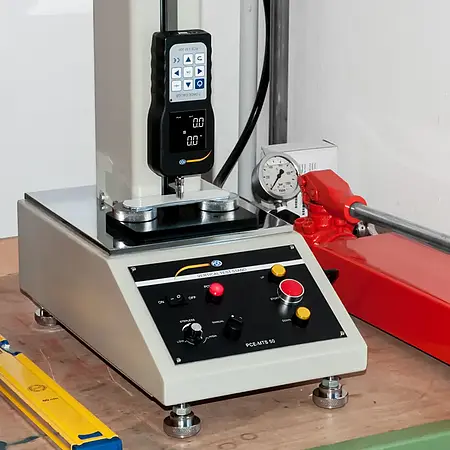

Tension Dynamometer PCE-FM 200 application

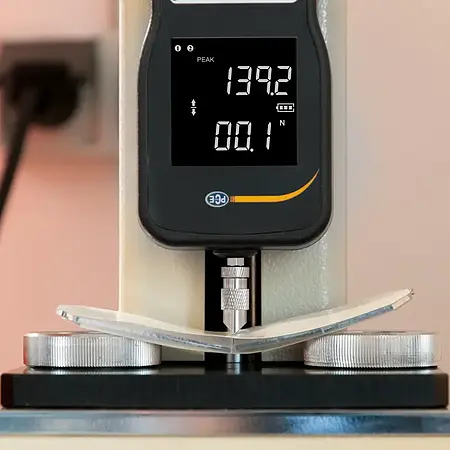

Tension Dynamometer PCE-FM 200 application

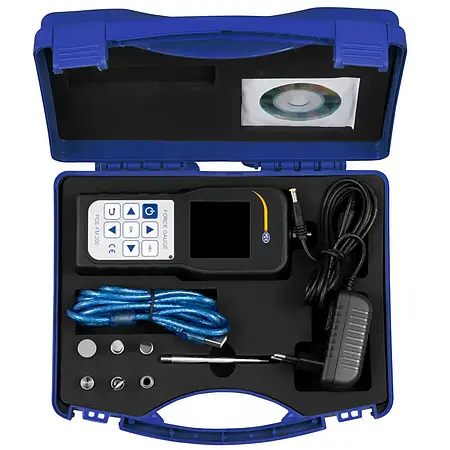

Tension Dynamometer PCE-FM 200 delivery
