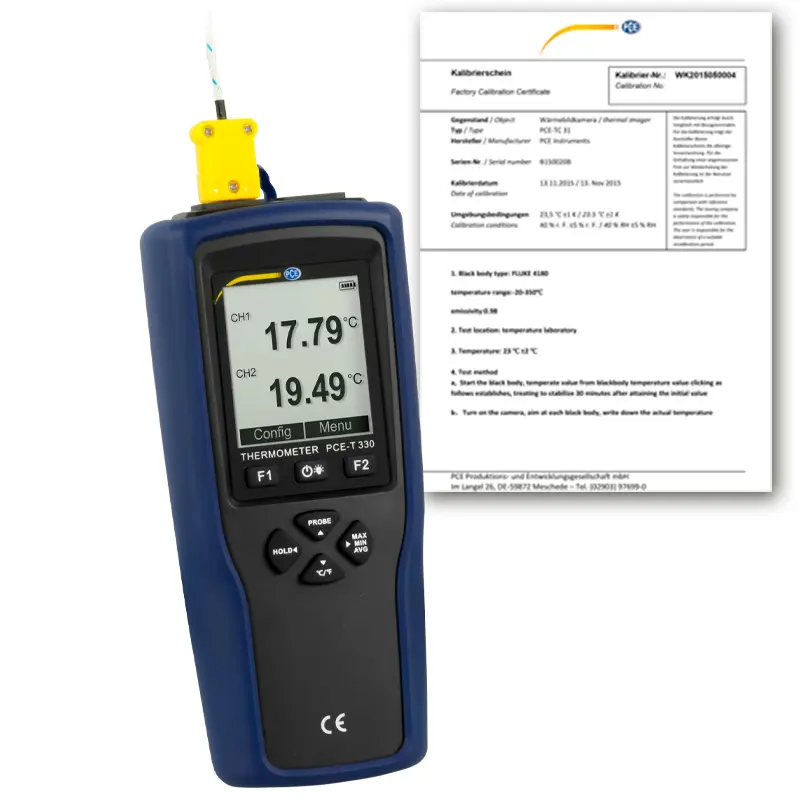

Temperature Meter PCE-T 330-ICA incl. ISO Calibration Certificate

Temperature Meter PCE-T 330-ICA incl. ISO Calibration Certificate [zoom]
Temperature Meter PCE-T 330-ICA incl. ISO Calibration Certificate
Temperature Meter PCE-T 330-ICA incl. ISO Calibration Certificate

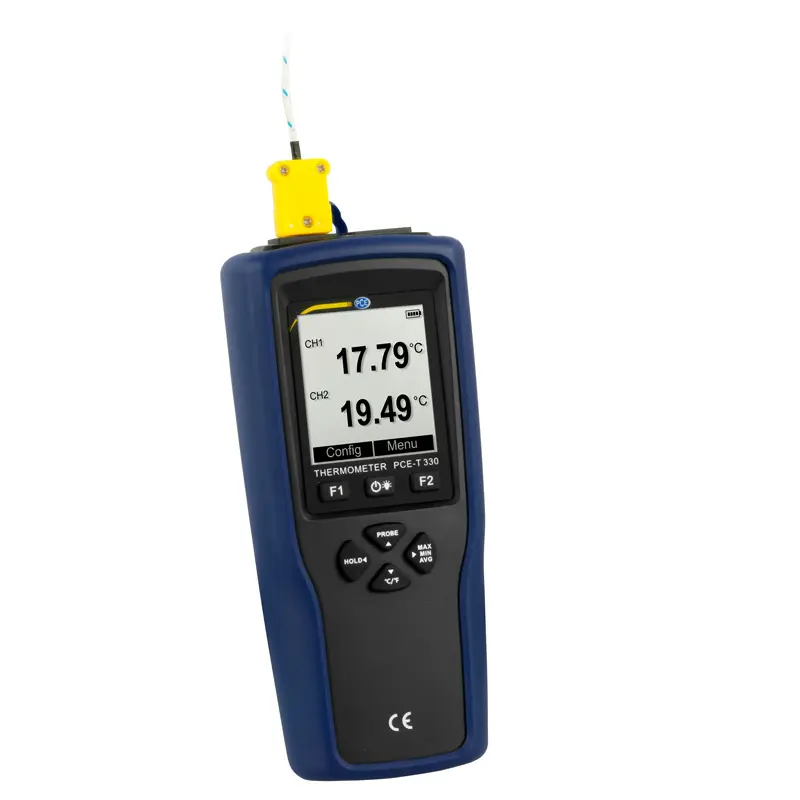

Temperature Meter PCE-T 330

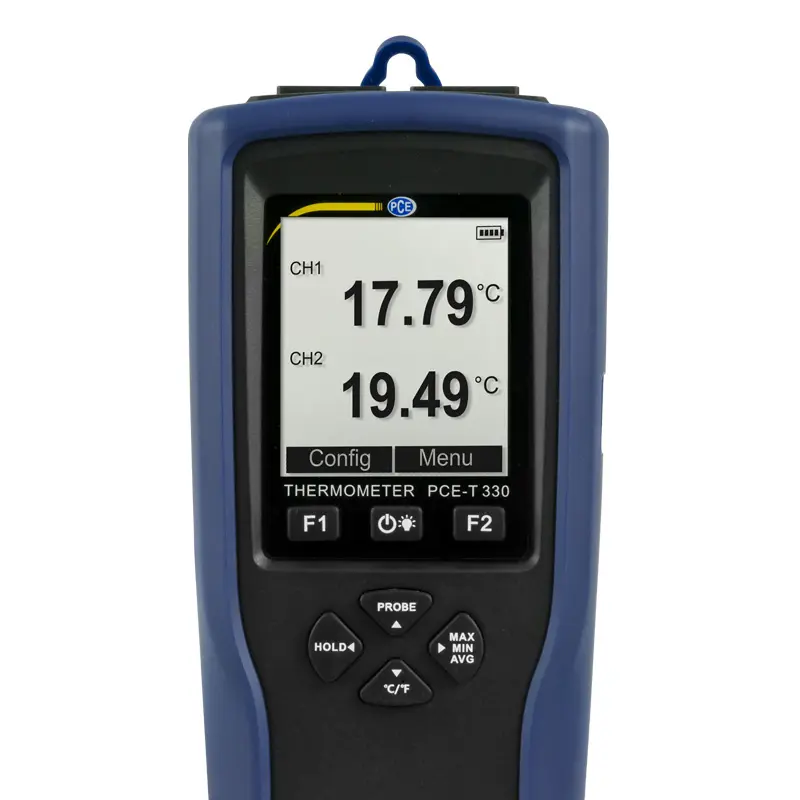

Temperature Meter PCE-T 330 display

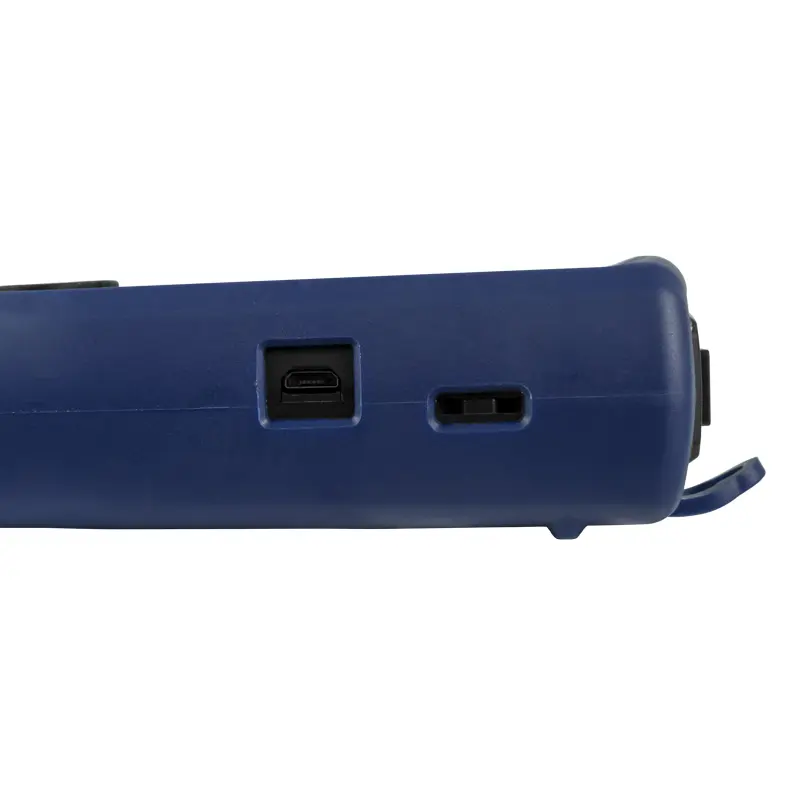

Temperature Meter PCE-T 330 USB

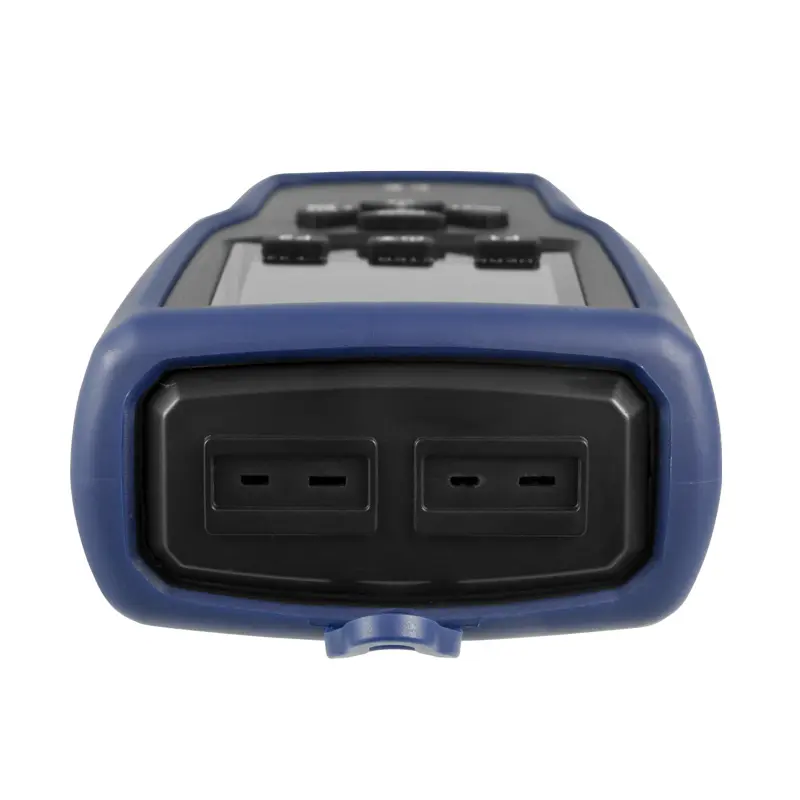

Temperature Meter PCE-T 330 connections

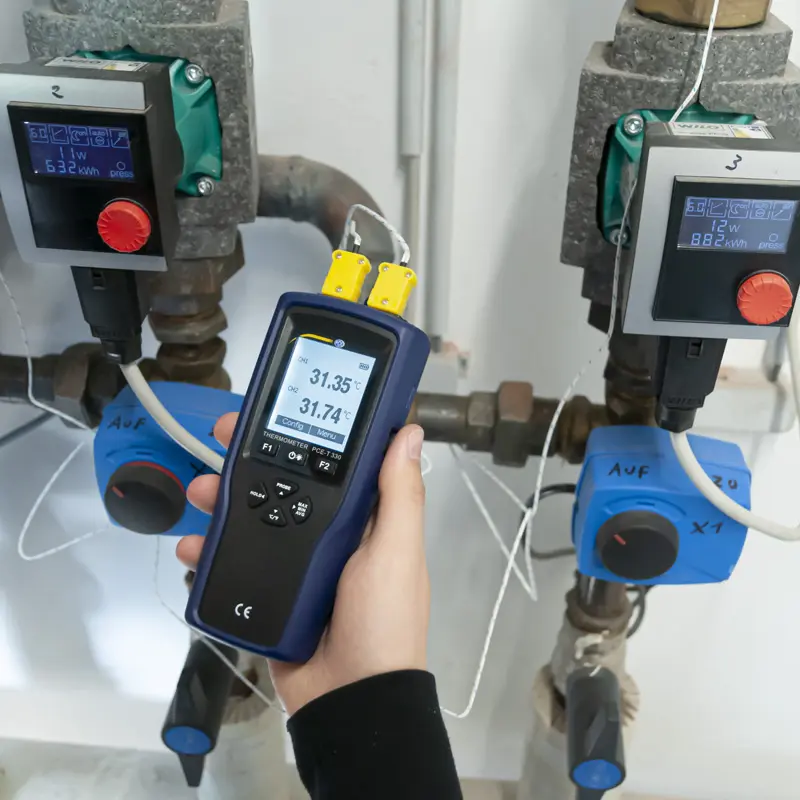

Temperature Meter PCE-T 330 application

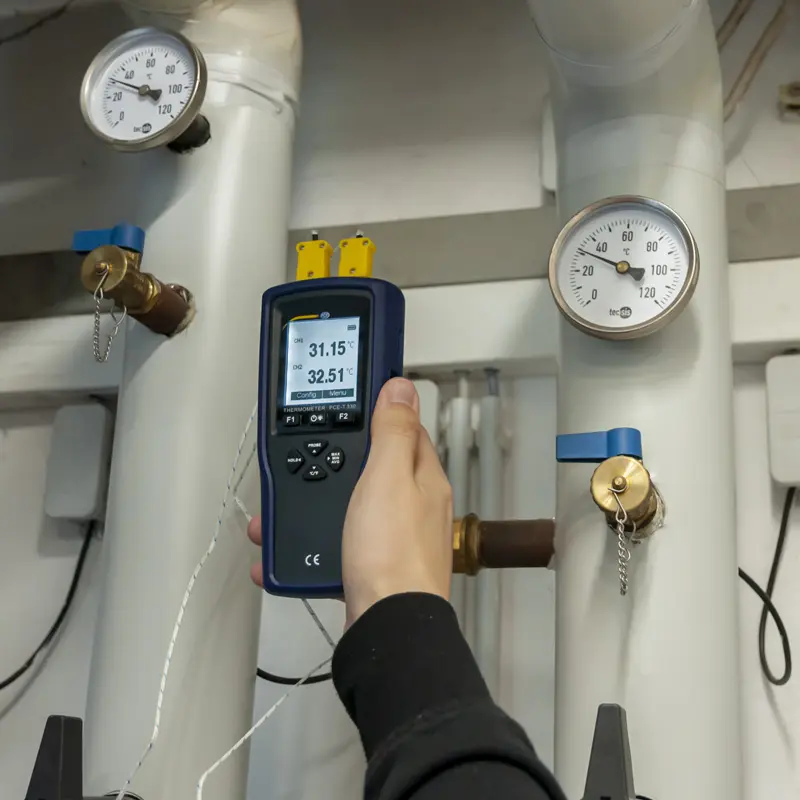

Temperature Meter PCE-T 330 application

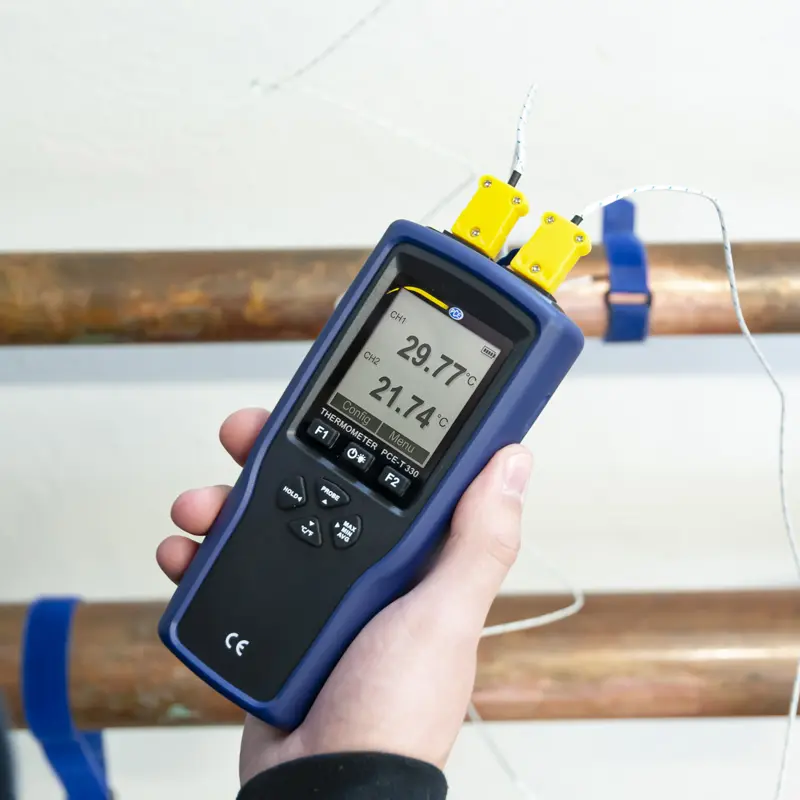

Temperature Meter PCE-T 330 application
Temperature Meter PCE-T 330 delivery

Temperature Meter PCE-T 330-ICA incl. ISO Calibration Certificate

Order no.: PCE-T 330-ICA
GTIN (EAN):
US$ 404.00
ISO Calibration
ex. Sales Tax, ex. delivery costs
PCE-T 330-ICA
Available in:10 - 14 days
Your PCE Instruments Benefits
Bilingual Technical Support

Bilingual Technical Support (EN / ES)

Special Promotions

Special Promotions

Public Service, Military and First Responder Discount

Public Service, Military and First Responder Discount

30 Day Return Policy

30 Day Return Policy

2 Year Warranty

2 Year Warranty

Accessory

Description

Two-channel thermometer / Battery life of approx. 190 hours /
Different file formats / No software required / Storage for 20,000 data points

The temperature meter has two measuring inputs. Each measuring input from the thermometer can be connected to a thermocouple of type K, T and J. With a measuring rate of 2 Hz, the thermometer shows rapid temperature fluctuations. With the high accuracy and a resolution of 0.01 °C, these rapid temperature fluctuations can also be displayed precisely by the thermometer.

With a data memory of 20,000 measuring points, the thermometer can be used for a long period of time. A data point on the thermometer contains a measured value per channel and date as well as the current time. When the thermometer is connected to a computer, it is recognized as a removable disk. This allows the thermometer to be connected to computers with different operating systems, as no additional software is required for further analysis. The measurement data from the thermometer can be saved as TXT, CSV, XLS and DLG format.

Highlights

- Two-channel temperature data logger
- For thermocouples type K, T and J
- Long battery life
- Data storage for 20,000 measuring points
- File format TXT, CSV, XLS and DLG
- Rubberized protective cover
- incl. ISO Calibration Certificate

Specification

Temperature Sensor    Measuring range
Resolution
Accuracy
Type K-200 ... 1370 °C / -328 … +2498 °F
   0.01 °C±0.3 % of rdg. +0.4 °C
Type T-200 ... 400 °C / -328 … 752 °F
   0.01 °C±0.3 % of rdg. +0.4 °C
Type J-200 ... 1200 °C / -328 … 2192 °F
   0.01 °C±0.3 % of rdg. +0.4 °C

Units°C / °F
Number of channels2
Measuring rate2 Hz
Data storage15,328 kB for 20,000 data points
File formatsTXT, CSV, XLS, DLG
Storage interval1 .... 86,399 s
InterfaceMicro-USB
Power supply
3 x 1.2 V AAA rechargeable batteries
 3 x 1.5 V AAA batteries
Battery lifeca. 190 hours
 (without backlight, battery capacity
 1200 mAh, ambient temperature 25 °C)
Operating conditions-10 ... 50 °C / 14 … 122 °F
Storage conditions-20 ... 60 °C / -4 … +140 °F (without batteries)
Dimensions173 x 71 x 38 mm / 6.8 x 2.8 x 1.5"
Weightca. 226 g /  7.9 oz

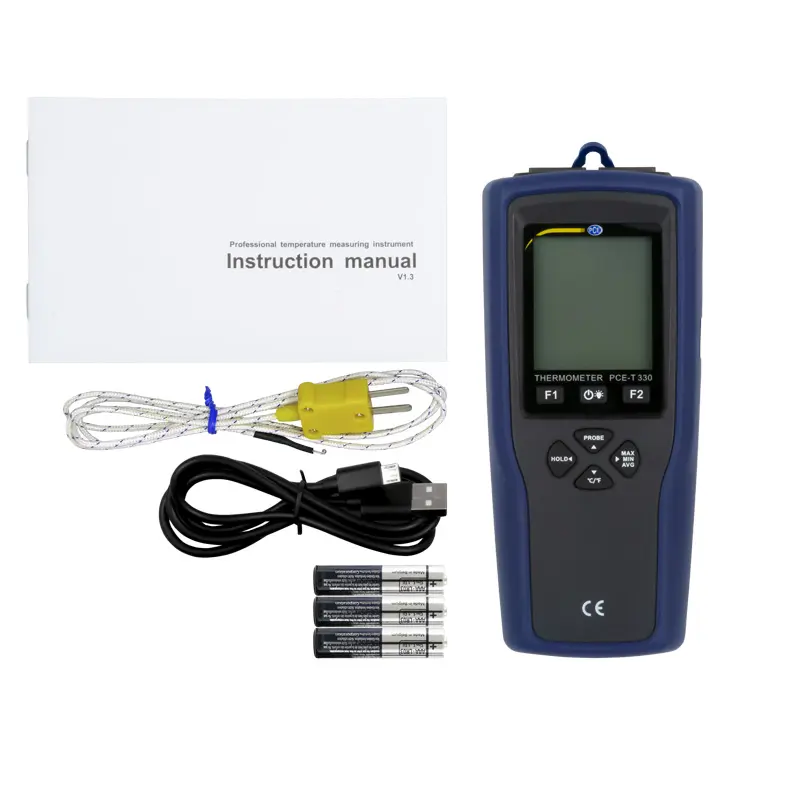

Delivery Scope

1 x Temperature Meter PCE-T 330
1 x Thermocouple Type K
1 x Micro-USB cable
3 x 1.5 V AAA batteries
1 x User manual
1 x ISO Calibration Certificate



N.B. Calibration certificates are issued specifically for the customer and are excluded from the right of return.
