Temperature Meter PCE-OD 10

Temperature Meter PCE-OD 10

Order no.: PCE-OD 10
GTIN (EAN): 4250348738660
US$ 64.00
ex. Sales Tax, ex. delivery costs
:
4250348738660
PCE-OD 10
Available in:1-2 days
Your PCE Instruments Benefits
Bilingual Technical Support

Bilingual Technical Support (EN / ES)

Special Promotions

Special Promotions

Public Service, Military and First Responder Discount

Public Service, Military and First Responder Discount

30 Day Return Policy

30 Day Return Policy

2 Year Warranty

2 Year Warranty

Description

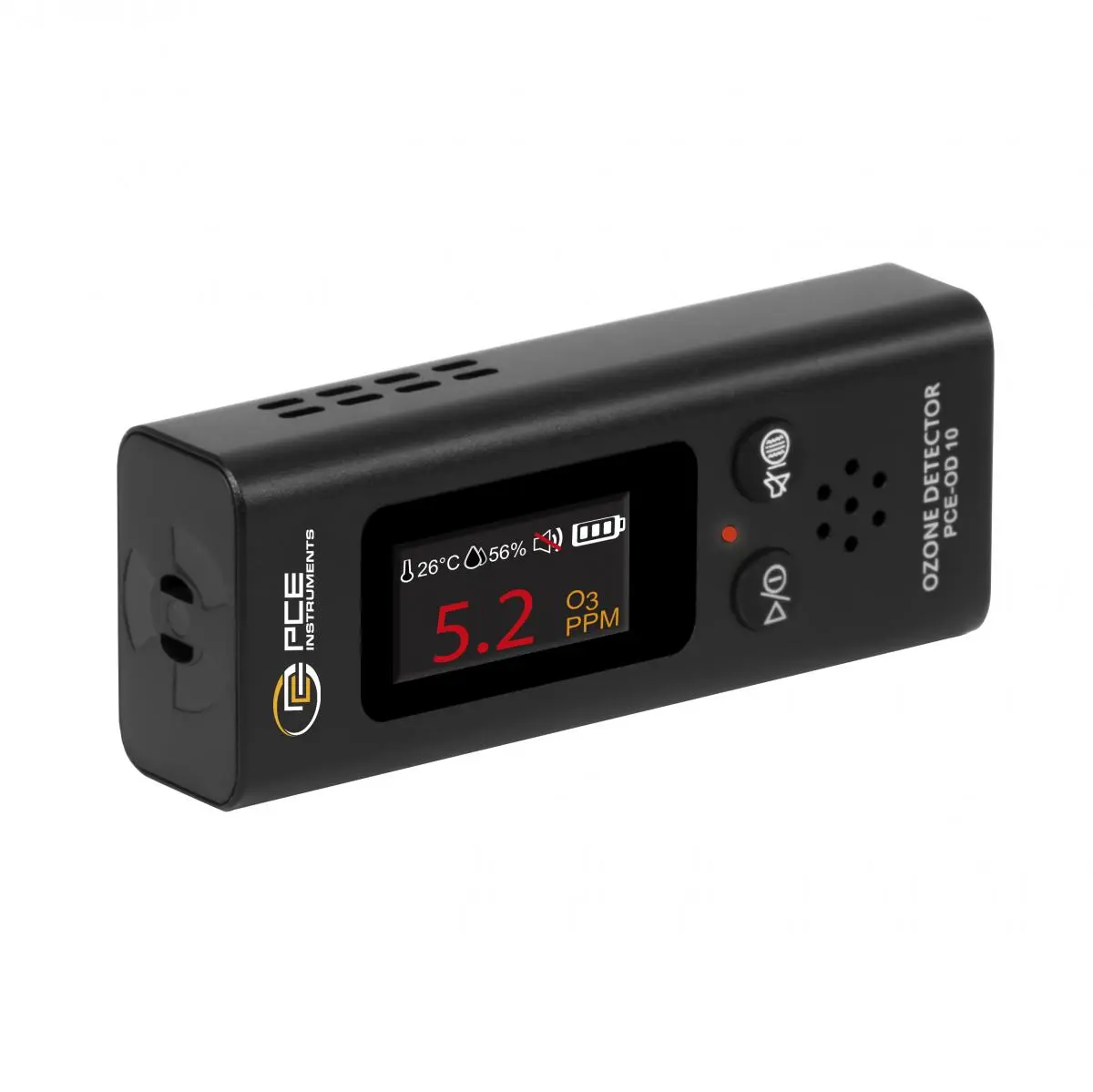

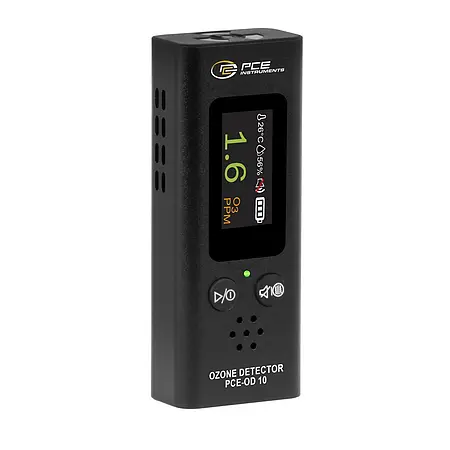

Temperature Meter / 3 in 1 measures ozone, temperature and humidity / Audible alarm / Mobile device

An Temperature Meter is used to monitor the ozone concentration in the air and to measure temperature and humidity. The Temperature Meter detects ozone in the range of 0 ... 9.9 ppm with an accuracy of ±15% of the measured value. The temperature is measured between 0 ... 50°C / 32 ... 122°F with ±1°C / 1.8°F accuracy, the humidity in the range of 5 ... 95% with ±5% accuracy. The device has an audible alarm when the preset alarm value of 3 ppm is exceeded and displays all values on a 0.9 inch LCD display. Other features include standby mode, rechargeable lithium battery via USB-C, compact size and a wrist strap for mobile use.

The Temperature Meter is suitable for mobile use in homes, offices, workshops, small production areas or private applications where ozone pollution needs to be monitored. With its compact design, measurements can be taken directly on site, making the Temperature Meter a practical instrument for reliable monitoring of ozone, temperature and humidity. By combining the three measuring functions, the Temperature Meter provides all relevant information for fast and standardized environmental monitoring.


Highlights

- Ozone, temperature, humidity
- Audible alarm
- Alarm value 3 ppm
- LCD display 0.9 inch
- Standby mode
- Rechargeable battery via USB-C
- Compact size

Specification

Relative humidity
Measurement range up to  5 ... 95 %
Resolution  1 %
Accuracy  ±5 %

Ozone
Measurement range up to  0 ... 9,9 ppm
Resolution  0,1 ppm
Accuracy  ±15% FS

Temperature
Measurement range up to  0 ... 50 °C
Resolution  1 °C
Accuracy  ±1 °C

General technical data
Display type  LCD
Display size  0,9 Inch
Service life  approx. 2 years
Operating time  24 h
Alarm  Acoustic
Alarm value  3 ppm
Alarm volume  85 dB
Menu language  English, English (GB)
Protection class (device)  IP20
Power supply  5 V DC
(Rechargeable) battery  1 x 3,7 V internal , Lithium-ion polymer battery
Capacity  400 mAh
Operating conditions  0 ... 50 °C , 0 ... 95 % RH
Storage conditions  -10 ... 60 °C , 0 ... 80 % RH
Dimensions ( L x W x H )  70 x 26 x 16 mm
Weight  32 g

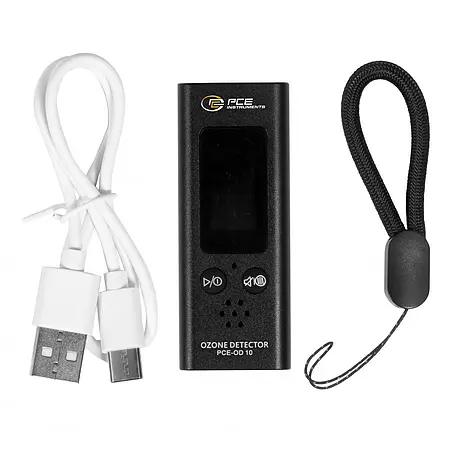

Delivery Scope

1 x PCE-OD 10 Temperature Meter
1 x USB-C cable
1 x Wrist strap
1 x Instruction manual
