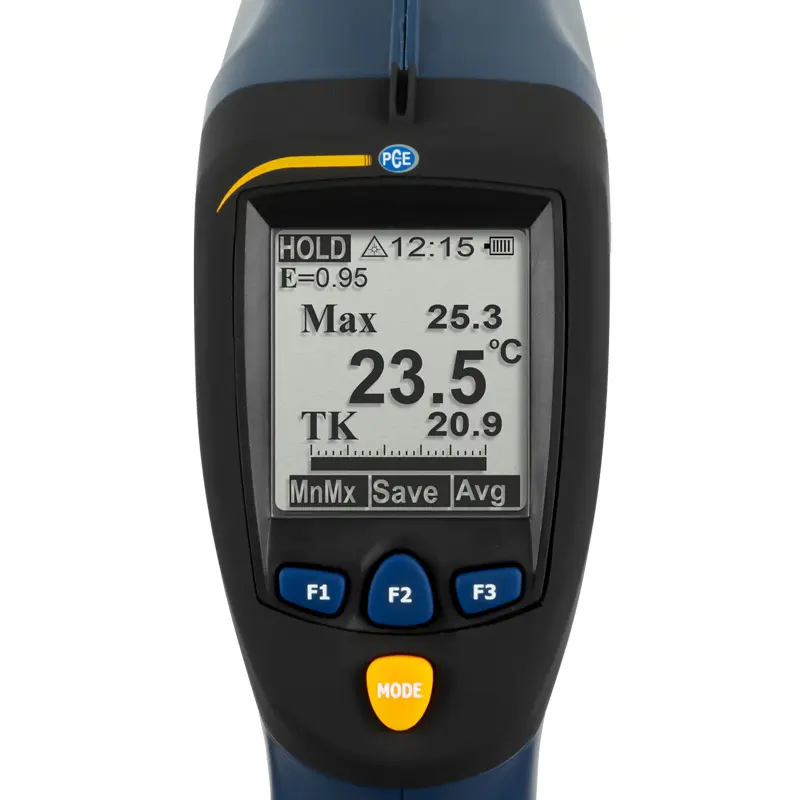

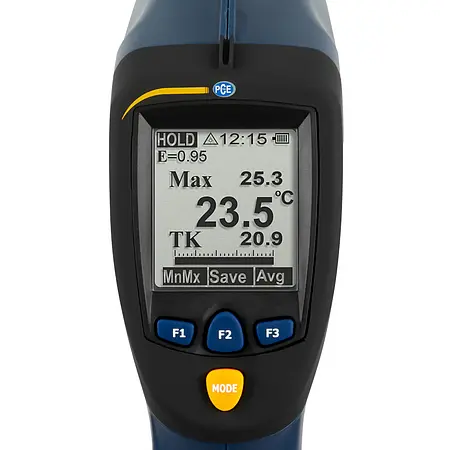

Temperature Meter PCE-893-ICA display
Temperature Meter PCE-893-ICA

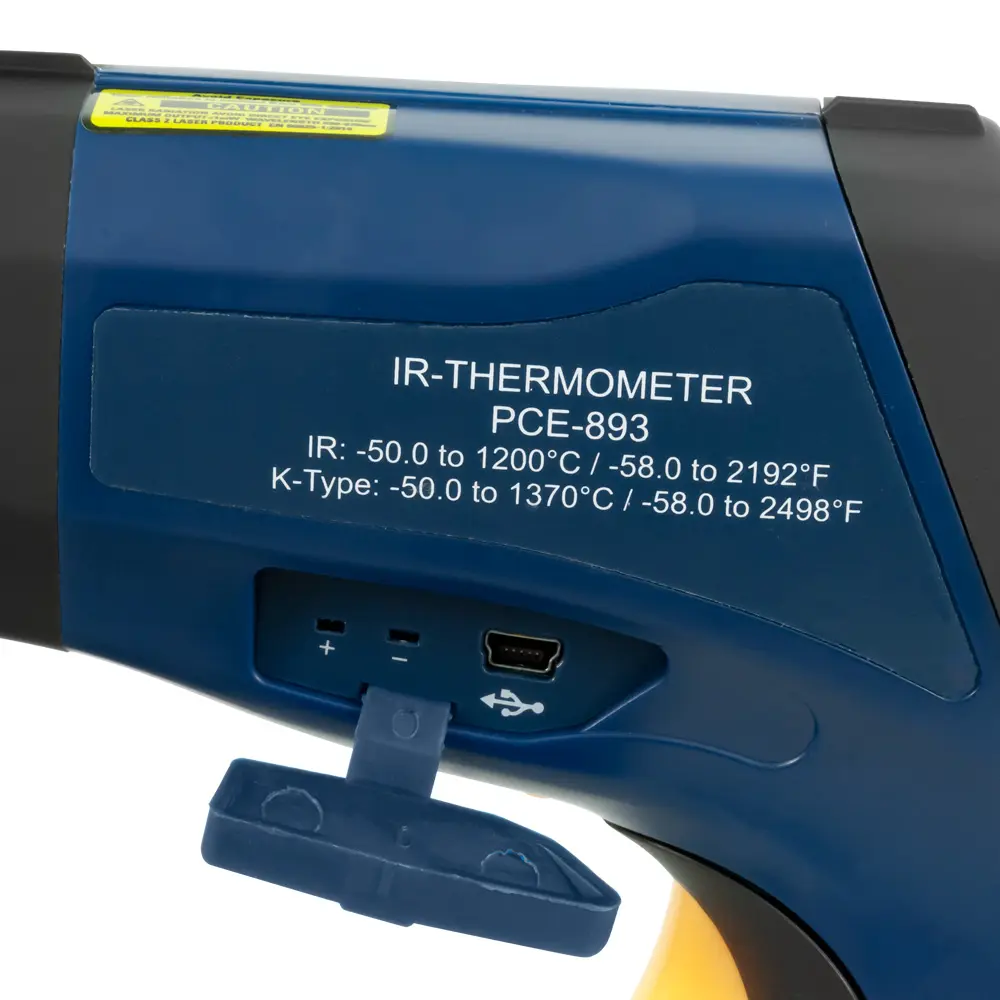

Temperature Meter PCE-893-ICA connections

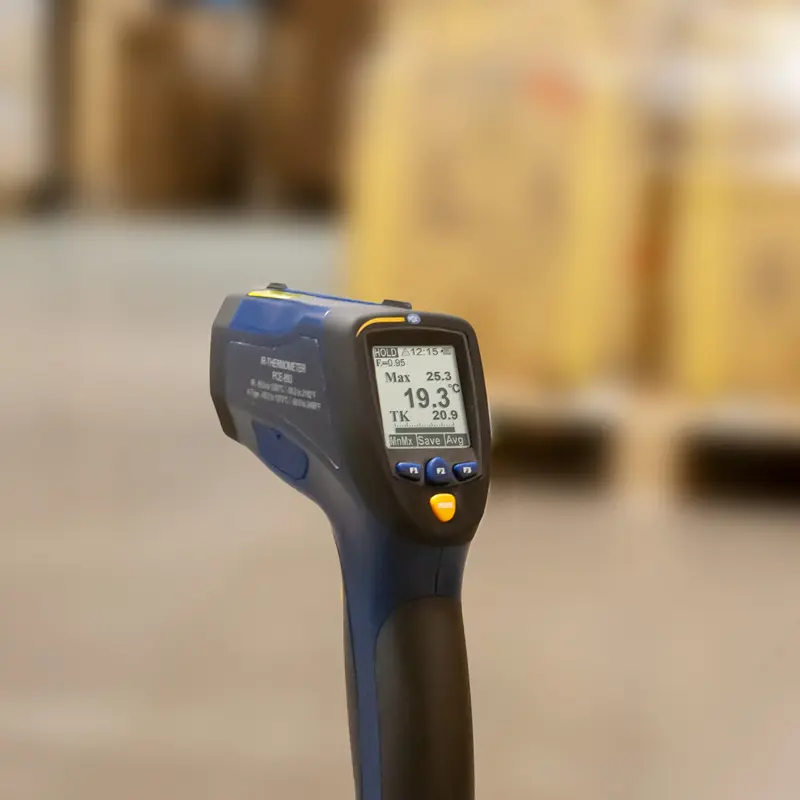

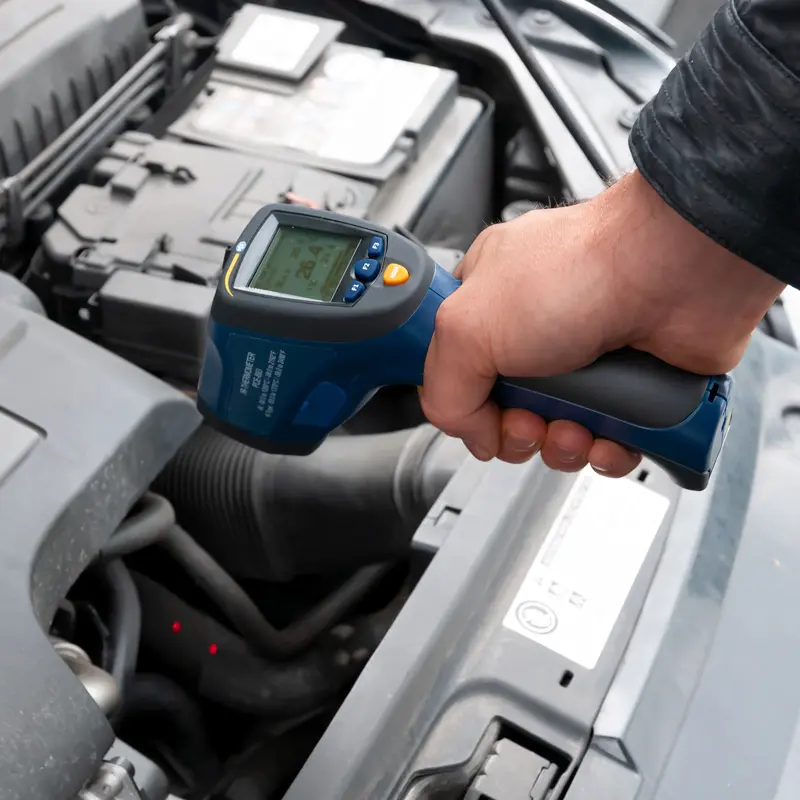

Temperature Meter PCE-893-ICA application

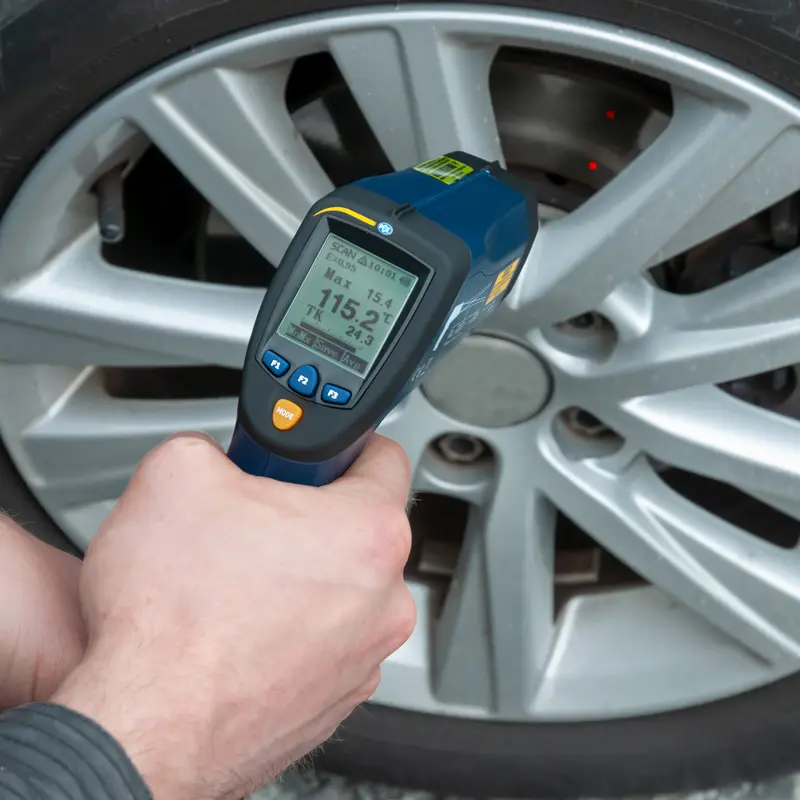

Temperature Meter PCE-893-ICA application
Temperature Meter PCE-893-ICA
Temperature Meter PCE-893-ICA application
Temperature Meter PCE-893-ICA delivery

Temperature Meter PCE-893-ICA incl. ISO Calibration Certificate

Order no.: PCE-893-ICA
GTIN (EAN):
US$ 707.00
ISO Calibration
ex. Sales Tax, ex. delivery costs
PCE-893-ICA
Available in:10 - 14 days
Non-contact
Handheld
-50 ... 1200 °C / -58 ... 2192 °F
Yes
Yes
Your PCE Instruments Benefits
Bilingual Technical Support

Bilingual Technical Support (EN / ES)

Special Promotions

Special Promotions

Public Service, Military and First Responder Discount

Public Service, Military and First Responder Discount

30 Day Return Policy

30 Day Return Policy

2 Year Warranty

2 Year Warranty

Accessory

Description

Temperature Meter PCE-893-ICA incl. ISO Calibration Certificate
Laser temperature meter for easy measurement of surface temperatures /
Fast response time / Adjustable emissivity / Max-Min function / Alarm function / Measuring range up to 1200 °C / 2192 °F / Thermocouples type K connectable / Software for PC connection

The Temperature Meter PCE-893-ICA is suitable for simple temperature measurements. The emissivity of the surface can be adjusted on the PCE-893-ICA thermometer. Thus, the thermometer PCE-893-ICA is suitable for almost all surfaces. The dual laser of the thermometer PCE-893-ICA marks the exact center of the measurement spot. This helps the user considerably with non-contact temperature measurement. The thermometer PCE-893-ICA has a backlit display. In addition to the emissivity setting, the user can set limit value alarms over the entire measuring range of the PCE-893-ICA thermometer. The measuring range is from -50 °C to + 1200 °C / -58 ... 2192 °F. The measuring spot ratio of the thermometer PCE-893-ICA is 50:1.

In addition to the infrared measurement, a variety of thermocouples Type-K can be connected to the thermometer. Here measurements up to 1370 °C / 2498 °F are possible. The included software and the USB port on the thermometer allow the operator to analyze and store all measurement data on the PC both graphically and in a table.

Highlights

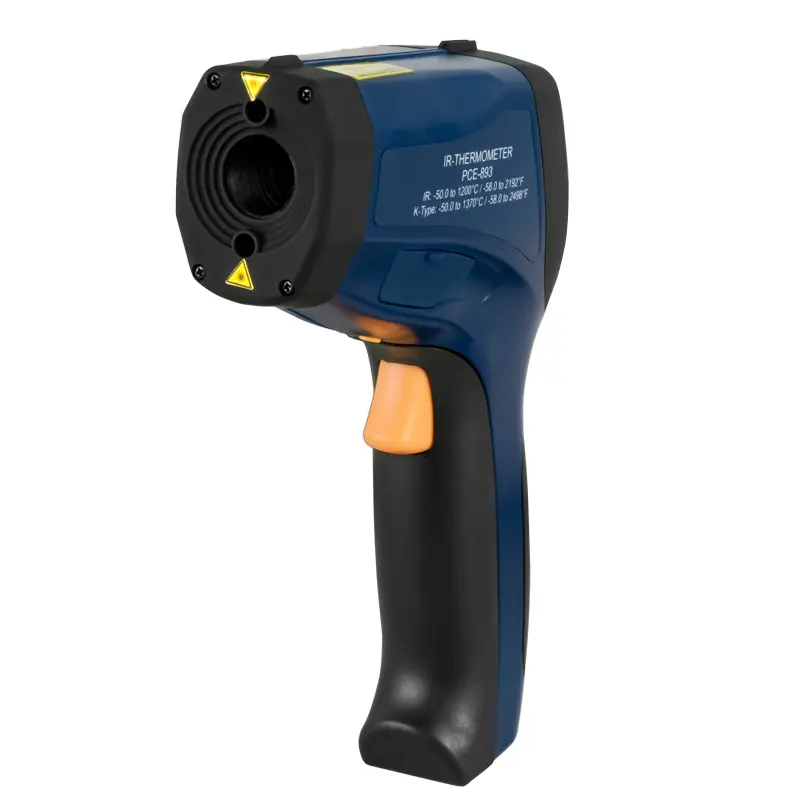

- Dual laser shows the spot center
- Adjustable emissivity
- Illuminated LCD
- Measured value transmission to a PC
- Non-contact temperature measurement
- Measurement spot ratio 50: 1 infrared optics
- Temperature measurement up to 1200 °C / 2192 °F
- Thermocouple type-K can be connected
- includes ISO Calibration Certificate

Typical applications of the Temperature Meter PCE-893

- Food monitoring
- Hygiene tests
- Road construction
- Control cabinet monitoring
- Heating and air conditioning technology
- Production monitoring
- Temperature measurement on motors
- Electronic components
- Fuse box

***ATTENTION*** Our temperature sensors are designed for industrial and laboratory surface temperature measurement ONLY. They are not designed or certified for body temperature measurement or for medical use.

Specification

Infrared measurement
Infrared measurement -50 ... 1200 °C / -58 ... 2192 °F
Resolution 0.1 at display <1000
  1 at display  >1000
Accuracy ±3 °C / 5.4 °F (-50 ... 20 °C / -58 ... 68 °F)
  ±1 % ±1 °C / ±1.8°F (20 ... 500 °C / 68 ... 932°F)
  ±1.5 % (500 ... 1000 °C / 932 ... 1832 °F)
  ±2 % (1000 ... 1600 °C / 1832 ... 2912 °F)
The accuracies apply at an ambient temperature of 23 ... 25 °C (73 ... 77 °F)

Repeatability ±1.5 °C / 2.7 °F (-50 ... 20 °C / -58 ... 68 °F)
  ±0.5 % or ±0.5 °C / 0.9 °F
  (20 ... 1000 °C / 68 ... 1832 °F)
  ±1.0 % (1000 ... 1600 °C / 1832 ... 2912 °F)

Thermocouple
Measuring range -50 ... 1370 °C / -58 ... 2498 °F
Resolution 0.1 at display <1000
  1 at display  >1000
Accuracy ±2.5 °C / ±3.6°F (-50 ... 0 °C / -58 ... 32°F)
  ±0.5 % ±1.5 °C / 3 °F
  (0 ... 1370 °C / 32 ... 2498 °F)

Measurement spot ratio 50:1
Response time 150 ms
Spectral range 8 ... 14 µm
Emissivity Adjustable 0.10 ... 1.0
Display overrange The display will show "----"
Display laser diode LCD with backlight
Output <1 mW
Wavelength 630 ... 670 nm
Classification Class 2
Power supply 9 V block battery
Operating conditions 0 ... +50 °C / 32 ... 122 °F
Storage conditions -10 ... +60 °C / 14 ... 140 °F
Weight ca. 282 g without battery
Dimensions 200 x 55 x 150 mm / 7.8 x 2.1 x 5.9"

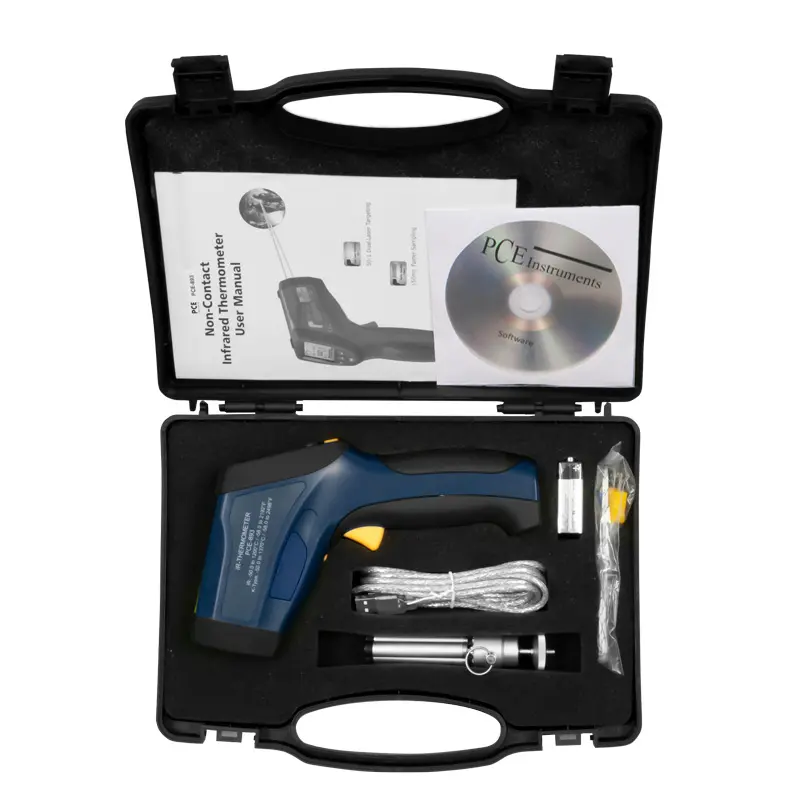

Delivery Scope

1 x Temperature Meter PCE-893-ICA
1 x Type-K thermocouple

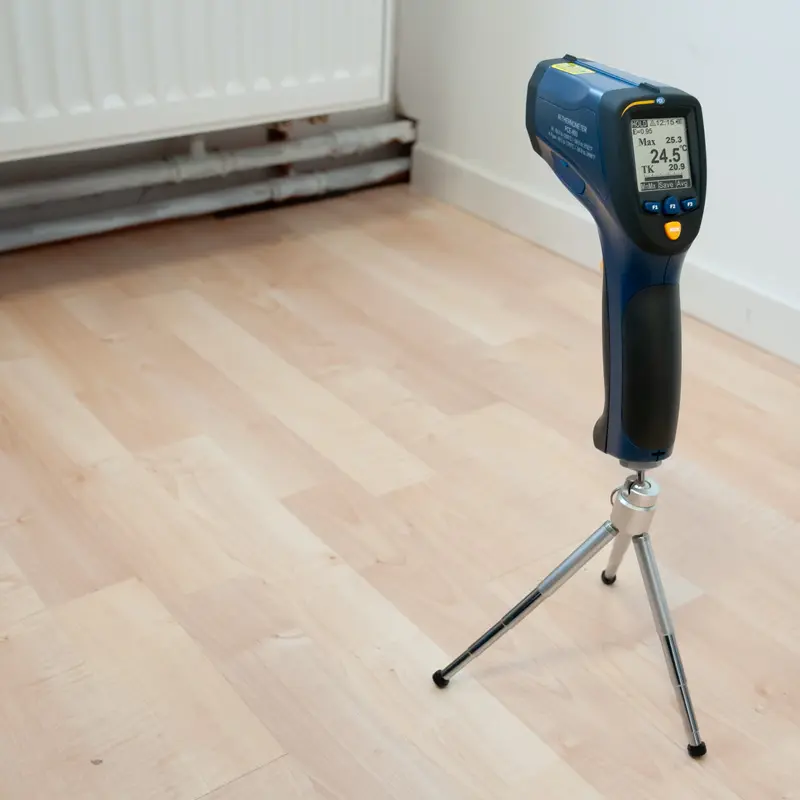

1 x Mini Tripod
1 x USB cable
1 x 9 V battery
1 x User manual

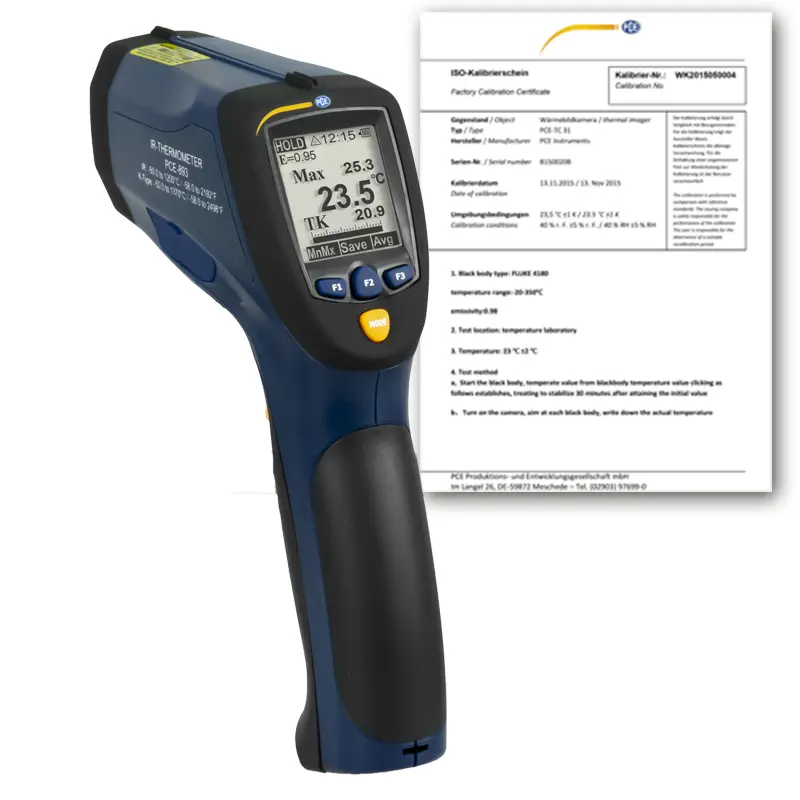

1 x ISO Calibration Certificate
