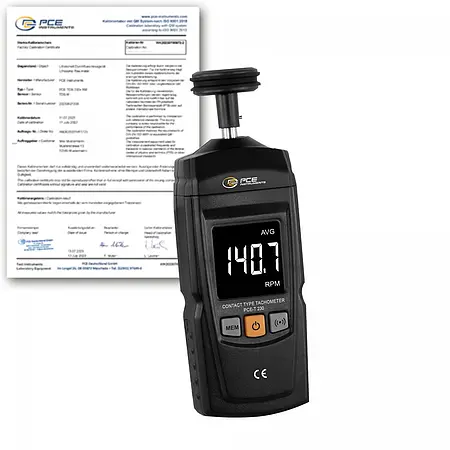

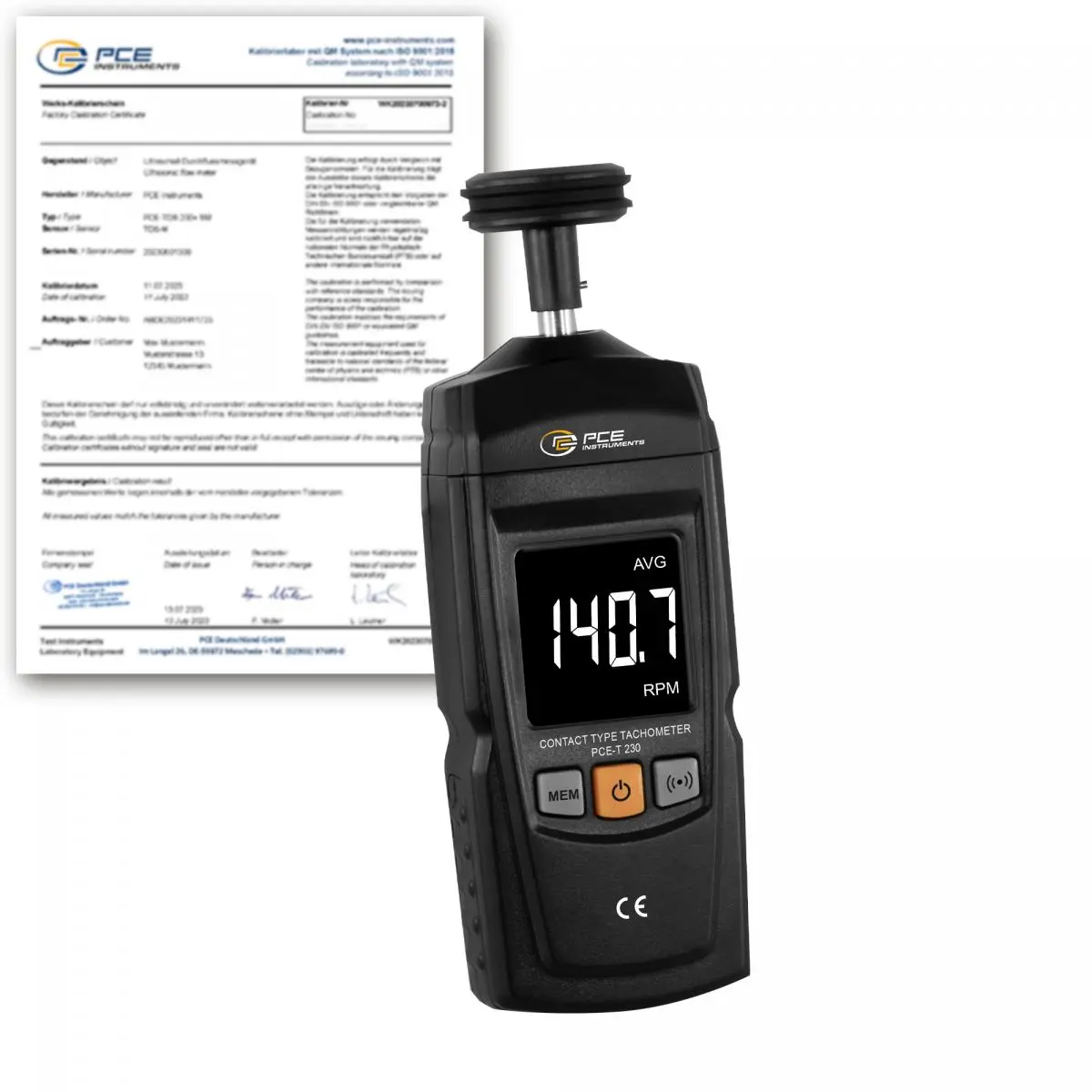

Tachometer PCE-T 230-ICA

Tachometer PCE-T 230-ICA incl. ISO-Calibration Certificate

Order no.: PCE-T 230-ICA
GTIN (EAN): 4250348740373
US$ 322.00
ISO Calibration
ex. Sales Tax, ex. delivery costs
:
4250348740373
PCE-T 230-ICA
Available in:5-7 working days
Your PCE Instruments Benefits
Bilingual Technical Support

Bilingual Technical Support (EN / ES)

Special Promotions

Special Promotions

Public Service, Military and First Responder Discount

Public Service, Military and First Responder Discount

30 Day Return Policy

30 Day Return Policy

2 Year Warranty

2 Year Warranty

Description

Tachometer / optical speed measurement / measuring functions: minimum, maximum, last, average value / automatic power off / battery operation

Our Tachometer with a measurement range of 0.5 ... 19999 rpm and a resolution of 0.1 rpm enables accurate and reliable measurements in many applications. With a sampling rate of 0.8 seconds, the Tachometer delivers quick results. It offers multiple measurement functions to choose from, including MAX, MIN, LAST and AVG, to capture different aspects of rotational speed measurement. The units can be flexibly selected between rpm, m/min and ft/min.

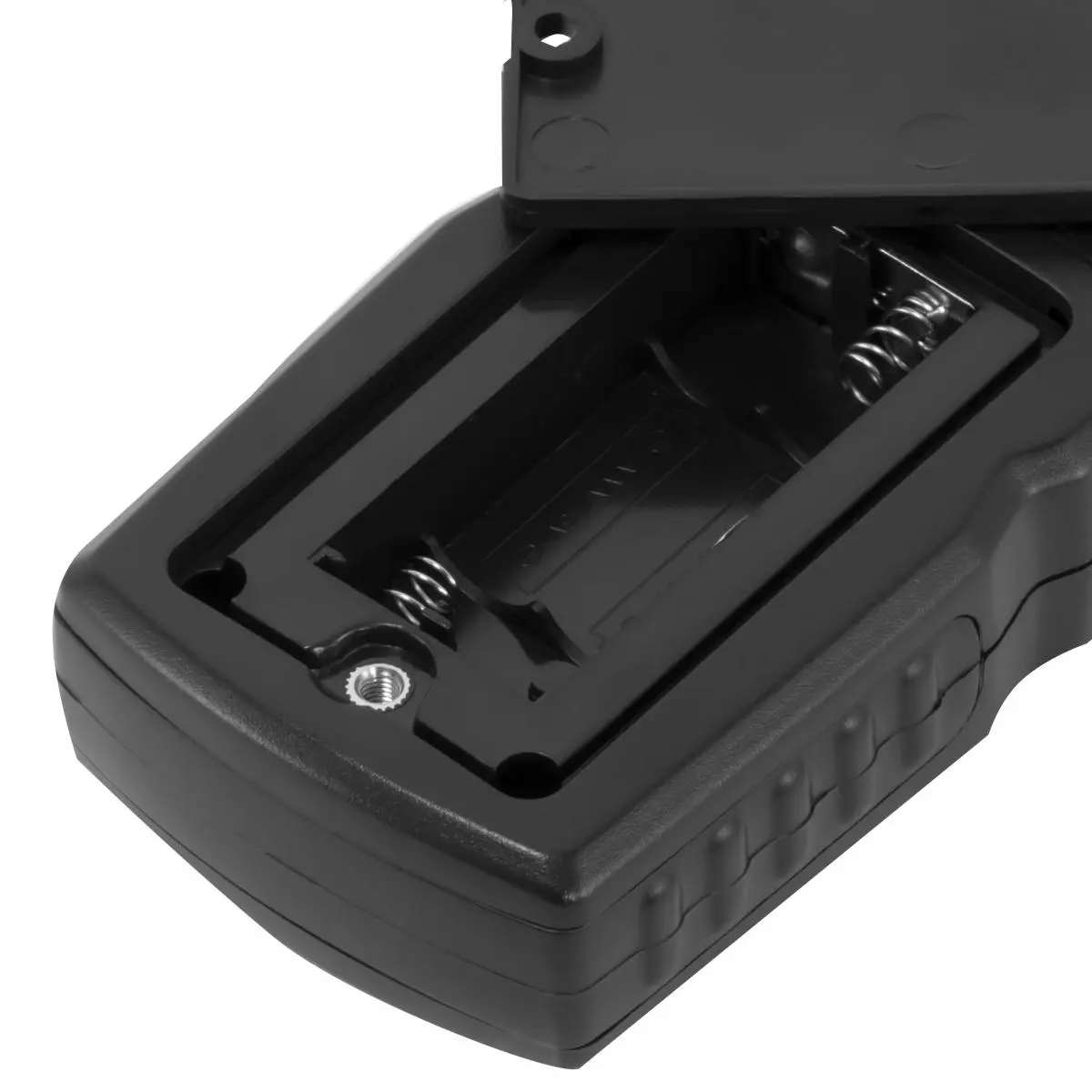

The Tachometer has a low battery indicator and is powered by two AAA batteries. Automatic power off after 60 seconds helps to save energy. The Tachometer fits compactly in the hand and can be operated using just three keys. The 1.8-inch LC display ensures that the measured values are clear and easy to read.

In addition to the Tachometer, the delivery scope includes an adaptor and four additional rubber pads for various measurements. These accessories extend the device's range of applications and make it a practical tool for users in various industries.


Highlights

- measuring functions: MAX, MIN, LAST, AVG
- units: rpm, m/min, ft/min
- sampling rate: 0.8 s
- automatic power off after 60 s
- 1.8-inch LC display
- incl. ISO-Calibration Certificate

Specification

Mechanical speed
Measuring range  0,5 ... 9,999 RPM
Resolution  0,1 RPM
Accuracy  0.05 % of Rd +1 digit

Mechanical speed
Measuring range  1 ... 19,999 RPM
Resolution  1 RPM
Accuracy  0.05 % of Rd +1 digit

General technical data
Measuring functions  MIN, MAX, LAST, AVG
Units  ft/min, m/min, RPM
Display type  LCD
Display size  1,8 in
Measuring rate  0,8 s
Automatic power-off  60 s
Menu language  English, English (GB)
Protection class (device)  IP20
(Rechargeable) battery  2 x 1,5 V AAA battery , Zinc carbon
Capacity  400 mAh
Operating conditions  0 ... 50 °C , 10 ... 90 % RH
Storage conditions  -10 ... 80 °C , 10 ... 75 % RH
Dimensions ( L x W x H )  144 x 51 x 30 mm
Weight  110 g

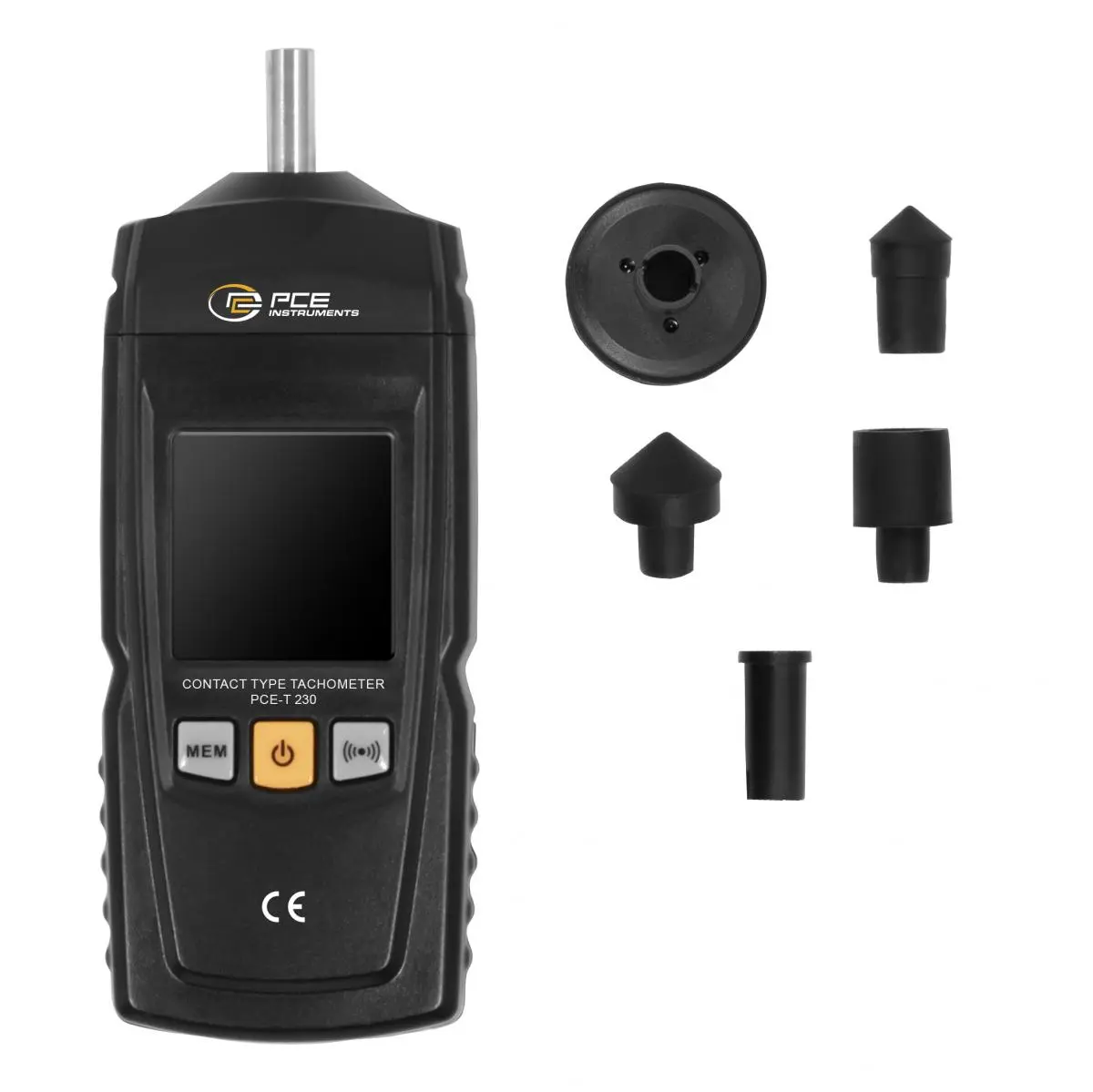

Delivery Scope

1 x Tachometer PCE-T 230-ICA
1 x adaptor wheel

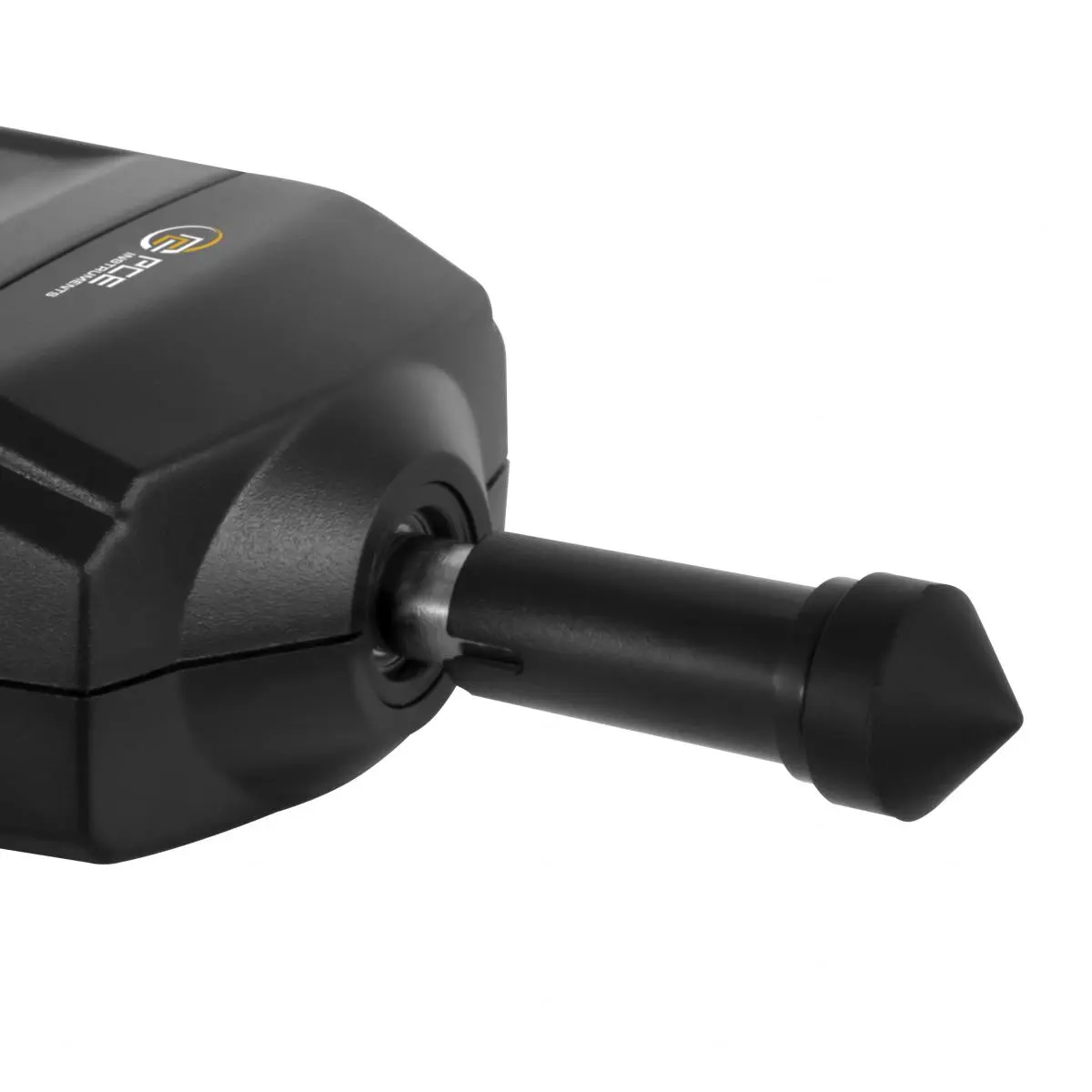

1 x small measuring tip (outer cone)
1 x large measuring tip (outer cone)
1 x hollow measuring tip (inner cone)
1 x measuring wheel Ø32 mm
1 x user manual
2 x 1.5 V AAA battery
1 x ISO-Calibration Certificate
