Spectrophotometer PCE-CSM 7

Order no.: PCE-CSM 7
US$ 4,554.00
ex. VAT, ex. delivery costs
Solids & liquids
Available in: 1-2 days

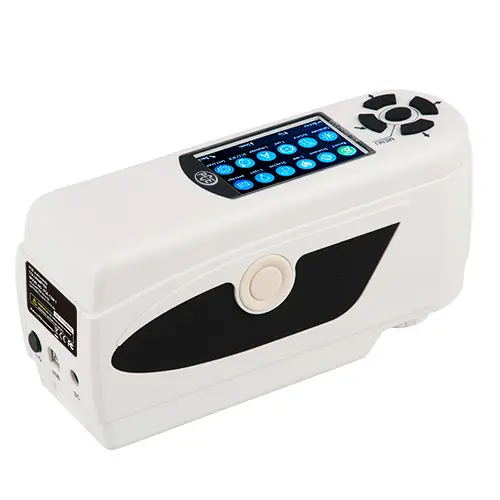

Spectrophotometer PCE-CSM 7
Automatic black and white calibration / Rechargeable battery / PC software included

PCE-CSM 7 is a portable Spectrophotometer used to measure different spectral parameters. This user-friendly, ergonomically designed Spectrophotometer automatically performs a white and black calibration when powered on. Suitable for manufacturing quality control and assurance as well as product research and development, the Spectrophotometer offers impressive measuring accuracy and comes manufacturer calibrated. An optional ISO calibration certificate can be acquired as an accessory for an additional fee. Useful for determining color difference, chromaticity index, color sample database management, and color difference cumulative analysis. Integrated camera/illumination locating for small samples.

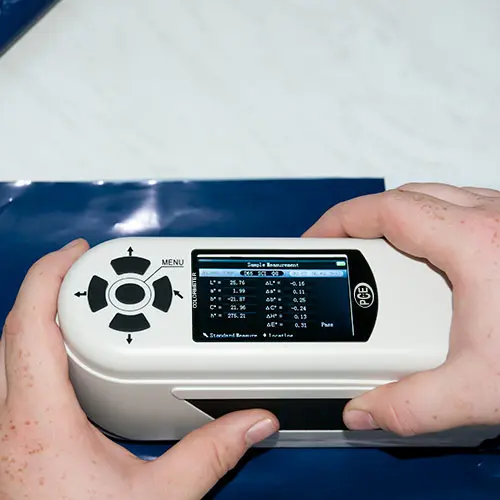

When using the color meter, different color spaces can be selected (CIEL*a*b*C*h*, CIEL*a*b*, CIEXYZ, CIERGB, CIEL*u*v*, CIEL*C*h + Yellowness + Whiteness + Color Fastness). The color meter also offers two different measuring apertures (Ø 4 mm and Ø 8 mm) for different applications. In addition to the individual color space coordinates, deviations between readings are displayed. For example, after taking a measurement with the PCE-CSM 7, a reading can be saved and used as a standard reference value against which other readings can be compared. Up to 100 reference values and up to 20,000 samples can be stored to the internal memory of the Spectrophotometer. The measured data can be transferred to a PC via USB and analyzed using the included PC-compatible software.

- Rechargeable Lithium-Ion battery

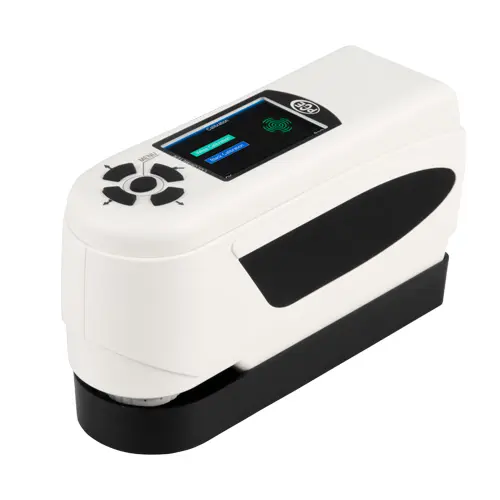

- Automatic white and black calibration
- Determines degree of whiteness and yellowness
- Different measurement modes for different colors
- Includes PC-compatible software for detailed color analysis
- Offers two different measuring apertures (Ø 4 mm and Ø 8 mm)
- Yellowness and Whiteness color fastness
- CIE 1976 and 1994 Delta options
- 3 light source options
- 8 mm extended aperture option for concave surfaces

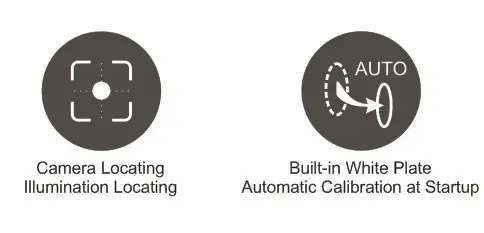

Camera/illumination locating for small samples

Illuminating / Viewing Geometry8/d
Measuring ApertureØ 4 mm / Ø 8 mm
DetectorSilicon photoelectric diode
Color SpaceCIEL*a*b*C*h
CIEL a* b*
CIEL u* v*
Yellowness & Whiteness Color Fastness
Color Difference FormulaΔE*ab; ΔL*ab; ΔE*C*H; ΔECIE94; ΔEHunter
Light SourceD65, D50, A
Light Source DeviceLED light excitation
Errors Between Devices<=0.40 ΔE*ab
Storage100 pcs. standards, 20,000 pcs. samples
RepeatabilityStandard deviation within ΔE*ab 0.06
Average of 30 measurements of standard white plate
Weight500 g / 1.11 lbs
Dimensions205 x 70 x 100 mm / 8 x 2.7 x 3.9"
Power SourceRechargeable Lithium-Ion battery 3.7 V
Charging Time2 hours
Measuring Times Before RechargingMore than 3000 times
Lamp Life5 years or more than 1.6 million measurements
Operating Temperature / Humidity Range-10 ... +40 °C / 14 ... 104 °F; 0 ... 85% relative humidity, non condensation

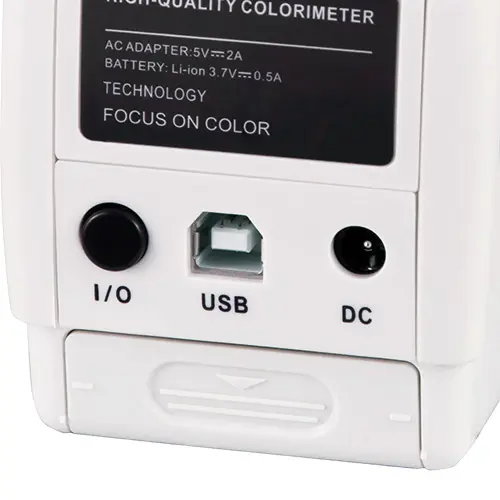

Data InterfaceUSB

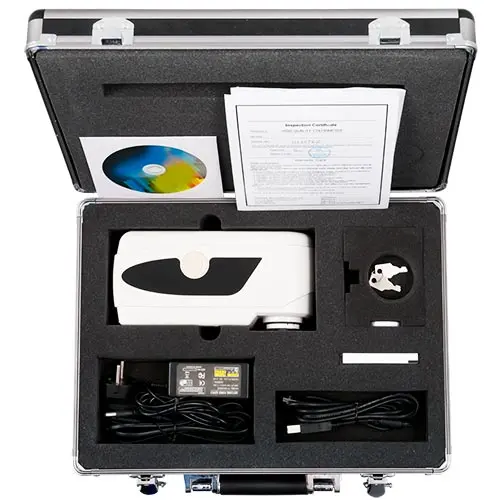

1 x PCE-CSM 7 Spectrophotometer
2 x apertures (Ø 4 mm and Ø 8 mm)

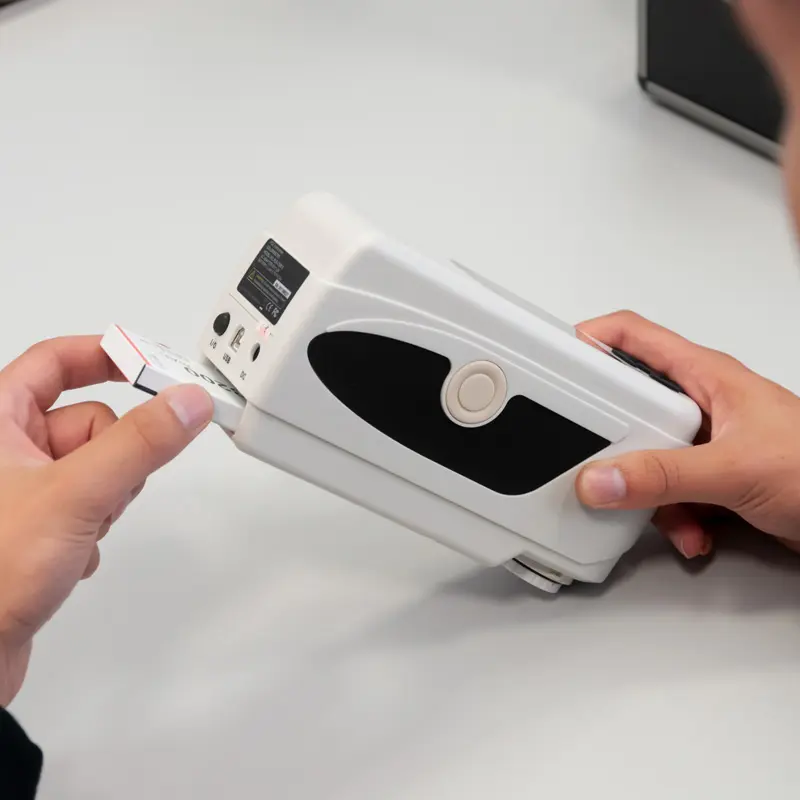

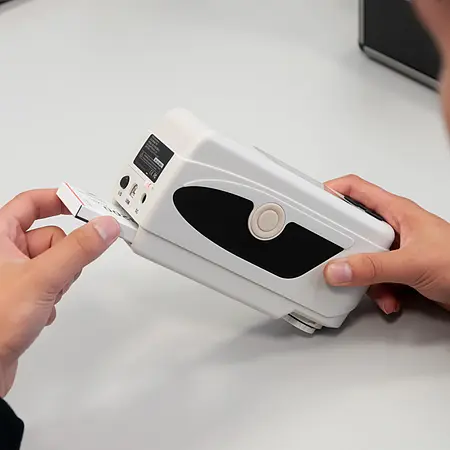

1 x rechargeable battery
1 x AC power adapter
1 x PC-compatible software
1 x user manual
1 x carrying case
1 x White calibration standard
