Data Logging Sound Level Meter PCE-322ALEQ

Order no.: PCE-322ALEQ
Topseller
US$ 561.00
4250348719775
PCE-322ALEQ
ex. VAT, ex. delivery costs
A / C
Fast / Slow
No
Available in: 1-2 days
Class II Data Logging Sound Level Meter PCE-322ALEQ with logger function / USB interface / Measuring range 30 ... 130 dB / LC display / incl. software for LEQ calculation / Memory for up to 32700 values

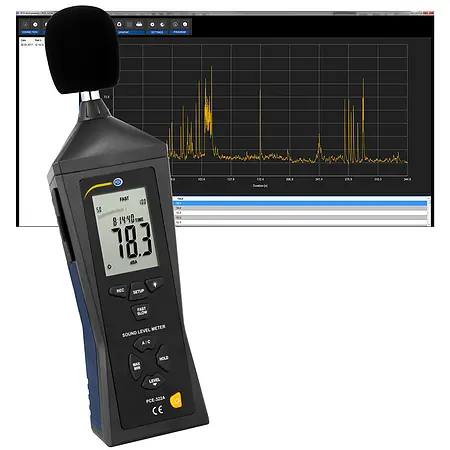

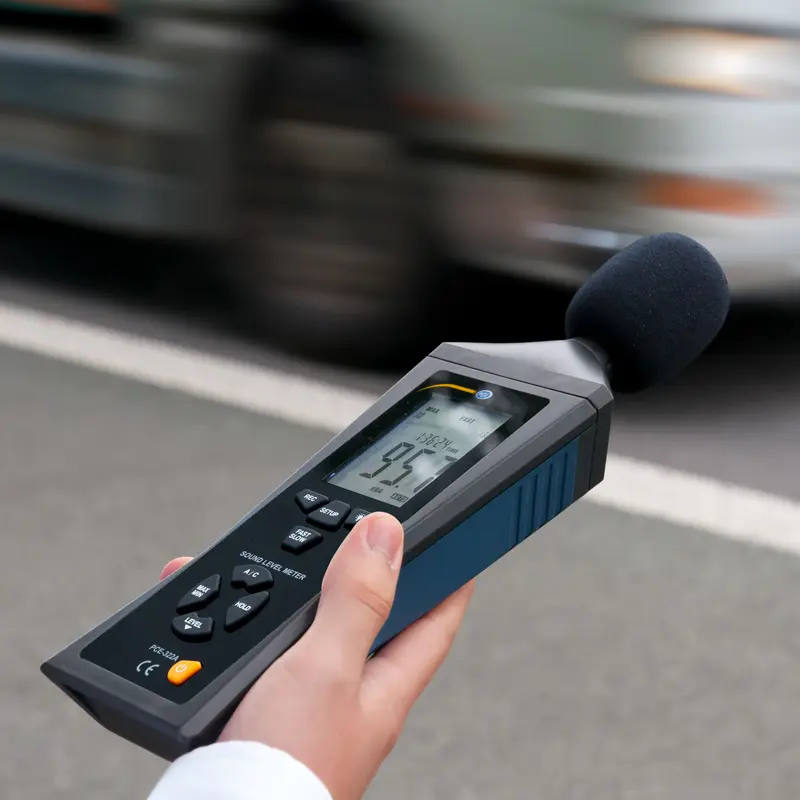

The data logging sound level meter PCE-322ALEQ is particularly suitable for measuring noise in the field of industrial, health, safety and environmental monitoring. The PCE-322ALEQ sound level meter / noise level meter has a logger function, which allows storage of up to 32700 readings. This makes it ideal for long term monitoring. The sound level meter / noise level meter PCE-322A can be connected to the PC with a USB cable.

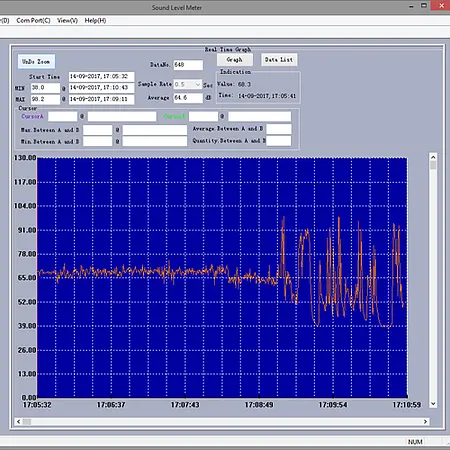

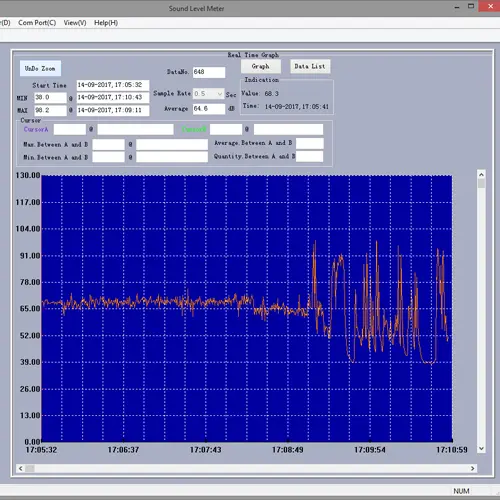

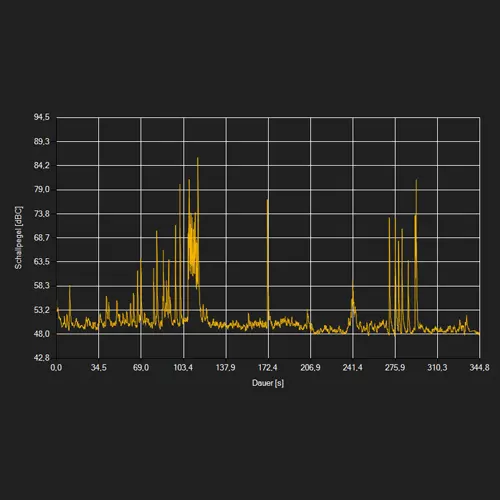

A live measurement is also possible with the data logging sound level meter and the data can be viewed directly and can be evaluated. The software provides data representation in graphic formats and tables. This data can be transferred, for example, to MS Excel. The sound level meter has an analogue output and offers further features that are unique in its class.


- Measuring range 30 ... 130 dB
- Resolution 0.1 dB
- USB port for data transfer
- 32700 value memory
- Fast and slow time weighting
- Date- and time-stamped measurements
- Robust ABS plastic housing
- Large LCD
- LEQ calculation via software

Noise levels Low 30 ... 80 dB
Medium 50 ... 100 dB
High 80 ... 130 dB
Auto 30 ... 130 dB
Dynamic range 50 dB

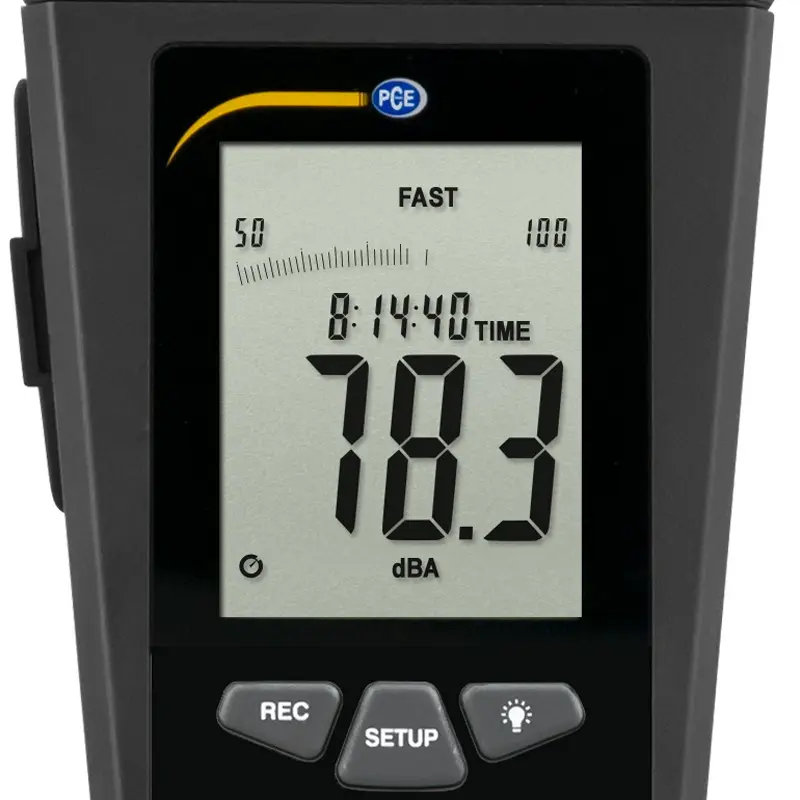

Display 4-digit LCD
Resolution 0.1 dB
Accuracy ±1.4 dB
Display update 2 x per second
Frequency 31.5 Hz ... 8 kHz
Storage capacity 32,700 readings (9 hours @ 1 second interval)
Frequency weighting A and C
Time weighting fast (125 ms)
slow (1 sec.)
Microphone type Electret condenser
Functions MIN, MAX, HOLD, ALARM

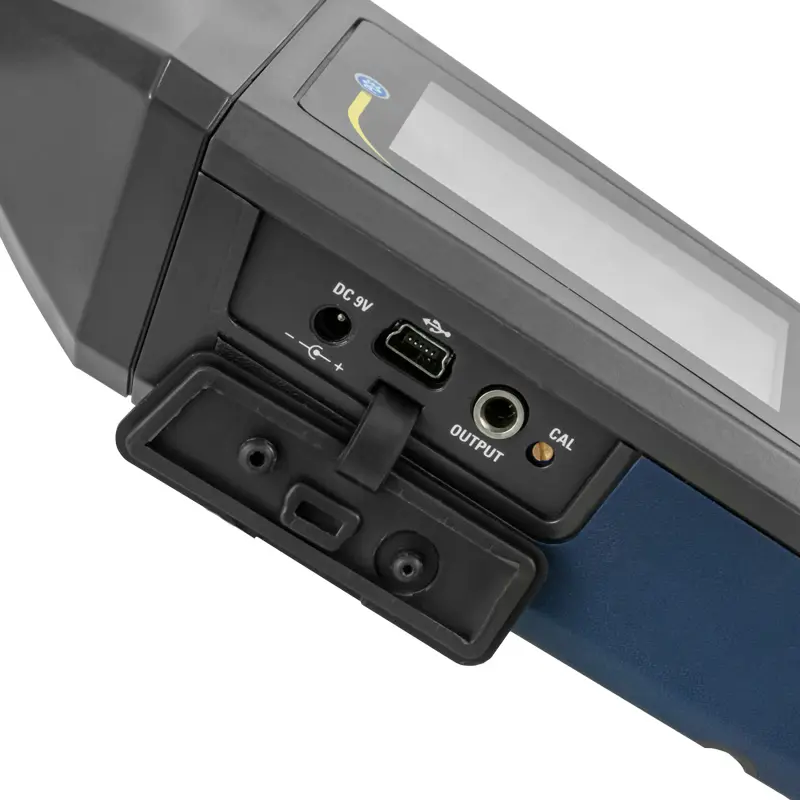

Analog output AC/DC
Headphone
Data interface USB
Automatic shutdown after 15 minutes inactivity
Operating conditions 0 ... +40 °C / +32 ... +104 °F, < 90 % RH
Storage conditions -10 ... +60 °C / +14 ... +140 °F, 10 ... 75 % RH
Power supply 9 V block battery (for approx. 30 h continuous operation)
AC power
Dimensions 280 x 95 x 45 mm / 11.02 x 3.74 x 1.77"
Weight ca. 350 g / 0.78 lb
Standards IEC 61672-1 (Class II)

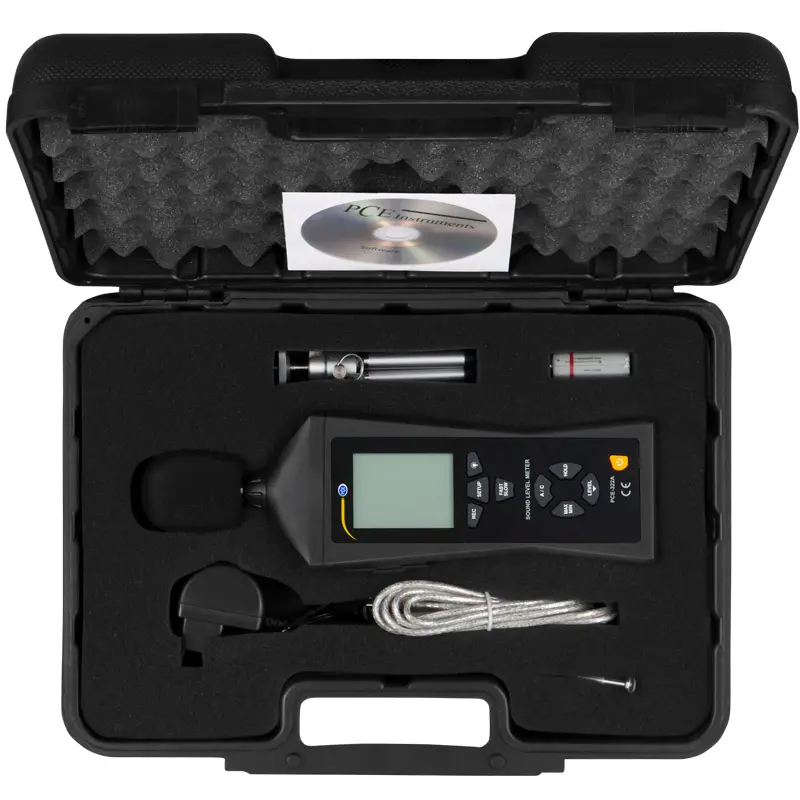

1 x Data Logging Sound Level Meter PCE-322ALEQ
1 x PCE-SOFT-LEQ software (LEQ calculation) + manual
1 x Wind noise suppressor
1 x Interface cable

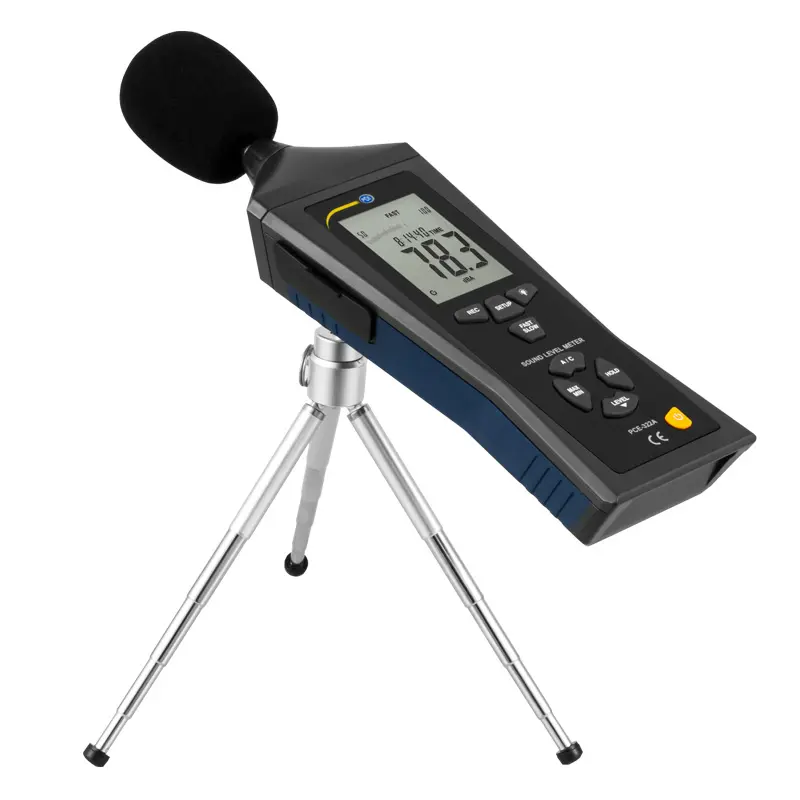

1 x Mini tripod
1 x Calibration screwdriver
1 x Battery
1 x Power adapter
1 x Carrying case
1 x Operation manual


Important! The LEQ value is only calculated by the software after the data transfer from the device to the PC or laptop.

Accessories

Order no.: PCE-SC 09
Class 1 Sound Level Calibrator PCE-SC 09
The Class I Sound Level Calibrator is a battery powered sound source. With the Class I sound level calibrator, direct and fast calibrations of sound level meters and other systems for noise measurement can be carried out.

- Sound pressure level: 94 dB, 114 dB
- Accuracy class: IEC 942, class 1
- Accuracy sound level: ± 0.3 dB (20°C / 68°C, 760 mm / 30 in Hg)
- Frequency: 1000 Hz for A, B, C and D frequency weighting
Catalogue: Measuring Instruments / Test Meters / Process Calibrator
US$ 654.00

ex. VAT, ex. delivery costs

Test Instruments manufacturer
Order no.: PCE-SC 43
Class 2 Sound Level Calibrator PCE-SC 43
The calibration frequency for the class II sound level calibrator is 1000 Hz and is a sinusoidal shape. Compared to other calibrators, this class II sound level calibrator has three adjustable sound pressure levels. 94 dB, 104 dB and 114 dB are available and can be selected by pressing a button on the class II sound level calibrator.

- Sound pressure level 94, 104, 114 db
- For weighting filters A, B, C and D
- 1/2 inch microphone connection
- Class II
Catalogue: Measuring Instruments / Test Meters / Process Calibrator
US$ 152.00

ex. VAT, ex. delivery costs

Test Instruments manufacturer
Order no.: PCE-SC 09 1/4'' Adapter
Adapter attachment PCE-SC 09 1/4" adapter
In order to calibrate sound measuring devices with a diameter of 1/4 inch with the sound calibrator, there is a suitable 1/4 inch adapter

- Adapter: 1/4 inch
US$ 115.00

ex. VAT, ex. delivery costs

Test Instruments manufacturer
Order no.: MINI-STAT
Mini Tripod for Various Measuring Devices
The tripod is equipped with a 3/8" tripod thread and is suitable for many measuring devices. Ideal for precise and long-term measurements.

- Features a 3/8" thread connection
- Offers a robust aluminum construction
- Includes 3 legs and a rotary adaptor plate
Catalogue: Measuring Instruments / Test Meters / Laser Distance Meter
US$ 21.00

ex. VAT, ex. delivery costs

Test Instruments manufacturer
Order no.: PCE-LEQ-SOFT
Software for PCE-322ALEQ

Software for PCE-322ALEQ and PCE-322ALEQ-ICA. Software for sound level meters for reading the data and transmitting to a PC or laptop. The requirements are:


- Windows operating system from Windows XP SP3
- USB port (2.0 or higher).
- An installed .NET Framework 4.0
- A minimum resolution of 800x600 pixels
- Processor: at least 1 GHz
- 4 GB of RAM is recommended
- CD-ROM driver
- Optional: a printer
- Software license usable on 1 PC only


Important! The LEQ value is only calculated by the software after the data transfer from the device to the PC or laptop!

Catalogue: Measuring Instruments / Test Meters / Environmental Meter
US$ 350.00

ex. VAT, ex. delivery costs

Test Instruments manufacturer
Order no.: STAT

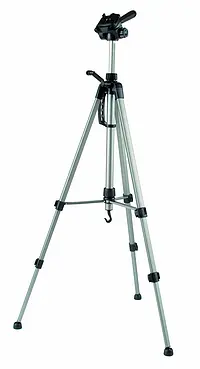

Tripod STAT
