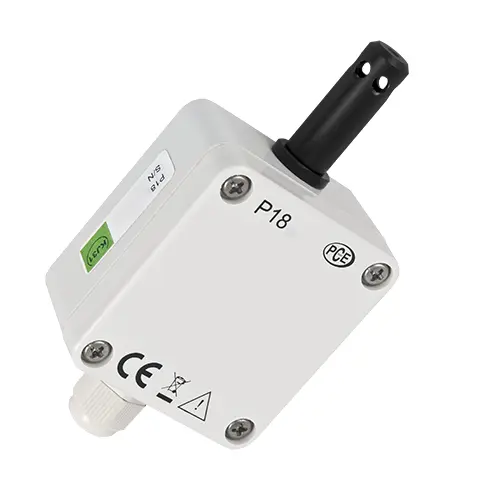

Relative Humidity Meter PCE-P18 0...10V

Order no.: PCE-P18-2A0E0

US$ 211.00
ex. VAT, ex. delivery costs
Available in: 1-2 days
Humidity sensor measures temperature and air humidity / output as standard signal / compact / Modbus RTU interface / wall fastening

The relative humidity meter can be used to monitor air humidity and temperature in HVAC engineering. The relative humidity meter releases the measured indicator as a standard signal 0…10 V (not galvanic isolated). Air humidity and temperature are detected accurately due to a semiconductor. For operation the relative humidity meter is supplied via direct current. The measuring data is then shown via a two-wire line. All connections are made via screwed-contacts with water-proof IP 65 enclosure.

Aside from displaying the signal as a 0…10 V signal the measuring data can also be read through a RS485 interface. This feature is especially useful if different measuring points are to be connected during your building monitoring. For further information about the relative humidity meter please read the following technical data or use our contact form. Our engineers and technicians will gladly advise you regarding the relative humidity meter PCE-P18-3 or any other of PCE Instruments product in the areas of regulation and control or scales and balances.

- Humidity- and temperature-sensor
- 0…10 V output
- Simple wall fastening
- RS-485 interface
- For constant monitoring
- Different filters deliverable
- Small measuring
- Modbus RTU

Technical data humidity sensor PCE-P18-3
Measuring range0 ... 100 %RH
Accuracy± 2 % (for range of 10 % .... 90 % RH)
± 3 % (residual range)
Hysteresis± 1 % RH
Measuring range- 20 ... 60 °C
Accuracy± 0.5 % of measuring range
Temperature influence± 25 % / 10 °C
Output humidity sensor
Output signal0...10 V
Data interfaceRS-485 Modbus RTU
Mode of transmission8N1, 8N2, 8E1, 8O1
Signal rate4800 Bit/s
9600 Bit/s
19200 Bit/s
38400 Bit/s
57600 Bit/s
General technical data humidity sensor
Voltage supply19 V ... 30 V DC
Power< 1.5 W
Surrounding temperature- 30 °C ... 85 °C
Max. air humidity≤ 95 % RH
Preheating time15 minutes
Protection gradeIP 65
Montagewall montage
Measures (AxHxD)35 x 58 x 118 mm
Weight125 g

1 x humidity sensor PCE-P18-3
1 x instruction manual

Available variations of humidity sensor PCE-P18

Humidity sensor PCE-P18-1RS-485 Modbus Interface
Humidity sensor PCE-P18-2
Humidity sensor PCE-P18-3

RS-482 Modbus interface with 4…20 mA output
RS-485 Modbus Interface with 0...10 V output
