Order no.: PCE-UV34

Radiation Meter UVA/UVB PCE-UV34

US$ 288.00
ex. VAT, ex. delivery costs
Available in: 1-2 days

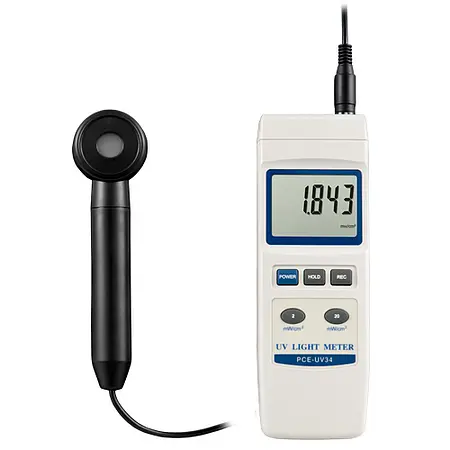

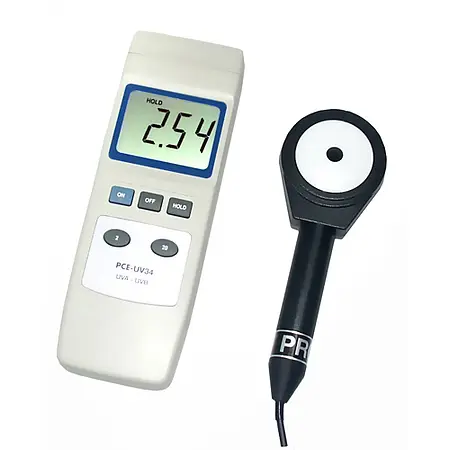

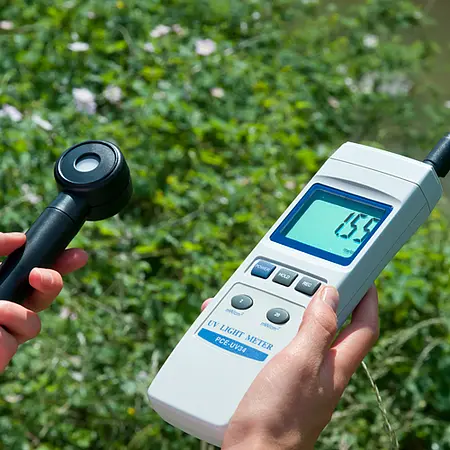

PCE-UV34 UVA/UVB Radiation Meter

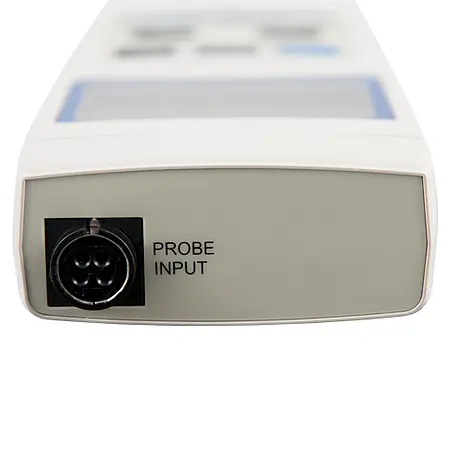

measures radiation UV, with an external sensor

The PCE-UV34 Radiation Meter is a device used to measure UVA and UVB radiation. This accurate device operates on a wave length of 290 to 390nm. With this Radiation Meter you can measure UVA radiation from the sun or in tanning salons in order to protect yourself from damage of  high exposure and possible sunburn. With the industrial sector we frequently find elevated UVA radiation level, such as the arc light used in soldering. The UV Radiation Meter is very versitile thanks to its external sensor. Other fields of use are the sterilization of UVA rays, photo chemical compensation, in virology laboratories or in DNA research


- Two measurement ranges:
- 0.000 to 1.999 mW/cm2 or 0.000 to 19.9 W/m²
- 1.999 to 19.99 mW/cm2  or 19.99 to 199.9 W/m²

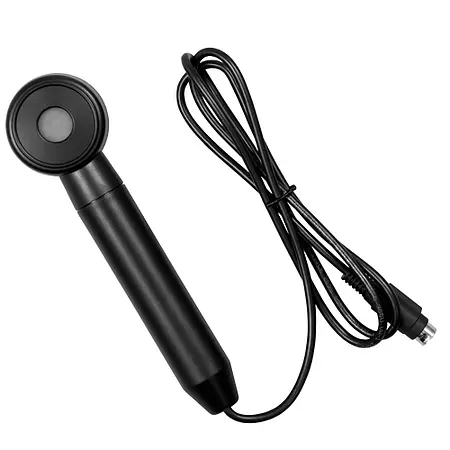

- External sensor with UV correcting filter
- Auto after 10 minutes of inactivity to conserve battery power
- Large LCD
- Minimum, Maximum and Data Hold functions
- compact design


Ranges0.000 to 1.999 mW/cm² or 0.000 to 19.9 W/m²
1.999 to 19.99 mW/cm² or or 19.99 to 199.9 W/m²
Resolution0.001 mW/cm²
Accuracy±4% + 2 positions
Response time0.4 s
Wave lengthWide band of 290 to 390nm
Zero resetBy pressing a key
Light sensorPhotodiode with UV correcting filter
MemoryMinimum, maximum and hold values
Auto shut-offAutomatic after 10 minutes of inactivity
Display22 mm / 0.9 in LCD
Over range indicator"- - - -"
Operating conditions    0 to 50°C / 32 ... 122°F max. 80% r.h.
Power9V battery
DimensionsDevice: 68 x 200 x 30 mm / 2.7 x 7.9 x 1.2 in
Light sensor: 68 x 60 x 27 mm / 2.7 x 2.4 x 1.1 in
Weight220 g / < 1 lb (with battery)

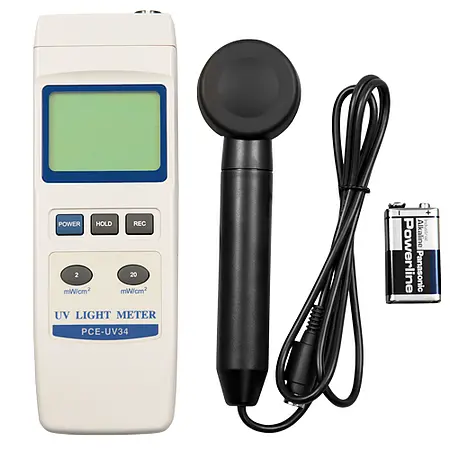

Delivery Scope

1 x PCE-UV34 Radiation Meter
1 x Combined UV sensor
1 x 9V battery
1 x User's manual
