Pyrometer with double laser for better orientation /.
measuring range -50 ... +760 °C / display with backlight /emission value adjustable /
individually adjustable limit value alarms MAX/MIN / optionally with ISO calibration certificate

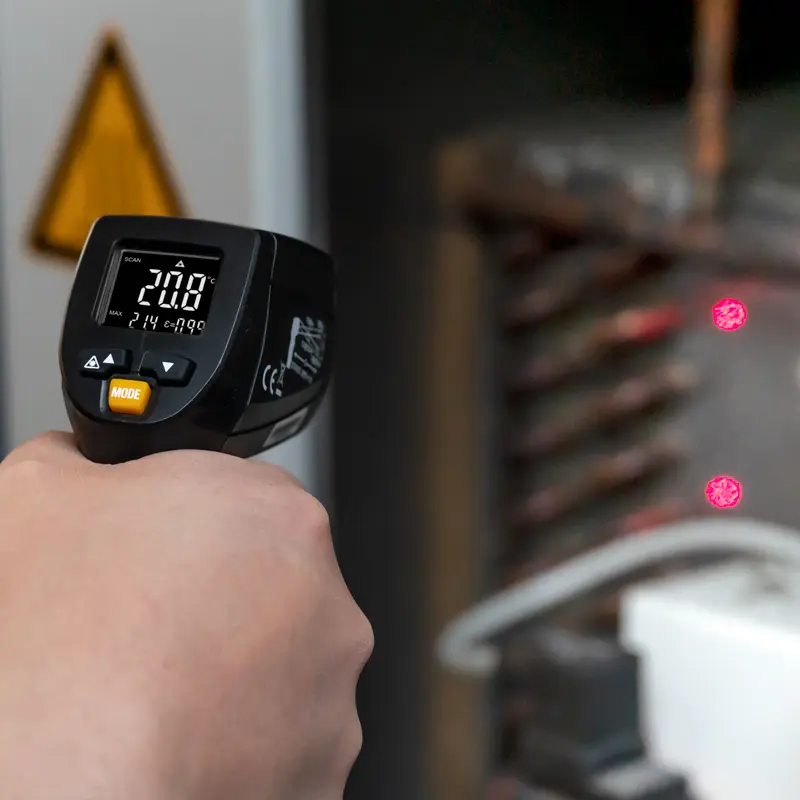

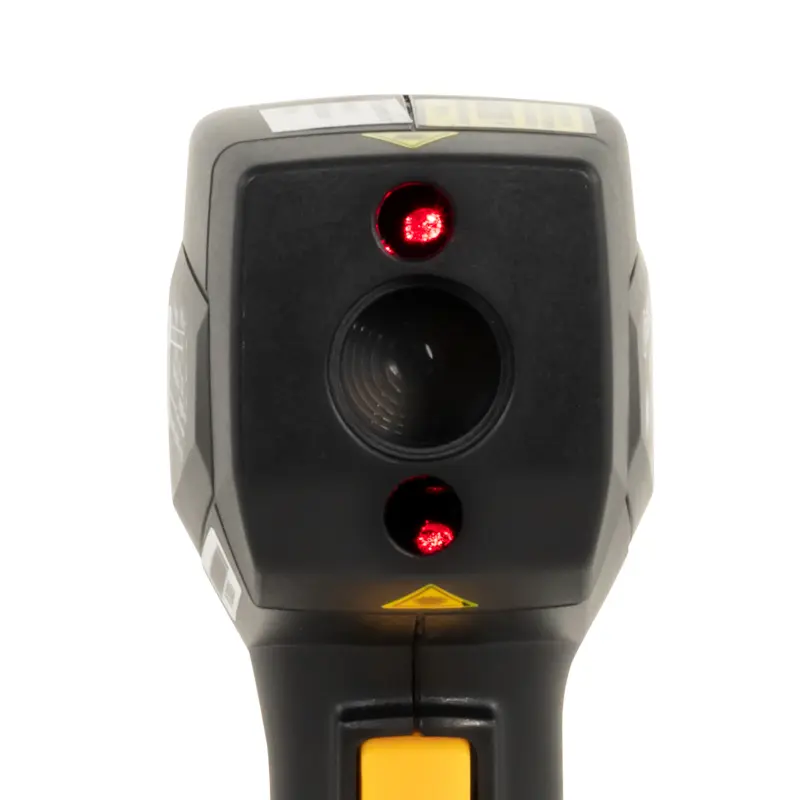

The pyrometer has a measuring range of -50 ... +760 °C and thus covers a wide temperature range. With an accuracy of ±2 % ±2 °C at 20 ... 760 °C the pyrometer is a very precise measuring instrument. For better orientation of the measuring spot, two lasers are built into the pyrometer. Both lasers have an output power of <1 mW. To determine different surfaces with the pyrometer, the emission value can be set between 0.10 ... 1.00.
With the limit value alarm function on the pyrometer, a minimum temperature and a maximum temperature can be set individually. If the set limit value is exceeded or undershot during a measurement with the pyrometer. This is immediately signalled acoustically and visually by the pyrometer.
To switch on the pyrometer, the measuring button must be pressed. The pyrometer will then immediately start measuring. When the key is released, the last value remains on the pyrometer display until a new measurement is taken. Optionally, the pyrometer can be equipped with an ISO calibration certificate.
- Measuring range -50 ... +760 °C
- Double laser for better orientation
- Limit value alarm MAX / MIN
- adjustable emission value
- backlit display
- optionally with ISO calibration certificate
