Profilometer PCE-RT 2200-ICA Incl. ISO Calibration Certificate

Order no.: PCE-RT 2200-ICA
ISO Calibration
US$ 2,847.00
4250348726650
PCE-RT 2200-ICA
ex. VAT, ex. delivery costs
Available in: 10 - 14 days
Profilometer with large graphic OLED display / rechargeable battery
Storage of up to 20 measurement processes / extensive number of parameters / micro-USB interface for charging the battery and reading out the memory / Incl. ISO Calibration

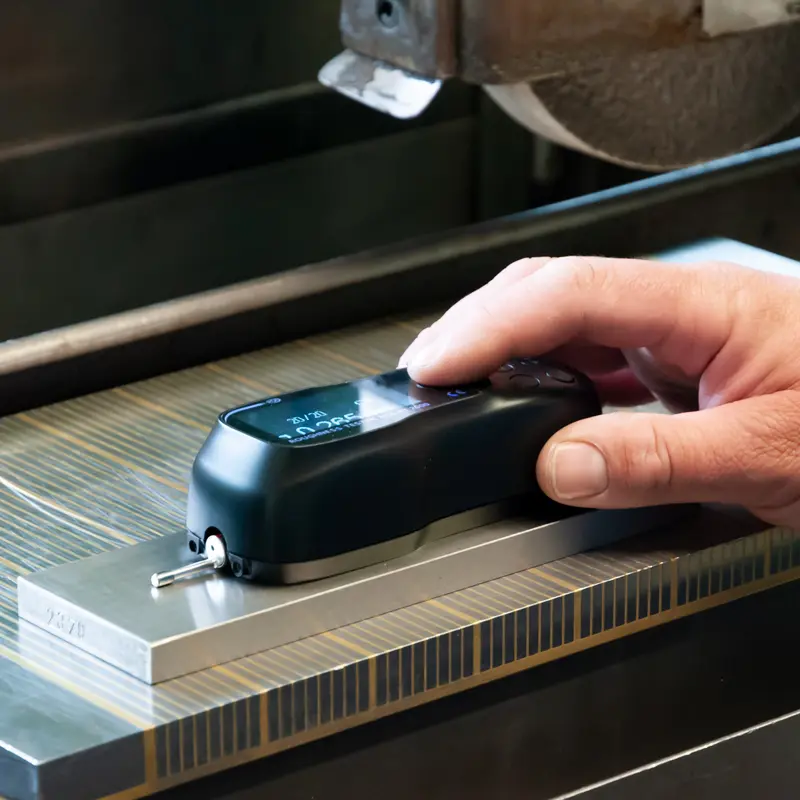

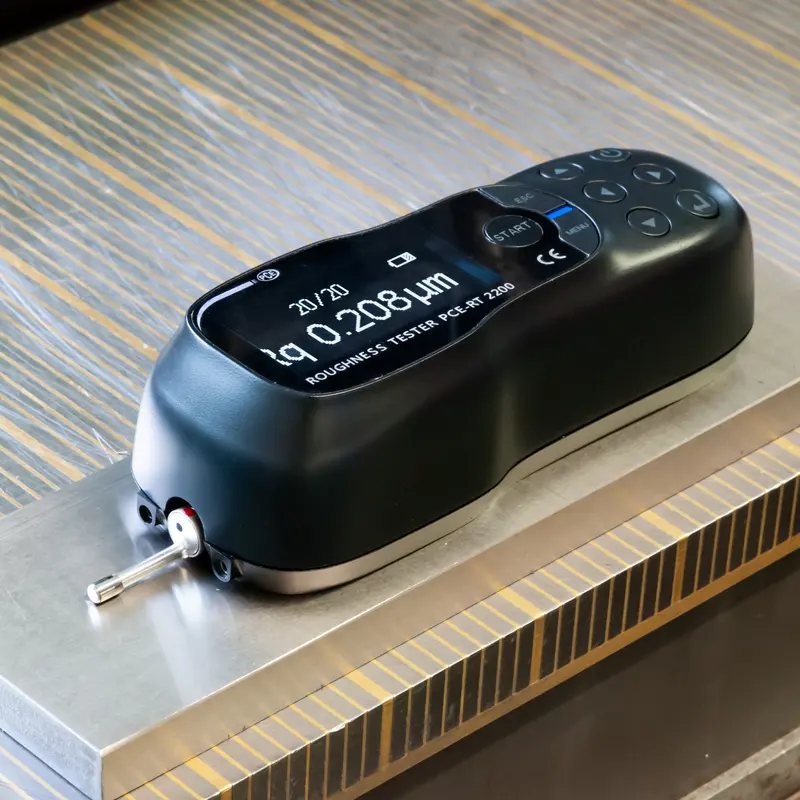

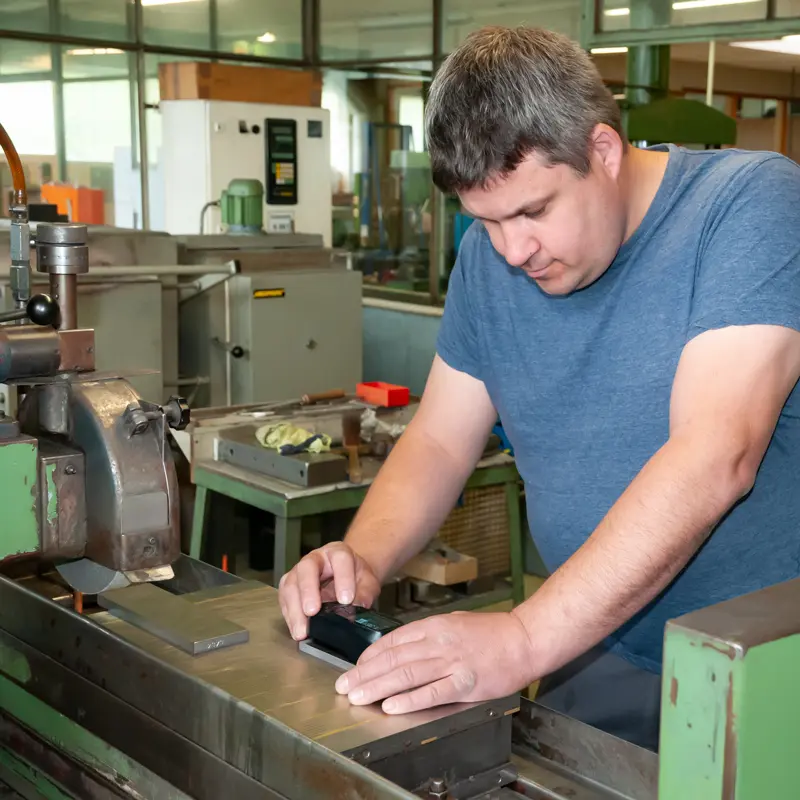

The portable and easy-to-use profilometer with its large OLED display is particularly suitable for quick and precise measurements in the workshop or laboratory. This roughness meter uses a DSP chip for control and data processing at high speed and with low energy consumption. In addition, you have a large selection of measurement parameters for the roughness measuring device: Ra, Rq, Rsm, Rsk, Rz, Rt, Rp, Rv, Rc, Rmax, Ry (JIS), Rz (JIS), RP (ASME), Rpm (ASME ), Rv (ASME), R3z, R3zmax, Rz1max, Rmr (c), Rdc, Rmr.

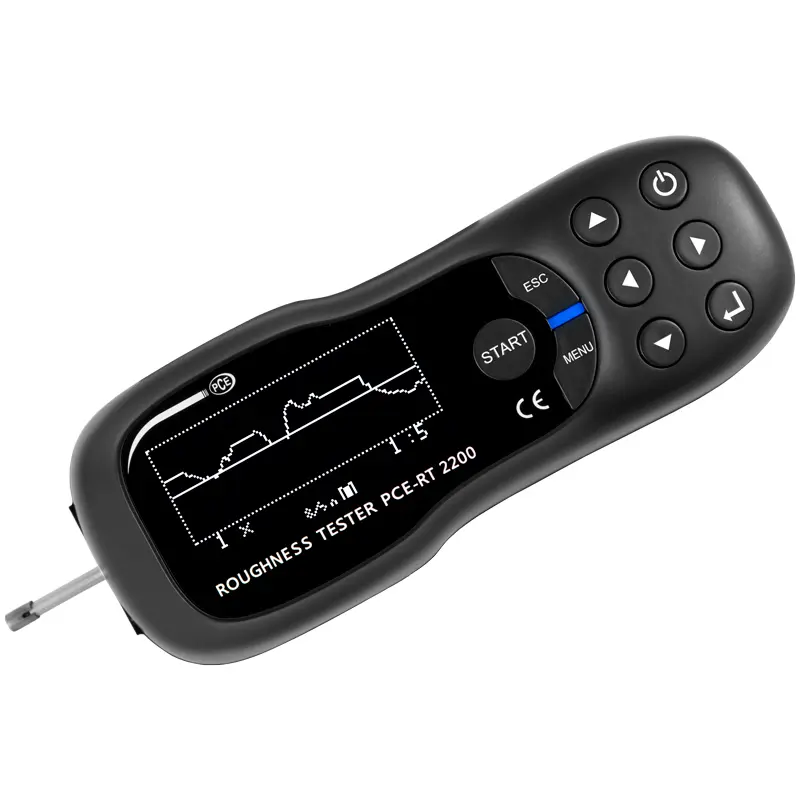

The measurements are automatically stored in the internal memory of the roughness meter. The stored data can then be transferred to a PC via the micro-USB interface on the roughness measuring device and analyzed using the software. It is also possible to have the data displayed on the OLED display of the roughness measuring device after a measurement. Even the wave course can be shown on the display of the roughness meter.

It often happens that the contact surface of the test piece is too small for a roughness measuring device to position the roughness measuring device appropriately for a measurement. For such cases, a positioning adapter is included with this roughness measuring device. Thus, the roughness measuring device also enables measurements on small samples.

- Selection of 21 parameters

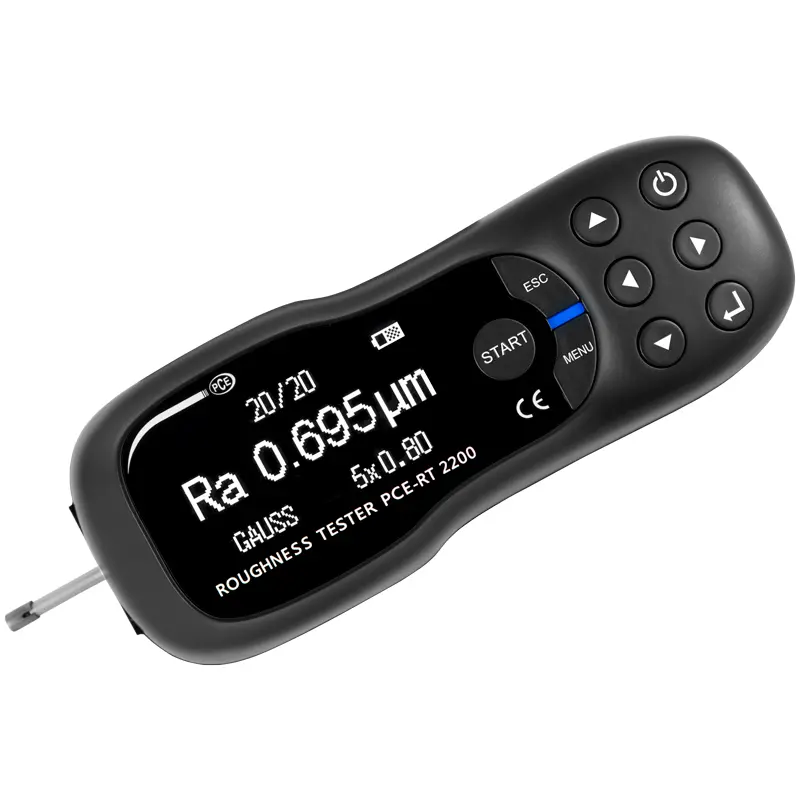

- Large graphic OLED display
- Fast and accurate measurement
- 3 different cut-off wavelengths

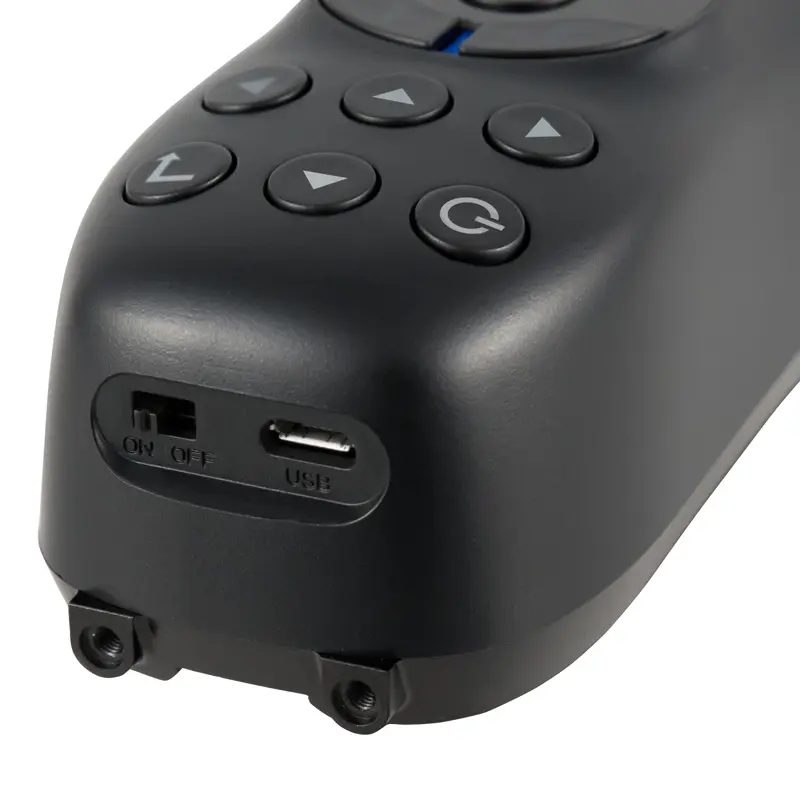

- Micro-USB interface for PC connection
- Storage of 20 measurement curves
- Incl. ISO calibration certificate
ParameterRa, Rq, Rsm, Rsk, Rz, Rt, Rp, Rv, Rc, Rmax, Ry(JIS),

Rz(JIS), RP(ASME), Rpm(ASME), Rv(ASME),

R3z, R3zmax, Rz1max, Rmr(c), Rdc, Rmr


Measuring rangeRa, Rq, Rc: 0.005 ... 16 µm

Rsm: 5 ... 1000 µm

Rsk: -1 ... 1

Rz, Rt, Rp, Rv, Rmax, Ry(JIS), Rz(JIS),RP(ASME),

Rpm(ASME), Rv(ASME), R3z, R3zmax, Rz1max,

Rdc: 0.02 ... 200 µm Rmr(c), Rmr: 0 ... 100 %

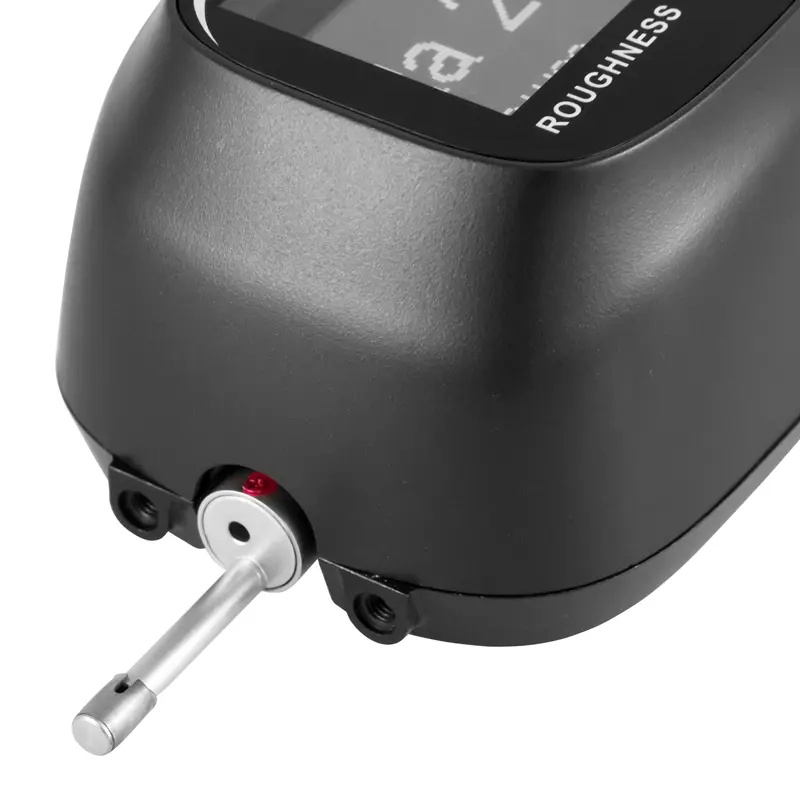

Probe tip radius5 µm
Probe tip material diamond, 90° angled
Max.recommended force4 mN (0.4 gf)
with static measurement
Measuring principleinductive
Radius of the longitudinal guide rail  45 mm
StandardsANSIB46.1/ASMEB46.1 (DIN EN ISO 4287)
Maximum travel distance15 mm
Cut off wavelength0.25 mm / 0.8 mm / 2.5 mm
Scanning speed0.135 mm/s at cutoff wavelength: 0.25 mm

0.5 mm/s at cutoff wavelength: 0.8 mm

1 mm/s at cut-off wavelength: 2.5 mm

Return speed: 1 mm/s
Memory20 measurement runs with all parameters
Measurement accuracy<±10 %
Repeatability<6 %
DisplayOLED
Unitsμm / μinch (switchable)
InterfaceMicro USB
Power supplyrechargeable Li-ion battery

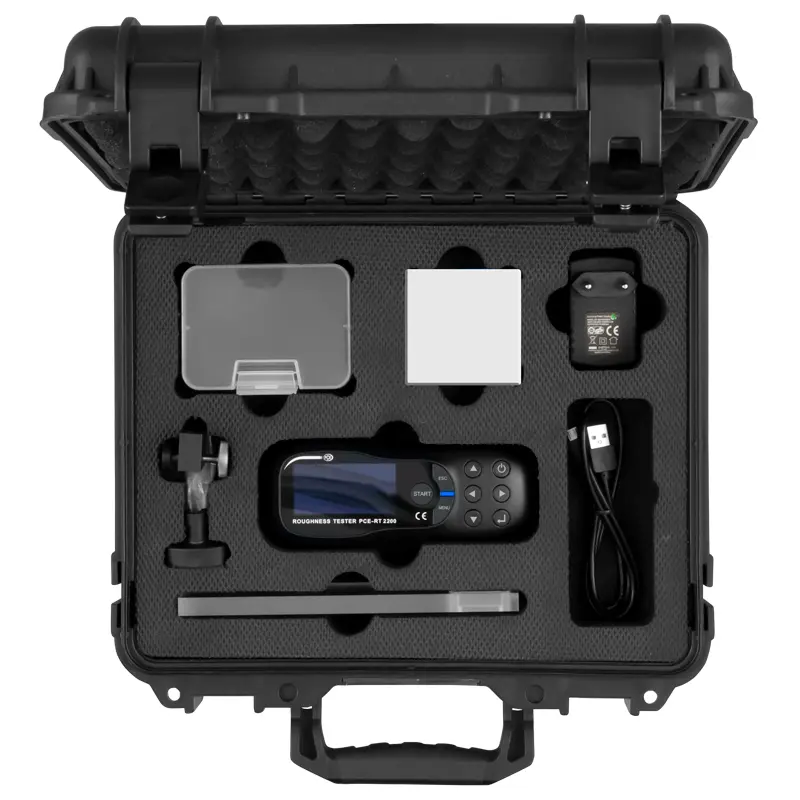

1 x Profilometer PCE-RT 2200-ICA
1 x Micro probe
1 x Protective cap for probe

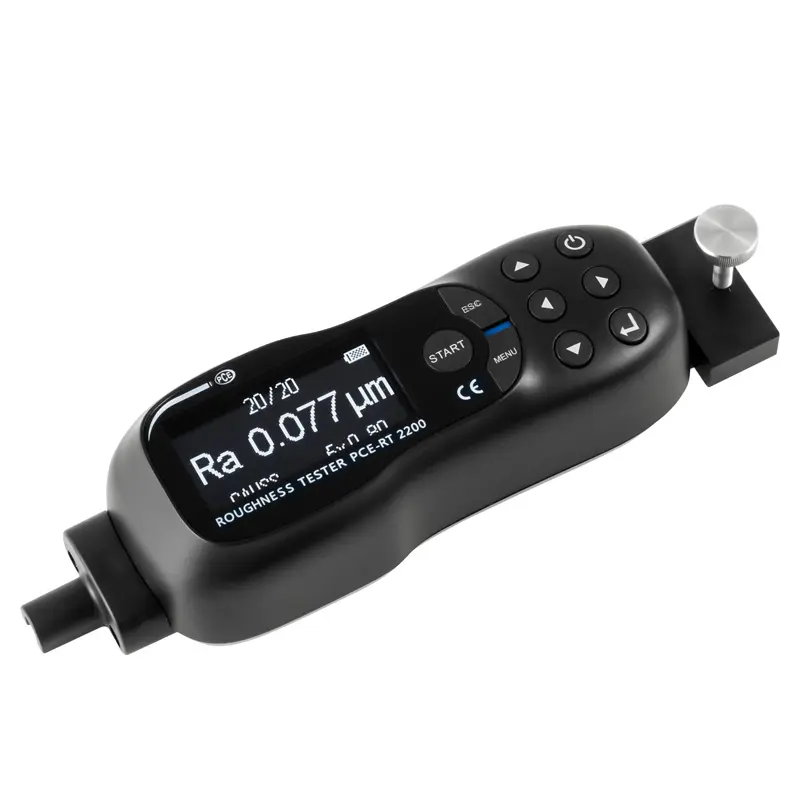

1 x Positioning device
1 x Calibration plate
1 x Roughness standard
1 x USB cable
1 x Charging adapter
1 x Carrying case
1 x Instruction manual

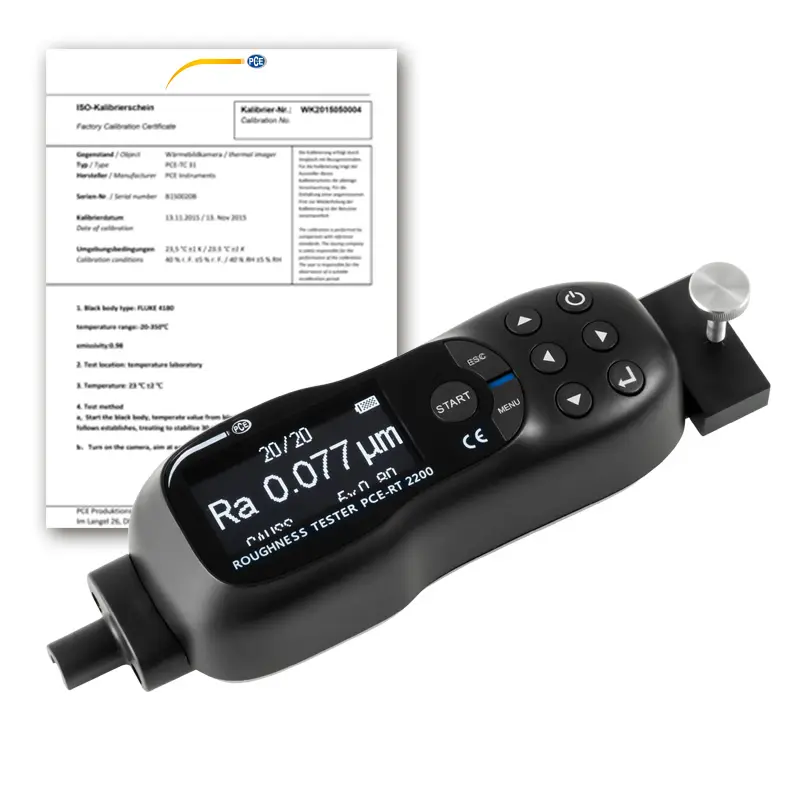

1 x ISO calibration certificate

N.B. Calibration certificates are issued specifically for the customer and are excluded from the right of return.


Accessories

Order no.: RE-CAL-PCE-RT
Re-Calibration Certificate RE-CAL-PCE-RT for Roughness



ISO re-calibration for roughness measuring instruments is often required to comply with DIN ISO 9000. If your calibration certificate expires or has expired, you can easily return your meter for re-calibration. We carry out the calibration and send you the device with a new calibration certificate. RE-CAL-PCE-RT includes calibration of the instrument in accordance with applicable ISO standard(s), along with documentation containing all readings taken.

**US calibration certificate is ISO 17025**

Each calibration certificate is issued especially for the customer and instrument, and therefore is exempt from the right of return.







Manufacturer: Exova Metech GmbH ( Caldi )
US$ 303.00

ex. VAT, ex. delivery costs

Test Instruments manufacturer
Order no.: PCE-RT2000-Teststand
Test Stand for Roughness Tester
Test stand for PCE-RT 1200, PCE-RT 2000 and PCE-RT 2200. The test stand can be used to mount the roughness meter. The test stand allows precise positioning of the probe on the test item.

- Test stand for mounting PCE-RT 1200, PCE-RT 2000 and PCE-RT 2200
- In combination with PCE-RT2000-RP110 and PCE-RT2000-RP131
Catalogue: Measuring Instruments / Test Meters / Roughness Tester
Manufacturer: PCE Instruments
US$ 1,109.00

ex. VAT, ex. delivery costs

Test Instruments manufacturer
Order no.: PCE-RT2000-RP131
Groove Sensor PCE-RT2000-RP131

Probe for the PCE-RT 1200 and PCE-RT 2000 for measuring the roughness of grooves.

- Probe for grooves
- Width > 2.5 mm
- Depth < 10 mm


N.B. It is recommended to use this sensor with the test stand PCE-RT2000-Teststand.

Catalogue: Measuring Instruments / Test Meters / Roughness Tester
Manufacturer: PCE Instruments
US$ 1,668.00

ex. VAT, ex. delivery costs

Test Instruments manufacturer
Order no.: PCE-RT2000-RP110
Curvature Sensor PCE-RT2000-RP110

Curved surface sensor suitable for PCE-RT 1200 und PCE-RT 2000. The sensor is used to measure surfaces with radii.

- Probe for curved surfaces
- Radius > 3mm for PCE-RT 1200 / PCE-RT 2000



N.B. It is recommended to use this sensor with the test stand PCE-RT2000-Teststand.

Catalogue: Measuring Instruments / Test Meters / Roughness Tester
Manufacturer: PCE Instruments
US$ 1,457.00

ex. VAT, ex. delivery costs

Test Instruments manufacturer
Order no.: PCE-RT2000-RP200
Spare Sensor for Roughness-Tester PCE-RT2000-RP200
Spare standard sensor for Roughness-Tester PCE-RT 1200 / PCE-RT 2000.
Catalogue: Measuring Instruments / Test Meters / Roughness Tester
Manufacturer: PCE Instruments
US$ 1,018.00

ex. VAT, ex. delivery costs

Test Instruments manufacturer
Order no.: PCE-RTS 620
Roughness Test Stand PCE-RTS 620

The PCE-RTS 620 is a roughness test stand that works with the PCE-RT 2200. If the Ra value of the surface is low then you should use a test stand to ensure precise measurements.


- Stroke is 300 mm
- Dimensions are 400 x 250 x 70 mm
- Weight is 30 kg



Catalogue: Measuring Instruments / Test Meters / Test Stand
Manufacturer: PCE Instruments
US$ 1,898.00

ex. VAT, ex. delivery costs

Test Instruments manufacturer
Order no.: PCE-RTS 520
Roughness Test Stand PCE-RTS 520

The PCE-RTS 520 is a roughness force test stand that works with the PCE-RT Series. If the Ra value of the surface is low then you should use a test stand to ensure precise measurements.


- Stroke is 200 mm
- Dimensions are 260 x 180 x 12 mm
- Weight is 7.3 kg



Catalogue: Measuring Instruments / Test Meters / Test Stand
Manufacturer: PCE Instruments
US$ 891.00

ex. VAT, ex. delivery costs

Test Instruments manufacturer
Order no.: PCE-RP-131
Probe PCE-RP-131 for Grooves
Sensor probe PCE-RP-131 for grooves for the PCE-RT 2200 Roughness Tester.

-sensor PCE-RP-131 is suited for measuring surfaces in grooves with a minimum width of 3 mm and a maximum depth of 10 mm.

**We recommend using the sensor in combination with a PCE-RTS 620 test stand.

Manufacturer: PCE Instruments
US$ 2,265.00

ex. VAT, ex. delivery costs

Test Instruments manufacturer
