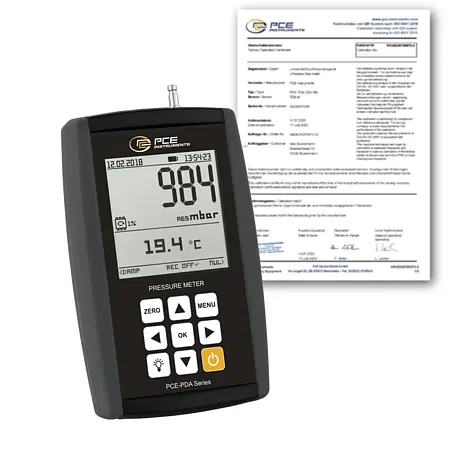

The Pressure Meter PCE-PDA A100L is suitable for measuring atmospheric pressure. This pressure meter records the pressure from absolute zero to 200 kPa. The Pressure Meter can be used for many mobile applications in industry and crafts. This professional Pressure Meter can be operated either with batteries or rechargeable batteries. In battery mode, the USB interface allows the inserted batteries to be charged. The PCE-PDA A100L Pressure Meter is equipped with a large LC display. Display illumination makes it easier to read the measured values even under poor conditions. The pressure is measured by an internally installed sensor.

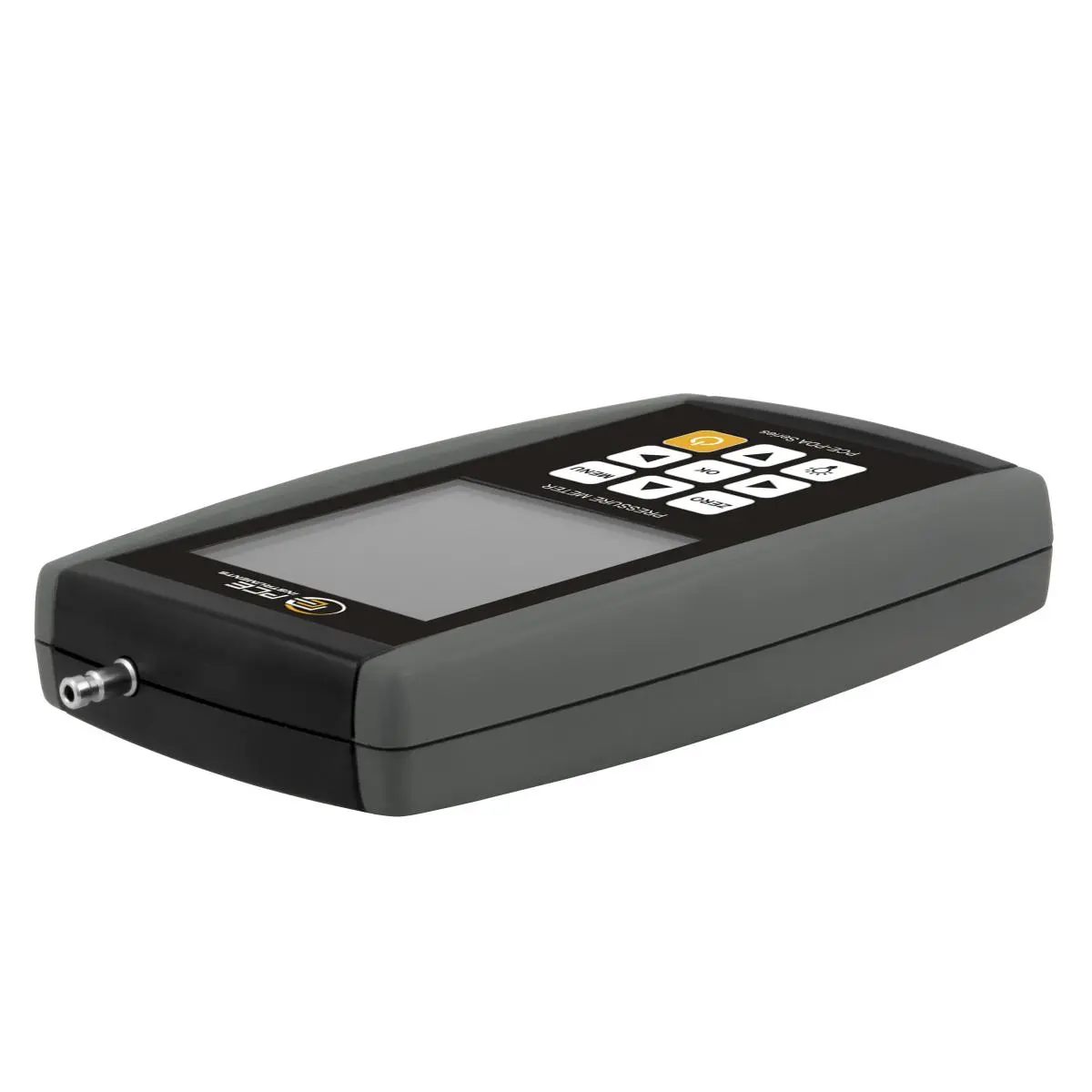

A plug-in nipple is available at the pressure connection. Through it, the pressure of air and liquids can be passed through quick couplings to the sensor. The Pressure Meter has a precision mode that allows the resolution of the measured value to be increased tenfold. In addition to the continuous pressure measurement, the display shows the maximum and minimum measured values directly on the display. At the touch of a button, this storage can be reset. Furthermore, the Pressure Meter performs a temperature measurement. To store the measured values for further documentation purposes, the Pressure Meter has a data logger. Here, the user can specify a storage interval and a recording period during which the measured pressure values are stored.
| Absolute pressure | |
| Measuring range | 0 ... 200 kPa |
| Resolution | 0,01 kPa |
| Accuracy | <±0.5 % of Rd |
| Temperature | |
| Measuring range | 0 ... 50 °C |
| Resolution | 0,1 °C |
| Accuracy | ±1 °C |
| General technical data | |
| Measuring functions | ALARM, HOLD, MAX, MIN, Average value |
| Units | kPa, MPa, Pa, PSF, psi, Torr, inHg, mmHg, inH₂O, cmH₂O, mmH₂O, kg/cm², ATM, bar, mbar, hPa |
| Connections | 5 mm nipple for quick connector |
| Display type | LCD graphic display with backlight |
| Display size | 3 Inch |
| Display refresh rate | 5 x per second |
| Measuring rate | 10 Hz |
| Storage medium | Internal memory |
| Storage capacity | 1024 Values |
| Storage interval from | 1 s |
| Storage interval to | 255 h |
| Interface | Micro-USB |
| Current consumption meter | 50 mA DC |
| Measured medium | non-explosive gases, Air |
| Operating time | 100 h |
| Automatic power-off | 255 min |
| Housing | ABS (acrylonitrile-butadiene-styrene copolymers) |
| Overpressure | 200 kPa |
| Menu language | English, German, Czech |
| Protection class (device) | IP41 |
| Power supply | 5 V, 500 mA |
| Connector type | Device-europlug |
| (Rechargeable) battery | 2 x 1,5 V AA - rechargeable battery , Nickel-metal hydride battery |
| Capacity | 2000 mAh |
| Operating conditions | 0 ... 50 °C , 0 ... 80 % RH |
| Storage conditions | 10 ... 55 °C , 0 ... 80 % RH |
| Dimensions ( L x W x H ) | 170 x 100 x 30 mm |
| Weight | 230 g |
